2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995 Mazda B3000 Clutch Flywheel
View 1
View 2

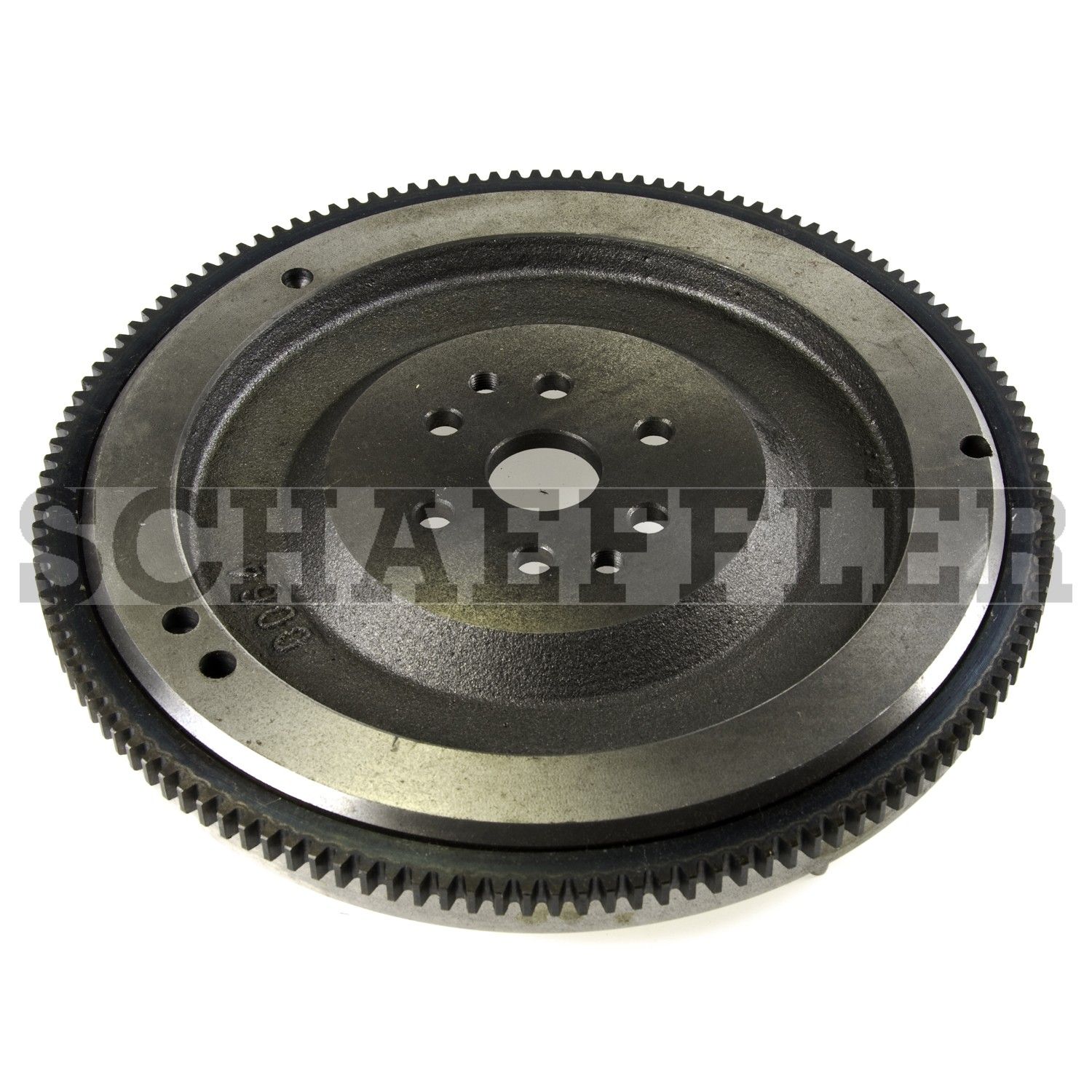

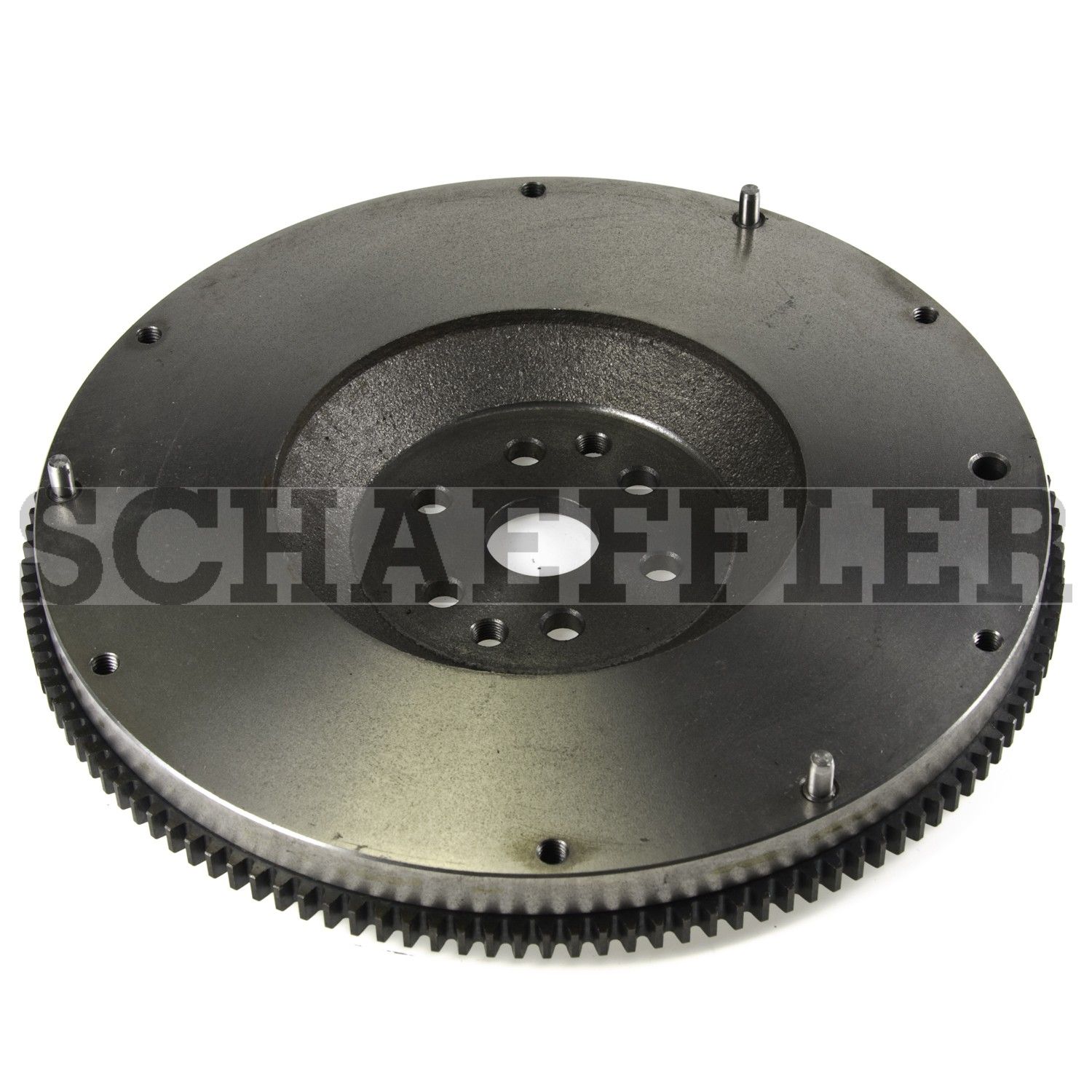

1995 - 2007 Mazda B3000 Clutch Flywheel (LuK) NEW

$ 96 .75
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Refer to LB194 regarding the slave cylinder release bearing.

LuK: New flywheels are a smart alternative! The flywheel is an integral part of clutch replacement. It must provide a smooth, flat surface for proper clutch operation. Pairing your clutch set with a new LuK flywheel is a smart, cost-effective alternative to resurfacing. All new - never remanufactured – every component is engineered and manufactured to OE specifications, including ring gear.
Brand: LuK
Condition: New
See Other Mazda B3000 Clutch Flywheels
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Bolt Hole Pattern 2
Bolt Hole PCD Clutch Pres.plte 10.2362, 260
Bolt Hole PCD Crankshaft 2.7559, 70
Centering Diameter / Dowel Hole 10.2362, 260
Crank Hole Dia. 0.4055, 10.3
Crank To Friction Surface 1.1496, 29.2
Dowel Hole Pattern 5
Dowel Hole Diameter 0.248, 6.3
Flange Thickness 0.3031, 7.7
Flywheel Friction Surface Inner Diameter 145, 5.7087
Flywheel Thickness [mm] 1.1811, 30
Flywheel Friction Surface Outer Diameter 250, 9.8425
Flywheel Matches Clutch Flywheel Matches Clutch
Has Dowel Pins With Dowel Pins
I.D. For Pilot 1.2598, 32
Number Of Teeth, Starter Ring Gear 132
Overall Casting O.D. 10.8268, 275
Ring Gear Chamfer Position @ 6:00 O´clock Not Available
Ring Gear Chamfer Side Not Available
Ring Gear Major Dia. 11.2677, 286.2
Ring Gear Mounting O.D. 10.1575, 258
Ring Gear Thickness 0.3807, 9.67

Vehicle Fitment Guide

This part fits the following vehicles:

Mazda 1 model (tapclick to expand)(tapclick to hide)
B3000 1995-2007 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cab Pickup 2005 - 2007 V6 3.0L RWD Automatic & Manual
Base Extended Cab Pickup 2005 V6 3.0L 4WD Automatic & Manual
Base Extended Cab Pickup 2002 V6 3.0L FLEX 4WD Automatic & Manual
Base Extended Cab Pickup 1995 - 1996, 2002 V6 3.0L 4WD Automatic & Manual
Base Standard Cab Pickup 1997, 2005 V6 3.0L RWD/4WD Automatic & Manual
DS Extended Cab Pickup 2005 - 2007 V6 3.0L RWD Automatic & Manual
DS Extended Cab Pickup 2001 - 2004 V6 3.0L RWD Automatic & Manual
DS Extended Cab Pickup 2001 - 2003 V6 3.0L FLEX RWD Automatic & Manual
DS Standard Cab Pickup 2001 - 2007 V6 3.0L RWD Automatic & Manual
DS Standard Cab Pickup 2001 - 2003 V6 3.0L FLEX RWD Automatic & Manual
SE Extended Cab Pickup 1999 - 2001 V6 3.0L FLEX 4WD Automatic & Manual
SE Extended Cab Pickup 1999 - 2001, 2003 V6 3.0L FLEX RWD Automatic & Manual
SE Extended Cab Pickup 1999 - 2001 V6 3.0L FLEX RWD/4WD Automatic & Manual
SE Extended Cab Pickup 1998 - 1999, 2001 V6 3.0L 4WD Automatic & Manual
SE Extended Cab Pickup 1998 - 1999, 2001 V6 3.0L 4WD Automatic & Manual
SE Extended Cab Pickup 1998 - 1999, 2001, 2003 - 2004 V6 3.0L RWD Automatic & Manual
SE Extended Cab Pickup 1995 - 1996, 1998 - 1999, 2001 V6 3.0L RWD Automatic & Manual
SE Standard Cab Pickup 1999 - 2001 V6 3.0L FLEX RWD/4WD Automatic & Manual
SE Standard Cab Pickup 1998 - 1999, 2001 V6 3.0L 4WD Automatic & Manual
SE Standard Cab Pickup 1995, 1998 - 1999, 2001 V6 3.0L RWD Automatic & Manual
SX Standard Cab Pickup 2000 V6 3.0L FLEX RWD Automatic & Manual
SX Standard Cab Pickup 1998 V6 3.0L 4WD Automatic & Manual
Troy Lee Extended Cab Pickup 1999 - 2000 V6 3.0L FLEX RWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
LuK: New flywheels are a smart alternative! The flywheel is an integral part of clutch replacement. It must provide a smooth, flat surface for proper clutch operation. Pairing your clutch set with a new LuK flywheel is a smart, cost-effective alternative to resurfacing. All new - never remanufactured – every component is engineered and manufactured to OE specifications, including ring gear.

Interchange Parts

Brand Part Number
AMS Automotive 167741
Mazda ZZM4-11-500
NAPA Clutch and Flywheel 88138
PERFECTION 50-741
Sachs NFW1152
Valeo V2801

Fits Years: 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007

Fits Models: B3000
