2024, 2023, 2022, 2021, 2020, 2019 Mercedes-Benz Sprinter 2500 2019-2024 Mercedes-Benz Sprinter 1500 Disc Brake Pad Set
View 1

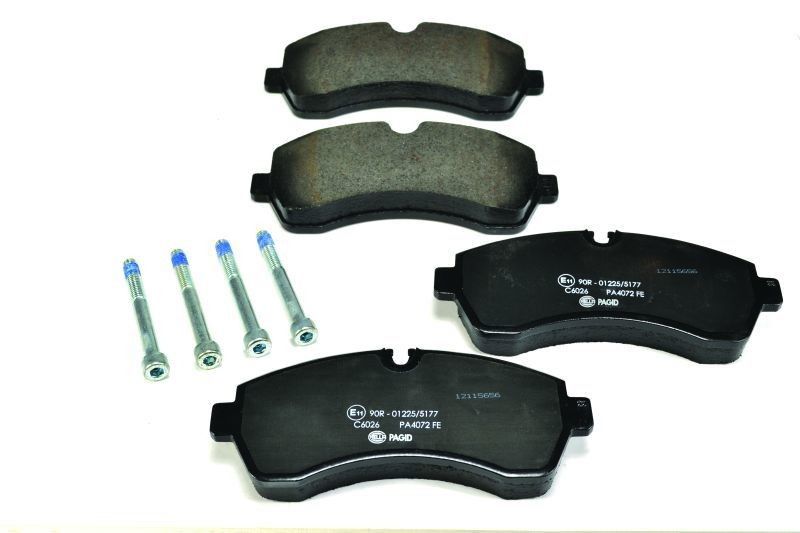

View 2

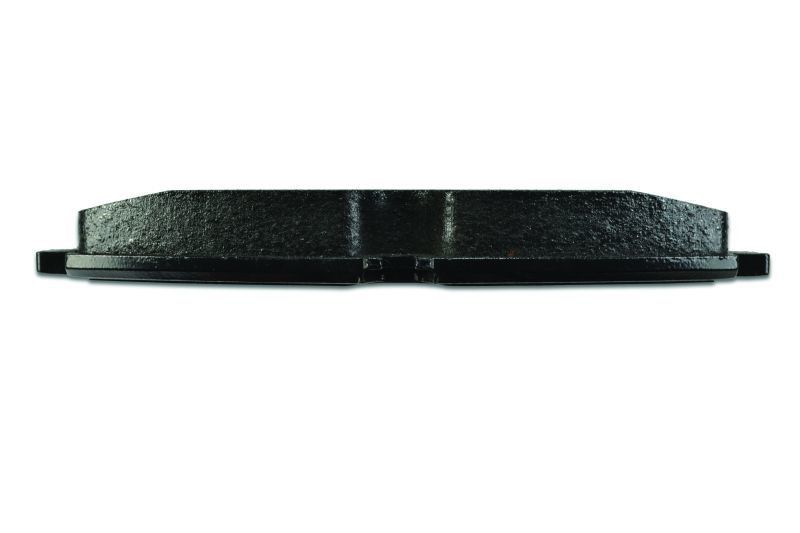

View 3

2019 - 2024 Mercedes-Benz Sprinter 2500 2019-2024 Mercedes-Benz Sprinter 1500 Disc Brake Pad Set - Front (Pagid) NEW

$ 72 .02
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Front
OE Formulated Friction Material
Low-Metallic Pads
The all-new HELLA PAGID CERAMIC SILVER brake pads have been developed and tested with two definitive objectives in mind – surpass OE quality standards and to meet or surpass all SAE/ECE highway standards and the individual needs of our customers.Extensive testing conducted in our in-house research and development centers confirm our CERAMIC SILVER friction material meets the highest technical demands when it comes to safety, performance, comfort, and durability.
Brand: Pagid
Condition: New
See Other Mercedes-Benz Sprinter 2500 Disc Brake Pad Sets
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Abutment Clips Included Yes
Adhesive Backed Pad Shim Yes
Assy/Disassy By Qualified Personnel Required! .
Brake Lubricant Included No
Brake System Brembo
California Proposition 65 Required No
Chamfered Edges Yes
ECE R90 Certified Yes
Friction Material Composition Low-metallic
Grade Type Standard Replacement
Inner Pad Friction Material Thickness 20.7

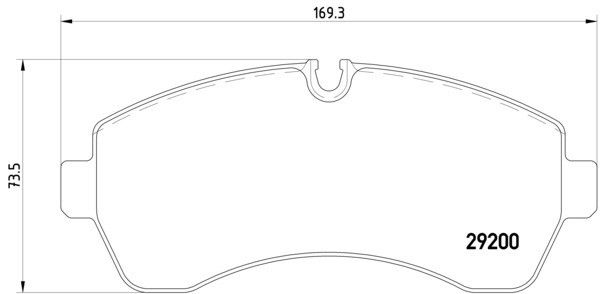

Inner Pad Height 73.4
Inner Pad Width 169.3
Mounting Hardware Included Yes
Outer Pad Friction Material Thickness 20.7
Outer Pad Height 73.4
Outer Pad Width 169.3
Pad Quantity 4
Pad Shims Included Yes
Pad Wear Sensor Included No
Prepared For Pad Wear Sensor Yes
Slotted Yes
Technical Information Number C6026
WVA Number 29200
Wear Warning Contact Prepared For Wear Indicator
Weight [kg] 2.9

Vehicle Fitment Guide

This part fits the following vehicles:

Mercedes-Benz 1 model (tapclick to expand)(tapclick to hide)
Sprinter 2500 2019-2024 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Crew Van 2023 - 2024 L4 2.0L DIESEL Turbo AWD/RWD Automatic
Base Crew Van 2023 L4 2.0L Turbo AWD Automatic
Base Crew Van 2020 - 2022 L4 2.1L DIESEL Turbo RWD/4WD Automatic
Base Crew Van 2019 - 2023 L4 2.0L Turbo RWD Automatic
Base Crew Van 2019 - 2022 L4 2.0L Turbo 4WD Automatic
Base Crew Van 2019 - 2022 V6 3.0L DIESEL Turbo RWD/4WD Automatic
Base Extended Cargo Van 2023 - 2024 L4 2.0L DIESEL Turbo AWD/RWD Automatic
Base Extended Cargo Van 2023 L4 2.0L Turbo AWD Automatic
Base Extended Cargo Van 2020 - 2022 L4 2.1L DIESEL Turbo RWD/4WD Automatic
Base Extended Cargo Van 2019 - 2023 L4 2.0L Turbo RWD Automatic
Base Extended Cargo Van 2019 - 2022 L4 2.0L Turbo 4WD Automatic
Base Extended Cargo Van 2019 - 2022 V6 3.0L DIESEL Turbo RWD/4WD Automatic
Base Standard Cargo Van 2023 - 2024 L4 2.0L DIESEL Turbo AWD/RWD Automatic
Base Standard Cargo Van 2023 L4 2.0L Turbo AWD Automatic
Base Standard Cargo Van 2020 - 2022 L4 2.1L DIESEL Turbo RWD/4WD Automatic
Base Standard Cargo Van 2019 - 2023 L4 2.0L Turbo RWD Automatic
Base Standard Cargo Van 2019 - 2022 L4 2.0L Turbo 4WD Automatic
Base Standard Cargo Van 2019 - 2022 V6 3.0L DIESEL Turbo RWD/4WD Automatic
Base Standard Passenger Van 2023 - 2024 L4 2.0L DIESEL Turbo AWD/RWD Automatic
Base Standard Passenger Van 2023 L4 2.0L Turbo AWD Automatic
Base Standard Passenger Van 2020 - 2022 L4 2.1L DIESEL Turbo RWD/4WD Automatic
Base Standard Passenger Van 2019 - 2023 L4 2.0L Turbo RWD Automatic
Base Standard Passenger Van 2019 - 2022 L4 2.0L Turbo 4WD Automatic
Base Standard Passenger Van 2019 - 2022 V6 3.0L DIESEL Turbo RWD/4WD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
The all-new HELLA PAGID CERAMIC SILVER brake pads have been developed and tested with two definitive objectives in mind – surpass OE quality standards and to meet or surpass all SAE/ECE highway standards and the individual needs of our customers.Extensive testing conducted in our in-house research and development centers confirm our CERAMIC SILVER friction material meets the highest technical demands when it comes to safety, performance, comfort, and durability.

Interchange Parts

Brand Part Number
AISIN BPVW1020
Akebono AN4493K
Akebono AN4493KE
AMC FO921481
AMC PD661
AMC PD661CVADVANCED
Ashuki P11146
ATE 13046048272
ATE 604827
Bendix 510670
Bendix 573509B
Bendix DB1974
Bendix DB1974HD
Blue Print ADU174211
Borg & Beck BBP2147
Bosch 0 986 494 194
Bosch 0 986 495 107
Bosch 0 986 TB2 946
Brake Engineering PA1703
Brembo P50059
Brembo P50059G
Brembo P50059N
Cifam 8226730
Delphi LP1981
DON PCP1674
DON PCP2074
Dynamic Friction Company 1214-1268-00
Dynamic Friction Company 1214-1268-01
Dynamic Friction Company 1214-1268-02
Dynamic Friction Company 1311-1268-00
Dynamic Friction Company 1311-1268-01
Dynamic Friction Company 1311-1268-02
Dynamic Friction Company 1551-1268-00
Dynamic Friction Company 1551-1268-01
Dynamic Friction Company 1551-1268-02
EBC Brakes DP1928
Evobus 0044206820
Evobus 0044208220
Evobus A0044206820
Evobus A0054205320
Ferodo FSL1777
Ferodo FVR1777
Ferodo FVR4470
Ferodo HQF2324C
FMSI Automotive Hardware 1268-8383
FMSI Automotive Hardware D1268
FMSI Automotive Hardware D1268-8383
FREMAX BRAKE ROTORS AND DRUMS FBP1639
FTE 9001057
FTE 9010599
FTE BL2012A4
FTE PBW466BLA
Girling 6116969
Hella Pagid 8DB355005531
Japan Parts PA0539AF
JapKo 500539
Jurid 2920009560
Jurid 573761J
Key Parts KBP2147
LPR 05P1295
LPR 05P1295A
LPR 05P1295K
Magneti Marelli 323700016600
Magneti Marelli 323700033000
Magneti Marelli 363700036026
Magneti Marelli 363916060647
Magneti Marelli C6026MM
Mapco 6797
MaXgear 190675
Mercedes-Benz 004 420 68 20
Mercedes-Benz 004 420 82 20
Mercedes-Benz 004 420 82 20 27
Mercedes-Benz 005 420 53 20
Mercedes-Benz 008 420 47 20
Mercedes-Benz 0084204720
Mercedes-Benz 420 200 04 82
Mercedes-Benz 906 421 08 00
Mercedes-Benz 9104219000
Mercedes-Benz A 004 420 68 20
Mercedes-Benz A 004 420 82 20
Mercedes-Benz A 004 420 82 20 27
Mercedes-Benz A 005 420 53 20
Mercedes-Benz A 008 420 47 20
Mercedes-Benz A 420 200 04 82
Mercedes-Benz A 906 421 03 00
Mercedes-Benz A 906 421 08 00
Mercedes-Benz A9104219000
METELLI 2206730
MEYLE 0252920020
MEYLE 0252920020PD
Mintex MDB2804
Mintex MDB4311
Mintex MVK0032
NK Autoparts 223364
Optimal 12296
Optimal BP12296
PE 08633900A
PEX USA 7820
Quinton Hazell BP1554
Remsa 124300
Roadhouse 2124300
Textar 2920001
Textar 2920002
Textar 2920020704
Textar 2920070
Textar TX0931
Textar TX0932
Tridon 811010560
TRW GDB1696
TRW Steering and Suspension Parts TRH2236
VAICO V108257
Valeo 301881
Valeo 598881
Valeo 670881
Valeo 872200
Volkswagen 2E0 069 815 G
Volkswagen 2E0698151G
Volkswagen JZW698151AA
Wagner SX1268
Wagner WBP29200A
Werner Metzger GmbH 1243.00
Zimmermann 292002051
Zimmermann 292002052

Fits Years: 2019 2020 2021 2022 2023 2024

Fits Models: Sprinter 2500
