| Attribute | Value |
|---|---|
| 100.0 | |
| Attribute ID (Type) | California Proposition 65 |

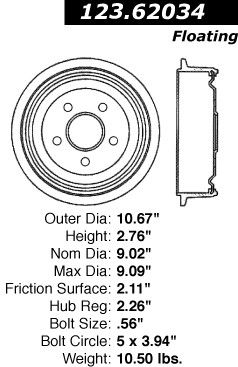

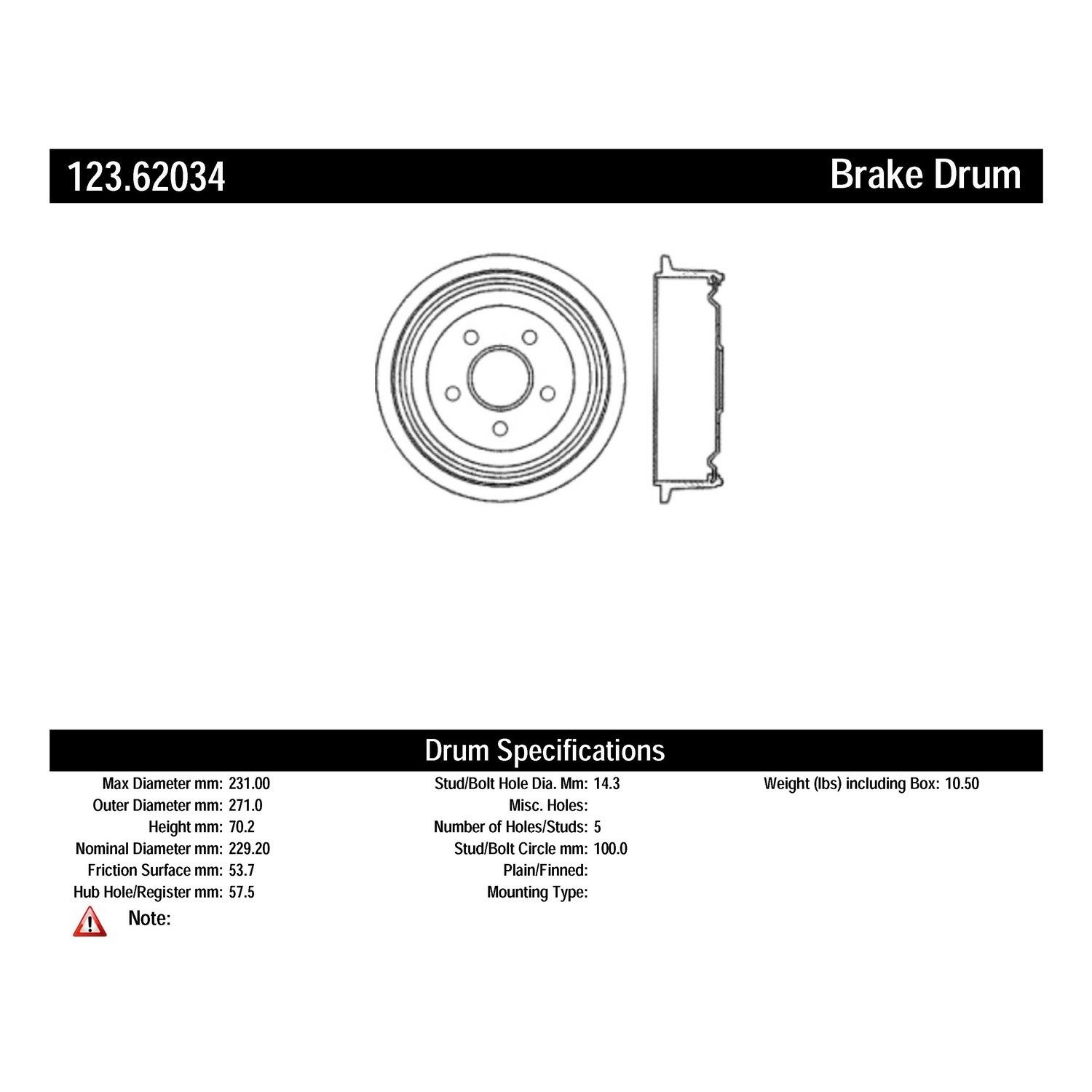

| Bolt Circle Diameter [cntrc] In | 3.937 |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width [cntrc] In | 2.110 |
| Friction Surface Width [cntrc] Mm | 53.594 |
| Friction Surface Mm | 53.7 |
| Height [cntrc] In | 2.760 |
| Height [cntrc] Mm | 70.104 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Maximum Brake Diameter (Discard) | 231.00, 231.000, 9.094 |
| Mounting Hole Diameter | 0.560, 14.224, 14.3 |
| Mounting Type [cntrc] | Floating |
| Nominal Drum Diameter | 229.20, 229.200, 9.024 |
| Outer Cooling Fins | No |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Coupe | 2005 | L4 2.2L | FWD Automatic & Manual |
| Base | Sedan | 2004 - 2005 | L4 2.2L | FWD Automatic & Manual |
| GT | Coupe | 2003 | L4 2.2L | FWD Automatic & Manual |
| SE | Coupe | 2003 - 2004 | L4 2.2L | FWD Automatic & Manual |
| SE | Sedan | 2003 - 2004 | L4 2.2L | FWD Automatic & Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Bendix | 140762 |
| Bendix | PDR0762 |
| BrakeBest | 9746DGS |
| IAP/Kuhltek Motorwerks | BD80107 |
| Mighty Distributing System | 80107 |
| Pep Boys | 80107G |
| Raybestos Brakes | 9746 |
| Raybestos Brakes | 9746R |
| Wagner Brake | 52-126020 |
| Wagner Brake | 52126020 |
| Wagner Brake | BD126020 |
Fits Years: 2003 2004 2005
Fits Models: Sunfire
