| Attribute | Value |
|---|---|
| 130.00 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

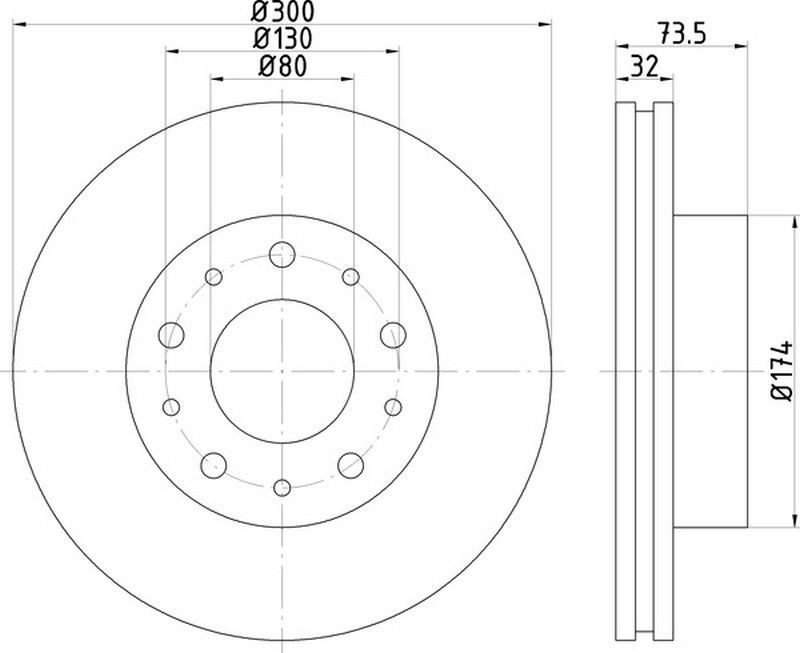

| Bolt Hole Circle Ø [in] | 5.12 |
| Bolt Hole Circle Ø [mm] | 130 |
| Brake Disc Thickness [in] | 1.26 |
| Brake Disc Thickness [mm] | 32 |
| Brake Disc Type | Internally Vented |
| California Proposition 65 Required | No |
| Center Hole Diameter | 120.0 |
| Centering Diameter [in] | 3.15 |
| Construction | Full Cast |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 29.90 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/10 |
| Hole Arrangement/Number | 05/10 |
| Inner Diameter [in] | 6.34 |
| Inside Diameter | 80.0 |
| Material | Gray Cast Iron |
| Minimum Thickness [mm] | 29,9, 29.9 |
| Mounting Bolt Hole Circle Diameter | 130.00 |
| Nominal Thickness | 32.00 |
| Outer Diameter [in] | 11.81 |
| Overall Height | 73.50 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 54573pro |
| Weight [kg] | 10,5, 10.5 |
| Wheel Bolt Bore Diameter [mm] | 17.8 |
| Wheel Bolt Bore Ø [mm] | 17.8 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Cab & Chassis | 2015 - 2018 | L4 3.0L DIESEL Turbo | FWD Automatic |
| Base | Cab & Chassis | 2015 - 2017 | L4 3.0L DIESEL Turbo | FWD Manual |
| Base | Cab & Chassis | 2015 - 2018 | V6 3.6L FLEX | FWD Automatic |
| Base | Cab & Chassis | 2015 - 2017 | V6 3.6L FLEX | FWD Manual |
| Base | Standard Cargo Van | 2014 - 2018 | L4 3.0L DIESEL Turbo | FWD Automatic |
| Base | Standard Cargo Van | 2014 - 2017 | L4 3.0L DIESEL Turbo | FWD Manual |
| Base | Standard Cargo Van | 2014 - 2016 | V6 3.6L | FWD Automatic |
| Base | Standard Cargo Van | 2014 - 2019 | V6 3.6L FLEX | FWD Automatic |
| Base | Standard Cargo Van | 2014 - 2017 | V6 3.6L FLEX | FWD Manual |
| Ventanas | Extended Cargo Van | 2017 - 2019 | V6 3.6L FLEX | FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Akebono | BN0206 |
| Akebono | BN0206E |
| Akebono | BN0207 |
| Akebono | BN0207E |
| AMC | FO4122 |
| ATE | 24013201311 |
| ATE | 24013201881 |
| ATE | 432131 |
| Bendix | 521714 |
| Bendix | 522135 |
| Bendix | 562630BC |
| Blue Print | ADP154328 |
| Borg & Beck | BBD5805S |
| Borg & Beck | BBD6125S |
| Bosch | 0986479315 |
| Bosch | 0986AB5681 |
| Bosch | F026A06815 |
| Brake Engineering | DI956708 |
| Brembo | 09A45810 |
| Brembo | 09A45811 |
| Brembo | 09A45814 |
| Brembo | 09D01811 |
| Cifam | 800885C |
| Citroen | 1607872380 |
| Citroen | 1611841280 |
| Citroen | 1687773080 |
| Delphi | BG4060 |
| Delphi | BG4060T |
| Delphi | BG9180C |
| DON | PCD19491 |
| Febi-Bilstein | 44037 |
| Ferodo | DDF1718 |
| Ferodo | DDF17181 |
| Ferodo | DDF27951 |
| Ferrari | 517 0575 8 |
| Ferrari | 517 4024 9 |
| Ferrari | 519 5750 9 |
| Ferrari | 519 5751 0 |
| FREMAX BRAKE ROTORS AND DRUMS | BD4622 |
| FTE | 9071249 |
| FTE | 9081005 |
| FTE | BS7170 |
| FTE | BS7170B |
| Girling | 6047515 |
| Hella Pagid | 54573PRO |
| Hella Pagid | 8DD355125261 |
| Japan Parts | DI0239 |
| Japan Parts | DI0239C |
| Jurid | 562630JC |
| Jurid | 562630JC1 |
| Jurid | 563305J1 |
| Jurid | 563305JC1 |
| LPR | C1012V |
| LPR | C1012VR |
| LPR | F2024V |
| Magneti Marelli | 3.60406E+11 |
| Magneti Marelli | 360406180301 |
| Magneti Marelli | 360407100000 |
| Mapco | 25040C |
| METELLI | 230885C |
| MEYLE | 2155210021 |
| MEYLE | 2835210021PD |
| Mintex | MDC2006 |
| Mintex | MVK0012 |
| Mintex | MVK0042 |
| NK Autoparts | 201950 |
| NK Autoparts | 201959 |
| NK Autoparts | 311950 |
| NK Autoparts | 311959 |
| Optimal | BS8378 |
| Optimal | BS8378HC |
| Optimal | BS9766HC |
| PAGID Racing | 54573 |
| Peugeot | 1612435380 |
| Peugeot | 1612435480 |
| Peugeot | 1618864580 |
| Peugeot | 4249.37 |
| Peugeot | 4249.38 |
| Peugeot | 4249.A6 |
| Ram | 68195026AA |
| Remsa | 6101610 |
| Remsa | 6160010 |
| SBS | 1815201950 |
| SBS | 1815201959 |
| SBS | 1815311950 |
| SBS | 1815311959 |
| Textar | 92157300 |
| Textar | 92157303 |
| Textar | 92157305 |
| Textar | 98200157301 |
| Triscan | 8120101006 |
| TRW | DF4751S |
| VAICO | V2440031 |
| VAICO | V4280006 |
| Valeo | 197565 |
| Valeo | 672934 |
| Zimmermann | 180303020 |
| Zimmermann | 230237400 |
| Zimmermann | 230237420 |
| Zimmermann | 230237470 |
| Zimmermann | 230237472 |
| Zimmermann | 230237475 |
Fits Years: 2014 2015 2016 2017 2018 2019
Fits Models: ProMaster 2500
