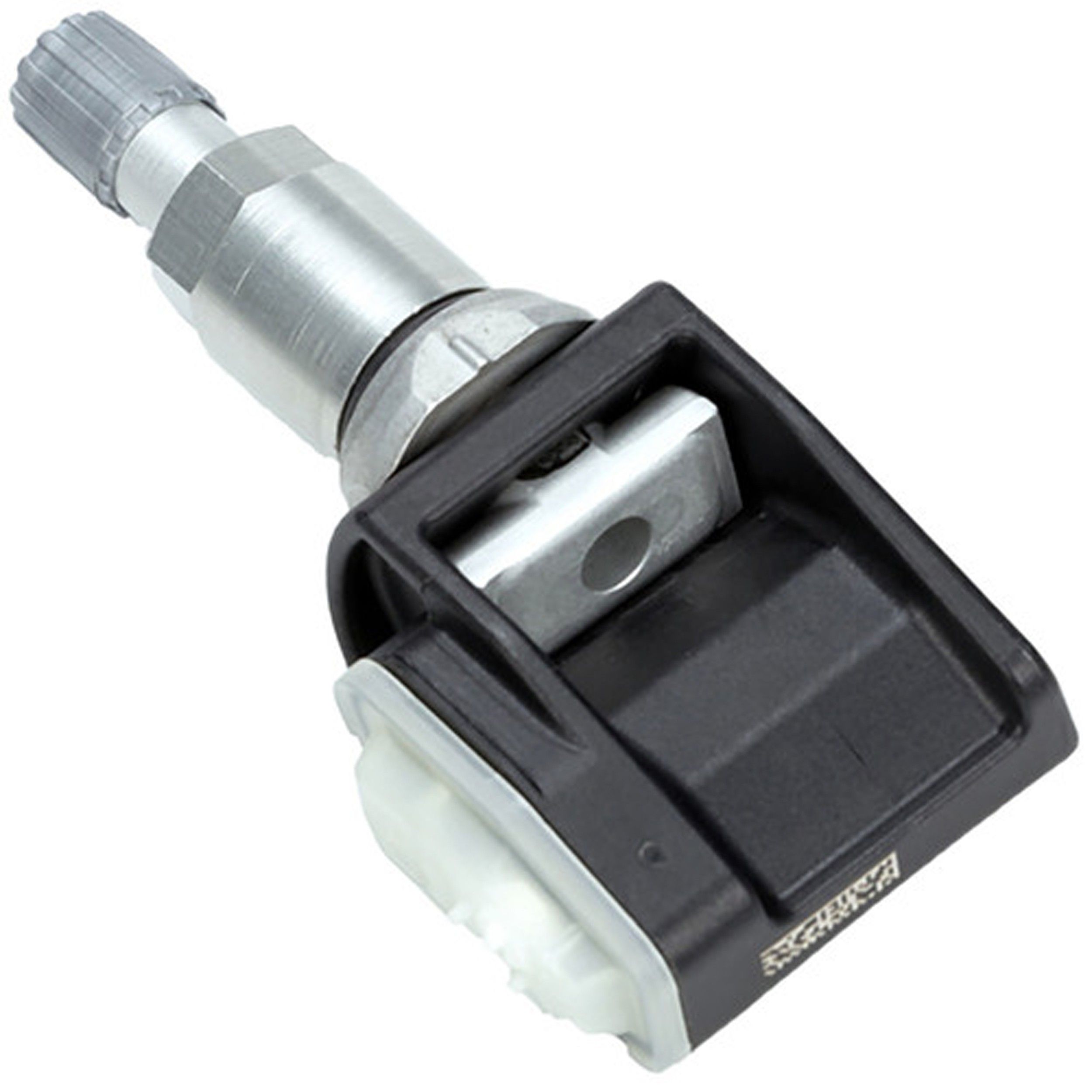

2016, 2015 Ram ProMaster City Tire Pressure Monitoring System (TPMS) Sensor
View 1

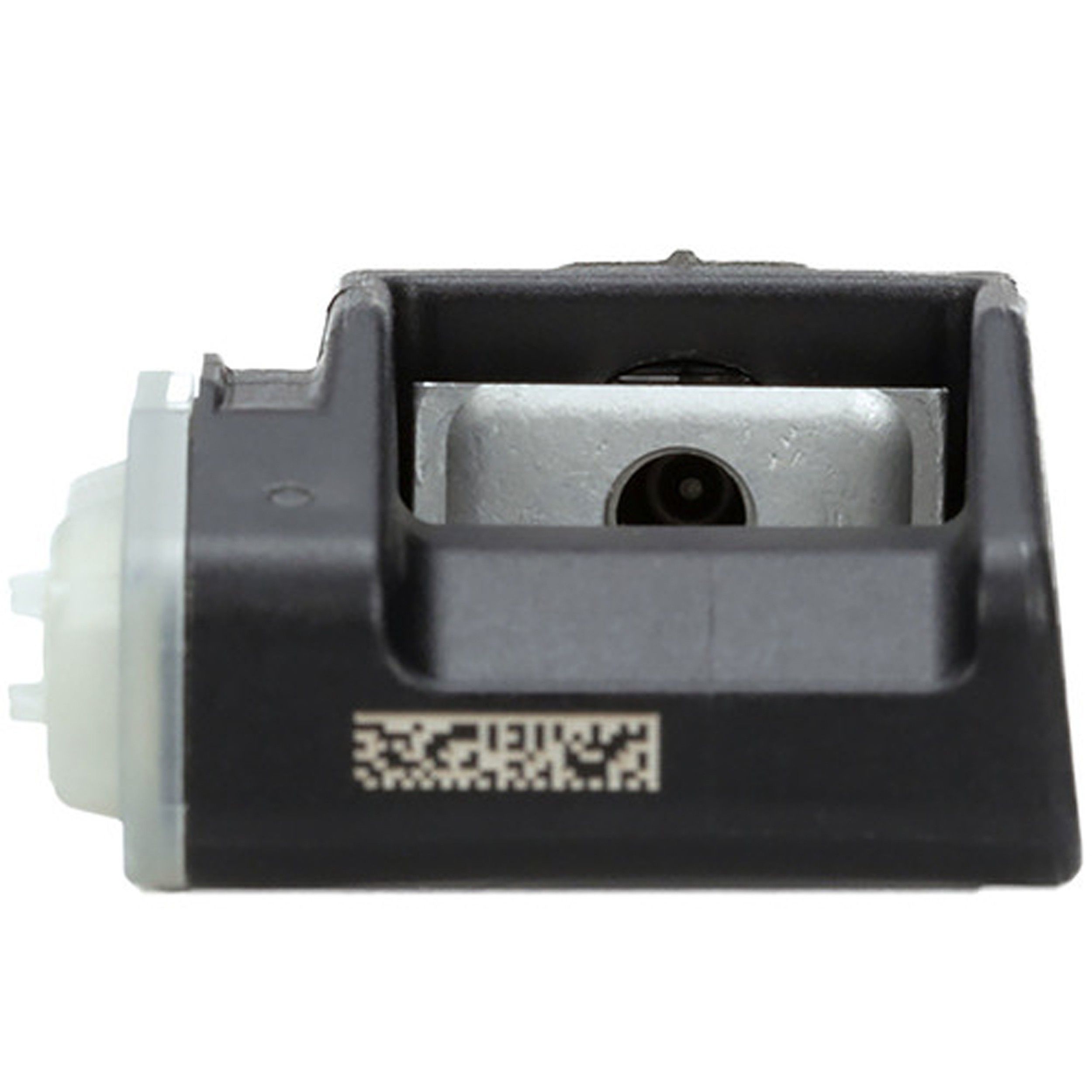

View 2

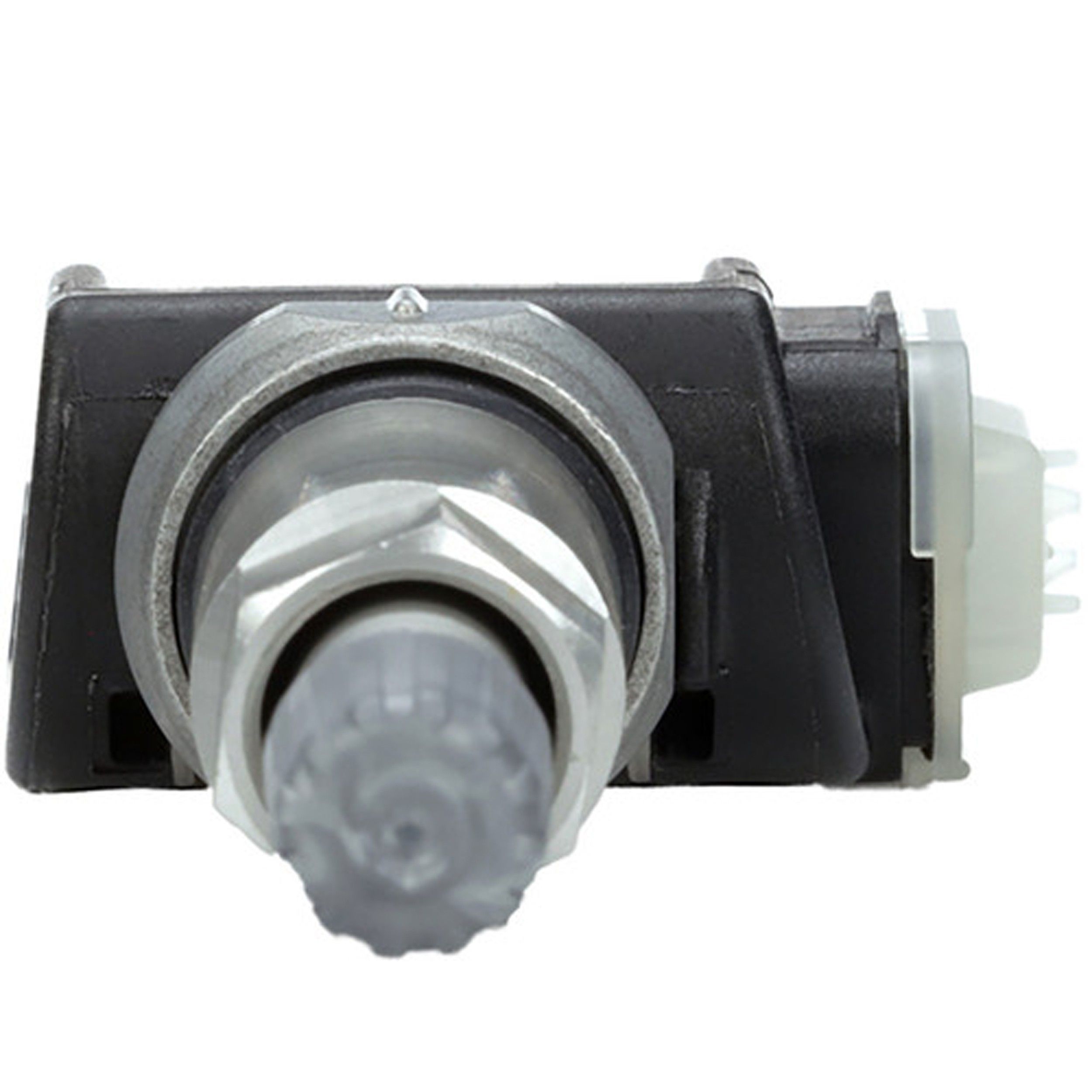

View 3

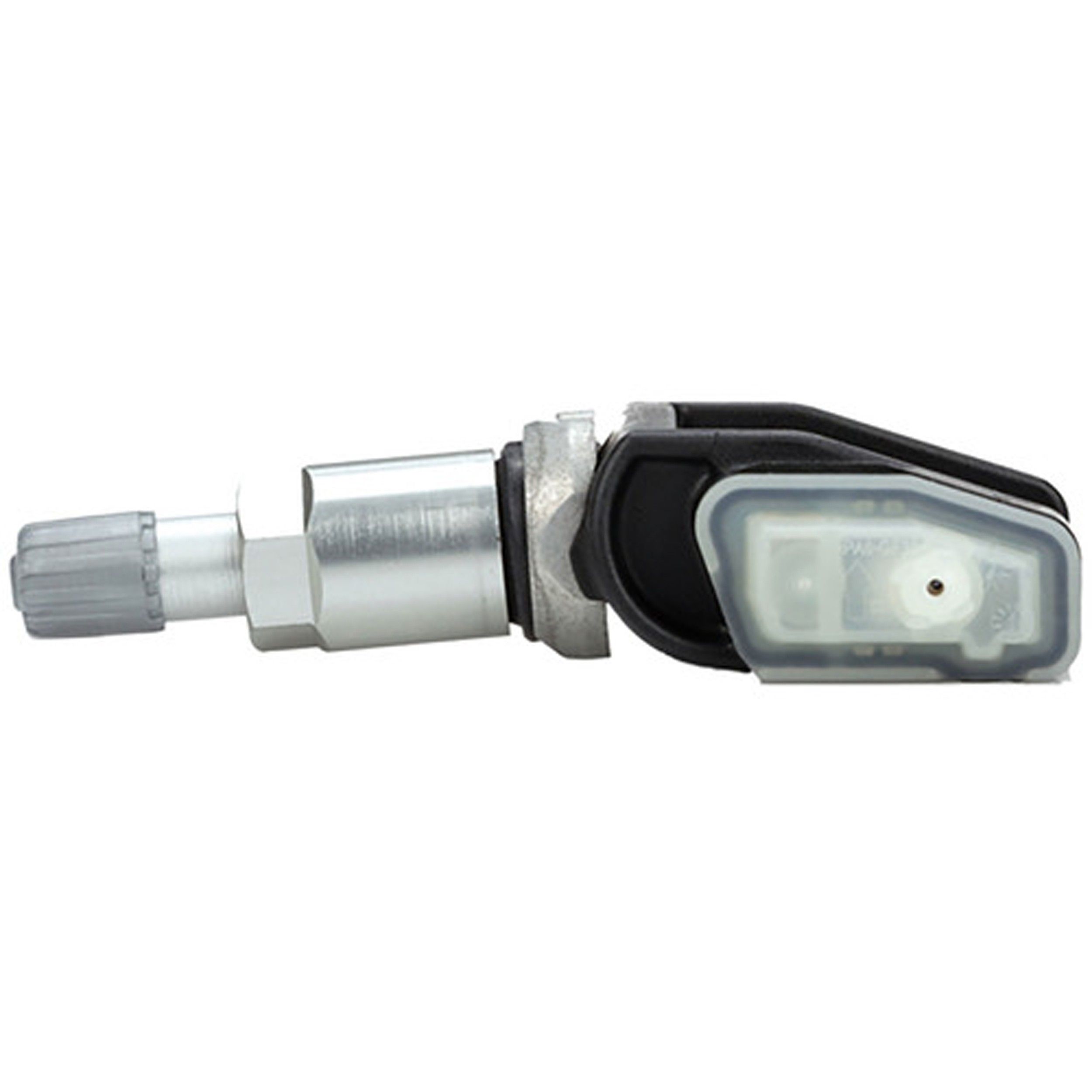

View 4

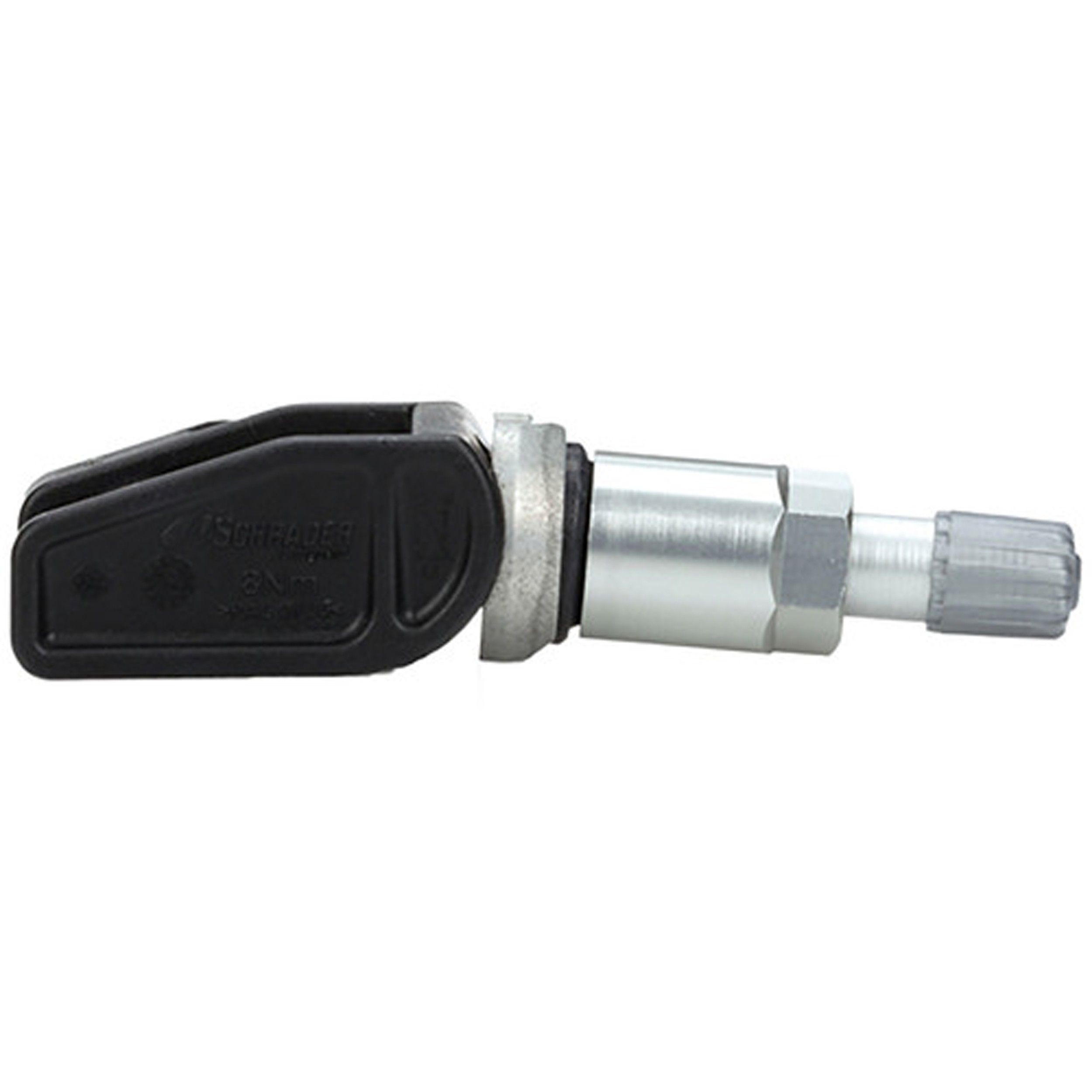

View 5

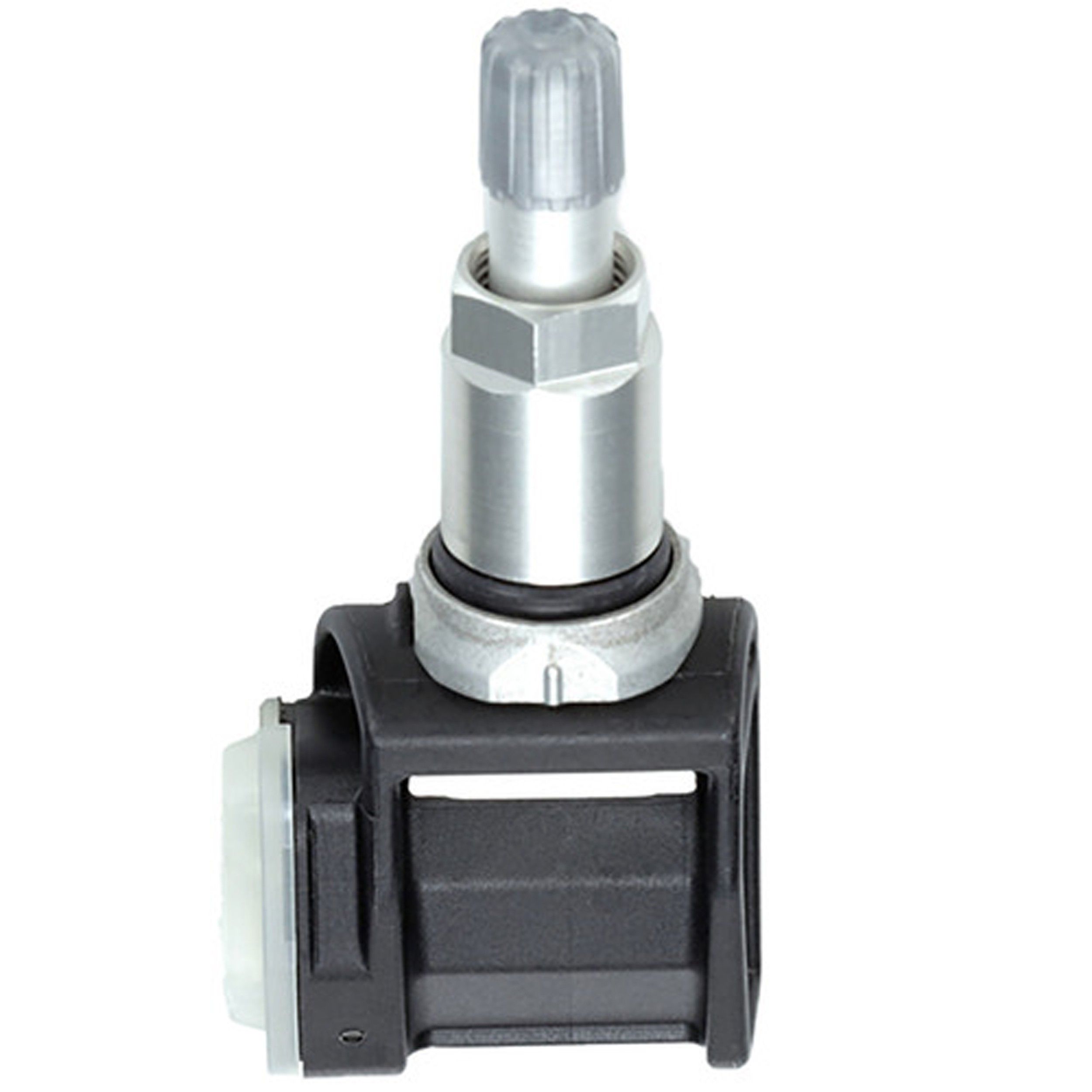

View 6

2015 - 2016 Ram ProMaster City Tire Pressure Monitoring System (TPMS) Sensor (Schrader) NEW

$ 45 .77

Product Notes

⚠️ Most jobs typically require 4 of this item.
Supersession (ACES) Replaces 28983 Mounting Method: Clamp-in Torque: Nut torque = 53in-lbs, 6Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Schrader is the leading global manufacturer of tire pressure monitoring systems (TPMS), and its direct OE TPMS technology can be found in over 50% of vehicles globally. Matching OE quality and performance standards, Schrader sensors undergo extensive OE quality testing, including high speed and extreme temperature tests. Schrader’s global presence as the leading OE supplier means that OE quality and performance come standard with Schrader’s genuine OE replacement sensors. TPMS sensor is not a DIY product and requires appropriate skills, knowledge, and equipment for service. A vehicle-specific relearn procedure must be performed after the sensor is installed, requiring a TPMS programming and diagnostic tool with OBD capability.
Brand: Schrader
Condition: New
See Other Ram ProMaster City Tire Pressure Monitoring System (TPMS) Sensors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Attachment Method Clamp-in
California Prop 65 Warning Label (Text) Warning: This Product Can Expose You To Chemicals Including Lead, Which Is Known To The State Of California To Cause Cancer And Birth Defects And Other Reproductive Harm. For More Information, Go To Www.p65warnings.ca.gov
Frequency 433.0
Grommets Included Yes
Manufacturer Warranty 2 Years
Mounting Hardware Included Yes
Mounting Location Wheel
Mounting Method Clamp-in
Programmable Yes
Recommended Torque (N M) 4 N-m
Recommended Torque (in/Lbs) 35 Inch/lbs.
Valve Cap Included Yes
Valve Color Silver
Valve Core Material Nickel Plated
Valve Material Aluminum
Valve Stem Included Yes
Washer Included No

Vehicle Fitment Guide

This part fits the following vehicles:

Ram 1 model (tapclick to expand)(tapclick to hide)
ProMaster City 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Mini Passenger Van 2015 - 2016 L4 2.4L FWD Automatic
SLT Mini Cargo Van 2015 - 2016 L4 2.4L FWD Automatic
SLT Mini Passenger Van 2015 - 2016 L4 2.4L FWD Automatic
ST Mini Cargo Van 2015 - 2016 L4 2.4L FWD Automatic
ST Mini Passenger Van 2015 - 2016 L4 2.4L FWD Automatic
Tradesman Mini Cargo Van 2015 - 2016 L4 2.4L FWD Automatic
Tradesman SLT Mini Cargo Van 2015 - 2016 L4 2.4L FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Schrader is the leading global manufacturer of tire pressure monitoring systems (TPMS), and its direct OE TPMS technology can be found in over 50% of vehicles globally. Matching OE quality and performance standards, Schrader sensors undergo extensive OE quality testing, including high speed and extreme temperature tests. Schrader’s global presence as the leading OE supplier means that OE quality and performance come standard with Schrader’s genuine OE replacement sensors. TPMS sensor is not a DIY product and requires appropriate skills, knowledge, and equipment for service. A vehicle-specific relearn procedure must be performed after the sensor is installed, requiring a TPMS programming and diagnostic tool with OBD capability.

Interchange Parts

Brand Part Number
Chrysler 68157568AA
Chrysler 68239720AB
Chrysler 68239729AA
Chrysler 68249201AA
Dill Air Control 6815
Echlin Ignition Parts 921232
Huf RDE084V21
Huf RDE227V43
Ram Trucks 68239720AA
Ram Trucks 68249197AA
Standard Motor Products TPM204
VDO SE52081

Fits Years: 2015 2016

Fits Models: ProMaster City
