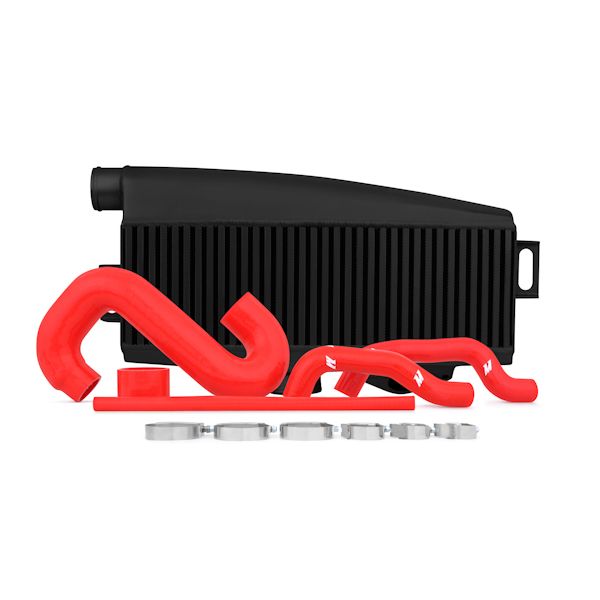

2006, 2005 Saab 9-2X Turbocharger Intercooler

2005 - 2006 Saab 9-2X Turbocharger Intercooler (Mishimoto) NEW

Out of Stock
$ 776 .95

Product Notes

Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Brand: Mishimoto
Condition: New
See Other Saab 9-2X Turbocharger Intercoolers
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
CARB EO Number D-759
Install Difficulty 3
Installation Difficulty 3
Prop 65 (C, R Or CR) Cr
SellingPoint01 Direct Fit For The 2002-2007 Subaru Wrx/sti
SellingPoint02 High Efficiency Bar-and-plate Core Provides Increased Volume, Optimal Heat Transfer, And Significantly Reduces Aits
SellingPoint03 Durable And Precision Engineered Cast Aluminum End Tanks Provide Smooth Flow
SellingPoint04 Includes Silicone Bypass Hose, Silicone Crankcase Ventilation Hose, Bypass Valve Gasket, T-bolt Clamps, And All Hardware For Installation
SellingPoint05 Unique Single Inlet Design Provides Superior Airflow And Proper Dispersion Of Air Through The Core
SellingPoint06 Gained 14 Hp And Dropped Intake Temperatures 30 F When Installed In 305 Hp Vehicle With 20-22 Psi Of Boost
SellingPoint07 Will Support Vehicles With Up To 350 Hp
SellingPoint08 Available In Sleek Silver Or Stealth Black Finish
SellingPoint09 Mishimoto Lifetime Warranty
SellingPoint10 N/a
SellingPoint11 N/a
SellingPoint12 N/a
SellingPoint13 N/a
SellingPoint14 N/a
SellingPoint15 N/a
TechSpec Applications Saab 9-2x H4 (2.0l) 2005--saab 9-2x H4 (2.5l) 2006--subaru Wrx H4 (2.0) 2002-2005--subaru Wrx H4 (2.5) 2006-2007--subaru Wrx Sti H4 (2.5) 2004-2007
TechSpec Centerline Radius N/a
TechSpec Chassis Codes Gd6--gg6
TechSpec Core Height (in) 6
TechSpec Core Length (in) 19
TechSpec Core Thickness (in) 3.5
TechSpec Core Type Bar-and-plate
TechSpec Engine Codes Ej20--ej25
TechSpec Includes (1) Bar-and-plate Intercooler--(5) Silicone Hoses And Couplers--(1) High-temp Silicone Hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.d.--(1) Black Nylon Te
TechSpec Inlet (in) 2.5
TechSpec Installation Notes N/a
TechSpec Maximum Recommended Horsepower 305
TechSpec Note This Kit Is Rated For Approximately 350 Whp, Or 25psi Of Turbo Boost. Exceeding These Horsepower Or Pressure Limits May Require A Larger Front-mount Intercooler. This Intercooler Kit Will Not Fit Rhd Vehicles.
TechSpec Outlet (in) 2.75
TechSpec Overall Height (in) 11.25
TechSpec Overall Length (in) 22.25
TechSpec Overall Width (in) 3.625
TechSpec Pipe Diameter N/a
TechSpec Pipe Length N/a
TechSpec Pipe Shape N/a
TechSpec Weight (lbs) 17.25

Vehicle Fitment Guide

This part fits the following vehicles:

Saab 1 model (tapclick to expand)(tapclick to hide)
9-2X 2005-2006 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5i Wagon 2006 H4 2.5L AWD Automatic & Manual
Aero Wagon 2006 H4 2.5L Turbo AWD Automatic & Manual
Aero Wagon 2005 H4 2.0L Turbo AWD Automatic & Manual
Linear Wagon 2005 H4 2.5L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Fits Years: 2005 2006

Fits Models: 9-2X
