| Attribute | Value |
|---|---|
| 110.00 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

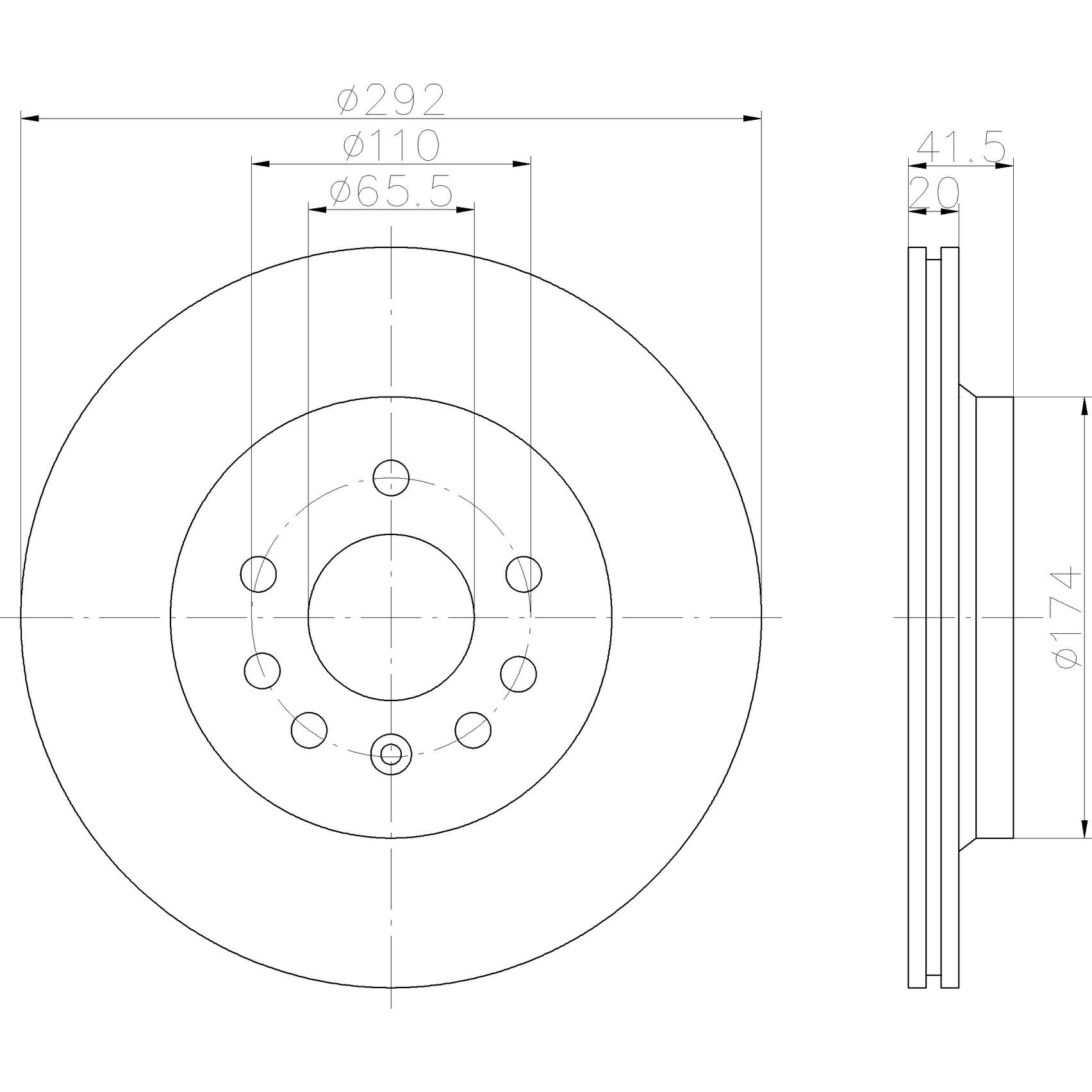

| Bolt Hole Circle Ø [in] | 4.33 |
| Bolt Hole Circle Ø [mm] | 110 |
| Brake Disc Thickness [in] | 0.79 |
| Brake Disc Thickness [mm] | 20 |
| Brake Disc Type | Externally Vented |
| California Proposition 65 Required | No |
| Center Hole Diameter | 112.0 |
| Color | Silver |
| Colour | Silver |
| Construction | Full Cast |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 18.00 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/08 |
| Hole Arrangement/Number | 05/08 |
| Inside Diameter | 65.5 |
| Machining | High-carbon |
| Material | Gray Cast Iron |
| Minimum Thickness [in] | 0.71 |
| Minimum Thickness [mm] | 18 |
| Mounting Bolt Hole Circle Diameter | 110.00 |
| Nominal Thickness | 20.00 |
| Number Of Bolts/screws | 1 |
| Outer Diameter [in] | 11.50 |
| Overall Height | 41.50 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 54184pro_hc_na |
| Weight [kg] | 5,3, 5.3 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.0T | Convertible | 2009 - 2010 | L4 2.0L Turbo | AWD Automatic & Manual |
| 2.0T | Convertible | 2006 - 2010 | L4 2.0L Turbo | FWD Automatic & Manual |
| 2.0T | Sedan | 2009 - 2010 | L4 2.0L Turbo | AWD Automatic & Manual |
| 2.0T | Sedan | 2006 - 2010 | L4 2.0L Turbo | FWD Automatic & Manual |
| 2.0T | Wagon | 2009 - 2010 | L4 2.0L Turbo | AWD Automatic & Manual |
| 2.0T | Wagon | 2006 - 2010 | L4 2.0L Turbo | FWD Automatic & Manual |
| Aero | Convertible | 2010 - 2011 | L4 2.0L Turbo | AWD Automatic & Manual |
| Aero | Convertible | 2006 - 2009 | V6 2.8L Turbo | FWD Automatic & Manual |
| Aero | Convertible | 2004 - 2005, 2010 - 2011 | L4 2.0L Turbo | FWD Automatic & Manual |
| Aero | Sedan | 2010 - 2011 | L4 2.0L Turbo | AWD Automatic & Manual |
| Aero | Sedan | 2006 - 2008 | V6 2.8L Turbo | FWD Automatic & Manual |
| Aero | Sedan | 2004 - 2007, 2010 - 2011 | L4 2.0L Turbo | FWD Automatic & Manual |
| Aero | Wagon | 2010 - 2011 | L4 2.0L Turbo | AWD/FWD Automatic & Manual |
| Aero | Wagon | 2006 - 2008 | V6 2.8L Turbo | FWD Automatic & Manual |
| Aero 60 Aniversario | Sedan | 2007 | L4 2.0L Turbo | FWD Automatic & Manual |
| Aero Sport | Sedan | 2009 | V6 2.8L Turbo | FWD Automatic |
| Aero Sport | Sedan | 2008 | L4 2.0L Turbo | FWD Automatic & Manual |
| Aero XWD | Sedan | 2008 - 2009 | V6 2.8L Turbo | AWD Automatic & Manual |
| Aero XWD | Wagon | 2008 - 2009 | V6 2.8L Turbo | AWD Automatic & Manual |
| Arc | Convertible | 2004 - 2005 | L4 2.0L Turbo | FWD Automatic & Manual |
| Arc | Sedan | 2003 - 2007 | L4 2.0L Turbo | FWD Automatic |
| Arc | Sedan | 2003 - 2005 | L4 2.0L Turbo | FWD Manual |
| Linear | Convertible | 2005 | L4 2.0L Turbo | FWD Automatic & Manual |
| Linear | Sedan | 2003 - 2009 | L4 2.0L Turbo | FWD Automatic |
| Linear | Sedan | 2003 - 2008 | L4 2.0L Turbo | FWD Manual |
| Linear Lujo | Sedan | 2008 | L4 2.0L Turbo | FWD Automatic & Manual |
| Linear Premium | Sedan | 2008 | L4 2.0L Turbo | FWD Automatic & Manual |
| SE | Convertible | 2003 | L4 2.0L Turbo | FWD Automatic & Manual |
| Turbo X | Sedan | 2008 | V6 2.8L Turbo | AWD Automatic & Manual |
| Turbo X | Wagon | 2008 | V6 2.8L Turbo | AWD Automatic & Manual |
| Turbo4 | Convertible | 2011 | L4 2.0L Turbo | AWD/FWD Automatic & Manual |
| Turbo4 | Sedan | 2011 | L4 2.0L Turbo | AWD/FWD Automatic & Manual |
| Turbo4 | Wagon | 2011 | L4 2.0L Turbo | AWD/FWD Automatic & Manual |
| Vector | Sedan | 2003 - 2004 | L4 2.0L Turbo | FWD Automatic & Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Akebono | BN0200 |
| Akebono | BN0200E |
| AMC | FO4007 |
| ATE | 24012001731 |
| ATE | 24012002391 |
| ATE | 24032001731 |
| ATE | 420173 |
| ATE | 520173 |
| Bendix | 521273 |
| Bendix | 562220B |
| Bendix | 562220BC |
| Blue Print | ADA104356 |
| Borg & Beck | BBD4396 |
| Borg & Beck | BBD5419 |
| Bosch | 0986479142 |
| Bosch | 0986479950 |
| Bosch | 0986479S27 |
| Brake Engineering | DI956292 |
| Brembo | 09950510 |
| Brembo | 09950511 |
| Brembo | 09950514 |
| Brembo | 09950575 |
| Cifam | 800682C |
| Delphi | BG3886 |
| Delphi | BG3886C |
| Delphi | BG4922C |
| DON | PCD12132 |
| Dynamic Friction Company | 600-65018 |
| Dynamic Friction Company | 600-65020 |
| Dynamic Friction Company | 604-65018 |
| Dynamic Friction Company | 604-65020 |
| Dynamic Friction Company | 900-65017 |
| Dynamic Friction Company | 900-65018 |
| Dynamic Friction Company | 900-65020 |
| EBC Brakes | D1251 |
| EBC Brakes | GD1251 |
| EBC Brakes | USR1251 |
| Febi-Bilstein | 23545 |
| Ferodo | DDF1289 |
| Ferodo | DDF12891 |
| Ferodo | DDF1289C |
| Ferrari | 257102 |
| Ferrari | 468 3649 0 |
| FREMAX BRAKE ROTORS AND DRUMS | BD9114 |
| FTE | 9072565 |
| FTE | 9082144 |
| FTE | BS5422 |
| FTE | BS5422B |
| Girling | 6042842 |
| Hella Pagid | 54184PROHCNA |
| Hella Pagid | 8DD355122542 |
| Japan Parts | DP006 |
| Japan Parts | DP006C |
| JP Group A/S | 1263200500 |
| Jurid | 562220J |
| Jurid | 562220JC |
| Jurid | 562220JC1 |
| Key Parts | KBD4396 |
| Lamborghini | 003126969 |
| LPR | O1016V |
| LPR | O1016VR |
| Magneti Marelli | 360406040100 |
| Magneti Marelli | 360704009900 |
| Mapco | 25710C |
| METELLI | 230682C |
| MEYLE | 6155236027 |
| Mintex | MDC1675 |
| National | NBD1283 |
| NK Autoparts | 203650 |
| NK Autoparts | 313650 |
| NK Autoparts | 343650 |
| Optimal | BS7916 |
| Optimal | BS7916C |
| PAGID Racing | 54184 |
| PAGID Racing | 54184PRO |
| Remsa | 668610 |
| Roadhouse | 66861 |
| SBS | 1815203650 |
| SBS | 1815313650 |
| SBS | 1815343650 |
| Textar | 92118400 |
| Textar | 92118403 |
| Textar | 92118405 |
| Textar | 98200118401 |
| Topran | 206859 |
| TRW | DF4284 |
| TRW Steering and Suspension Parts | DF4284S |
| VAICO | V4080050 |
| Valeo | 186882 |
| Valeo | 672852 |
| Zimmermann | 430149600 |
| Zimmermann | 430149620 |
| Zimmermann | 430149652 |
| Zimmermann | 430149670 |
| Zimmermann | 430149672 |
| Zimmermann | 430149675 |
Fits Years: 2003 2004 2005 2006 2007 2008 2009 2010 2011
Fits Models: 9-3
