| Attribute | Value |
|---|---|
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78, 70.6 |
| Conventional Or Drum In Hat Type Rotor | Conventional |
| Directional Or Non Directional Brake Surface | Non-directional |

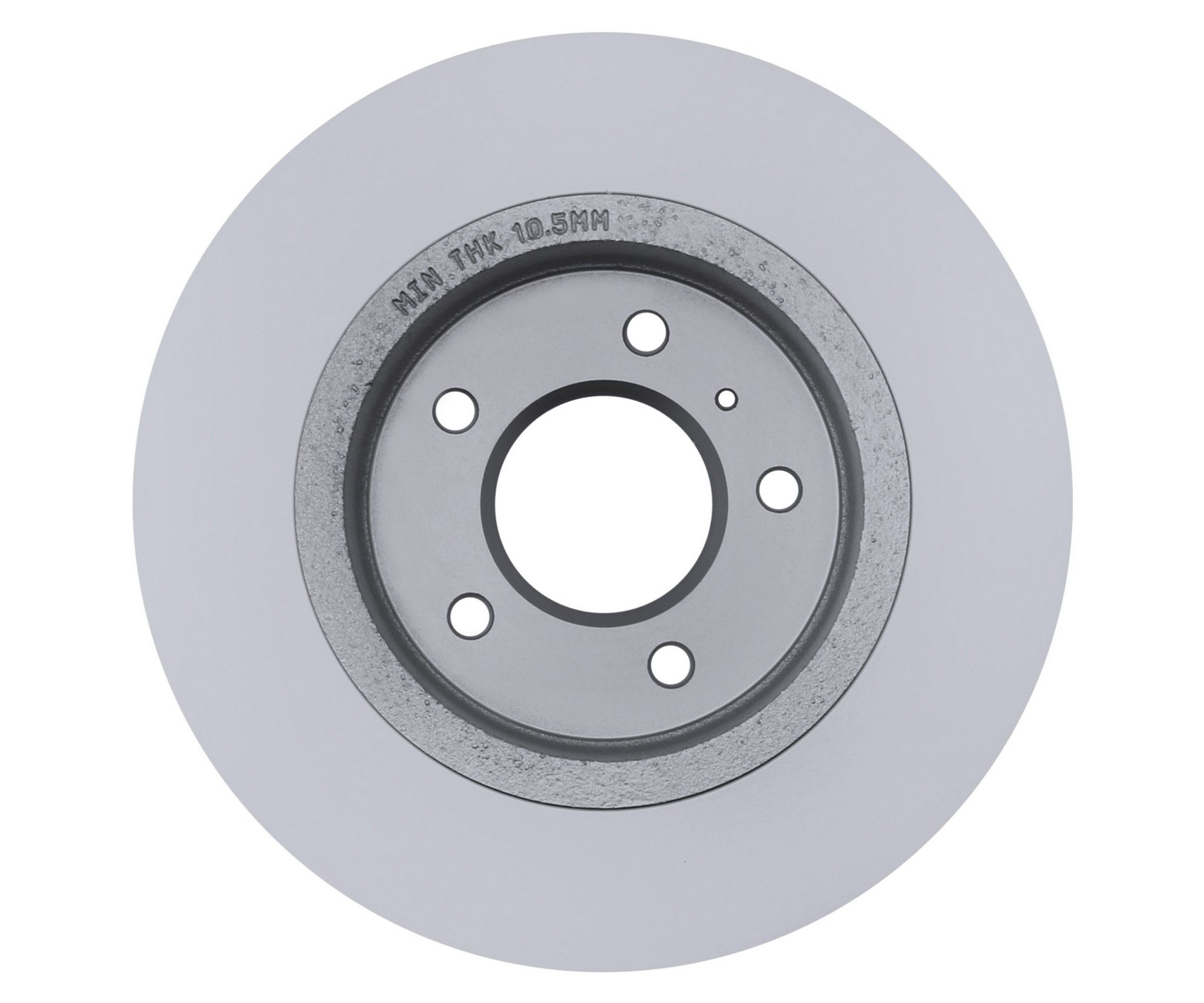

| Discard Thickness | 0.413, 10.5 |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 115, 4.528 |
| Mounting Bolt Hole Diameter | 0.557, 14.15 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 |
| Overall Height | 1.37, 34.8 |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2 | Mini Passenger Van | 2005 | V6 3.5L | AWD/FWD Automatic |
| 3 | Mini Passenger Van | 2005 | V6 3.5L | AWD/FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | 177-0920 |
| Advance Auto Parts | YH145614P |
| Advance Auto Parts | YH200398 |
| Autoxtra | AX900316 |
| AutoZone | 55108DG |
| Bendix | 145614 |
| Bosch | 25010657 |
| BrakeBest | 580299 |
| BrakeBest | 580299FZN |
| BrakeBest | 580299R |
| BrakeBest | 580299RGS |
| Brembo | 27400 |
| Casting Numbers | 18048469 |
| Casting Numbers | 211684-C |
| Casting Numbers | 326243 |
| Centric Parts | 120.66060 |
| Centric Parts | 121.66060 |
| Centric Parts | 126.66060SL |
| Centric Parts | 126.66060SR |
| Centric Parts | 127.66060L |
| Centric Parts | 127.66060R |
| Centric Parts | 320.66060 |
| Dura Corp | BR55108 |
| Dura Corp | BR900316 |
| Dura Corp | BR90031602 |
| DuraGo | 900316 |
| Mighty Distributing System | 55108 |
| Promax | 14-55108 |
| Saturn | 88964176 |
| TruStar | 493615 |
| Ultra Brake | 55904 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51724 |
| WABCO - Archived | PS126300 |
| Wagner Brake | BD126300 |
| Wagner Brake | BD126300E |
| Winhere | 661710 |
Fits Years: 2005
Fits Models: Relay
