| Attribute | Value |
|---|---|
| Install Difficulty | 3 |
| Installation Difficulty | 3 |
| Prop 65 (C, R Or CR) | Cr |

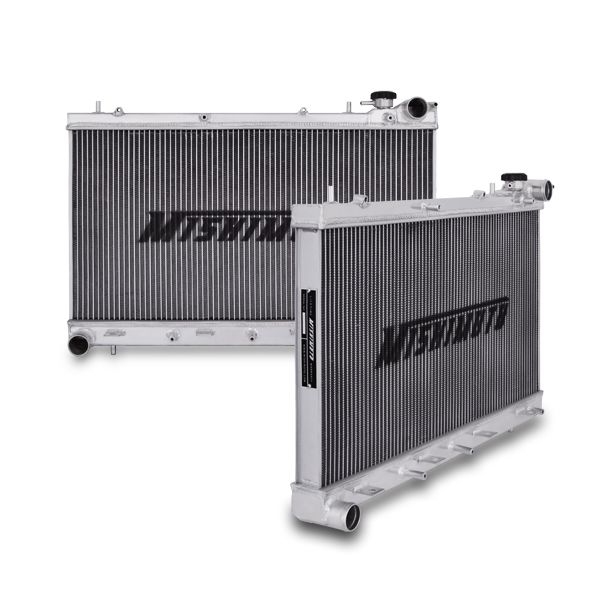

| SellingPoint01 | Direct Fit For The 2004-2008 Subaru Forester Xt |
| SellingPoint02 | Full Aluminum Construction With Durable, Tig-welded End Tanks |
| SellingPoint03 | Features A Two-row, 1.65-in Thick Efficient Brazed Aluminum Core, Providing Ideal Fluid Temperature Reduction |
| SellingPoint04 | Increased Fluid Capacity And Superior Heat Dissipation |
| SellingPoint05 | Perfect Upgrade To The Failure Prone Stock Plastic End Tank Radiator |
| SellingPoint06 | Ideal For Use On The Street, Track, Or Rallycross Course |
| SellingPoint07 | Includes 1.3 Bar High-pressure Radiator Cap Which Effectively Raises The Boiling Point Of Engine Coolant, Providing A Safer And More Efficient System |
| SellingPoint08 | Includes Magnetic Drain Plug To Capture Any Metallic Debris/fragments In Your Cooling System |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| SellingPoint10 | N/a |
| SellingPoint11 | N/a |
| SellingPoint12 | N/a |
| SellingPoint13 | N/a |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | N/a |
| TechSpec Chassis Codes | Sg5 |
| TechSpec Core Height (in) | 27 |
| TechSpec Core Length (in) | 14.1 |
| TechSpec Core Thickness (in) | 1.65 |
| TechSpec DPI | 2812 |
| TechSpec Drain Plug Thread Size | M12 X 1.5 |
| TechSpec Engine Codes | Ej255 |
| TechSpec Fluid Capacity (gal) | 2.21 |
| TechSpec Includes | Mishimoto Radiator--mishimoto Radiator Cap--magnetic Drain Plug--1/16-inch Npt Overflow Plug--mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 1.57 |
| TechSpec Material | N/a |
| TechSpec Note | This Item Is For Manual Transmission Vehicles. For Automatic Applications, Please Purchase Optional Mishimoto Universal Transmission Cooler Kit.--------caution--the Following Applies To Subarus. Not All Vehicles Will Have This Issue. The Provided Mishimot |
| TechSpec Outlet (in) | 1.57 |
| TechSpec Overall Height (in) | 27.7 |
| TechSpec Overall Length (in) | 17.4 |
| TechSpec Overall Width (ins) | 2.2 |
| TechSpec Rows | 2 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.5 X | SUV | 2008 | H4 2.5L | AWD Automatic & Manual |
| 2.5 XS | SUV | 2008 | H4 2.5L | AWD Automatic & Manual |
| 2.5 XS Premium | SUV | 2008 | H4 2.5L | AWD Automatic & Manual |
| 2.5 XT | SUV | 2008 | H4 2.5L Turbo | AWD Automatic & Manual |
| Anniversary Edition | SUV | 2008 | H4 2.5L | AWD Automatic & Manual |
| Sports 2.5 X | SUV | 2008 | H4 2.5L | AWD Automatic & Manual |
| Sports 2.5 XT | SUV | 2008 | H4 2.5L Turbo | AWD Automatic & Manual |
| X | SUV | 2004 - 2008 | H4 2.5L | AWD Automatic & Manual |
| X L.L. Bean Edition | SUV | 2006 - 2008 | H4 2.5L | AWD Automatic |
| XS | SUV | 2004 - 2005, 2007 | H4 2.5L | AWD Automatic |
| XS | SUV | 2004 - 2005 | H4 2.5L | AWD Manual |
| XS L.L. Bean Edition | SUV | 2005 | H4 2.5L | AWD Automatic |
| XSL | SUV | 2007 | H4 2.5L | AWD Automatic |
| XT | SUV | 2004 - 2005, 2008 | H4 2.5L Turbo | AWD Automatic |
| XT | SUV | 2004 - 2005 | H4 2.5L Turbo | AWD Manual |
| XT Limited | SUV | 2006 - 2008 | H4 2.5L Turbo | AWD Automatic & Manual |
| XT Premium | SUV | 2005 | H4 2.5L Turbo | AWD Automatic & Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
Fits Years: 2004 2005 2006 2007 2008
Fits Models: Forester
