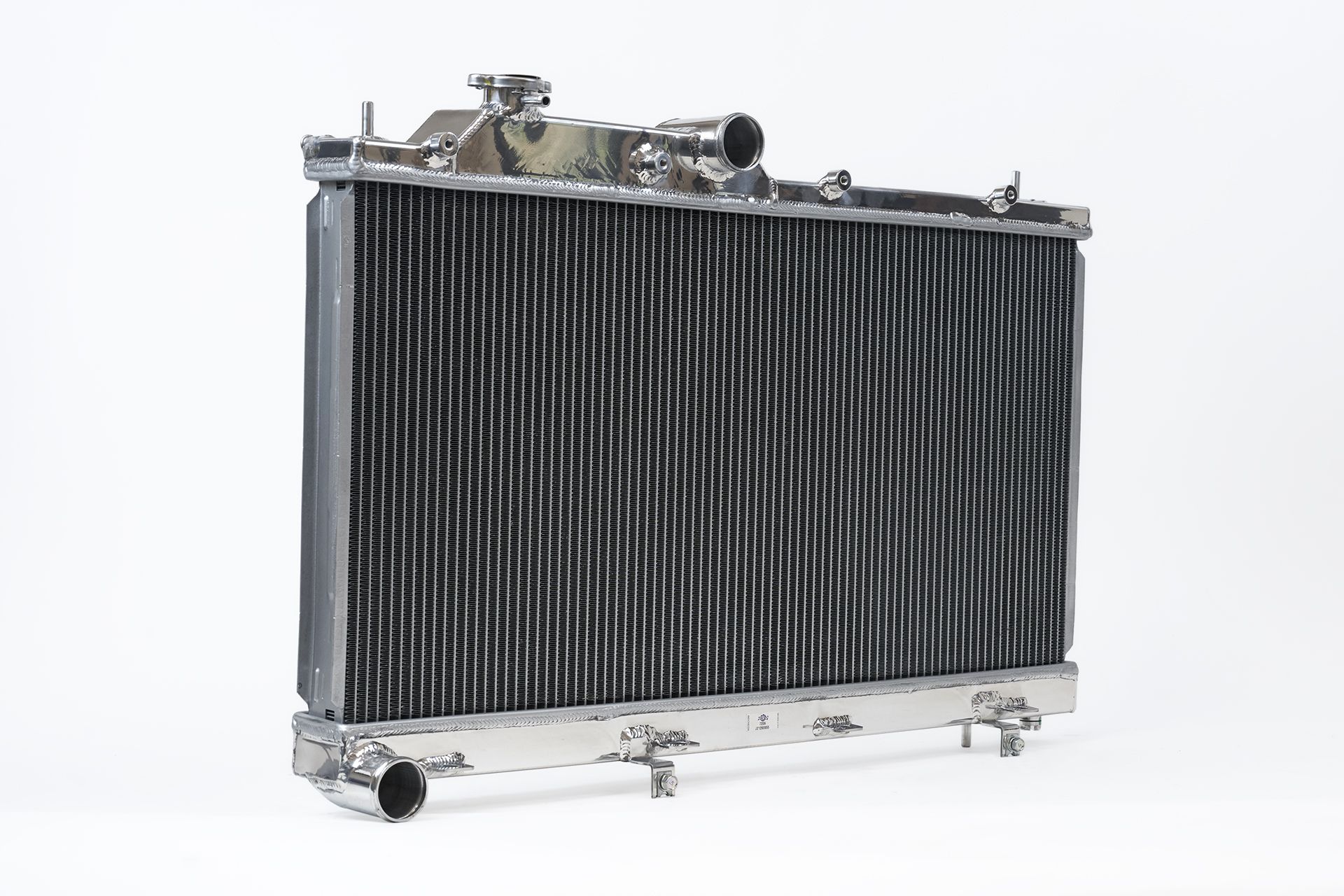

2014 - 2018 Subaru Forester Radiator - Center (CSF) NEW

$ 495 .00

Product Notes

Position: Center

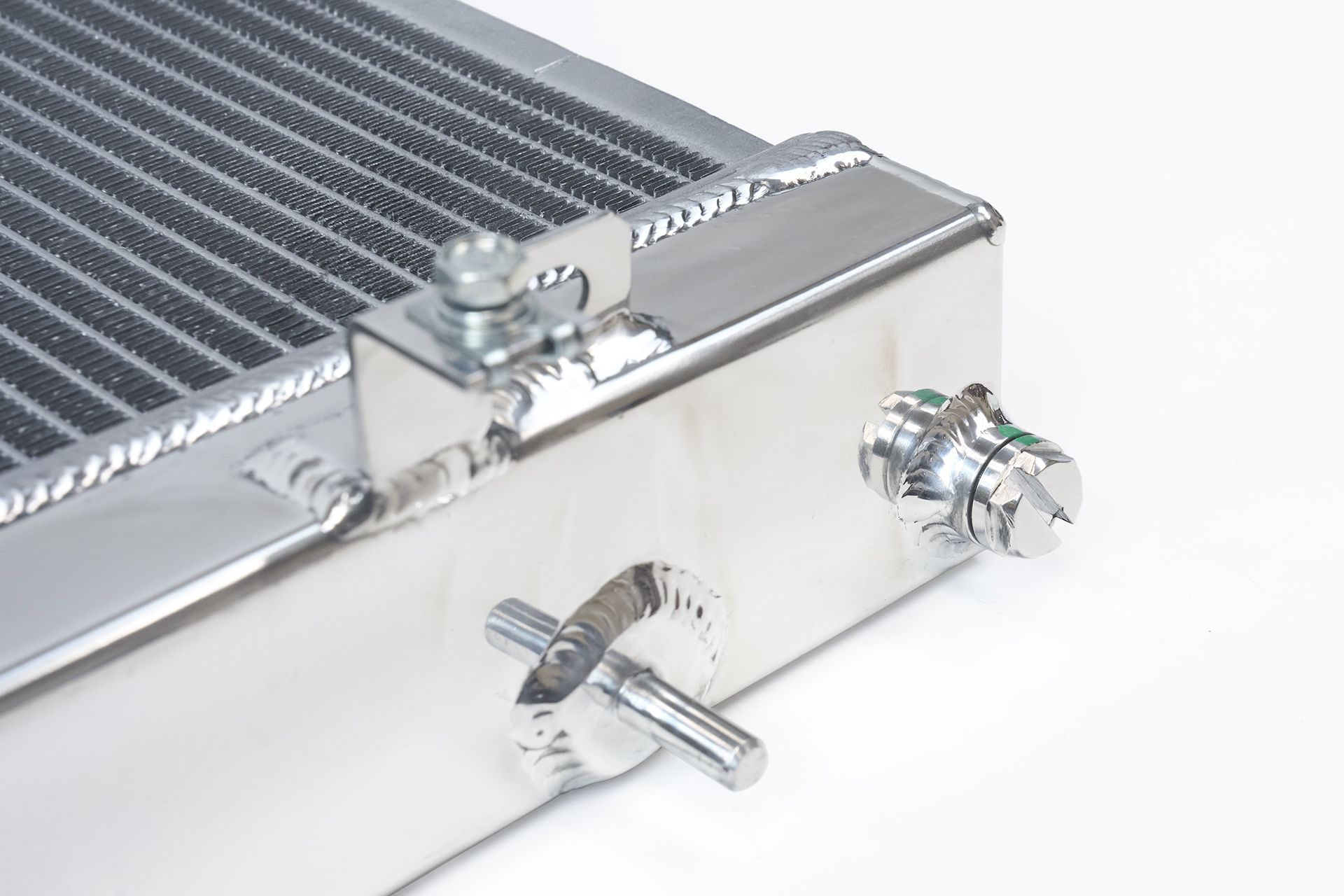

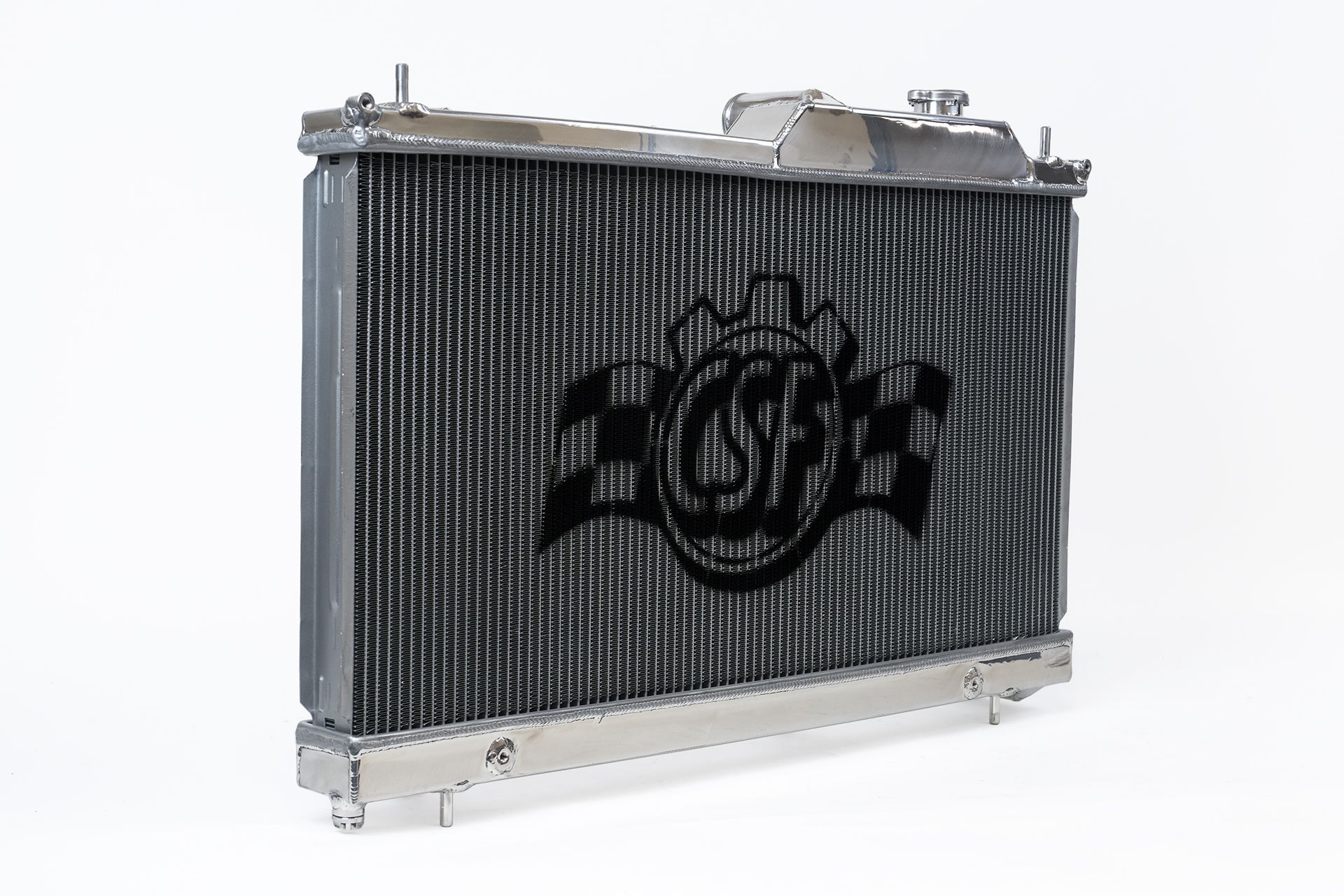

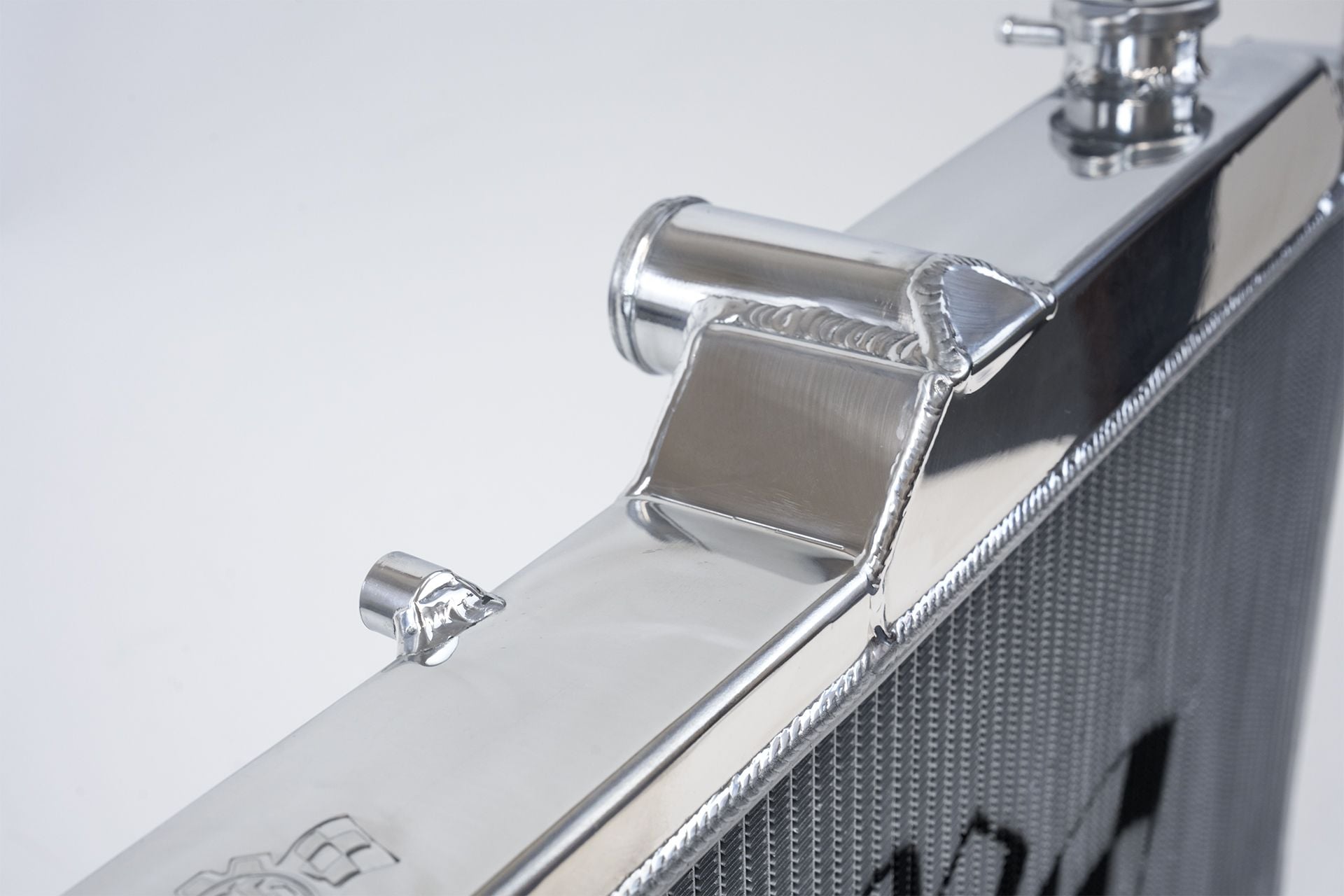

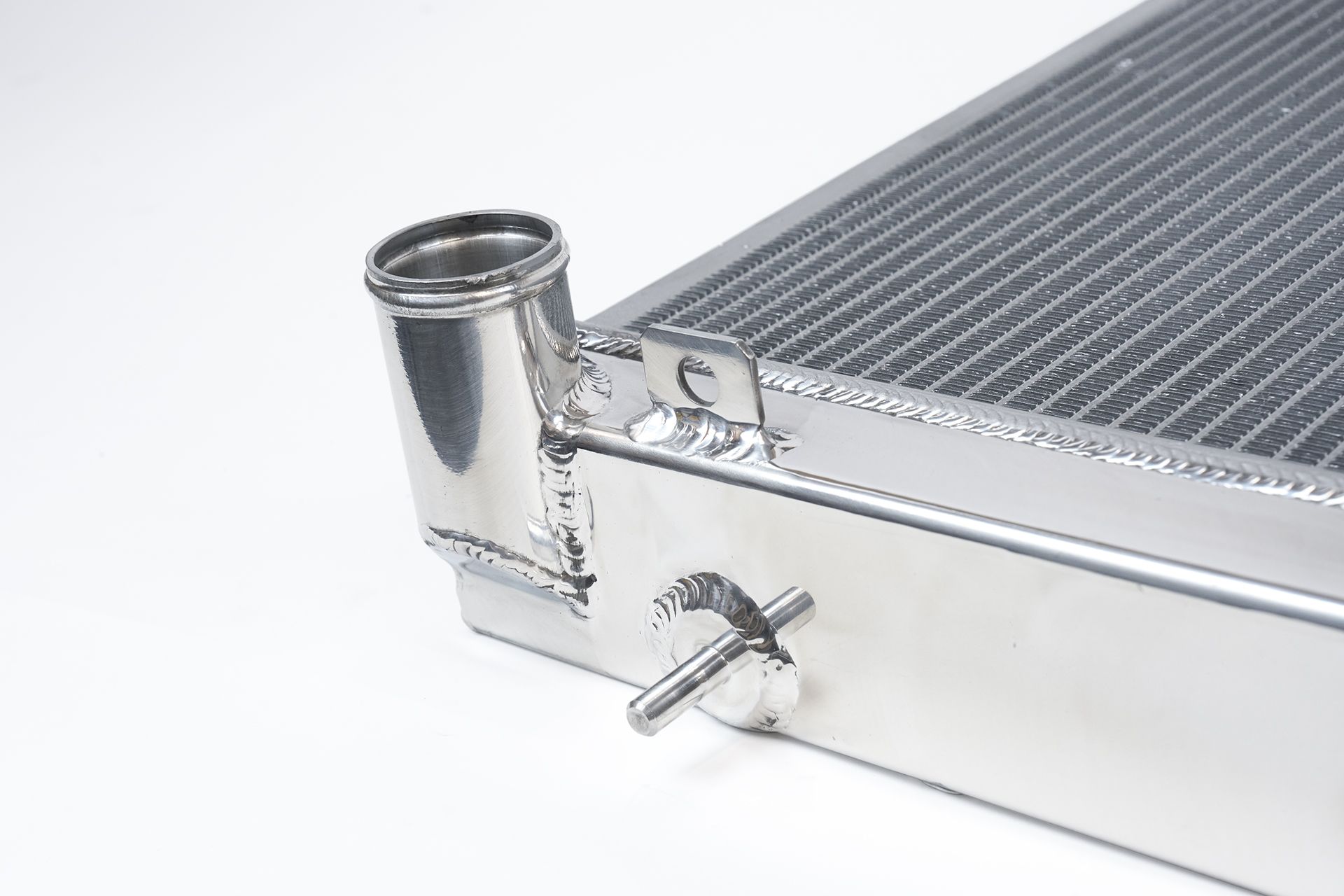

The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Efficiency is key in off-roading as speeds tend to be lower overall so you end up relying on the fans to move most of the air over the radiator. While the factory fans do a decent job pulling air through the radiator core, it is still less airflow than you'd typically see in city driving. A larger and more efficient core will keep your engine temps in check and keep your engine running strong. Additionally, the end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting.
Brand: CSF
Condition: New
See Other Subaru Forester Radiators
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Coolant Hose Inlet Connection Type Oe Type Connection
Coolant Hose Outlet Connection Type Oe Type Connection
Core Height 13.4375 In.
Core Material Aluminum
Core Row Quantity 2
Core Thickness 42mm
Core Width 27 In.
Down Flow Or Cross Flow Type Down Flow
Finish/Color Polished
Frame Included No
Grade Type Performance
Inlet Connector Type Slip On
Inlet Diameter 1.5625 In.
Inlet Location Top Center
Installation Type Drop-in Fit Installation
Internal Engine Oil Cooler No
Internal Transmission Oil Cooler No
Mounting Hardware Included No
Mounting Type Mounts With Oe Hardware
Outlet Connector Type Slip On
Outlet Diameter 1.5625 In.
Outlet Location Bottom Right

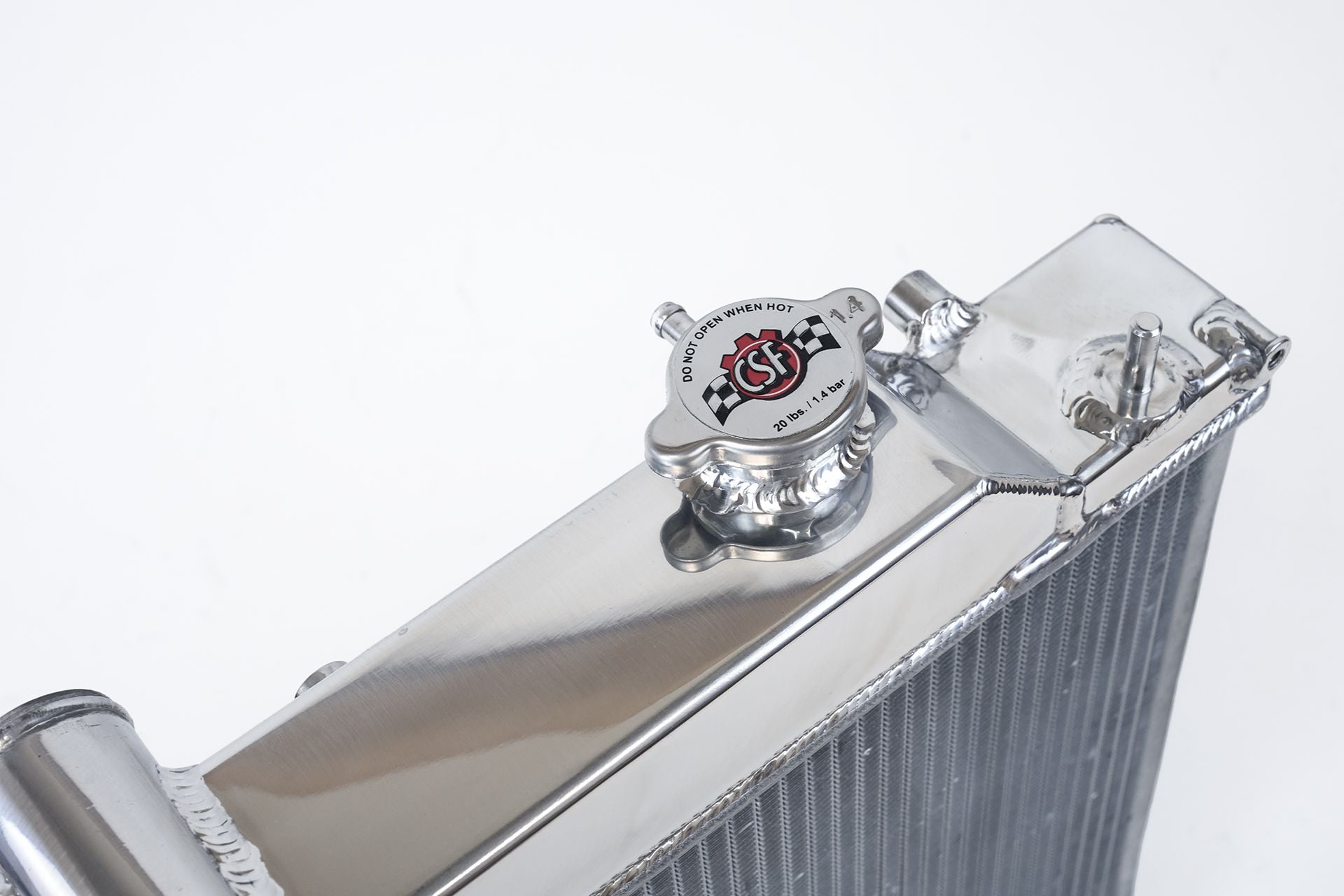

Radiator Cap Included Yes
Tank Material Aluminum
Thermostat Included No

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Forester 2014-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.0XT Limited SUV 2014 - 2018 H4 2.0L Turbo AWD Automatic CVT
2.0XT Premium SUV 2014 - 2018 H4 2.0L Turbo AWD Automatic CVT
2.0XT Touring SUV 2014 - 2018 H4 2.0L Turbo AWD Automatic CVT
2.5i SUV 2014 - 2018 H4 2.5L AWD Automatic CVT & Manual
2.5i Convenience SUV 2014 - 2018 H4 2.5L AWD Automatic CVT
2.5i Convenience SUV 2014 - 2017 H4 2.5L AWD Manual
2.5i Limited SUV 2014 - 2018 H4 2.5L AWD Automatic CVT
2.5i Premium SUV 2014 - 2018 H4 2.5L AWD Automatic CVT & Manual
2.5i Touring SUV 2014 - 2018 H4 2.5L AWD Automatic CVT
Limited SUV 2018 H4 2.5L AWD Automatic CVT
Premium SUV 2018 H4 2.5L AWD Automatic CVT
Touring SUV 2018 H4 2.5L AWD Automatic CVT
X SUV 2014 - 2017 H4 2.5L AWD Automatic CVT
XS SUV 2014 - 2017 H4 2.5L AWD Automatic CVT
XSL SUV 2014 - 2017 H4 2.5L AWD Automatic CVT
XT SUV 2014 - 2018 H4 2.0L Turbo AWD Automatic CVT
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Efficiency is key in off-roading as speeds tend to be lower overall so you end up relying on the fans to move most of the air over the radiator. While the factory fans do a decent job pulling air through the radiator core, it is still less airflow than you'd typically see in city driving. A larger and more efficient core will keep your engine temps in check and keep your engine running strong. Additionally, the end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting.

Fits Years: 2014 2015 2016 2017 2018

Fits Models: Forester
