1998, 1997, 1996, 1995, 1994 Subaru Legacy Engine Timing Belt Kit with Water Pump
View 1
View 2
View 3

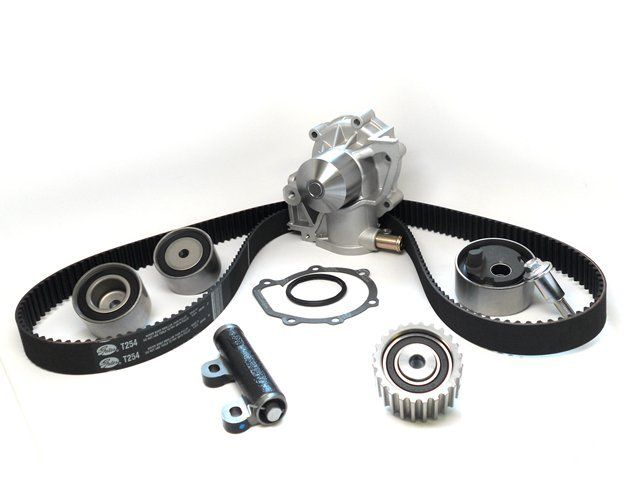

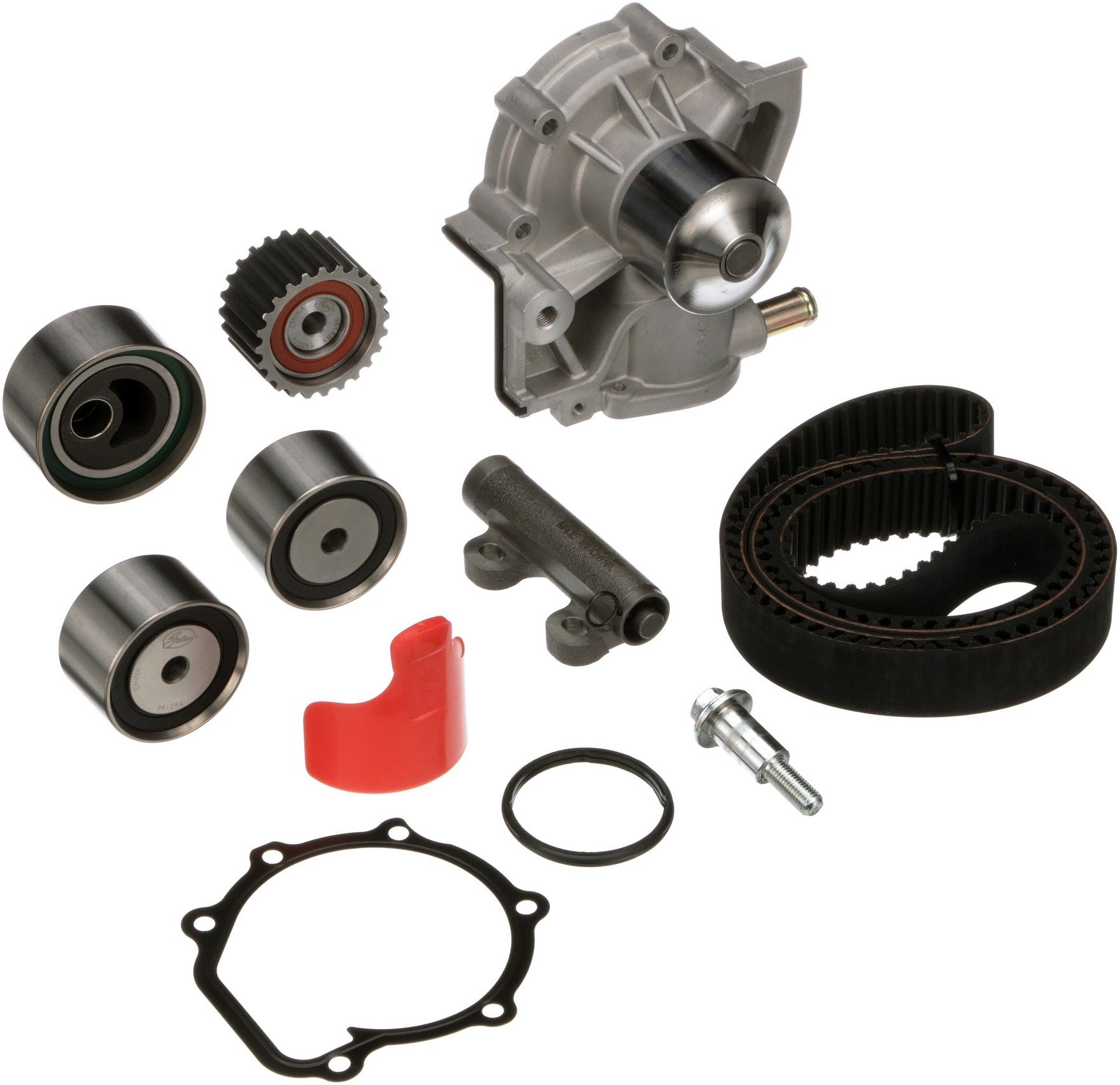

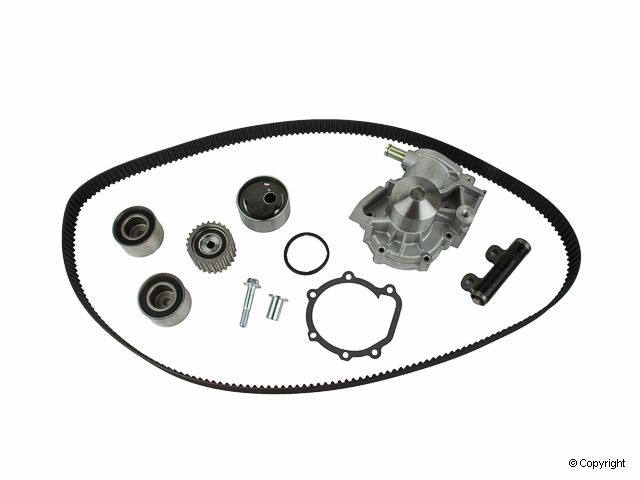

1994 - 1998 Subaru Legacy Engine Timing Belt Kit with Water Pump (Gates) NEW

$ 472 .27

Product Notes

W/O Integrated Assembly
PowerGrip Premium OE Timing Belt Component Kit W/Water Pump
Gates Timing Belt Component Kits with Water Pump offer customers the best and most complete repair solution by including the same premium components as our TCK’s - timing belts, pulleys and tensioners - as well as a water pump. Timing belt driven water pumps should always be replaced at the same time as the timing belt. Don't take chances. With Gates TCKWP’s, you can avoid returns by replacing all critical system components at the same time.
Brand: Gates
Condition: New
See Other Subaru Legacy Engine Timing Belt Kit with Water Pumps
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Belt Material Hsn, Fiberglass Cord
Belt Quantity 1
Belt Top Color Black
Bolt Included Yes
Bolt Quantity 1
Engine Water Pump Quantity 1
Gasket Or Seals Included Yes
Gasket Quantity 1
Grade Type Oe Performance
Idler Pulley Included Yes
Idler Quantity 3
Installation Instructions Included Yes
Installation Tool Included Yes
Instruction Sheet Number 0098-1632
Number Of Components 7
Seal Quantity 1
Spring Quantity 0
Springs Included No
Tensioner Included Yes
Tensioner Quantity 2
Tensioner Type Hydraulic
Timing Belt 1 Teeth Quantity 211
Timing Belt Included Yes
Timing Belt Width 1 (in) 1.181
Timing Belt Width 1 (mm) 30
Timing Marks Yes
Tooth Type Modified Curvilinear (iii)

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Legacy 1994-1998 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
4x4 Sedan 1994 H4 2.2L AWD U/K
Alpine Sport Wagon 1994 H4 2.2L AWD Automatic & Manual
Base Sedan 1995 H4 2.2L FWD Automatic & Manual
Brighton Wagon 1995 - 1998 H4 2.2L AWD Automatic & Manual
GT Sedan 1996 - 1998 H4 2.5L AWD Automatic & Manual
GT Wagon 1996 - 1998 H4 2.5L AWD Automatic & Manual
GT Wagon 1994 H4 2.2L AWD Automatic & Manual
GT Limited Sedan 1998 H4 2.5L AWD Automatic & Manual
L Sedan 1994 - 1998 H4 2.2L AWD Automatic & Manual
L Sedan 1994 - 1996 H4 2.2L FWD Automatic & Manual
L Wagon 1994 - 1998 H4 2.2L AWD Automatic & Manual
L Wagon 1994 - 1996 H4 2.2L FWD Automatic & Manual
LS Sedan 1994 - 1996 H4 2.2L AWD Automatic & Manual
LS Sedan 1994 H4 2.2L FWD Automatic & Manual
LS Wagon 1994 - 1996 H4 2.2L AWD Automatic & Manual
LS Wagon 1994 H4 2.2L FWD Automatic & Manual
LSi Sedan 1996 - 1997 H4 2.5L AWD Automatic & Manual
LSi Sedan 1994 - 1995 H4 2.2L AWD Automatic & Manual
LSi Wagon 1996 - 1997 H4 2.5L AWD Automatic & Manual
LSi Wagon 1994 - 1995 H4 2.2L AWD Automatic & Manual
Outback Wagon 1996 - 1998 H4 2.5L AWD Automatic & Manual
Outback Wagon 1995 - 1996 H4 2.2L AWD Automatic & Manual
Outback Limited Wagon 1997 H4 2.5L AWD Automatic & Manual
Outdoor Wagon 1994 H4 2.2L AWD Automatic & Manual
Postal Wagon 1995 - 1998 H4 2.2L AWD Automatic & Manual
Sport Sedan 1994 H4 2.2L Turbo AWD Automatic & Manual
Sun Sport Wagon 1994 H4 2.2L FWD Automatic & Manual
Touring Wagon 1994 H4 2.2L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Gates Timing Belt Component Kits with Water Pump offer customers the best and most complete repair solution by including the same premium components as our TCK’s - timing belts, pulleys and tensioners - as well as a water pump. Timing belt driven water pumps should always be replaced at the same time as the timing belt. Don't take chances. With Gates TCKWP’s, you can avoid returns by replacing all critical system components at the same time.

Interchange Parts

Brand Part Number
ACDelco TCKWP254
AISIN TKF002
Continental-ContiTech PP254LK1
Continental-ContiTech TB254LK1
Dayco WP254K1B
Dayco WP254K1BS
GMB 3460-0254
Goodyear GTKWP254
Import Direct 20428K
US Motor Works USTK254

Fits Years: 1994 1995 1996 1997 1998

Fits Models: Legacy
