2009, 2008, 2007, 2006, 2005 Subaru Outback Radiator

2005 - 2009 Subaru Outback Radiator (Mishimoto) NEW

$ 349 .95

Product Notes

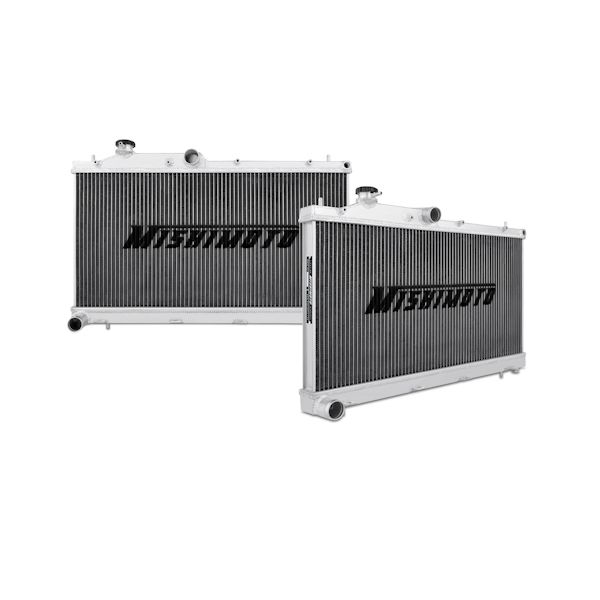

The Mishimoto performance aluminum radiator for the 2008-2014 Subaru WRX/STI is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto 2008-2014 Subaru WRX/STI radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
Brand: Mishimoto
Condition: New
See Other Subaru Outback Radiators
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Install Difficulty 3
SellingPoint01 Direct Fit For The 2008-2019 Subaru Wrx/sti
SellingPoint02 Full Aluminum Construction Including Durable, Tig-welded End Tanks
SellingPoint03 Features A Two-row, 1.65-in Thick, Efficient Brazed Aluminum Core
SellingPoint04 Increased Fluid Capacity And Optimal Heat Dissipation
SellingPoint05 Provides Efficient Temperature Reduction For Use On The Street, Track, Rallycross, Or Autocross Course
SellingPoint06 Includes 1.3 Bar High-pressure Radiator Cap Which Effectively Raises The Boiling Point Of Engine Coolant, Providing A Safer And More Efficient System
SellingPoint07 Includes Magnetic Drain Plug To Capture Any Metallic Debris/fragments In Your Cooling System
SellingPoint08 Mishimoto Lifetime Warranty
SellingPoint09 N/a
SellingPoint10 N/a
SellingPoint11 N/a
SellingPoint12 N/a
SellingPoint13 N/a
SellingPoint14 N/a
SellingPoint15 N/a
TechSpec Applications 2008-2014 Subaru Wrx--2008-2019 Subaru Sti--2009-2013 Subaru Forester Xt--2005-2009 Subaru Outback Xt--2005-2009 Subaru Legacy Gt
TechSpec Chassis Codes Ge--gh
TechSpec Core Height (in) 13.39
TechSpec Core Length (in) 27.08
TechSpec Core Thickness (in) 1.65
TechSpec DPI 13091/13093
TechSpec Drain Plug Thread Size M12 X 1.5
TechSpec Engine Codes Ej255--ej257
TechSpec Fluid Capacity (gal) 2.21
TechSpec Includes Mishimoto Radiator--mishimoto Radiator Cap--overflow Nipples - 2--magnetic Drain Plug--mishimoto Lifetime Warranty
TechSpec Inlet (in) 1.54
TechSpec Material N/a
TechSpec Outlet (in) 1.54
TechSpec Overall Height (in) 21.8
TechSpec Overall Length (in) 28
TechSpec Overall Width (ins) 2.15
TechSpec Rows 2

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Outback 2005-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5 XT Wagon 2008 H4 2.5L Turbo AWD Automatic & Manual
2.5i Wagon 2006 - 2009 H4 2.5L AWD Automatic & Manual
2.5i Basic Wagon 2007 H4 2.5L AWD Automatic & Manual
2.5i L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Limited Sedan 2007 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006, 2008 - 2009 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006 H4 2.5L AWD Manual
2.5i Limited L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Special Edition Wagon 2009 H4 2.5L AWD Automatic
3.0 R Wagon 2007 - 2008 H6 3.0L AWD Automatic
3.0 R Limited Wagon 2009 H6 3.0L AWD Automatic
3.0 R Premier Wagon 2009 H6 3.0L AWD Automatic
Base Wagon 2008 H4 2.5L AWD Automatic & Manual
Limited Wagon 2005, 2008 H4 2.5L AWD Automatic
Limited Wagon 2005 H4 2.5L AWD Manual
Premier Wagon 2008 H4 2.5L AWD Automatic
R Sedan 2005 H6 3.0L AWD Automatic
R Wagon 2006 H6 3.0L AWD Automatic
R L.L. Bean Edition Sedan 2006 - 2007 H6 3.0L AWD Automatic
R L.L. Bean Edition Wagon 2005 - 2008 H6 3.0L AWD Automatic
R VDC Limited Wagon 2006 H6 3.0L AWD Automatic
Touring Wagon 2008 H4 2.5L AWD Automatic
VDC Limited Wagon 2005 H6 3.0L AWD Automatic
XT Wagon 2005 - 2008 H4 2.5L Turbo AWD Automatic
XT Wagon 2005 - 2006 H4 2.5L Turbo AWD Manual
XT Limited Wagon 2005 - 2009 H4 2.5L Turbo AWD Automatic & Manual
i Wagon 2005 H4 2.5L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.
