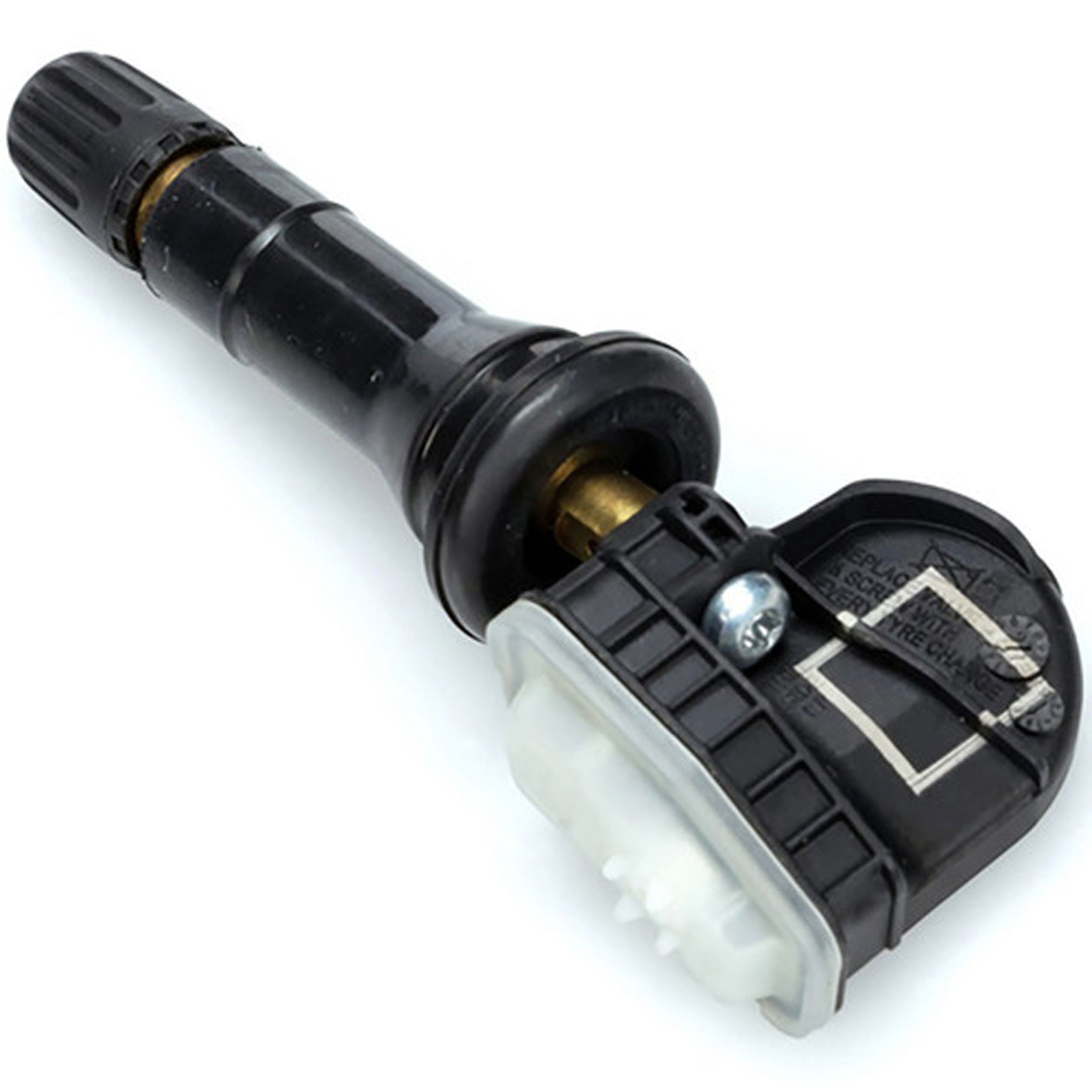

2025, 2024, 2023, 2022, 2021, 2020, 2019, 2018 Subaru Outback Tire Pressure Monitoring System (TPMS) Sensor
View 1
View 2
View 3
View 4
View 5
View 6

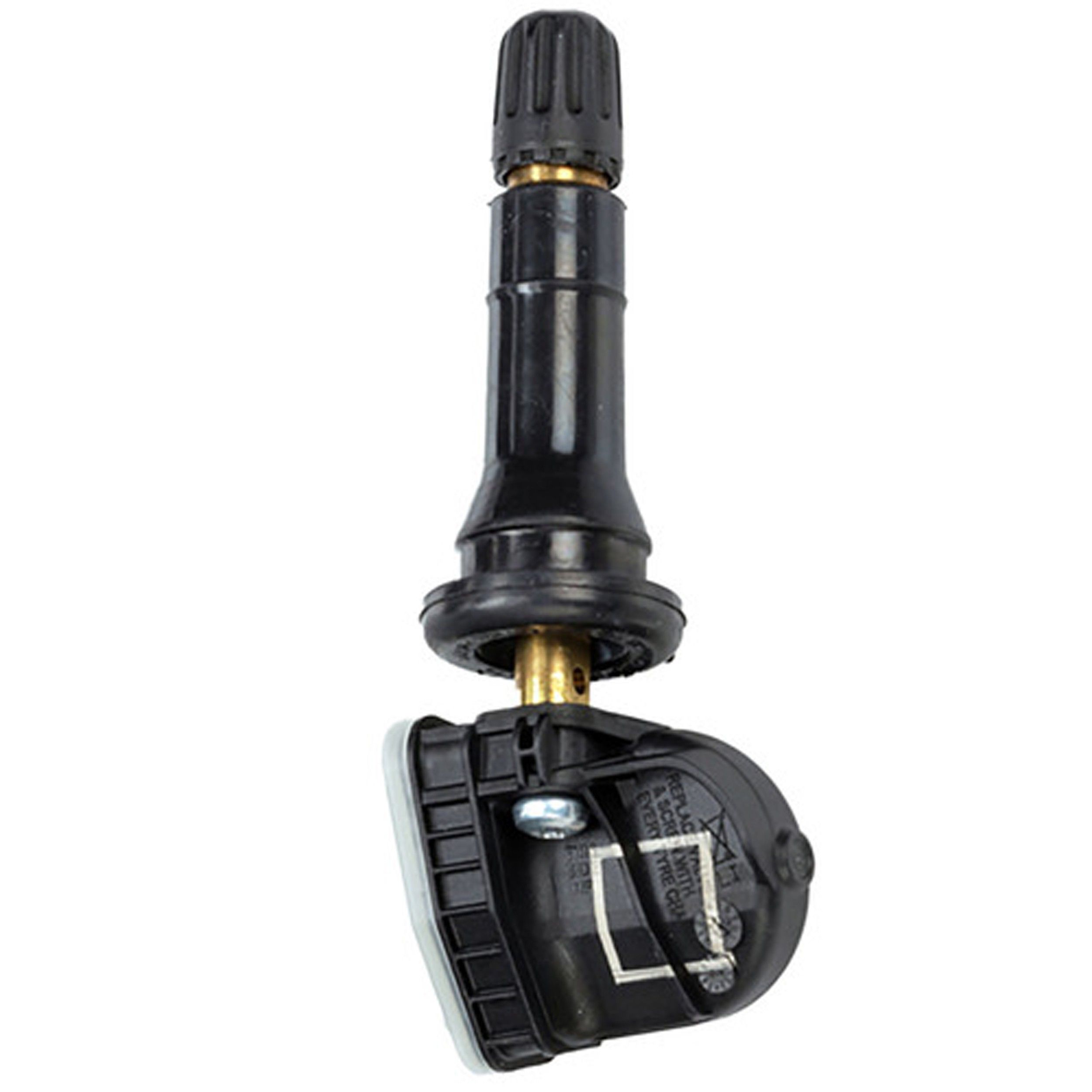

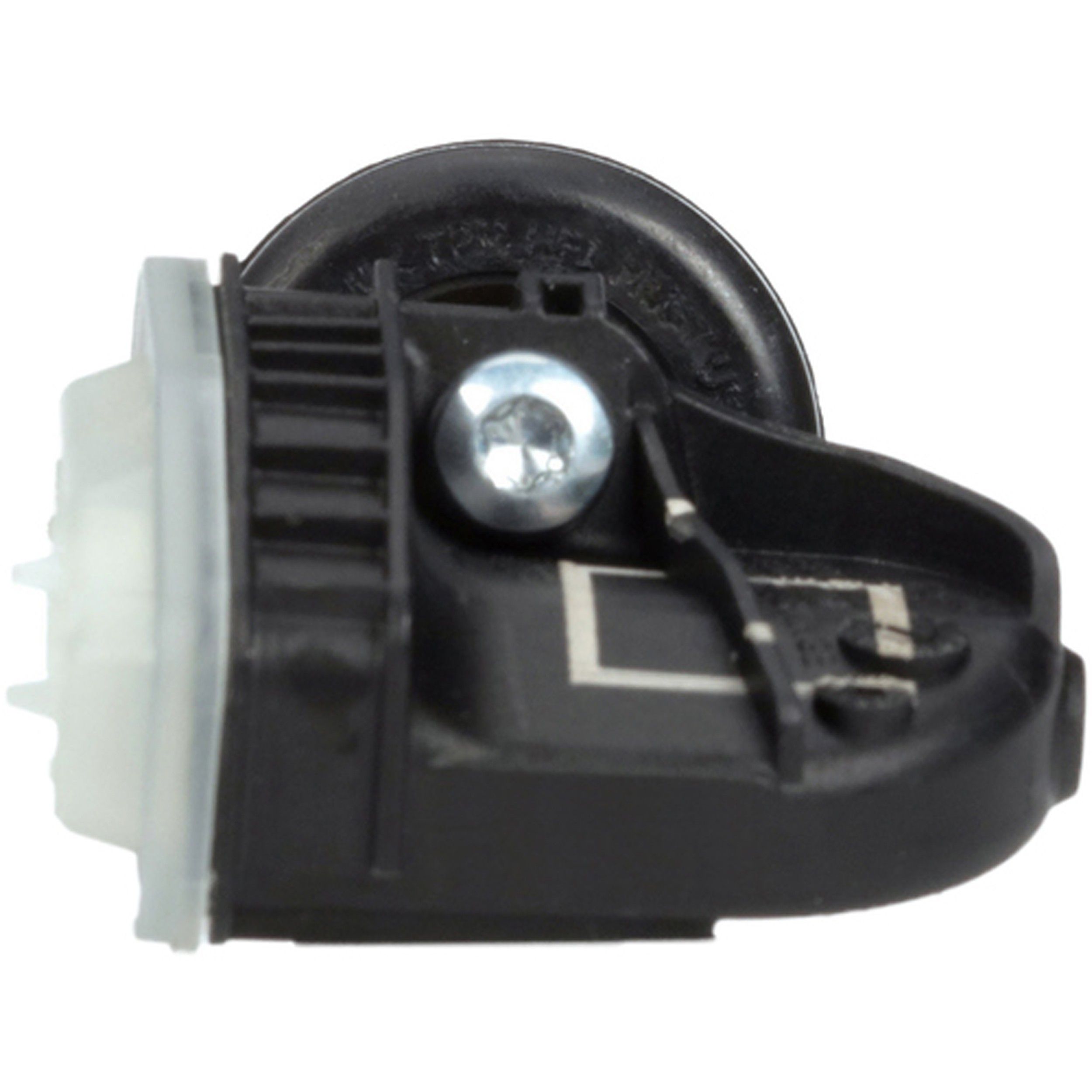

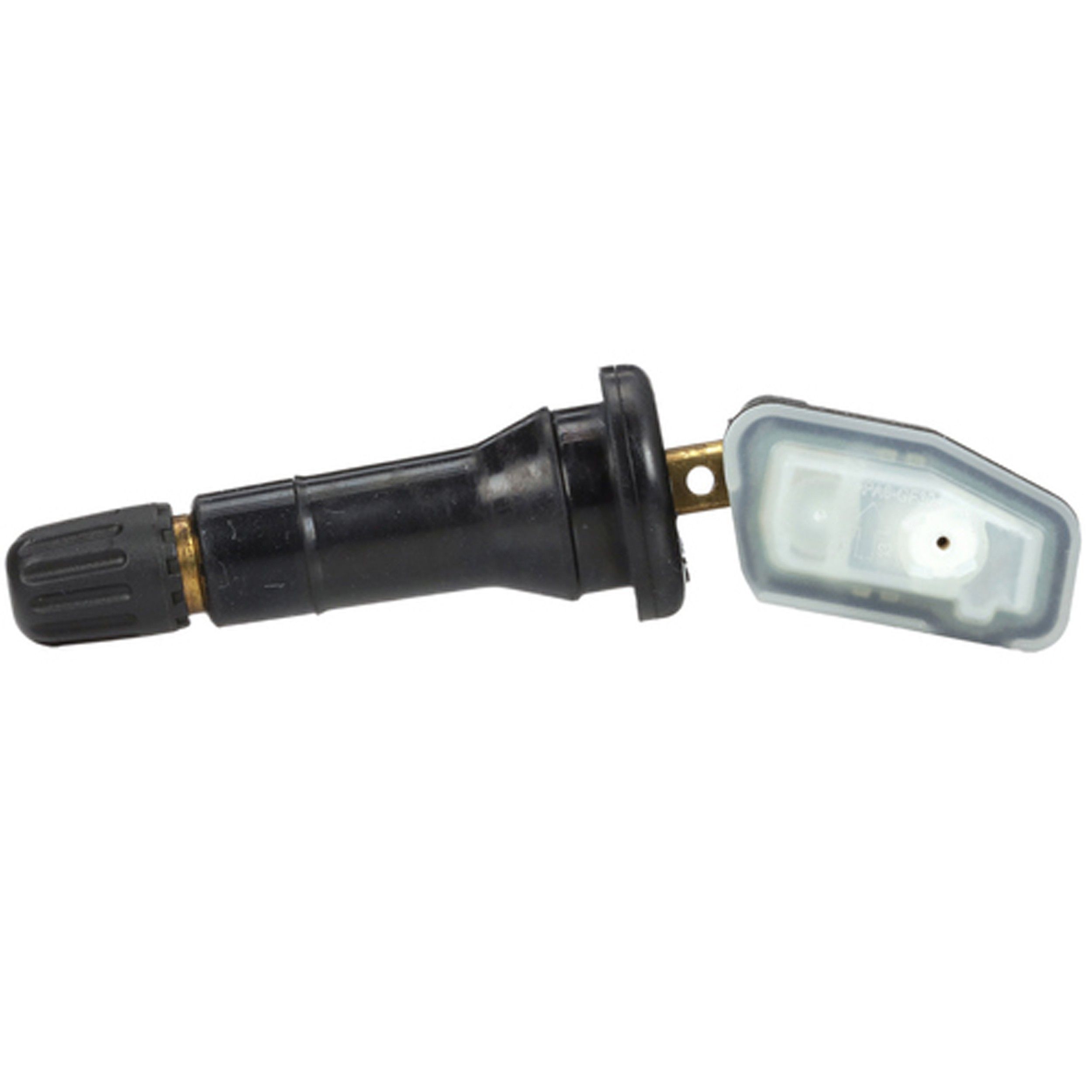

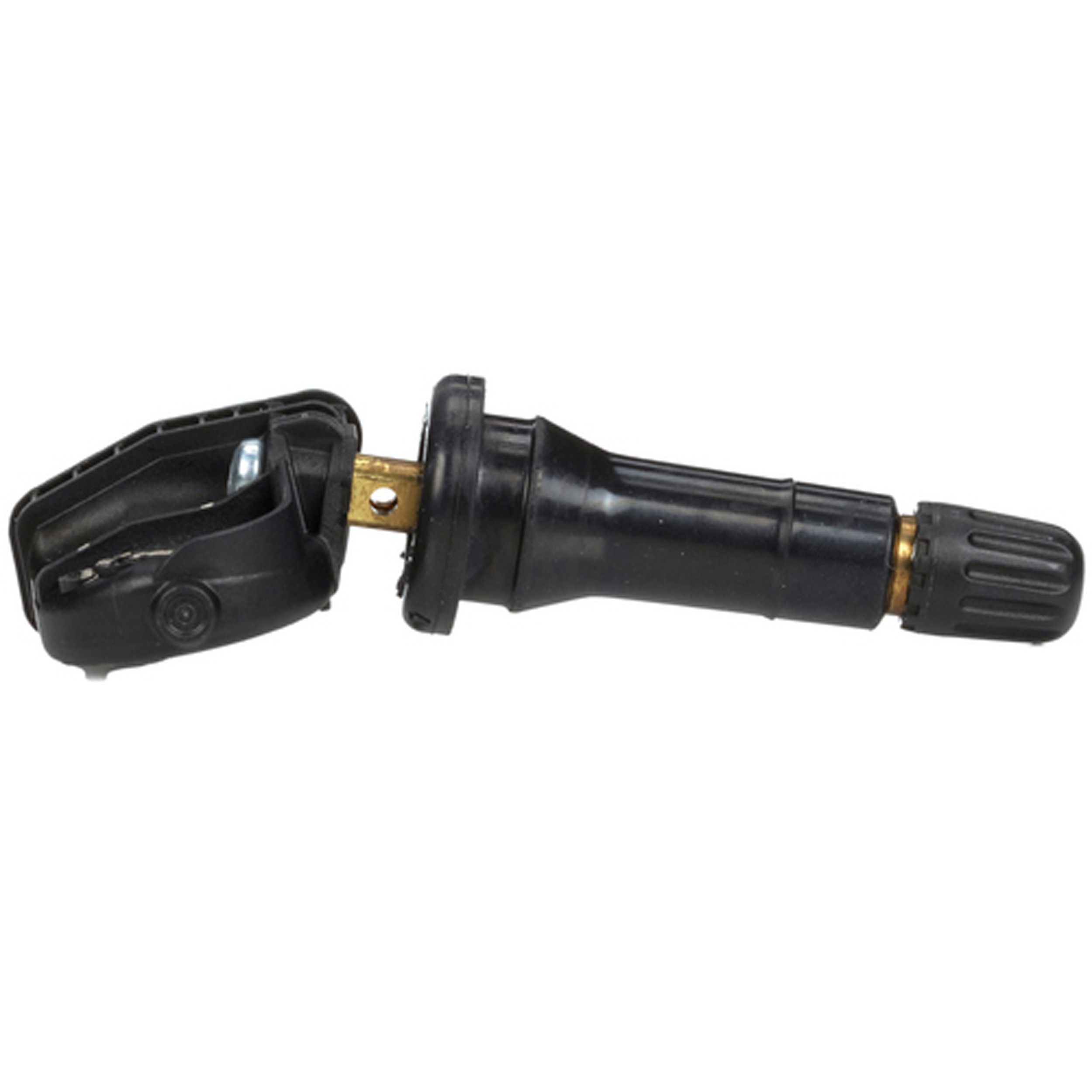

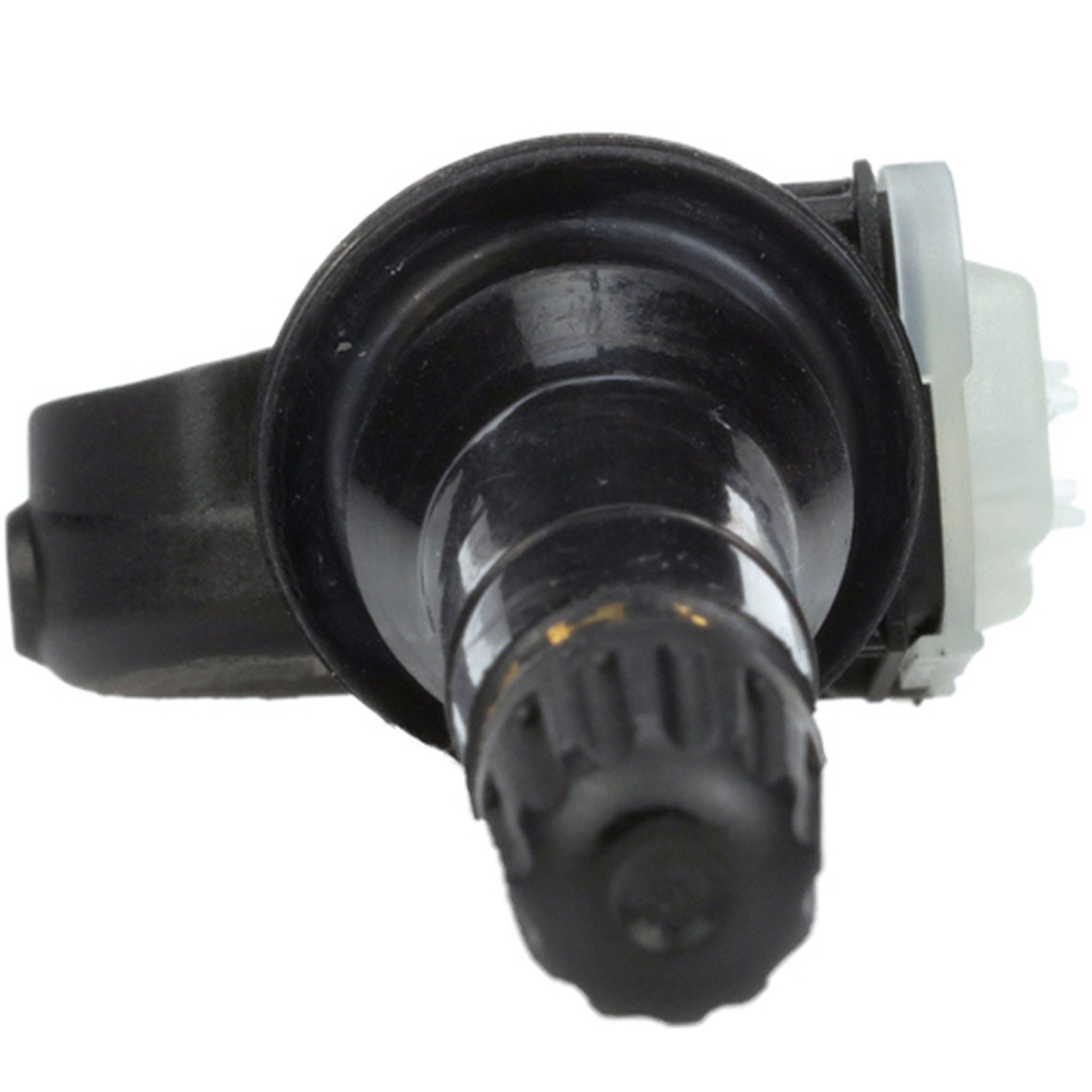

2018 - 2025 Subaru Outback Tire Pressure Monitoring System (TPMS) Sensor (Schrader) NEW

$ 45 .77

Product Notes

⚠️ Most jobs typically require 4 of this item.
Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.
Brand: Schrader
Condition: New
See Other Subaru Outback Tire Pressure Monitoring System (TPMS) Sensors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Attachment Method Snap-fit
California Prop 65 Warning Label (Text) Warning: This Product Can Expose You To Chemicals Including Lead, Which Is Known To The State Of California To Cause Cancer And Birth Defects And Other Reproductive Harm. For More Information, Go To Www.p65warnings.ca.gov
Frequency 315.0
Grommets Included No
Manufacturer Warranty 2 Years
Mounting Hardware Included Yes
Mounting Location Wheel
Mounting Method Snap In
Programmable No
Recommended Torque (N M) 1.3 N-m
Recommended Torque (in/Lbs) 11.5 Inch/lbs.
Valve Cap Included Yes
Valve Color Black
Valve Core Material Nickel Plated
Valve Material Rubber
Valve Stem Included Yes
Washer Included No

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Outback 2018-2025 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5i Wagon 2018 - 2019 H4 2.5L AWD Automatic CVT
2.5i Limited Wagon 2018 - 2019 H4 2.5L AWD Automatic CVT
2.5i Premier Wagon 2018 - 2019 H4 2.5L AWD Automatic CVT
2.5i Premium Wagon 2018 - 2019 H4 2.5L AWD Automatic CVT
2.5i Touring Wagon 2018 - 2019 H4 2.5L AWD Automatic CVT
3.6R Limited Wagon 2018 - 2019 H6 3.6L AWD Automatic CVT
3.6R Premier Wagon 2018 - 2019 H6 3.6L AWD Automatic CVT
3.6R Touring Wagon 2018 - 2019 H6 3.6L AWD Automatic CVT
Base Wagon 2020 - 2025 H4 2.5L AWD Automatic CVT
Convenience Wagon 2020 - 2025 H4 2.5L AWD Automatic CVT
Field Wagon 2023 H4 2.4L Turbo AWD Automatic CVT
Geyser Blue Edition Wagon 2024 H4 2.4L Turbo AWD Automatic CVT
Limited Wagon 2020 - 2025 H4 2.5L AWD Automatic CVT
Limited XT Wagon 2020 - 2025 H4 2.4L Turbo AWD Automatic CVT
Onyx Edition Wagon 2023 - 2025 H4 2.5L AWD Automatic CVT
Onyx Edition XT Wagon 2020 - 2025 H4 2.4L Turbo AWD Automatic CVT
Outdoor XT Wagon 2020 - 2021 H4 2.4L Turbo AWD Automatic CVT
Premier Wagon 2020 - 2022 H4 2.5L AWD Automatic CVT
Premier XT Wagon 2020 - 2025 H4 2.4L Turbo AWD Automatic CVT
Premium Wagon 2020 - 2025 H4 2.5L AWD Automatic CVT
Touring Wagon 2023 H4 2.4L Turbo AWD Automatic CVT
Touring Wagon 2020 - 2025 H4 2.5L AWD Automatic CVT
Touring XT Wagon 2020 - 2025 H4 2.4L Turbo AWD Automatic CVT
Wilderness Wagon 2022 - 2025 H4 2.4L Turbo AWD Automatic CVT
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.

Interchange Parts

Brand Part Number
Dill Air Control 8023
Huf RDE219V43
Standard Motor Products TPM93A
Subaru 28103-FL000
Subaru 28103-FL001
Subaru 28103-FL00A
Subaru 28103FL000
Subaru 28103FL001
Subaru 28103FL002
Subaru 28103FL003
Subaru 28103FL00A
Subaru 28103FL00B
Subaru 28103FL00C
Subaru 28103FL010
VDO SE10003A

Fits Years: 2018 2019 2020 2021 2022 2023 2024 2025

Fits Models: Outback
