2009, 2008, 2007, 2006, 2005 Subaru Outback Transmission Clutch Kit
View 1
View 2
View 3
View 4

2005 - 2009 Subaru Outback Transmission Clutch Kit (Advanced Clutch) NEW

$ 1,699 .00

Product Notes

Mod-Twin 225 HD Sprung Street

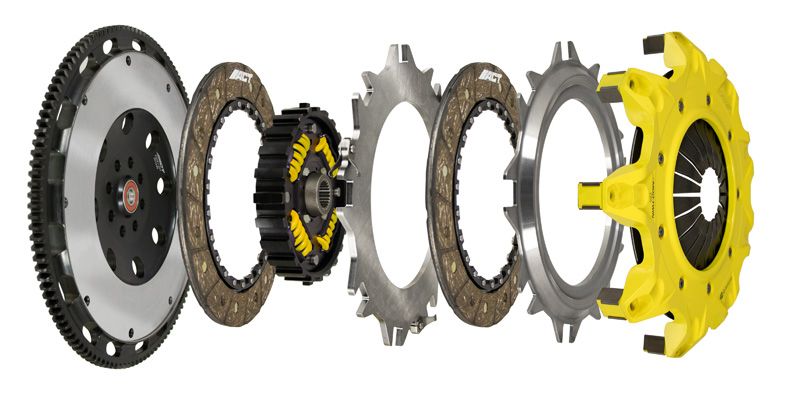

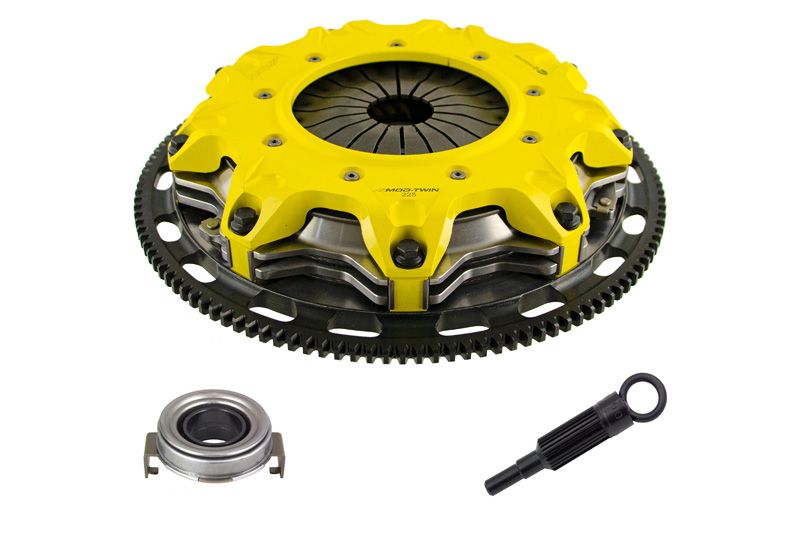

T1SS-S01 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Brand: Advanced Clutch
Condition: New
See Other Subaru Outback Transmission Clutch Kits
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Alignment Tool Included Yes
Clutch Disc Diameter 225, 8.8
Clutch Master Cylinder Included No
Clutch Slave Cylinder Included No
Disc Material Organic
Disc Type Sprung Solid Sprung
Flywheel Bolts Included No
Flywheel Included Yes
Grade Type Performance
Input Shaft Diameter 1
Input Spline Quantity 24
Pilot Bearing Included Yes
Pressure Plate Bolts Included No
Pressure Plate Type Heavy Duty
Product Weight (lbs.) 27.4
Prop 65 Long Label Warning: This Product Can Expose You To Chemicals Including Carbon Black, Glass Wool Fibers, Or Silica (in Clutch Discs), Chromium And Nickel, Which Are Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More
Release Bearing Included Yes
SFI 1.2
Torque Capacity (ft/lbs.) 625
Torque Capacity Over OE 99%

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Outback 2005-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5 XT Wagon 2008 H4 2.5L Turbo AWD Automatic & Manual
2.5i Wagon 2006 - 2009 H4 2.5L AWD Automatic & Manual
2.5i Basic Wagon 2007 H4 2.5L AWD Automatic & Manual
2.5i L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Limited Sedan 2007 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006, 2008 - 2009 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006 H4 2.5L AWD Manual
2.5i Limited L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Special Edition Wagon 2009 H4 2.5L AWD Automatic
3.0 R Wagon 2007 - 2008 H6 3.0L AWD Automatic
3.0 R Limited Wagon 2009 H6 3.0L AWD Automatic
3.0 R Premier Wagon 2009 H6 3.0L AWD Automatic
Base Wagon 2008 H4 2.5L AWD Automatic & Manual
Limited Wagon 2005, 2008 H4 2.5L AWD Automatic
Limited Wagon 2005 H4 2.5L AWD Manual
Premier Wagon 2008 H4 2.5L AWD Automatic
R Sedan 2005 H6 3.0L AWD Automatic
R Wagon 2006 H6 3.0L AWD Automatic
R L.L. Bean Edition Sedan 2006 - 2007 H6 3.0L AWD Automatic
R L.L. Bean Edition Wagon 2005 - 2008 H6 3.0L AWD Automatic
R VDC Limited Wagon 2006 H6 3.0L AWD Automatic
Touring Wagon 2008 H4 2.5L AWD Automatic
VDC Limited Wagon 2005 H6 3.0L AWD Automatic
XT Wagon 2005 - 2008 H4 2.5L Turbo AWD Automatic
XT Wagon 2005 - 2006 H4 2.5L Turbo AWD Manual
XT Limited Wagon 2005 - 2009 H4 2.5L Turbo AWD Automatic & Manual
i Wagon 2005 H4 2.5L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
T1SS-S01 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Fits Years: 2005 2006 2007 2008 2009

Fits Models: Outback
