2009, 2008, 2007, 2006, 2005 Subaru Outback Engine Timing Belt
View 1
View 2
View 3
View 4
View 5
View 6

2005 - 2009 Subaru Outback Engine Timing Belt (Gates) NEW

$ 218 .49

Product Notes

Blue; Interference engine application
High Performance Automotive Timing Belt

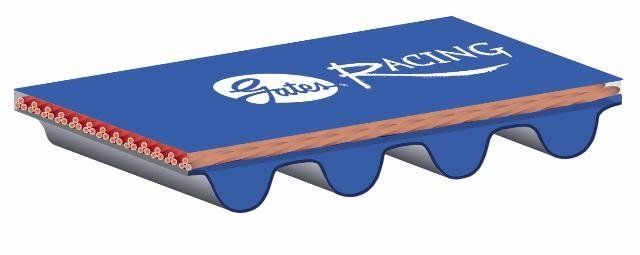

No other belt helps protect your engine investment while delivering high performance like Gates RPM Timing Belts. These belts are incredibly strong and extremely heat resistant. Constructed of HNBR elastomeric composites, you can count on them to withstand the rigors of higher horsepower engines.
Brand: Gates
Condition: New
See Other Subaru Outback Engine Timing Belts
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Belt 1 Pitch (in) .315
Belt 1 Pitch Length (in) 88.5
Belt 1 Pitch Length (mm) 2248
Belt 1 Teeth Quantity 281
Belt 1 Top Width (in) 1.18
Belt 1 Top Width (mm) 30
Belt Material Hsn
Belt Quantity 1
Color Blue
Cord Material Fiberglass
Grade Type High Performance
Profile Type Modified Curvilinear (iii)
Timing Marks Yes
Type High Performance Automotive Timing Belt

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Outback 2005-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5 XT Wagon 2008 H4 2.5L Turbo AWD Automatic & Manual
2.5i Wagon 2006 - 2009 H4 2.5L AWD Automatic & Manual
2.5i Basic Wagon 2007 H4 2.5L AWD Automatic & Manual
2.5i L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Limited Sedan 2007 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006, 2008 - 2009 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006 H4 2.5L AWD Manual
2.5i Limited L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Special Edition Wagon 2009 H4 2.5L AWD Automatic
3.0 R Wagon 2007 - 2008 H6 3.0L AWD Automatic
3.0 R Limited Wagon 2009 H6 3.0L AWD Automatic
3.0 R Premier Wagon 2009 H6 3.0L AWD Automatic
Base Wagon 2008 H4 2.5L AWD Automatic & Manual
Limited Wagon 2005, 2008 H4 2.5L AWD Automatic
Limited Wagon 2005 H4 2.5L AWD Manual
Premier Wagon 2008 H4 2.5L AWD Automatic
R Sedan 2005 H6 3.0L AWD Automatic
R Wagon 2006 H6 3.0L AWD Automatic
R L.L. Bean Edition Sedan 2006 - 2007 H6 3.0L AWD Automatic
R L.L. Bean Edition Wagon 2005 - 2008 H6 3.0L AWD Automatic
R VDC Limited Wagon 2006 H6 3.0L AWD Automatic
Touring Wagon 2008 H4 2.5L AWD Automatic
VDC Limited Wagon 2005 H6 3.0L AWD Automatic
XT Wagon 2005 - 2008 H4 2.5L Turbo AWD Automatic
XT Wagon 2005 - 2006 H4 2.5L Turbo AWD Manual
XT Limited Wagon 2005 - 2009 H4 2.5L Turbo AWD Automatic & Manual
i Wagon 2005 H4 2.5L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
No other belt helps protect your engine investment while delivering high performance like Gates RPM Timing Belts. These belts are incredibly strong and extremely heat resistant. Constructed of HNBR elastomeric composites, you can count on them to withstand the rigors of higher horsepower engines.

Interchange Parts

Brand Part Number
Carquest T328
Carquest T328RB
Cloyes B328
Continental Belt CD328
Dayco 95328
Dayco 95328FN
Flennor TB328
Goodyear 40328
NAPA Belts/Hose 250328
NAPA Belts/Hose HXB328
Subaru 13028AA200
Subaru 13028AA240
Subaru 13028AA250

Fits Years: 2005 2006 2007 2008 2009

Fits Models: Outback
