Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.
| Attribute | Value |
|---|---|
| Install Difficulty | 3 |
| Installation Difficulty | 3 |
| Prop 65 (C, R Or CR) | Cr |
| SellingPoint01 | 20 F (6.7 C) Temperature Decrease Compared To Using Only The Stock Transmission Cooler |
| SellingPoint02 | Direct Fit With No Cutting Or Modification To The Vehicle |
| SellingPoint03 | 19-row Stacked-plate Oil Cooler Is Front Mounted For Maximum Airflow |
| SellingPoint04 | Mounting Brackets Include Provisions For Aftermarket Horns |
| SellingPoint05 | Works In Conjunction With The Stock Transmission Cooler |
| SellingPoint06 | Works With The Mishimoto Engine Oil Cooler Kit |
| SellingPoint07 | Cooler Available In Sleek Silver Or Stealth Black |
| SellingPoint08 | Adds Approximately 1 Qt Of Transmission Fluid |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| SellingPoint10 | N/a |
| SellingPoint11 | N/a |
| SellingPoint12 | N/a |
| SellingPoint13 | N/a |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | 2015-2021 Subaru Wrx |
| TechSpec Chassis Codes | Va |
| TechSpec Core Construction | N/a |
| TechSpec Core Height (in) | 5.43 |
| TechSpec Core Length (in) | 11 |
| TechSpec Core Thickness (in) | 1.97 |
| TechSpec Engine Codes | Fa20dit |
| TechSpec Fluid Capacity (qts) | N/a |

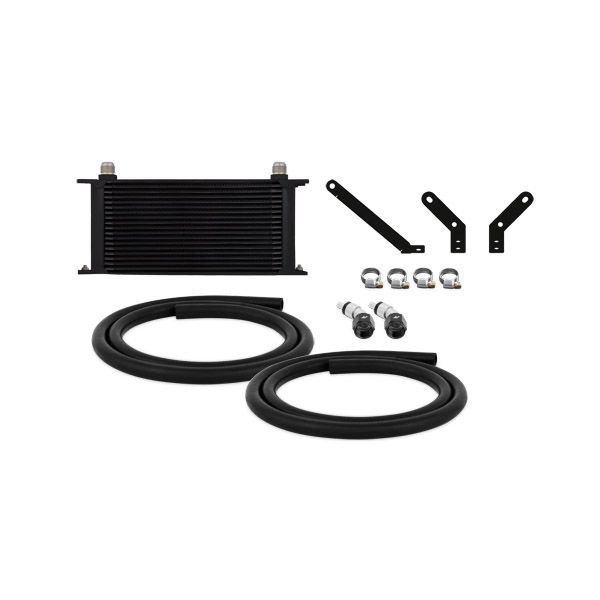

| TechSpec Includes | Application-specific Mounting Brackets--19-row Oil Cooler--6-ft Rubber Transmission Hose, 3/8-in I.d.--45 -10an To 3/8-in Barbed Push-on Fittings--worm-gear Clamps--mounting Hardware Set--mishimoto Lifetime Warranty |
| TechSpec Inlet | N/a |
| TechSpec Installation Notes | 22 In-lbs Recommended For All Worm-gear Clamps.--these Clamps Have An Operating Range Of 18-27 In- 2-3nm.--do Not Exceed The Maximum Torque Rating Of 27 In-lbs----recommended Torque Specification For All Straight Fittings And Banjo Bolts: 15-25 Lb-ftdo No |
| TechSpec Note | This Will Add Approximately 1 Qt. Of Cvt Transmission Fluid. The Transmission Fluid Is Called ñht Cvt Fluid" And It Can Be Purchased At Any Subaru Dealer.--recommended Torque Specification For All Straight Fittings And Banjo Bolts: 15-25 Lb-ftdo Not Excee |
| TechSpec Outlet | N/a |
| TechSpec Overall Height (in) | N/a |
| TechSpec Overall Length (in) | N/a |
| TechSpec Overall Width (in) | N/a |
| TechSpec Rows | 19 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 6 Man | Sedan | 2018 - 2021 | H4 2.0L Turbo | AWD Manual |
| Base | Sedan | 2015 - 2021 | H4 2.0L Turbo | AWD Manual |
| Base | Sedan | 2015 - 2017, 2019 - 2020 | H4 2.0L Turbo | AWD Automatic CVT |
| CVT | Sedan | 2018 - 2021 | H4 2.0L Turbo | AWD Automatic CVT |
| EyeSight | Sedan | 2021 | H4 2.0L Turbo | AWD Automatic CVT |
| Limited | Sedan | 2015 - 2021 | H4 2.0L Turbo | AWD Automatic CVT & Manual |
| Premium | Sedan | 2015 - 2021 | H4 2.0L Turbo | AWD Automatic CVT & Manual |
| Raui Edition | Sedan | 2019 | H4 2.0L Turbo | AWD Manual |
| STI | Sedan | 2015 - 2016 | H4 2.5L Turbo | AWD Manual |
| Sport | Sedan | 2019 - 2021 | H4 2.0L Turbo | AWD Automatic CVT |
| Sport | Sedan | 2017 - 2021 | H4 2.0L Turbo | AWD Manual |
| Sport-tech | Sedan | 2019 - 2021 | H4 2.0L Turbo | AWD Automatic CVT |
| Sport-tech | Sedan | 2017 - 2021 | H4 2.0L Turbo | AWD Manual |
| Sport-tech RS | Sedan | 2019 - 2020 | H4 2.0L Turbo | AWD Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
Fits Years: 2015 2016 2017 2018 2019 2020 2021
Fits Models: WRX
Protecting your WRX's CVT automatic is critical, especially when driving hard.
