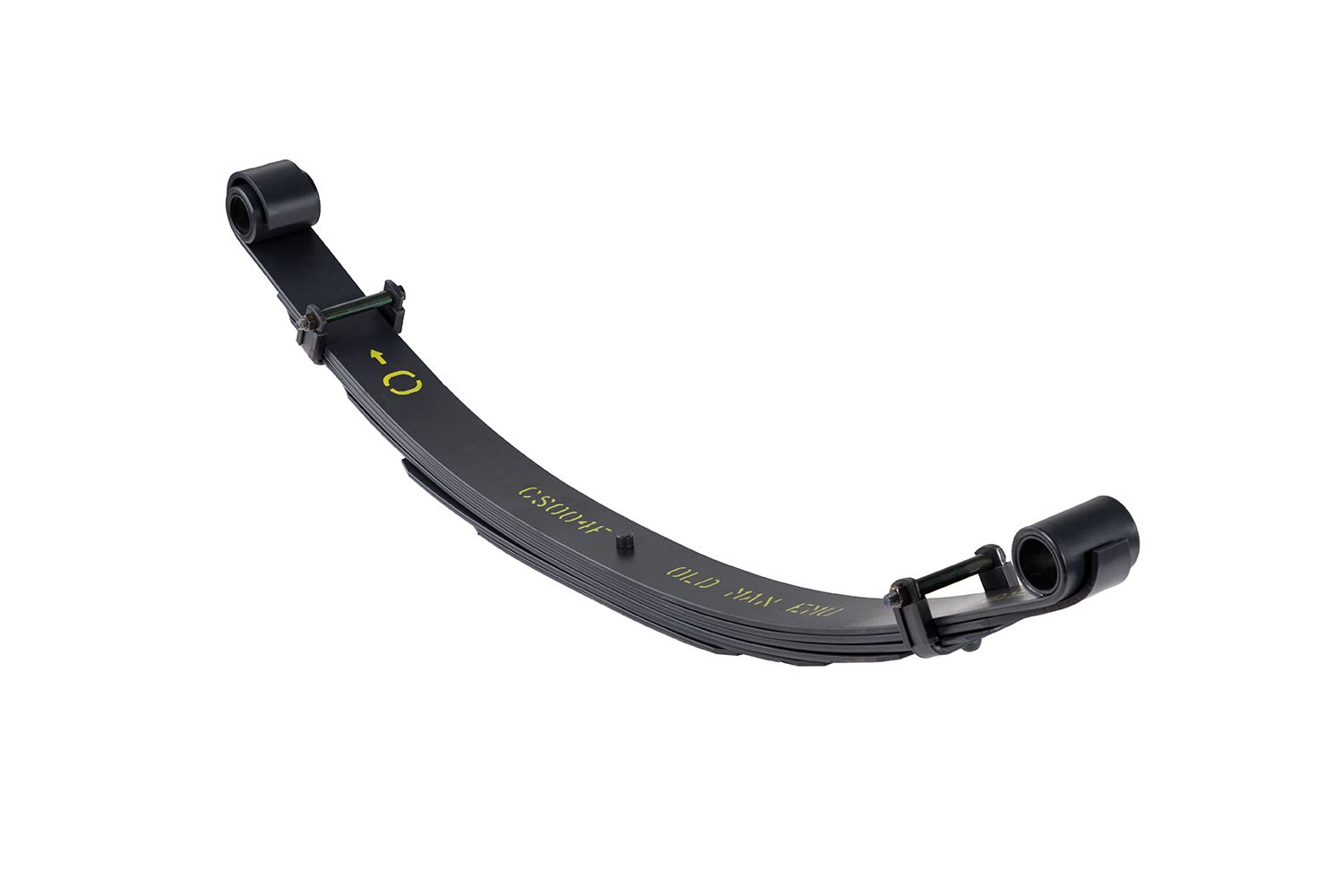

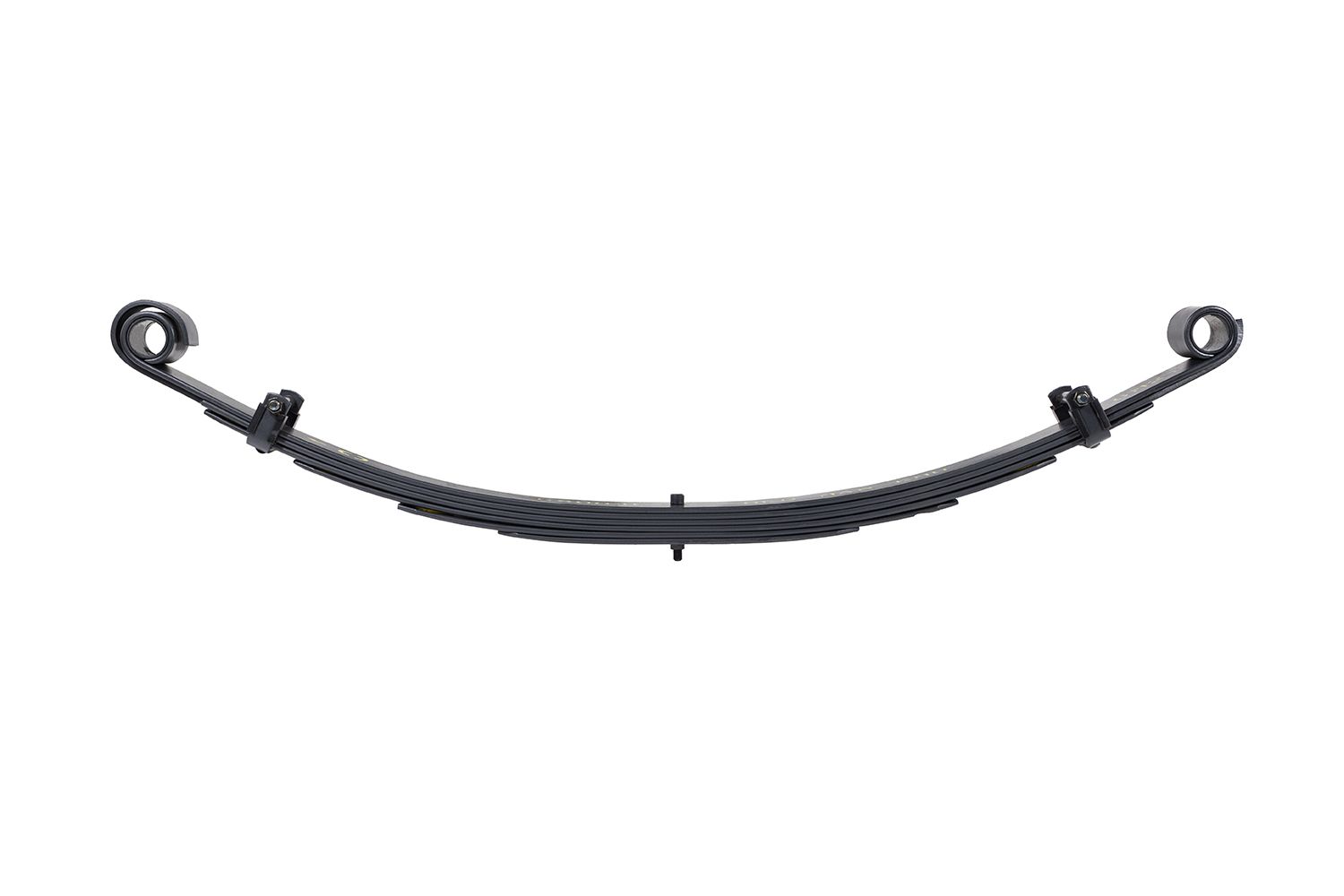

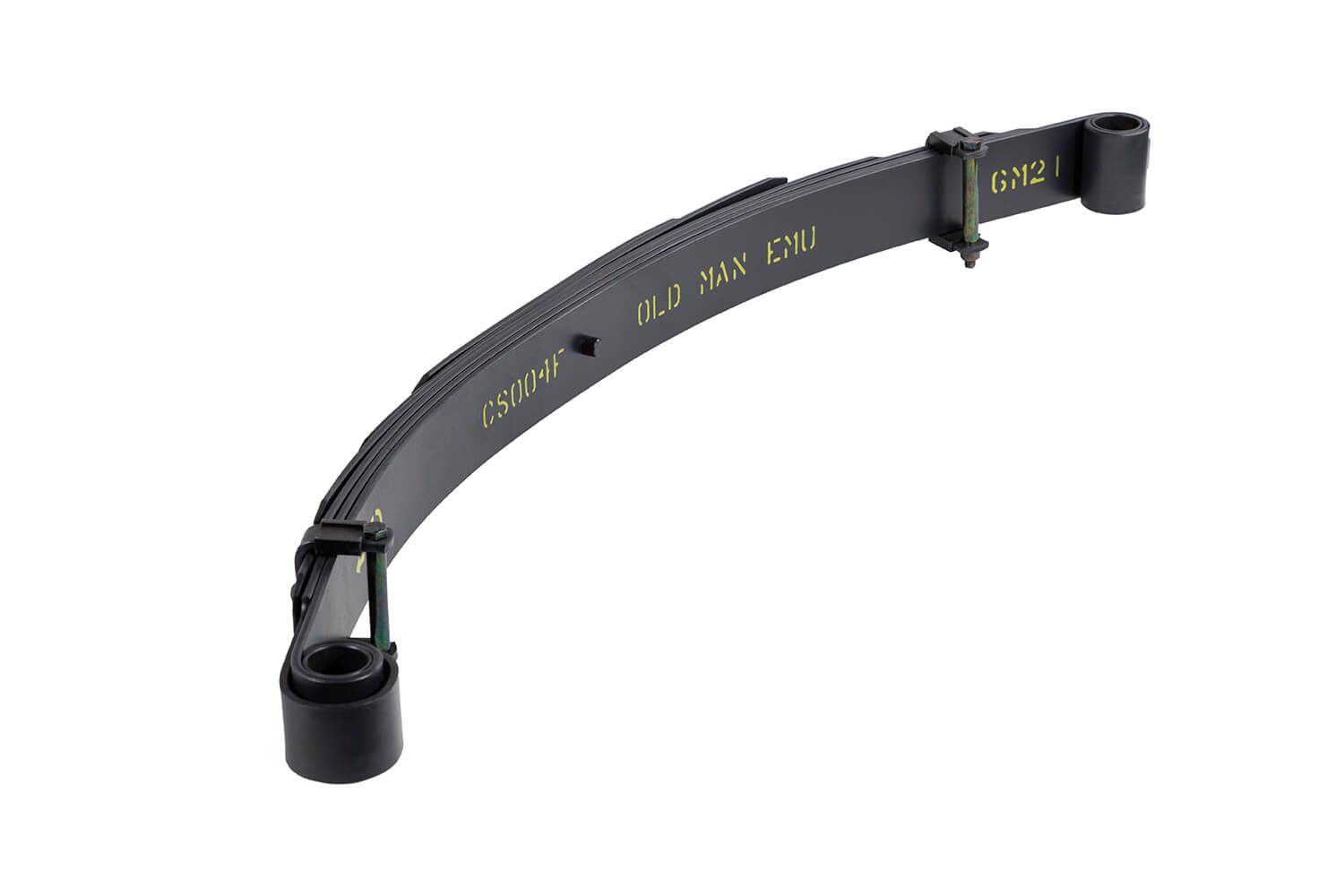

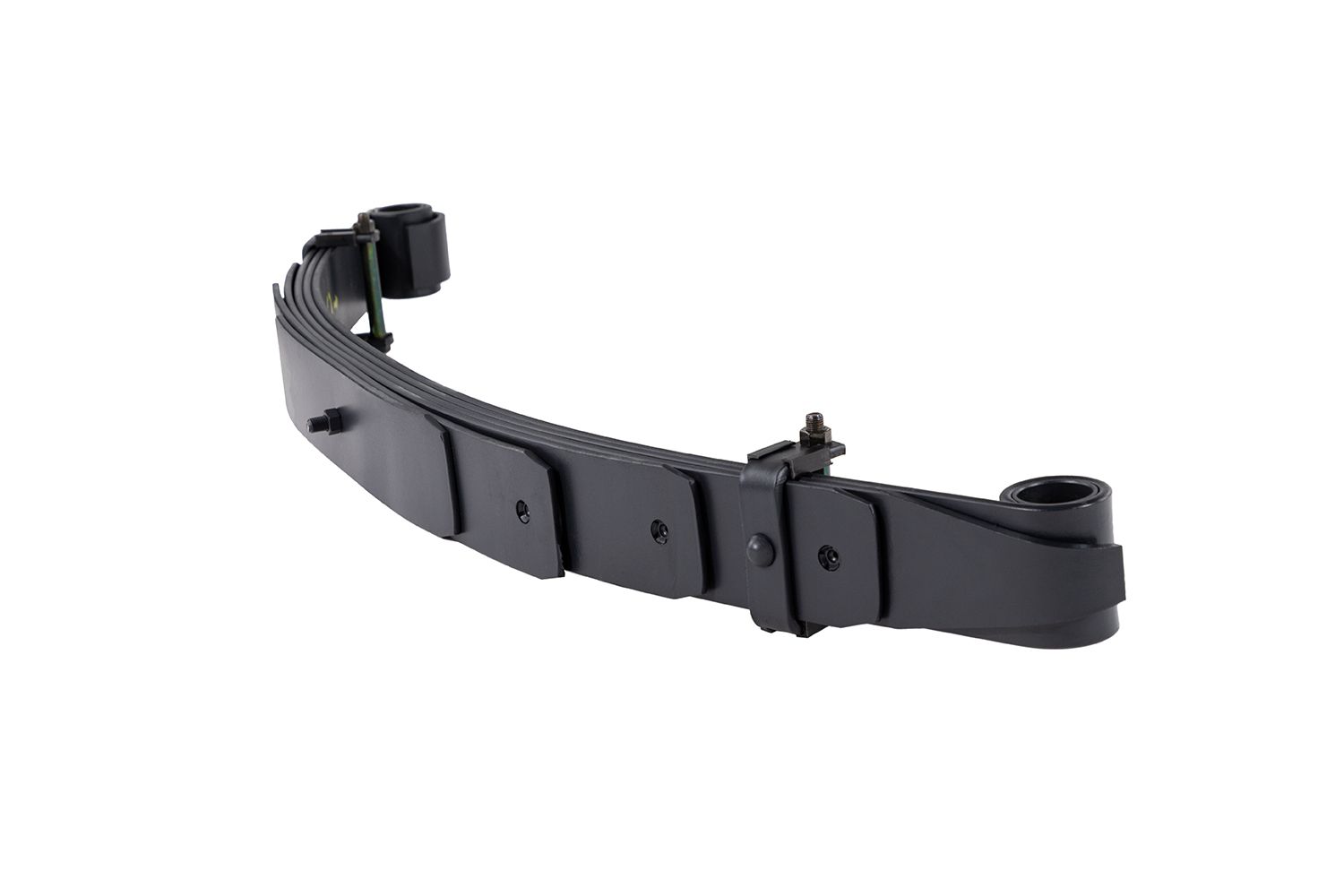

1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980 Toyota Land Cruiser Cruiser Leaf Spring Assembly
View 1
View 2
View 3
View 4

1980 - 1989 Toyota Land Cruiser Cruiser Leaf Spring Assembly (Old Man Emu) NEW

$ 169 .95
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

⚠️ Most jobs typically require 2 of this item.
FK08 Anti Inversion Kit is mandatory fitment if greasable shackles are not fitted. When bump stop heights exceed 110mm the 4th leaf in the CS004F spring can be removed or CS003F can be used for ride quality and to reinstate desired bump stop height. OMECW2 spring caster wedge may be required to restore positive caster angle.
Leaf Spring
Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
Brand: Old Man Emu
Condition: New
See Other Toyota Land Cruiser Leaf Spring Assemblies
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Eye Diameter 35 Mm (f) / 35 Mm (r)
Number Of Leaves 6
Primary Free Camber 196 Mm
Spring Rate 257 Lbf/in
Stack Height 36 Mm
Weight 17.7 Kg

Vehicle Fitment Guide

This part fits the following vehicles:

Toyota 1 model (tapclick to expand)(tapclick to hide)
Land Cruiser 1980-1989 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
BJ42 SUV 1981, 1983 - 1984 L6 4.2L DIESEL 4WD U/K
BJ60 SUV 1985 L4 3.4L DIESEL 4WD U/K
BJ60 SUV 1981 - 1984 L6 4.2L DIESEL 4WD U/K
BJ60LG-MK SUV 1984 - 1985 L4 3.4L DIESEL 4WD U/K
BJ60LV-KK SUV 1981 L4 3.4L DIESEL 4WD U/K
BJ70 SUV 1985 - 1987 L4 3.4L DIESEL 4WD U/K
Base SUV 1988 - 1989 L6 4.0L 4WD Automatic
Base SUV 1982 - 1983 L4 3.4L DIESEL 4WD Manual
Base SUV 1982 - 1983 L4 3.4L DIESEL 4WD Manual
Base SUV 1980 - 1987 L6 4.2L 4WD Manual
Base SUV 1980 - 1983 L6 4.2L 4WD Manual
Base Standard Cab Pickup 1980 L6 4.2L 4WD Manual
HJ60 SUV 1987 L4 2.4L DIESEL 4WD U/K
HJ60 SUV 1986 L6 4.2L DIESEL 4WD U/K
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.
