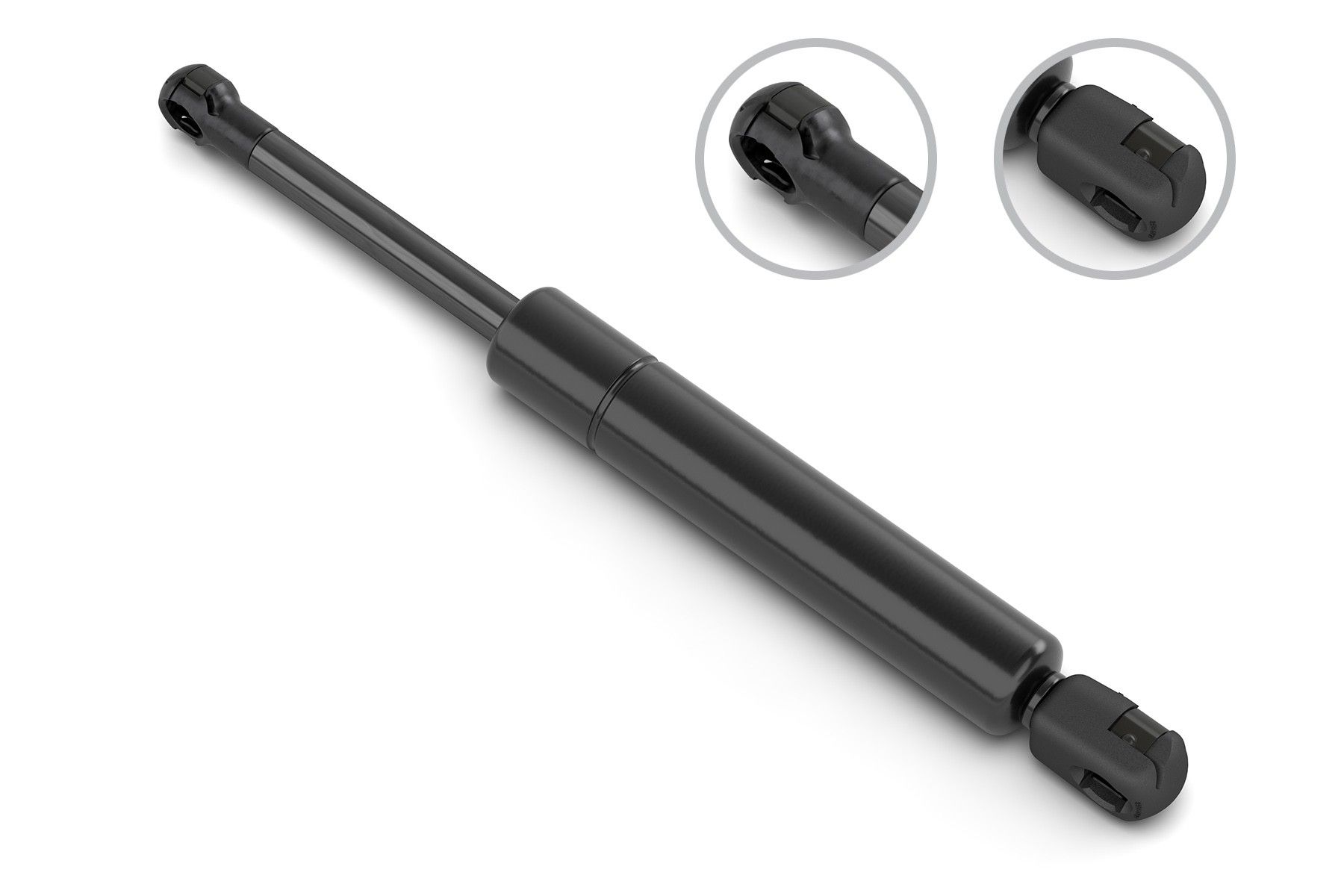

2018, 2017, 2016 Toyota RAV4 Liftgate Lift Support

2016 - 2018 Toyota RAV4 Liftgate Lift Support (Stabilus) NEW

$ 39 .55
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

⚠️ Most jobs typically require 2 of this item.
To 04/2018

Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The groove depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.
Brand: Stabilus
Condition: New
See Other Toyota RAV4 Liftgate Lift Supports
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 14.37, 365
Cylinder Outside Diameter 0.866
End 1 Material Steel
End 1 Mount Diameter 0.394, 10.0
End 1 Type Ball Socket
End 2 Material Nylon
End 2 Mount Diameter 0.394, 10.0
End 2 Type Ball Socket
Engine Specific N
Extended Length 19.86, 504.5
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.394
Marine N
Maximum Force 193, 860
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 139.5, 5.49
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

Toyota 1 model (tapclick to expand)(tapclick to hide)
RAV4 2016-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Adventure SUV 2018 L4 2.5L AWD/FWD Automatic
Hybrid LE+ SUV 2017 - 2018 L4 2.5L FULL HYBRID EV-GAS (FHEV) AWD Automatic CVT
Hybrid Limited SUV 2016 - 2018 L4 2.5L FULL HYBRID EV-GAS (FHEV) AWD Automatic CVT
Hybrid SE SUV 2017 - 2018 L4 2.5L FULL HYBRID EV-GAS (FHEV) AWD Automatic CVT
Hybrid XLE SUV 2016 - 2018 L4 2.5L FULL HYBRID EV-GAS (FHEV) AWD Automatic CVT
LE SUV 2016 - 2018 L4 2.5L AWD/FWD Automatic
Limited SUV 2016 - 2018 L4 2.5L AWD/FWD Automatic
Platinum SUV 2017 - 2018 L4 2.5L AWD/FWD Automatic
SE SUV 2016 - 2018 L4 2.5L AWD/FWD Automatic
XLE SUV 2016 - 2018 L4 2.5L AWD/FWD Automatic
XLE Plus SUV 2017 - 2018 L4 2.5L AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The groove depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.

Interchange Parts

Brand Part Number
Stabilus 853030
Toyota 68950-0R020
Toyota 689500R020
Toyota 68960-0R020
Toyota 689600R020

Fits Years: 2016 2017 2018

Fits Models: RAV4
