2003, 2002 Volkswagen Golf Quattro Clutch Flywheel
View 1
View 2

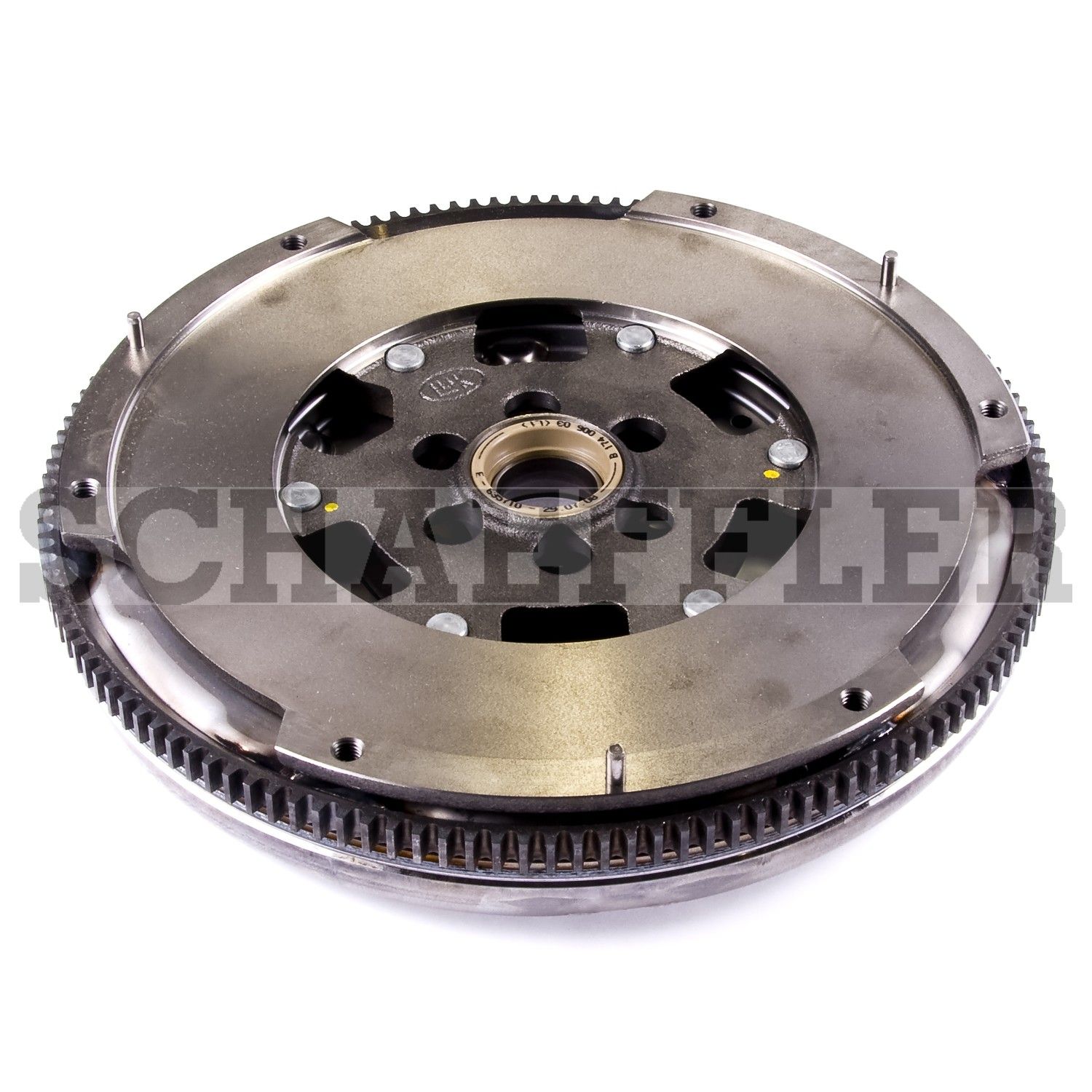

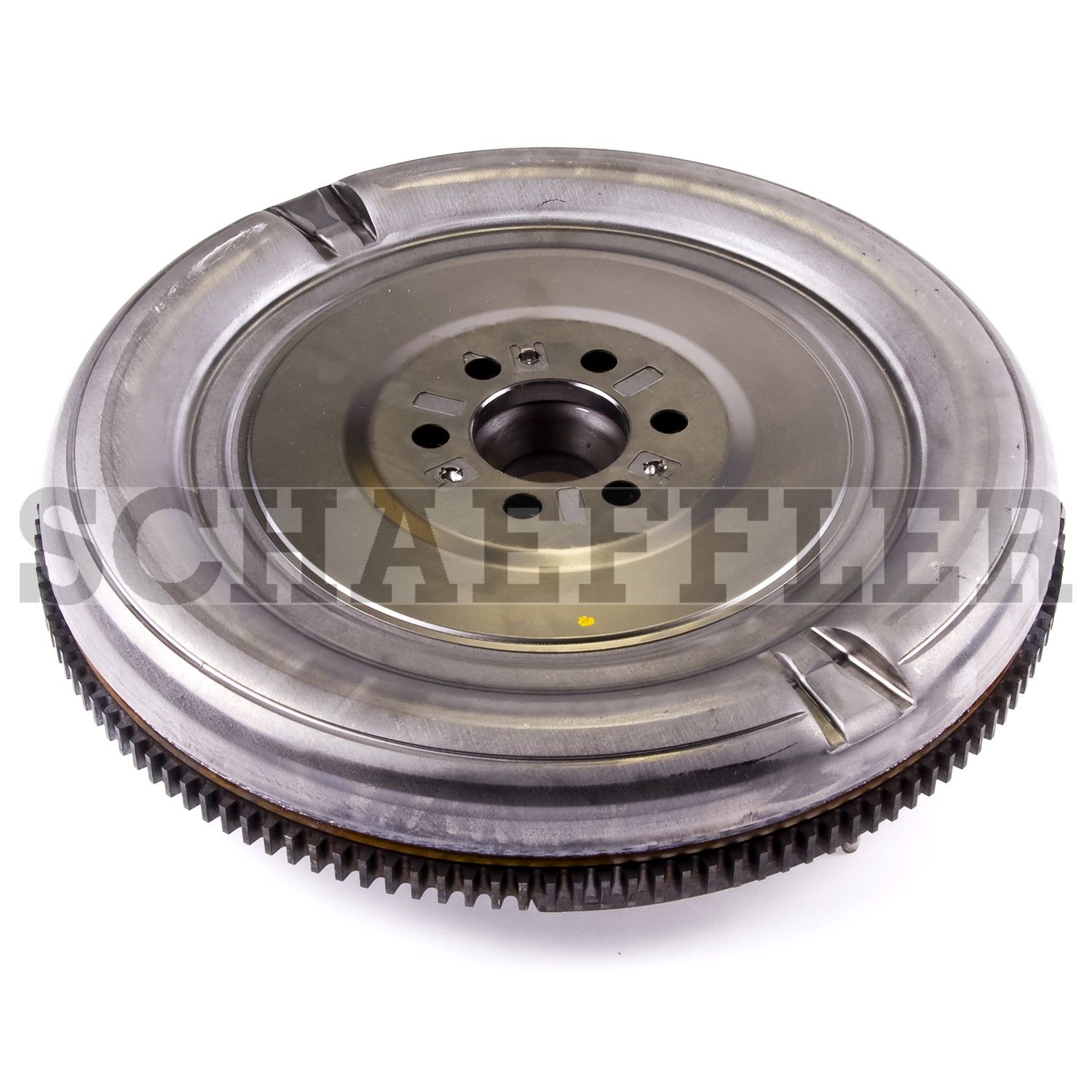

2002 - 2003 Volkswagen Golf Quattro Clutch Flywheel (LuK) NEW

$ 423 .75

Product Notes

LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.
Brand: LuK
Condition: New
See Other Volkswagen Golf Clutch Flywheels
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Bolt Hole Pattern 2
Bolt Hole PCD Clutch Pres.plte 10.1575, 258
Bolt Hole PCD Crankshaft 2.5984, 66
Centering Diameter / Dowel Hole 10.315, 262
Crank Hole Dia. 0.4134, 10.5
Crank To Friction Surface 1.6339, 41.5
Cup Depth, Secondary Flywheel -0.1299, -3.3
Dowel Hole Pattern 5
Dowel Hole Diameter 0.189, 4.8
Flywheel Friction Surface Inner Diameter 154, 6.063
Flywheel Thickness [mm] 2.5472, 64.7
Flywheel Friction Surface Outer Diameter 241, 9.4882
I.D. For Pilot 1.0866, 27.6
Number Of Teeth, Starter Ring Gear 134
Overall Casting O.D. 11.2205, 285
Ring Gear Major Dia. 11.3924, 289.366
Ring Gear Mounting O.D. 10.4272, 264.85
Ring Gear Number L-09180-0048-01
Ring Gear Thickness 0.3937
Ring Gear To Friction Surface 0.7559, 19.2
Torque Capacity DMFW 14.1732, 360

Vehicle Fitment Guide

This part fits the following vehicles:

Volkswagen 1 model (tapclick to expand)(tapclick to hide)
Golf 2002-2003 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2002 L4 2.0L FWD Manual
Comfortline Hatchback 2003 L4 2.0L FWD Manual
Confort Hatchback 2002 L4 2.0L FWD Manual
Europa Hatchback 2003 L4 2.0L FWD Manual
GL Hatchback 2002 - 2003 L4 1.9L DIESEL Turbo FWD Automatic & Manual
GL Hatchback 2002 - 2003 L4 1.9L DIESEL Turbo FWD Automatic & Manual
GL Hatchback 2002 - 2003 L4 2.0L FWD Automatic & Manual
GL Hatchback 2002 - 2003 L4 2.0L FWD Automatic & Manual
GLS Hatchback 2002 - 2003 L4 1.9L DIESEL Turbo FWD Automatic & Manual
GLS Hatchback 2002 - 2003 L4 2.0L FWD Automatic & Manual
GTI Hatchback 2002 - 2003 L4 2.0L FWD Manual
GTI 1.8T Hatchback 2002 - 2003 L4 1.8L Turbo FWD Automatic & Manual
GTI 20th Anniversary Hatchback 2003 L4 1.8L Turbo FWD Manual
GTI 337 Hatchback 2002 L4 1.8L Turbo FWD Manual
GTI Turbo Hatchback 2002 - 2003 L4 1.8L Turbo FWD Manual
GTI VR6 Hatchback 2002 - 2003 V6 2.8L FWD Manual
Lujo Hatchback 2002 L4 2.0L FWD Manual
Trendline Hatchback 2003 L4 2.0L FWD Manual
Verano Hatchback 2002 L4 2.0L FWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.

Interchange Parts

Brand Part Number
AMS Automotive 167173
NAPA Clutch and Flywheel NDMF032
PERFECTION 50-2798
Sachs DMF91126
Volkswagen 06A 105 266 J
Volkswagen 06A 105 266 N

Fits Years: 2002 2003

Fits Models: Golf
