2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008 Volvo S80 LR2 A/C Expansion Valve
View 1
View 2
View 3
View 4
View 5
View 6

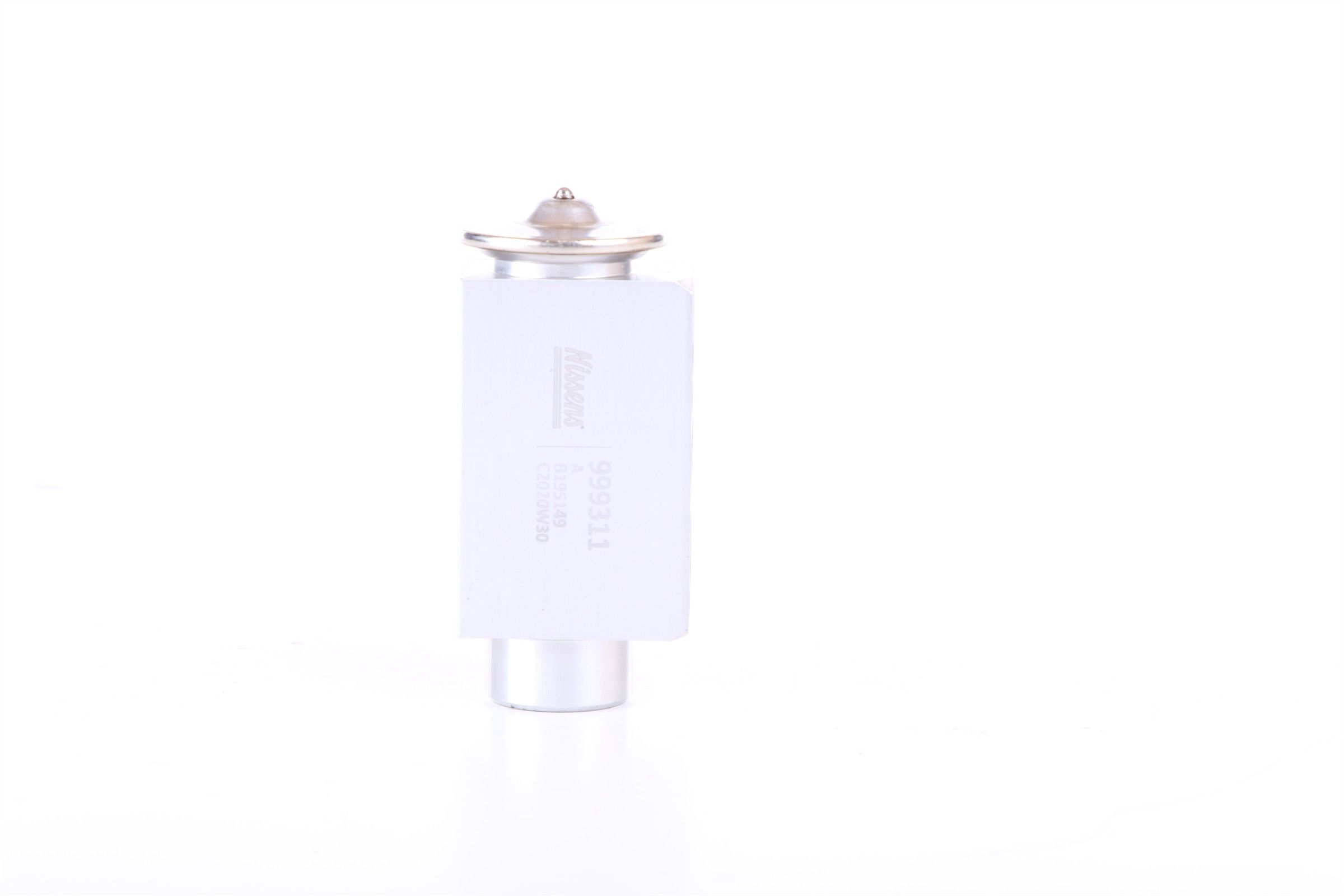

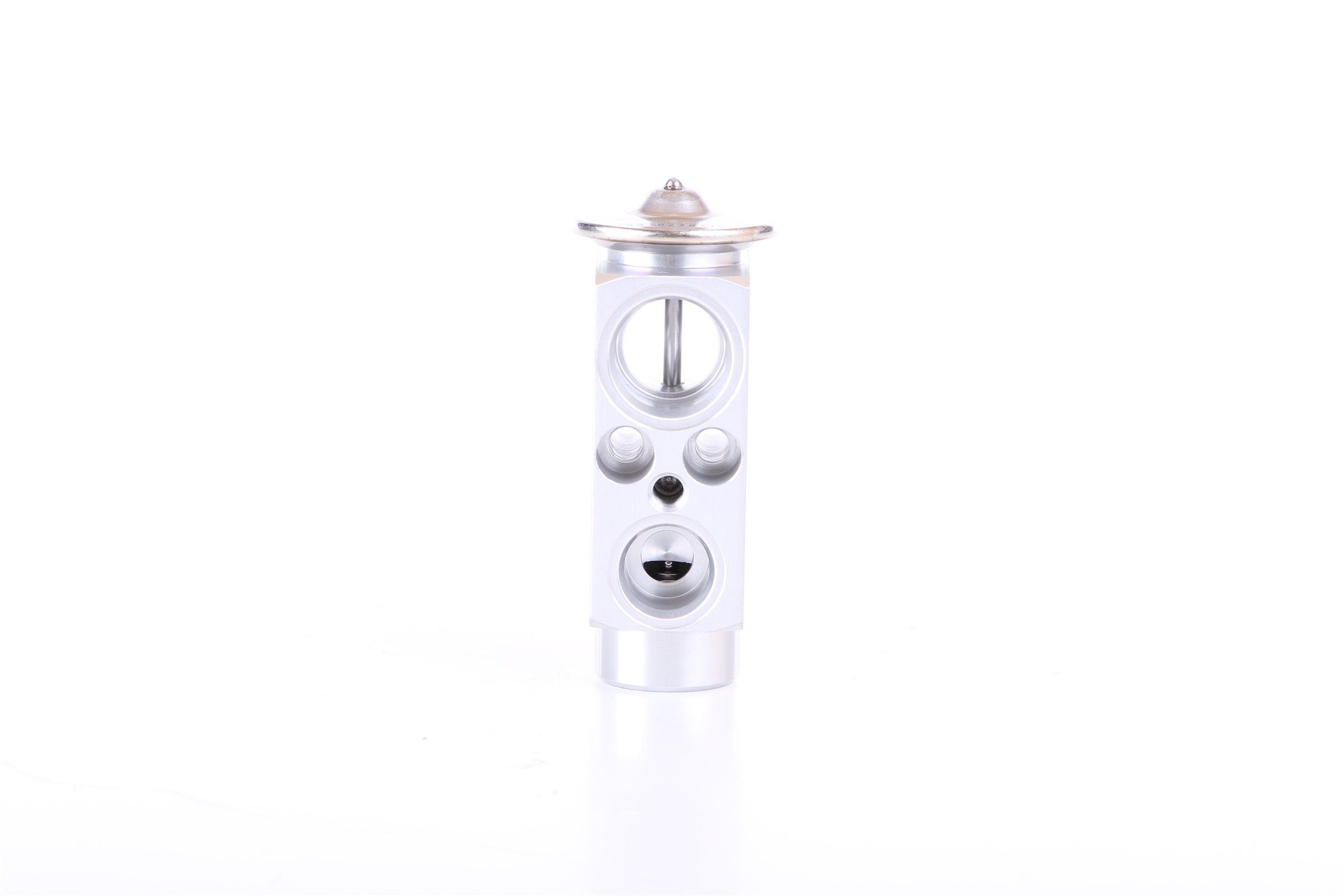

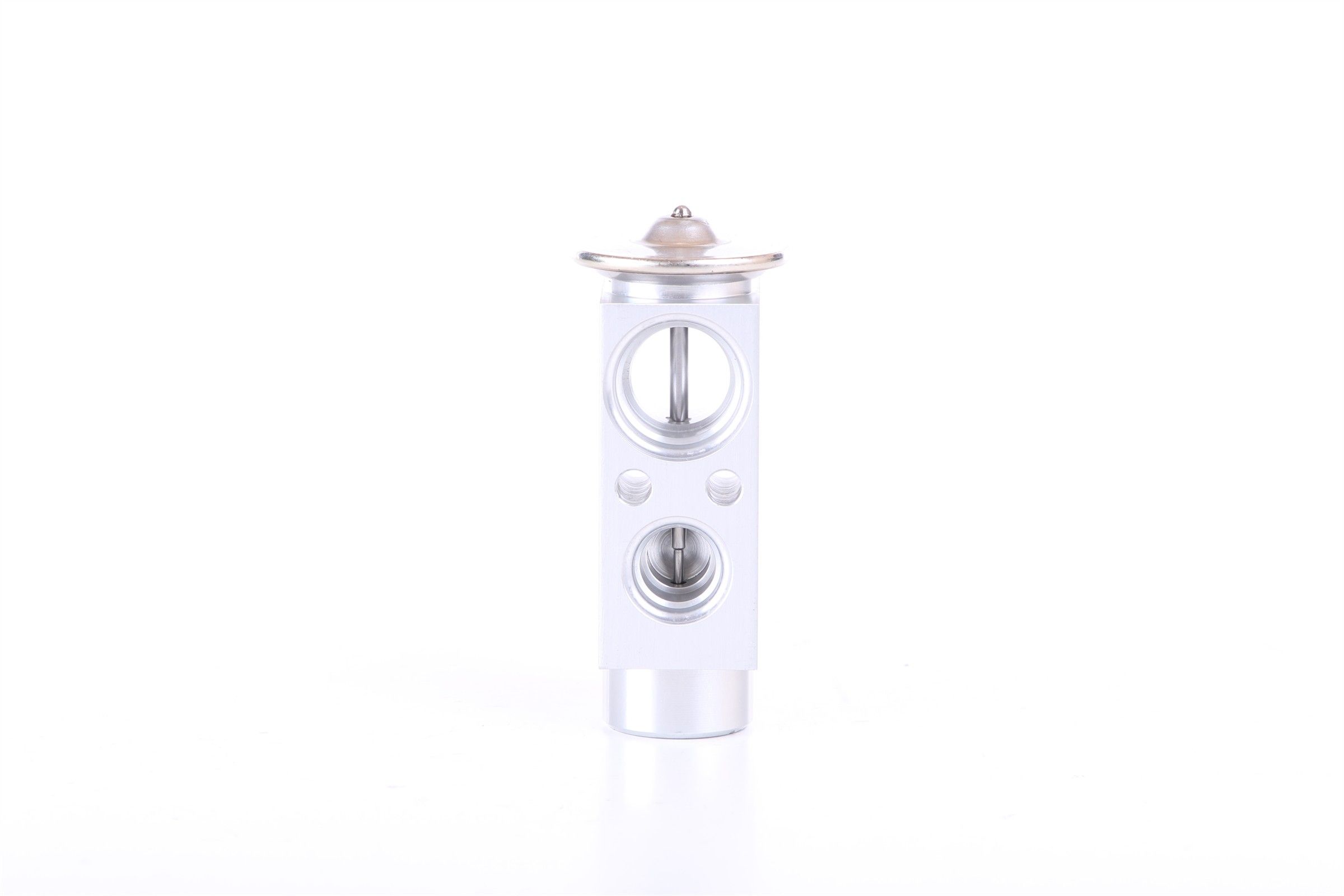

2008 - 2016 Volvo S80 LR2 A/C Expansion Valve (Nissens) NEW

$ 48 .69

Product Notes

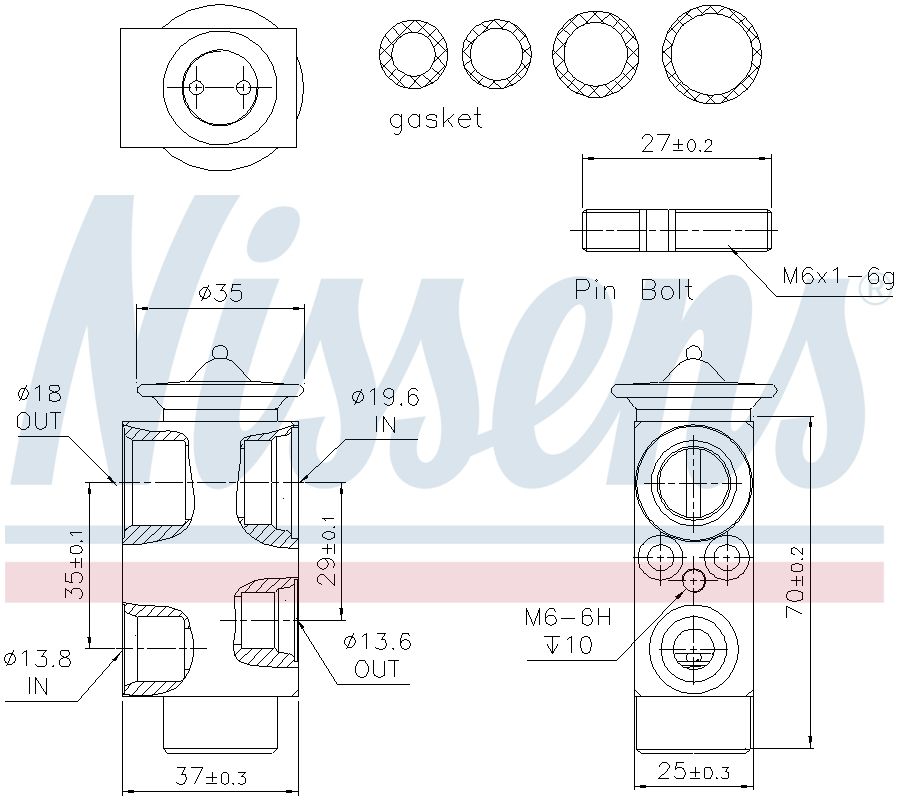

Inlet 1: 39mm, Inlet 2: 35.5 mm, Outlet 1: 11.8 mm, Outlet 2: 18 mm

Nissens thermal expansion valves are developed to high quality standards and come equipped with O-rings and mounting bolts whenever applicable. Nissens manufacturing standards include comprehensive testing and validation for strict control of the expansion valves pressure performance, tightness, opening, set-point setting, and inner finish, all to precise OE matching standards.
Brand: Nissens
Condition: New
See Other Volvo S80 A/C Expansion Valves
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
California Proposition 65 Required No
Liquid Inlet Fitting Thread Diameter 0.5500
Liquid Outlet Fitting Thread Diameter 0.5500
Material Aluminum

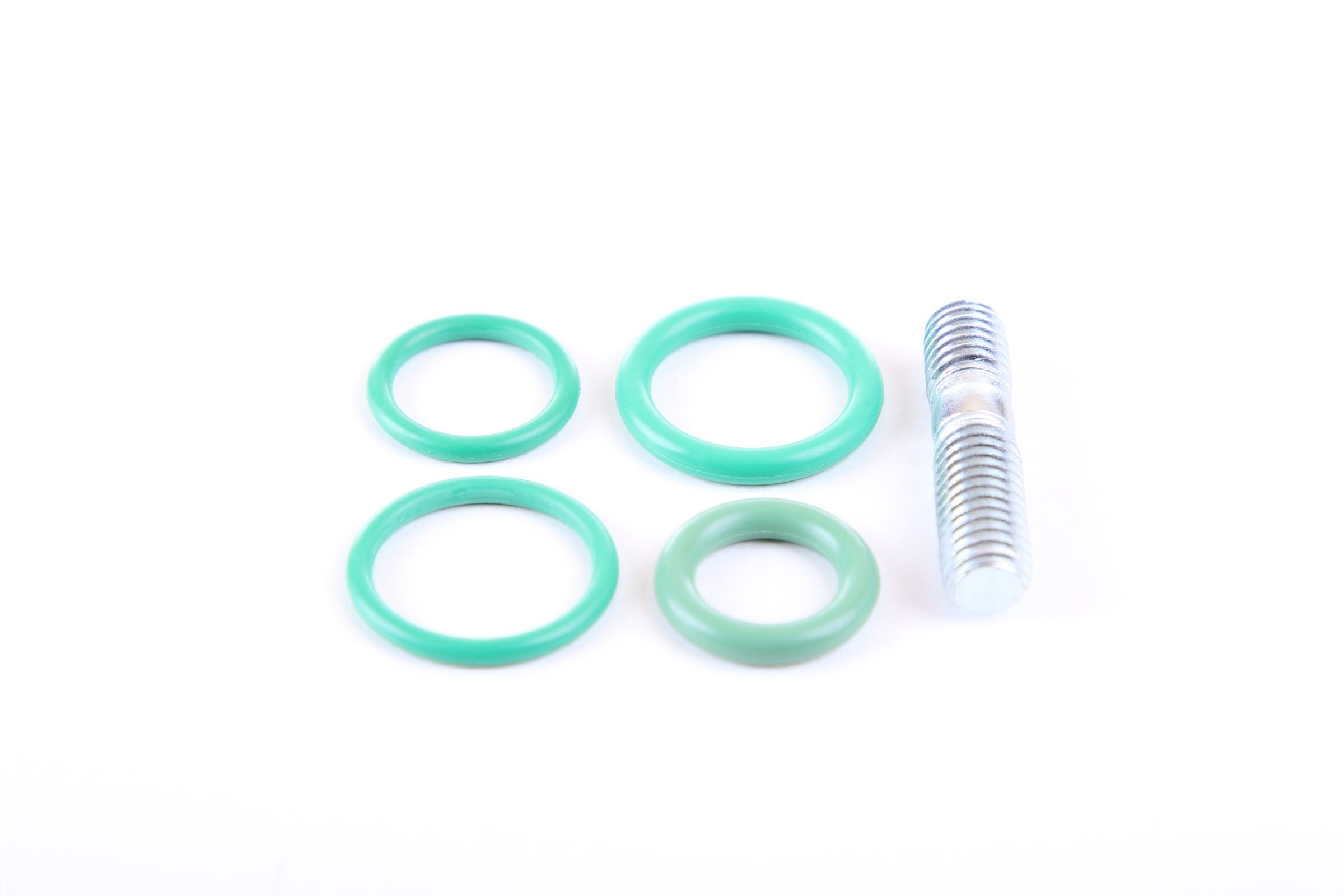

Mounting Hardware Included Yes
O Ring Quantity 4
O Rings Included Yes
Refrigerant Type R134a
Suction Inlet Fitting Thread Diameter 0.7900
Suction Outlet Fitting Thread Diameter 0.7100
Type Block

Vehicle Fitment Guide

This part fits the following vehicles:

Volvo 1 model (tapclick to expand)(tapclick to hide)
S80 2008-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
3.2 Sedan 2008 - 2014 L6 3.2L FWD Automatic
Addition Sedan 2011 L6 3.0L Turbo AWD Automatic
Base Sedan 2012 - 2013 L4 2.0L Turbo FWD Manual
Base Sedan 2010 L6 3.0L Turbo AWD Automatic
Base Sedan 2010 V8 4.4L AWD Automatic
Evolution Sedan 2013 L4 2.0L Turbo FWD Manual
Kinetic Sedan 2011 L6 3.0L Turbo AWD Automatic
Luxury Sedan 2014 - 2015 L6 3.0L Turbo AWD Automatic
T5 Sedan 2015 - 2016 L4 2.0L Turbo FWD Automatic
T5 Platinum Sedan 2016 L4 2.0L Turbo FWD Automatic
T6 Sedan 2008 - 2015 L6 3.0L Turbo AWD Automatic
T6 Sedan 2008 - 2009 L6 3.2L FWD Automatic
V8 Sedan 2008 - 2010 V8 4.4L AWD Automatic
V8 Sedan 2008 - 2009 V8 4.4L FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Nissens thermal expansion valves are developed to high quality standards and come equipped with O-rings and mounting bolts whenever applicable. Nissens manufacturing standards include comprehensive testing and validation for strict control of the expansion valves pressure performance, tightness, opening, set-point setting, and inner finish, all to precise OE matching standards.

Interchange Parts

Brand Part Number
Delphi CB1021V
Four Seasons 39429
Land Rover LR003182
Land Rover LR009786
Land Rover LR016631
MAHLE AVE66000P
UAC EX10382C
Volvo 30767018
Volvo 31267504
Volvo 31291817

Fits Years: 2008 2009 2010 2011 2012 2013 2014 2015 2016

Fits Models: S80
