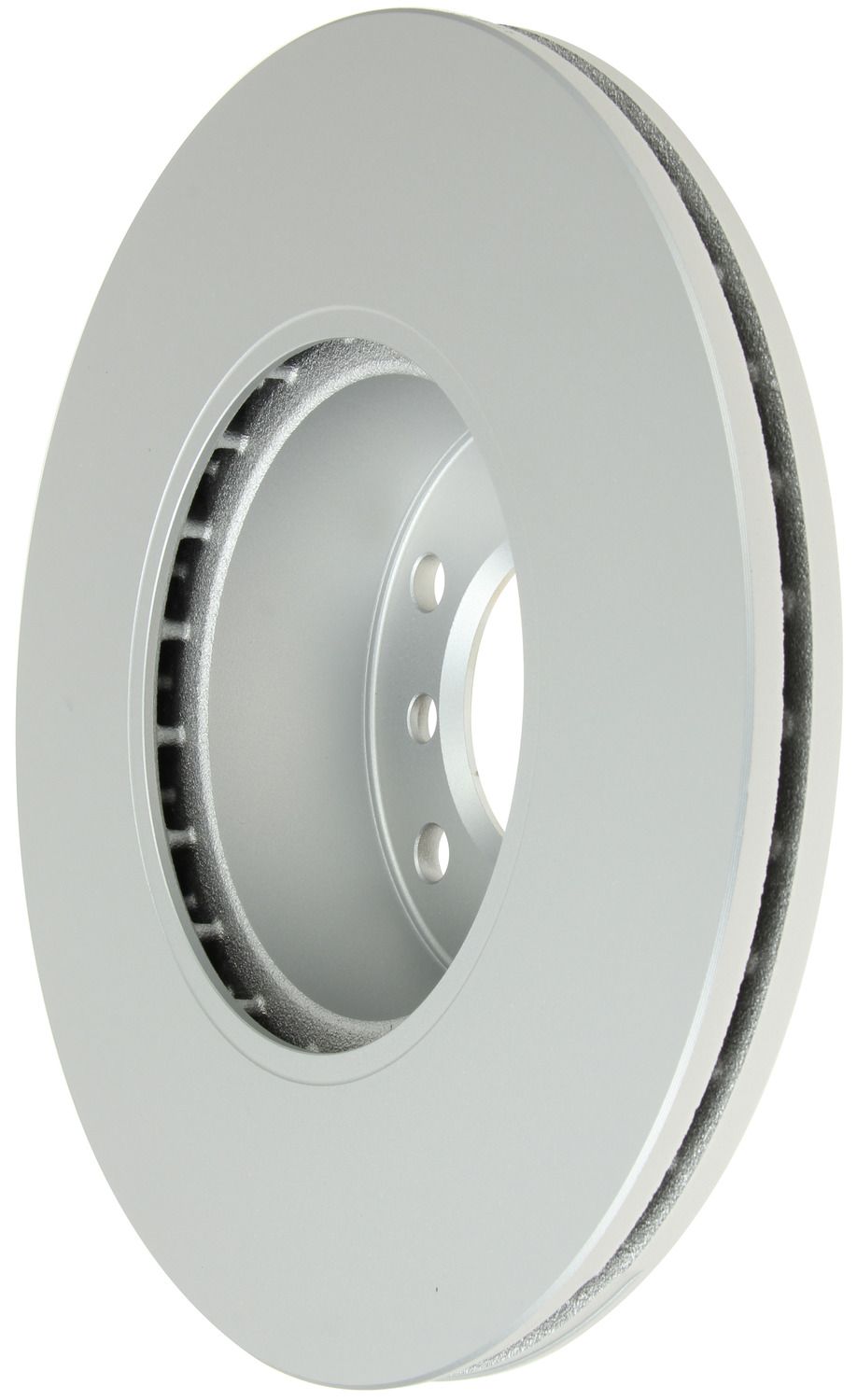

Disc Brake Rotor
View 1
View 2

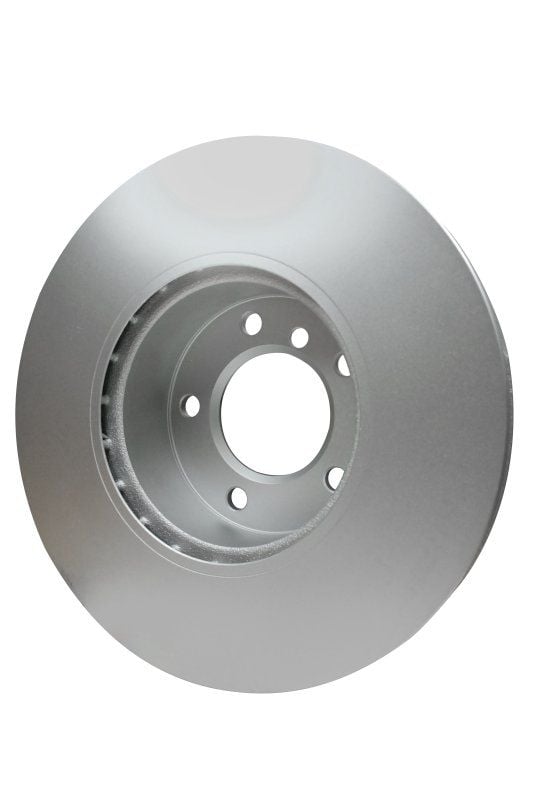

View 3

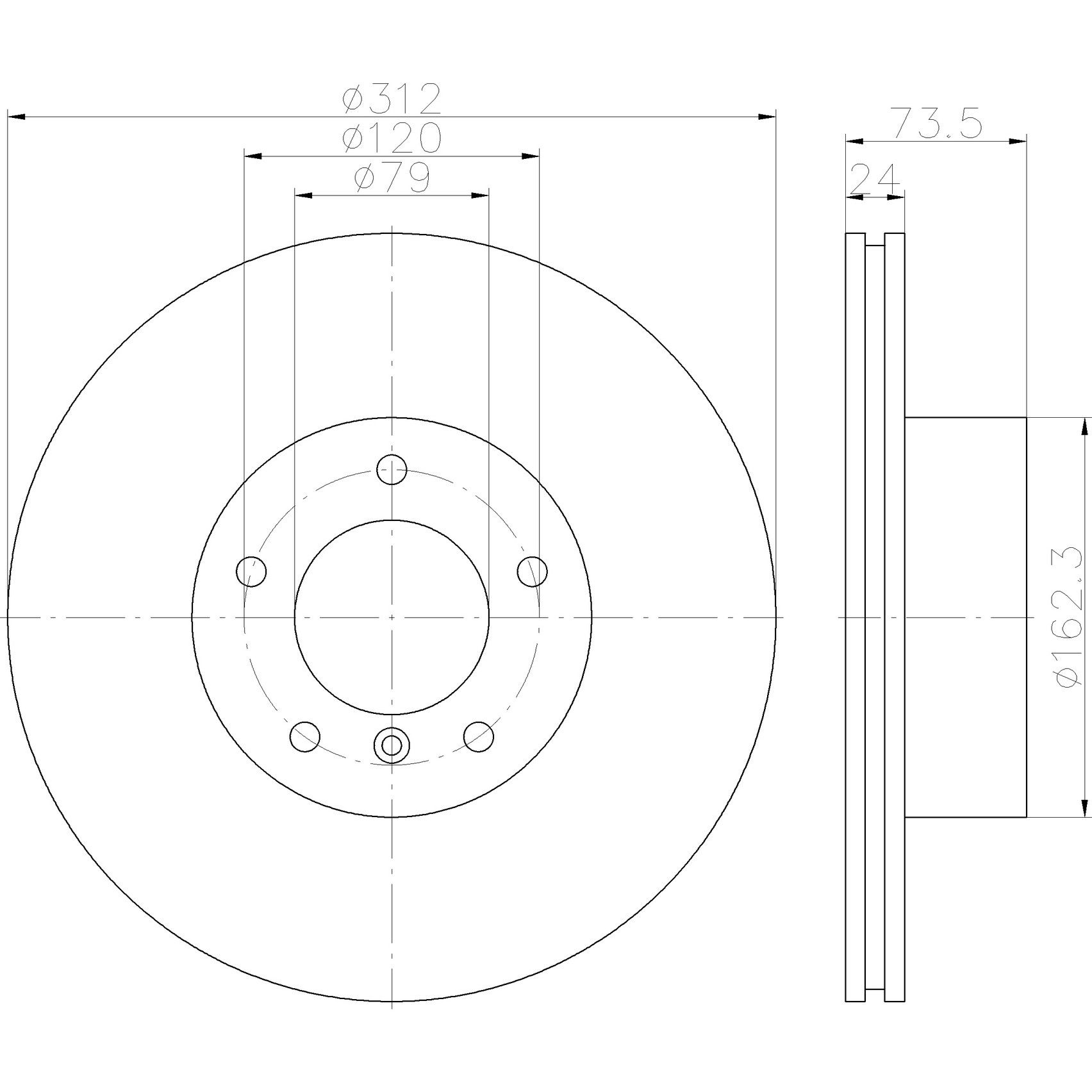

View 4

Disc Brake Rotor - Front (Pagid) for 2007-2021 BMW NEW

$ 110 .48

Product Notes

Position: Front
High Carbon, Fully Coated From 09/07
Integral One-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New
See All Other Disc Brake Rotors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
120.00
ABS Tone Ring Included No
Assy/Disassy By Qualified Personnel Required! .
Balancing Type Mill Balancing
Bearings Included No
Bolt Hole Circle Ø [in] 4.72
Bolt Hole Circle Ø [mm] 120
Bolt Hole Quantity 6
Brake Disc Thickness [in] 0.94
Brake Disc Thickness [mm] 24
Brake Disc Type Internally Vented
California Proposition 65 Required No
Center Hole Diameter 120.0
Centering Diameter [in] 3.11
Color Silver
Colour Silver
Construction Full Cast
Directional Or Non Directional Brake Surface Non-directional
Disc Finish Coated
Discard Thickness 22.40
Grade Type Standard Replacement
Hat Finish Coated
Hole Arrangement / Number 05/06
Hole Arrangement/Number 05/06
Inside Diameter 79.0
Machining High-carbon
Material Gray Cast Iron
Minimum Thickness [mm] 22,4, 22.4
Mounting Bolt Hole Circle Diameter 120.00
Mounting Bolt Hole Quantity 6
Nominal Thickness 24.00
Number Of Bolts/screws 1
Outer Diameter [in] 12.28
Overall Height 73.50
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Surface Coated
Surface Type Smooth
Technical Information Number 54761pro_hc_na
Weight [kg] 9,1, 9.1
Wheel Bolt Bore Diameter [mm] 14.6
Wheel Bolt Bore Ø [mm] 14,7, 14.7

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 24 models (tapclick to expand)(tapclick to hide)
228i 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2015 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2014 - 2016 L4 2.0L Turbo RWD Automatic & Manual
228i xDrive 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2015 - 2016 L4 2.0L Turbo AWD Automatic & Manual
Base Coupe 2015 - 2016 L4 2.0L Turbo AWD Automatic & Manual
230i 2017-2021 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2021 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2017 - 2021 L4 2.0L Turbo RWD Automatic & Manual
230i xDrive 2017-2021 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2021 L4 2.0L Turbo AWD Automatic
Base Coupe 2017 - 2021 L4 2.0L Turbo AWD Automatic
320i 2013-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2013 - 2018 L4 2.0L Turbo RWD Automatic & Manual
Executive Sedan 2018 L4 2.0L Turbo RWD Automatic
Luxury Sedan 2013 - 2016 L4 2.0L Turbo RWD Automatic
Luxury Sedan 2013 - 2014 L4 2.0L Turbo RWD Manual
M Sport Sedan 2013 - 2016, 2018 L4 2.0L Turbo RWD Automatic
M Sport Sedan 2013 - 2015 L4 2.0L Turbo RWD Manual
Modern Sedan 2013 - 2015 L4 2.0L Turbo RWD Automatic
Modern Sedan 2013 - 2014 L4 2.0L Turbo RWD Manual
Sport Sedan 2013 - 2016 L4 2.0L Turbo RWD Automatic
Sport Sedan 2013 - 2015 L4 2.0L Turbo RWD Manual
Sport Line Sedan 2017 - 2018 L4 2.0L Turbo RWD Automatic
320i xDrive 2013-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2013 - 2018 L4 2.0L Turbo AWD Automatic
328d 2014-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2014 - 2018 L4 2.0L DIESEL Turbo RWD Automatic
328d xDrive 2014-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2014 - 2018 L4 2.0L DIESEL Turbo AWD Automatic
Base Wagon 2014 - 2018 L4 2.0L DIESEL Turbo AWD Automatic
328i 2007-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2012 - 2013 L4 2.0L Turbo RWD Automatic & Manual
Base Convertible 2007 - 2013 L6 3.0L RWD Automatic & Manual
Base Coupe 2012 - 2013 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2007 - 2013 L6 3.0L RWD Automatic & Manual
Base Sedan 2012 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Base Sedan 2007 - 2013 L6 3.0L RWD Automatic & Manual
Base Wagon 2012 L4 2.0L Turbo RWD Automatic & Manual
Base Wagon 2007 - 2012 L6 3.0L RWD Automatic & Manual
Luxury Sedan 2012 - 2015 L4 2.0L Turbo RWD Automatic
Luxury Sedan 2012 - 2014 L4 2.0L Turbo RWD Manual
Luxury Sedan 2012 - 2013 L6 3.0L Turbo RWD Automatic & Manual
M Sport Sedan 2013 - 2015 L4 2.0L Turbo RWD Automatic & Manual
Modern Sedan 2012 - 2015 L4 2.0L Turbo RWD Automatic
Modern Sedan 2012 - 2014 L4 2.0L Turbo RWD Manual
Modern Sedan 2012 - 2013 L6 3.0L Turbo RWD Automatic & Manual
Sport Sedan 2012 - 2015 L4 2.0L Turbo RWD Automatic & Manual
Sport Sedan 2012 - 2013 L6 3.0L Turbo RWD Automatic & Manual
328i GT xDrive 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2014 - 2016 L4 2.0L Turbo AWD Automatic
328i xDrive 2009-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Coupe 2013 L4 2.0L Turbo AWD Automatic & Manual
Base Coupe 2009 - 2013 L6 3.0L AWD Automatic & Manual
Base Sedan 2013 - 2016 L4 2.0L Turbo AWD Automatic
Base Sedan 2013, 2015 L4 2.0L Turbo AWD Manual
Base Sedan 2009 - 2011, 2013 L6 3.0L AWD Automatic & Manual
Base Wagon 2015 L4 2.0L Turbo AWD Manual
Base Wagon 2014 - 2016 L4 2.0L Turbo AWD Automatic
Base Wagon 2009 - 2012 L6 3.0L AWD Automatic & Manual
328xi 2007-2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Coupe 2007 - 2008 L6 3.0L AWD Automatic & Manual
Base Sedan 2007 - 2008 L6 3.0L AWD Automatic & Manual
Base Wagon 2007 - 2008 L6 3.0L AWD Automatic & Manual
330i 2017-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2017 - 2018 L4 2.0L Turbo RWD Automatic & Manual
Luxury Line Sedan 2017 L4 2.0L Turbo RWD Automatic
M Sport Sedan 2018 L4 2.0L Turbo RWD Automatic
Sport Line Sedan 2017 - 2018 L4 2.0L Turbo RWD Automatic
330i GT xDrive 2017-2019 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2017 - 2019 L4 2.0L Turbo AWD Automatic
330i xDrive 2017-2019 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2017 - 2019 L4 2.0L Turbo AWD Automatic
Base Wagon 2017 - 2019 L4 2.0L Turbo AWD Automatic
428i 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2014 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Luxury Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic
Luxury Coupe 2015 - 2016 L4 2.0L Turbo RWD Automatic
Luxury Line Coupe 2014 L4 2.0L Turbo RWD Automatic
Sport Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic
Sport Coupe 2015 - 2016 L4 2.0L Turbo RWD Automatic
Sport Line Coupe 2014 L4 2.0L Turbo RWD Automatic
428i Gran Coupe 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Luxury Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic
Sport Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic
428i xDrive 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2014 - 2016 L4 2.0L Turbo AWD Automatic
Base Coupe 2014 - 2016 L4 2.0L Turbo AWD Automatic
428i xDrive Gran Coupe 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2015 - 2016 L4 2.0L Turbo AWD Automatic
430i 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2020 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2017 - 2020 L4 2.0L Turbo RWD Automatic & Manual
Gran Coupe Sport Line Hatchback 2017 L4 2.0L Turbo RWD Automatic
M Sport Convertible 2020 L4 2.0L Turbo RWD Automatic
M Sport Coupe 2020 L4 2.0L Turbo RWD Automatic
Sport Line Convertible 2017 - 2020 L4 2.0L Turbo RWD Automatic
Sport Line Coupe 2017 - 2020 L4 2.0L Turbo RWD Automatic
430i Gran Coupe 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2018 - 2020 L4 2.0L Turbo RWD Manual
Base Hatchback 2017 - 2020 L4 2.0L Turbo RWD Automatic
M Sport Hatchback 2020 L4 2.0L Turbo RWD Automatic
Sport Line Hatchback 2018 - 2020 L4 2.0L Turbo RWD Automatic
430i xDrive 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2020 L4 2.0L Turbo AWD Automatic
Base Coupe 2017 - 2020 L4 2.0L Turbo AWD Automatic
430i xDrive Gran Coupe 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2017 - 2020 L4 2.0L Turbo AWD Automatic
X1 2012-2015 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Business SUV 2014 L4 2.0L Turbo RWD Automatic
Sport Line SUV 2015 L4 2.0L Turbo RWD Automatic
X Line SUV 2015 L4 2.0L Turbo RWD Automatic
sDrive20i SUV 2012 - 2014 L4 2.0L Turbo RWD Automatic
sDrive20i M Sport SUV 2013 L4 2.0L Turbo RWD Automatic
sDrive20i Sport SUV 2014 L4 2.0L Turbo RWD Automatic
sDrive20i X Line SUV 2013 - 2014 L4 2.0L Turbo RWD Automatic
sDrive20iA SUV 2015 L4 2.0L Turbo RWD Automatic
sDrive28i SUV 2013 - 2015 L4 2.0L Turbo RWD Automatic
sDrive28i Sport Line SUV 2013 L4 2.0L Turbo RWD Automatic
sDrive28i X Line SUV 2013 L4 2.0L Turbo RWD Automatic
xDrive28i SUV 2012 - 2015 L4 2.0L Turbo AWD Automatic
xDrive28i SUV 2012 - 2013 L6 3.0L AWD Automatic
xDrive28i M Sport SUV 2012 - 2013 L4 2.0L Turbo AWD Automatic
xDrive28i M Sport SUV 2012 L6 3.0L AWD Automatic
xDrive28i Sport Line SUV 2014 L4 2.0L Turbo AWD Automatic
xDrive28i Top Line SUV 2012 - 2013 L4 2.0L Turbo AWD Automatic
xDrive28i X Line SUV 2014 L4 2.0L Turbo AWD Automatic
xDrive35i SUV 2013 - 2015 L6 3.0L Turbo AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand Part Number
Akebono BN0067
Akebono BN0067E
AMC FO2965
Ashuki P330152
ATE 24.0324-0203.1
ATE 24012402031
ATE 424203
Bendix 562618BC
BENDIX PREMIUM 562618S
Blue Print ADB114308
BMW 34 11 6 792 219
BMW 34 41 6 487 875
BMW 34 41 6 500 006
BMW 6 774 875
BMW 6 792 219
BMW 6 855 006
Borg & Beck BBD4782
Bosch 0986479381
Bosch 0986AB5905
Brake Engineering DI956769
Brembo 09B33721
Brembo 09B3372E
Brembo 09B3372X
Cifam 800986C
Delphi BG4172
Delphi BG4172C
Delphi BG4172C18B1
Delphi BG4172C19B1
DON PCD10382
Febi-Bilstein 30541
Ferodo DDF1717
Ferodo DDF17171
Ferodo DDF1717C
Ferodo DDF1717C1
Ferodo DDF1717C1D
Ferodo DDF1717DLC1D
Ferodo DDF1717DRC1D
FREMAX BRAKE ROTORS AND DRUMS BD1972
FTE 9071012
FTE 9081223
FTE 9082600
FTE BS7234
FTE BS7234B
FTE BS7234HB
Girling 6048075
Hella Pagid 54761PROHCNA
Hella Pagid 8DD355123002
Japan Parts DI0103
JP Group A/S 1463105500
Jurid 562618JC
Jurid 562618JC1
Key Parts KBD4782
LPR B2049V
LPR B2049VR
Magneti Marelli 360406110501
Magneti Marelli 360704025400
MEYLE 3155210003PD
MEYLE 3835210003PD
Mintex MDC1912
Mintex MDC1912C
Mintex MDC81912C
National NBD1747
NK Autoparts 201582
NK Autoparts 311582
NK Autoparts 341582
Optimal BS8208
Optimal BS8208C
Optimal BS8208HC
PAGID Racing 54761
PAGID Racing 54761PRO
Quinton Hazell BDC5812
Remsa 6119410
SBS 1815311582
SBS 1815341582
Textar 92176100
Textar 92176103
Textar 92176105
Textar 98200176101
Trucktec 0834138
TRW DF4807S
VAICO V2080066
Valeo 196044
Valeo 197159
Valeo 672577
Wagner WGR17171
Zimmermann 150290020
Zimmermann 150346720
Zimmermann 150346752
Zimmermann 150346753

Fits Years: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021

Fits Models: 228i, 228i xDrive, 230i, 230i xDrive, 320i, 320i xDrive, 328d, 328d xDrive, 328i, 328i GT xDrive, 328i xDrive, 328xi, 330i, 330i GT xDrive, 330i xDrive, 428i, 428i Gran Coupe, 428i xDrive, 428i xDrive Gran Coupe, 430i, 430i Gran Coupe, 430i xDrive, 430i xDrive Gran Coupe, X1

Go-Parts Garage · Featured Guide

Choosing the Right Aftermarket Disc Brake Rotors for Your 2007-2011 BMW 328i

Stop the shaking and noise—here's how to pick the best new aftermarket brake rotors for your E90/E92/E93 328i.

Read Full Guide →
Why Millions Choose Go-Parts

Your Go-To Place
for auto parts.

In operation since 2007. Trusted by over a million DIYers, mechanics, and body shops across all 50 states.

100%
Money-Back Guarantee

Shop With Total Confidence

If it doesn't fit, we make it right. No gimmicks, no fine print.

120
Day Return Window

4× the Industry Standard

Most retailers stop at 30 days. We give you a full four months to install, test, and return for a 100% refund — return shipping on us.

NEW
Direct-Fit Replacement

Engineered To OEM Specs

Brand-new aftermarket parts from trusted suppliers — built to original-equipment specifications so they fit and function like the factory unit, at a fraction of the price.

What buyers are saying.

★★★★★ 4.9 1,451 verified reviews

Racing Partner Videos

Racing partner video
Racing partner video
Racing partner video
Racing partner video
×

Search by Vehicle

1
2
3
Added to cart · Part
