Disc Brake Rotor
View 1
View 2
View 3
View 4

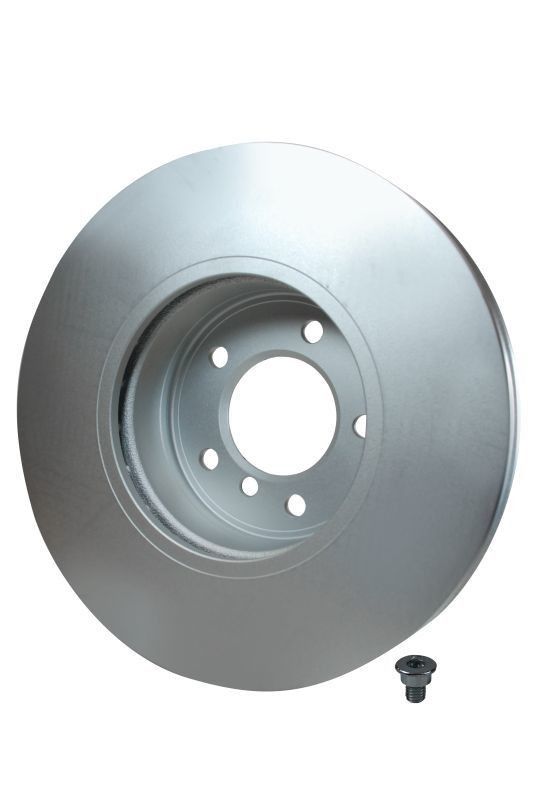

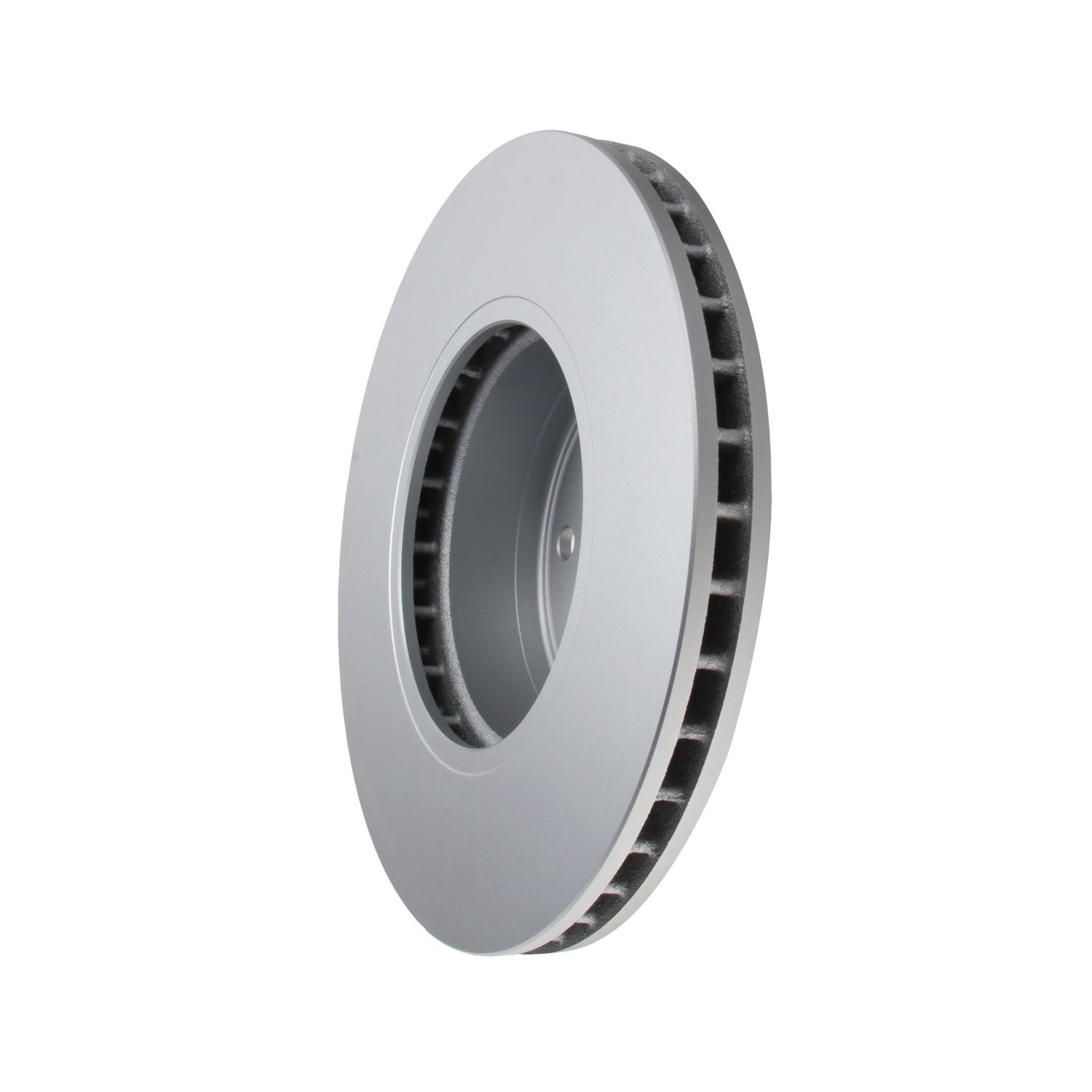

Disc Brake Rotor - Front (Pagid) for 2004-2010 BMW NEW

$ 98 .97
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Front
High Carbon, Fully Coated
Integral One-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New
See All Other Disc Brake Rotors
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
120.00
ABS Tone Ring Included No
Assy/Disassy By Qualified Personnel Required! .
Balancing Type Mill Balancing
Bearings Included No

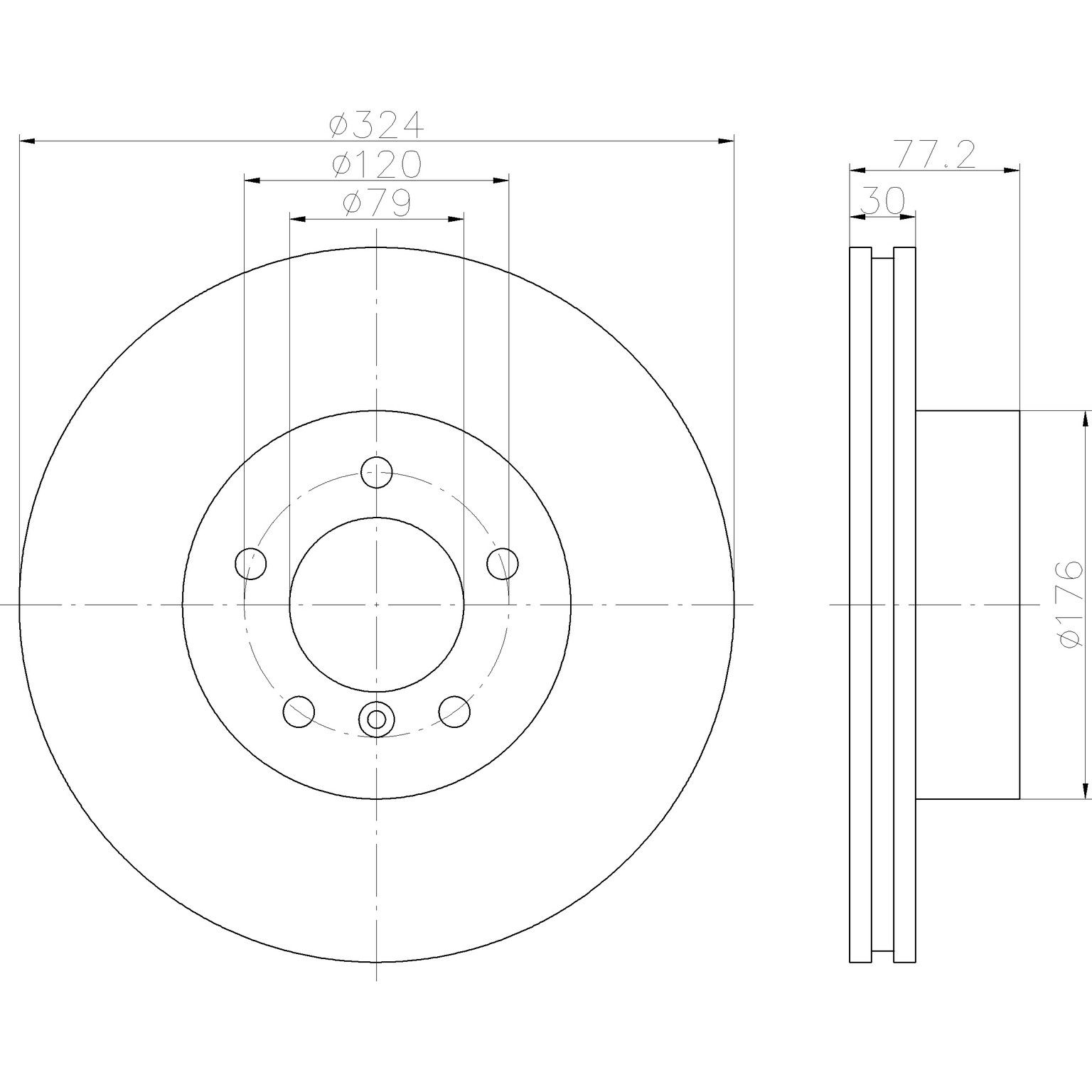

Bolt Hole Circle Ø [in] 4.72
Bolt Hole Circle Ø [mm] 120
Bolt Hole Quantity 6
Brake Disc Thickness [in] 1.18
Brake Disc Thickness [mm] 30
Brake Disc Type Internally Vented
California Proposition 65 Required No
Center Hole Diameter 120.0
Centering Diameter [in] 3.11
Color Silver
Colour Silver
Construction Full Cast
Directional Or Non Directional Brake Surface Non-directional
Disc Finish Coated
Discard Thickness 28.40
Grade Type Standard Replacement
Hat Finish Coated
Hole Arrangement / Number 05/06
Hole Arrangement/Number 05/06
Inner Diameter [in] 6.50
Inside Diameter 79.0
Machining High-carbon
Material Gray Cast Iron
Minimum Thickness [mm] 28,4, 28.4
Mounting Bolt Hole Circle Diameter 120.00
Mounting Bolt Hole Quantity 6
Nominal Thickness 30.00
Number Of Bolts/screws 1
Outer Diameter [in] 12.76
Overall Height 77.20
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Surface Coated
Surface Type Smooth
Technical Information Number 54226pro_hc_na
Weight [kg] 10,0
Weight [lb] 22.05
Weight [lbs] 22.05
Wheel Bolt Bore Diameter [mm] 14.7
Wheel Bolt Bore Ø [mm] 14.7

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 9 models (tapclick to expand)(tapclick to hide)
525i 2004-2007 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2006 - 2007 L6 3.0L RWD Automatic & Manual
Base Sedan 2004 - 2007 L6 2.5L RWD Automatic
Base Sedan 2004 - 2005 L6 2.5L RWD Manual
525xi 2006-2007 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2006 - 2007 L6 3.0L AWD Automatic & Manual
528i 2008-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2008 - 2010 L6 3.0L RWD Automatic & Manual
528i xDrive 2009-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2009 - 2010 L6 3.0L AWD Automatic & Manual
528xi 2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2008 L6 3.0L AWD Automatic & Manual
530i 2004-2007 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2004 - 2007 L6 3.0L RWD Automatic & Manual
530xi 2006-2007 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2006 - 2007 L6 3.0L AWD Automatic & Manual
Base Wagon 2006 - 2007 L6 3.0L AWD Automatic & Manual
535i xDrive 2009-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2009 - 2010 L6 3.0L Turbo AWD Automatic & Manual
Base Wagon 2009 - 2010 L6 3.0L Turbo AWD Automatic & Manual
535xi 2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2008 L6 3.0L Turbo AWD Automatic & Manual
Base Wagon 2008 L6 3.0L Turbo AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand Part Number
Akebono BN0159
Akebono BN0159E
AMC FO4054
Ashuki P330049
ATE 24013001731
ATE 24033001731
ATE 430173
ATE 530173
Bendix 521469
Bendix 562332B
Bendix 562397B
Bendix 562397BC
Blue Print ADB114361
BMW 34 11 6 864 905
BMW 34 11 6 864 906
BMW 34 41 6 322 221
BMW 34 41 6 726 269
BMW 34116864905
BMW 34116864906
BMW 6 753 221
BMW 6 767 269
BMW 6 864 905
BMW 6 864 906
Borg & Beck BBD5766S
Bosch 0986479115
Bosch 0986479D39
Bosch 0986AB5943
Bosch 0986AB6512
Bosch F026A09340
Brake Engineering DI956261
Brake Engineering DI956261S
Brembo 09917210
Brembo 09917211
Brembo 09917214
Brembo 0991721X
Brembo 09917275
Brembo FD181000
Cifam 800805C
Delphi BG9871
Delphi BG9871C
DON PCD10481
Dynamic Friction Company 600-31062
Dynamic Friction Company 604-31062
Dynamic Friction Company 900-31062
EBC Brakes D1246
EBC Brakes GD1246
EBC Brakes USR1246
Febi-Bilstein 24343
Ferodo DDF1242C1
Ferodo DDF1242C1D
Ferodo DDF1242X
FREMAX BRAKE ROTORS AND DRUMS BD3221
FTE 9071037
FTE 9081013
FTE 9082577
FTE BS5458
FTE BS5458B
FTE BS5458HB
Girling 6043611
Hella Pagid 54226PROHCNA
Hella Pagid 8DD355109922
Japan Parts DI0126
Japan Parts DI0126C
JP Group A/S 1463101200
Jurid 562332J
Jurid 562397J
Jurid 562397JC
Jurid 562397JC1
Key Parts KBD5766S
LPR B2037V
LPR B2037VR
Magneti Marelli 360406003101
Magneti Marelli 360406175905
Magneti Marelli 360704025900
Magneti Marelli 361302040150
METELLI 230805C
MEYLE 3155213060
MEYLE 3155213060PD
MEYLE 3835213060PD
Mintex MDC1659
Mintex MDC1659C
Mintex MDC81659C
National NBD1263
NK Autoparts 201563
NK Autoparts 311563
NK Autoparts 341563
Optimal BS7578
Optimal BS7578C
Optimal BS7578HC
PAGID Racing 54226
PAGID Racing 54226HC
PAGID Racing 54226PRO
Remsa 685310
SBS 1815201563
SBS 1815311563
SBS 1815341563
Textar 92122600
Textar 92122603
Textar 92122605
Textar 98200122601
Topran 500943
Trucktec 0834070
TRW DF4361
VAICO V2080051
Valeo 196049
Valeo 197193
Valeo 672603
Zimmermann 150340300
Zimmermann 150340320
Zimmermann 150340352
Zimmermann 150340353
Zimmermann 150340370
Zimmermann 150340372
Zimmermann 150340375

Fits Years: 2004 2005 2006 2007 2008 2009 2010

Fits Models: 525i, 525xi, 528i, 528i xDrive, 528xi, 530i, 530xi, 535i xDrive, 535xi
