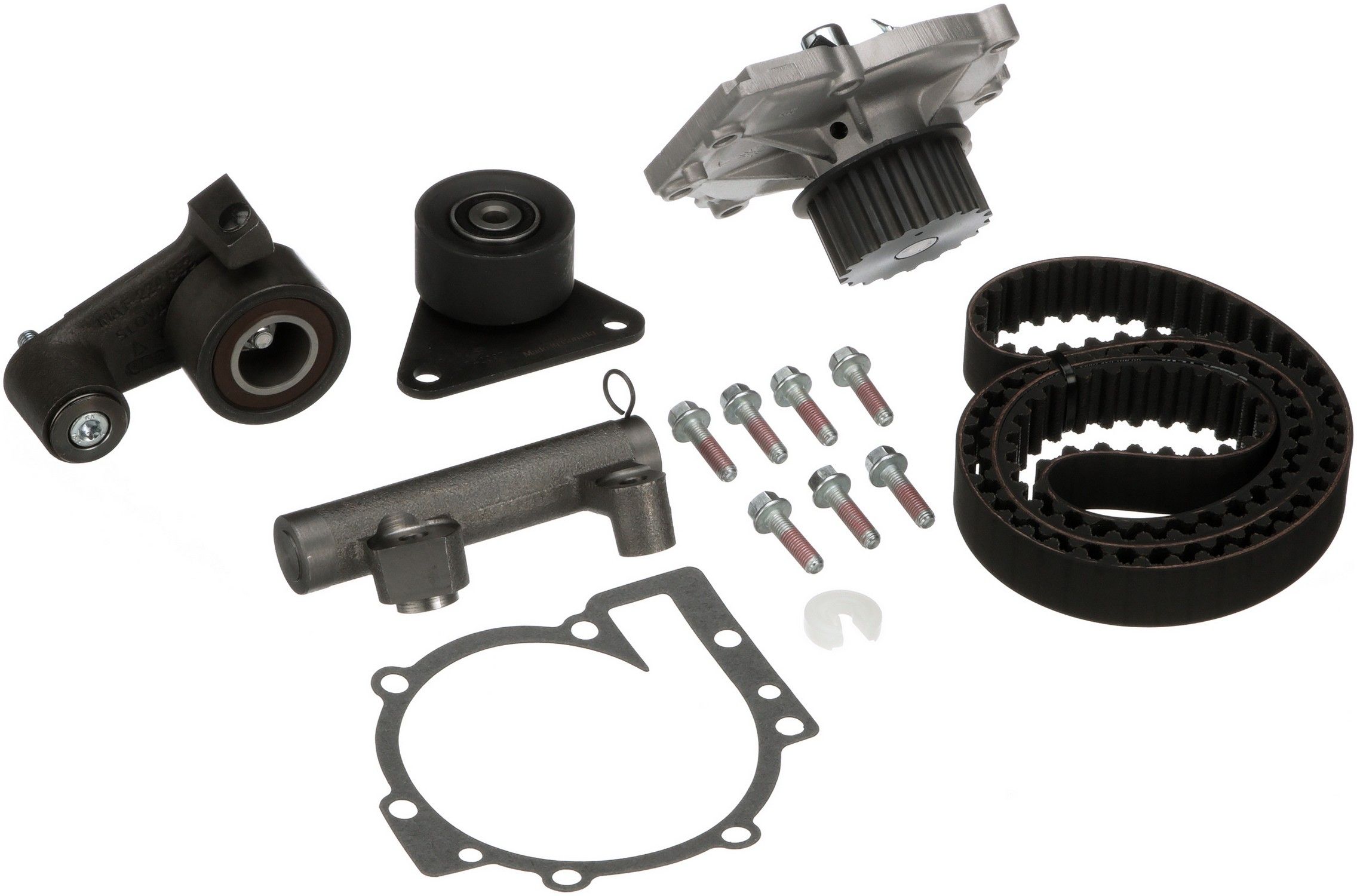

Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump (Gates) for 1993-2002 Volvo 850, C70, S70, V70 NEW

$ 348 .57
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Eng. No. 1266127 & Before; Interference engine application
PowerGrip Premium OE Timing Belt Component Kit W/Water Pump
Gates Timing Belt Component Kits with Water Pump offer customers the best and most complete repair solution by including the same premium components as our TCK’s - timing belts, pulleys and tensioners - as well as a water pump. Timing belt driven water pumps should always be replaced at the same time as the timing belt. Don't take chances. With Gates TCKWP’s, you can avoid returns by replacing all critical system components at the same time.
Brand: Gates
Condition: New
See All Other Engine Timing Belt Kit with Water Pumps
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Belt Material Hsn, Fiberglass Cord
Belt Quantity 1
Belt Top Color Black
Bolt Included Yes
Bolt Quantity 7
Engine Water Pump Quantity 1
Gasket Or Seals Included Yes
Gasket Quantity 1
Grade Type Oe Exact
Idler Pulley Included Yes
Idler Quantity 1
Installation Instructions Included Yes
Installation Tool Included No
Instruction Sheet Number 0098-1714
Number Of Components 5
Seal Quantity 0
Spring Quantity 0
Springs Included No
Tensioner Included Yes
Tensioner Quantity 2
Tensioner Type Hydraulic
Timing Belt 1 Teeth Quantity 148
Timing Belt Included Yes
Timing Belt Width 1 (in) .906
Timing Belt Width 1 (mm) 23
Timing Marks No
Tooth Type Modified Curvilinear (iii)

Vehicle Fitment Guide

This part fits the following vehicles:

Volvo 4 models (tapclick to expand)(tapclick to hide)
850 1993-1997 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
AWD Wagon 1997 L5 2.4L Turbo AWD Manual
Base Sedan 1994 - 1997 L5 2.4L FWD Automatic & Manual
Base Wagon 1994 - 1997 L5 2.4L FWD Automatic & Manual
GLT Sedan 1997 L5 2.4L Turbo FWD Automatic & Manual
GLT Sedan 1993 - 1996 L5 2.4L FWD Automatic & Manual
GLT Wagon 1997 L5 2.4L Turbo FWD Automatic & Manual
GLT Wagon 1995 - 1996 L5 2.4L FWD Automatic & Manual
R Sedan 1996 - 1997 L5 2.3L Turbo FWD Automatic & Manual
R Wagon 1996 - 1997 L5 2.3L Turbo FWD Automatic & Manual
T-5 Sedan 1997 L5 2.3L Turbo FWD Automatic
T-5 Wagon 1997 L5 2.3L Turbo FWD Automatic
T-5R Sedan 1995 L5 2.3L Turbo FWD Automatic
T-5R Wagon 1995 L5 2.3L Turbo FWD Automatic
Turbo Sedan 1994 - 1996 L5 2.3L Turbo FWD Automatic
Turbo Sedan 1994 L5 2.3L Turbo FWD Manual
Turbo Wagon 1994 - 1996 L5 2.3L Turbo FWD Automatic
Turbo Wagon 1994 L5 2.3L Turbo FWD Manual
C70 1998-2002 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 1998 - 2002 L5 2.3L Turbo FWD Automatic & Manual
Base Convertible 1998 - 2002 L5 2.4L Turbo FWD Automatic & Manual
Base Coupe 1998 - 2002 L5 2.3L Turbo FWD Automatic & Manual
Base Coupe 1998 - 2002 L5 2.4L Turbo FWD Automatic & Manual
S70 1998-2000 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.4T Sedan 2000 L5 2.4L Turbo FWD Automatic
AWD Sedan 1999 - 2000 L5 2.4L Turbo AWD Automatic
Base Sedan 1998 - 2000 L5 2.4L FWD Automatic & Manual
GLT Sedan 1998 - 2000 L5 2.4L Turbo FWD Automatic & Manual
GLT SE Sedan 2000 L5 2.4L Turbo FWD Automatic & Manual
T5 Sedan 1998 - 2000 L5 2.3L Turbo FWD Automatic & Manual
V70 1998-2000 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.4T Wagon 2000 L5 2.4L Turbo FWD Automatic
2.4T SE Wagon 2000 L5 2.4L Turbo FWD Automatic
AWD Wagon 1998 - 1999 L5 2.4L Turbo AWD Automatic
Base Wagon 1998 - 2000 L5 2.4L FWD Automatic & Manual
GLT Wagon 1998 - 2000 L5 2.4L Turbo FWD Automatic & Manual
GLT SE Wagon 2000 L5 2.4L Turbo FWD Automatic & Manual
R Wagon 1998 L5 2.3L Turbo AWD Automatic
R AWD Wagon 1999 - 2000 L5 2.3L Turbo AWD Automatic
T5 Wagon 1998 - 2000 L5 2.3L Turbo FWD Automatic & Manual
X/C AWD Wagon 1998 - 2000 L5 2.4L Turbo AWD Automatic
X/C AWD SE Wagon 2000 L5 2.4L Turbo AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Gates Timing Belt Component Kits with Water Pump offer customers the best and most complete repair solution by including the same premium components as our TCK’s - timing belts, pulleys and tensioners - as well as a water pump. Timing belt driven water pumps should always be replaced at the same time as the timing belt. Don't take chances. With Gates TCKWP’s, you can avoid returns by replacing all critical system components at the same time.

Interchange Parts

Brand Part Number
ACDelco TCKWP252
AISIN TKV-004
Continental-ContiTech PP252LK1
Continental-ContiTech PP252LK2
Continental-ContiTech PP252LK3
Continental-ContiTech TB252LK2
Dayco WP252K1D
Dayco WP252K1DS
Dayco WP252K1E
Goodyear GTKWP252
Import Direct 24406K

Fits Years: 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002

Fits Models: 850, C70, S70, V70
