| Attribute | Value |
|---|---|
| Install Difficulty | 3 |
| Installation Difficulty | 3 |
| Prop 65 (C, R Or CR) | Cr |

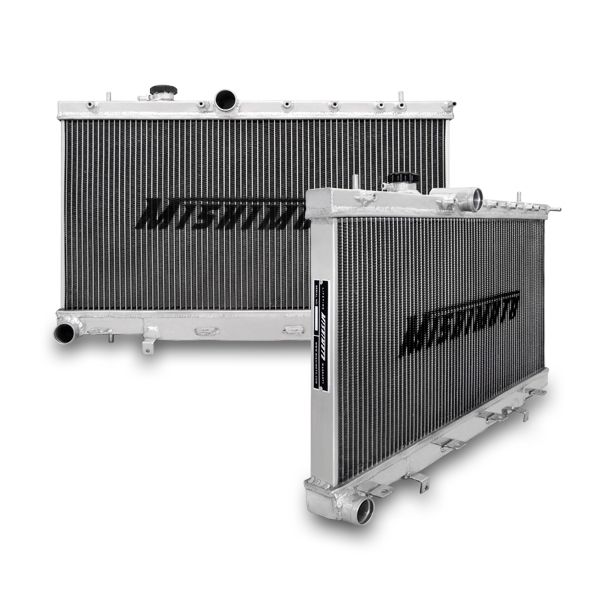

| SellingPoint01 | Large Three-row Aluminum Core Provides Additional Coolant Capacity, Substantial Coolant Surface Contact, And Optimal Coolant Temperatures Even In The Most Demanding Environments |
| SellingPoint02 | Industry-largest 2 Inch Thick Core For Ultimate Cooling Efficiency |
| SellingPoint03 | Full Aluminum Construction For Increased Durability |
| SellingPoint04 | Mishimoto Lifetime Warranty |
| SellingPoint05 | N/a |
| SellingPoint06 | N/a |
| SellingPoint07 | N/a |
| SellingPoint08 | N/a |
| SellingPoint09 | N/a |
| SellingPoint10 | N/a |
| SellingPoint11 | N/a |
| SellingPoint12 | N/a |
| SellingPoint13 | N/a |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | Saab 9-2x H4 (2.0l) 2005--saab 9-2x H4 (2.5l) 2006--subaru Wrx H4 (2.0) 2002-2005--subaru Wrx H4 (2.5) 2006-2007--subaru Wrx Sti H4 (2.5) 2004-2007 |
| TechSpec Chassis Codes | Gd |
| TechSpec Core Height (in) | 27.24 |
| TechSpec Core Length (in) | 13.54 |
| TechSpec Core Thickness (in) | 2 |
| TechSpec DPI | 2703 |
| TechSpec Drain Plug Thread Size | M12 X 1.5 |
| TechSpec Engine Codes | Ej205--ej255--ej257 |
| TechSpec Fluid Capacity (gal) | N/a |
| TechSpec Includes | Mishimoto Radiator-- Mishimoto Radiator Cap-- 1/16-inch Npt Plug-- Fan Mounting Hardware-- Magnetic Drain Plug--mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 1.5 |
| TechSpec Material | N/a |
| TechSpec Note | This Item Is For Manual Transmission Vehicles. For Automatic Applications, Please Purchase Optional Mishimoto Universal Transmission Cooler Kit.--------the Provided Mishimoto Radiator Cap Should Replace The Stock Cap Located On The Expansion Tank. The Sto |
| TechSpec Outlet (in) | 1.5 |
| TechSpec Overall Height (in) | 28.4 |
| TechSpec Overall Length (in) | 17.2 |
| TechSpec Overall Width (ins) | 2.5 |
| TechSpec Rows | 3 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.5i | Wagon | 2006 | H4 2.5L | AWD Automatic & Manual |
| Aero | Wagon | 2006 | H4 2.5L Turbo | AWD Automatic & Manual |
| Aero | Wagon | 2005 | H4 2.0L Turbo | AWD Automatic & Manual |
| Linear | Wagon | 2005 | H4 2.5L | AWD Automatic & Manual |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.5i | Sedan | 2006 - 2007 | H4 2.5L | AWD Automatic & Manual |
| 2.5i | Wagon | 2006 - 2007 | H4 2.5L | AWD Automatic & Manual |
| Outback | Wagon | 2002 - 2004 | H4 2.5L | AWD Automatic & Manual |
| Outback Sport | Wagon | 2005 - 2007 | H4 2.5L | AWD Automatic & Manual |
| RS | Sedan | 2002 - 2005 | H4 2.5L | AWD Automatic & Manual |
| RS | Wagon | 2005 | H4 2.5L | AWD Automatic & Manual |
| TS | Wagon | 2002 - 2004 | H4 2.5L | AWD Automatic & Manual |
| WRX | Sedan | 2006 - 2007 | H4 2.5L Turbo | AWD Automatic & Manual |
| WRX | Sedan | 2002 - 2005 | H4 2.0L Turbo | AWD Automatic & Manual |
| WRX | Wagon | 2006 - 2007 | H4 2.5L Turbo | AWD Automatic & Manual |
| WRX | Wagon | 2002 - 2005 | H4 2.0L Turbo | AWD Automatic & Manual |
| WRX Limited | Sedan | 2006 - 2007 | H4 2.5L Turbo | AWD Automatic & Manual |
| WRX Limited | Wagon | 2006 - 2007 | H4 2.5L Turbo | AWD Automatic & Manual |
| WRX STI | Sedan | 2004 - 2007 | H4 2.5L Turbo | AWD Manual |
| WRX STI Limited | Sedan | 2007 | H4 2.5L Turbo | AWD Manual |
| WRX TR | Sedan | 2006 - 2007 | H4 2.5L Turbo | AWD Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
Fits Years: 2002 2003 2004 2005 2006 2007
Fits Models: 9-2X, Impreza
