Disc Brake Rotor

Disc Brake Rotor - Rear (Pagid) for 2013-2020 BMW NEW

$ 124 .78
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Rear
High Carbon, Fully Coated Exc.For Blue Painted Caliper
Integral One-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New
See All Other Disc Brake Rotors
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

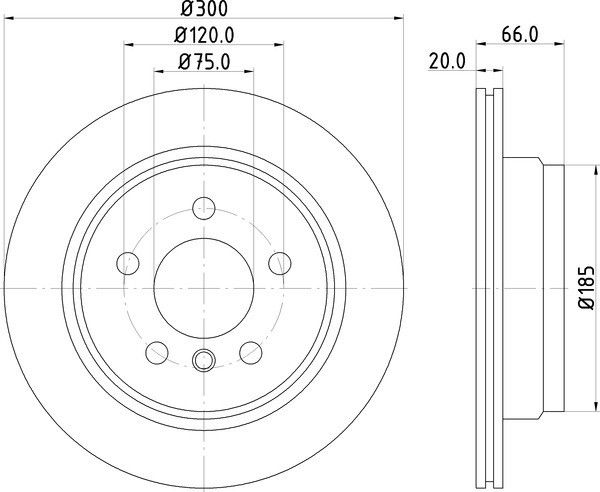

Specifications & Info


Attribute Value
120.00
ABS Tone Ring Included No
Assy/Disassy By Qualified Personnel Required! .
Balancing Type Mill Balancing
Bearings Included No
Bolt Hole Circle Ø [in] 4.72
Bolt Hole Circle Ø [mm] 120
Bolt Hole Quantity 6
Brake Disc Thickness [in] 0.79
Brake Disc Thickness [mm] 20
Brake Disc Type Internally Vented
California Proposition 65 Required No
Center Hole Diameter 127.0
Centering Diameter [in] 2.95
Color Silver
Colour Silver
Construction Full Cast
Directional Or Non Directional Brake Surface Non-directional
Disc Finish Coated
Discard Thickness 18.40
Grade Type Standard Replacement
Hat Finish Coated
Height [in] 2.60
Hole Arrangement / Number 05/06
Hole Arrangement/Number 05/06
Inner Diameter [in] 7.28
Inside Diameter 75.0
Machining High-carbon
Material Gray Cast Iron
Minimum Thickness [mm] 18,4, 18.4
Mounting Bolt Hole Circle Diameter 120.00
Mounting Bolt Hole Quantity 6
Nominal Thickness 20.00
Number Of Bolts/screws 1
Outer Diameter [in] 11.81
Overall Height 66.00
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Surface Coated
Surface Type Smooth
Technical Information Number 55397pro_hc_na
Weight [kg] 6,5, 6.5
Wheel Bolt Bore Diameter [mm] 16.6
Wheel Bolt Bore Ø [mm] 16,6, 16.6

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 17 models (tapclick to expand)(tapclick to hide)
320i xDrive 2013-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2013 - 2018 L4 2.0L Turbo AWD Automatic
328d xDrive 2014-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2014 - 2018 L4 2.0L DIESEL Turbo AWD Automatic
Base Wagon 2014 - 2018 L4 2.0L DIESEL Turbo AWD Automatic
328i 2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2016 L4 2.0L Turbo RWD Automatic & Manual
328i GT xDrive 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2014 - 2016 L4 2.0L Turbo AWD Automatic
328i xDrive 2013-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Coupe 2013 L4 2.0L Turbo AWD Automatic & Manual
Base Coupe 2013 L6 3.0L AWD Automatic & Manual
Base Sedan 2013 - 2016 L4 2.0L Turbo AWD Automatic
Base Sedan 2013, 2015 L4 2.0L Turbo AWD Manual
Base Sedan 2013 L6 3.0L AWD Automatic & Manual
Base Wagon 2015 L4 2.0L Turbo AWD Manual
Base Wagon 2014 - 2016 L4 2.0L Turbo AWD Automatic
330e 2016-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2016, 2018 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo RWD Automatic
iPerformance Sedan 2017 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo RWD Automatic
iPerformance Sport Line Sedan 2018 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo RWD Automatic
330i 2017-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2017 - 2018 L4 2.0L Turbo RWD Automatic & Manual
Luxury Line Sedan 2017 L4 2.0L Turbo RWD Automatic
M Sport Sedan 2018 L4 2.0L Turbo RWD Automatic
Sport Line Sedan 2017 - 2018 L4 2.0L Turbo RWD Automatic
330i GT xDrive 2017-2019 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2017 - 2019 L4 2.0L Turbo AWD Automatic
330i xDrive 2017-2019 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2017 - 2019 L4 2.0L Turbo AWD Automatic
Base Wagon 2017 - 2019 L4 2.0L Turbo AWD Automatic
428i 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2014 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Luxury Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic
Luxury Coupe 2015 - 2016 L4 2.0L Turbo RWD Automatic
Luxury Line Coupe 2014 L4 2.0L Turbo RWD Automatic
Sport Convertible 2014 - 2016 L4 2.0L Turbo RWD Automatic
Sport Coupe 2015 - 2016 L4 2.0L Turbo RWD Automatic
Sport Line Coupe 2014 L4 2.0L Turbo RWD Automatic
428i Gran Coupe 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic & Manual
Luxury Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic
Sport Hatchback 2015 - 2016 L4 2.0L Turbo RWD Automatic
428i xDrive 2014-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2014 - 2016 L4 2.0L Turbo AWD Automatic
Base Coupe 2014 - 2016 L4 2.0L Turbo AWD Automatic
428i xDrive Gran Coupe 2015-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2015 - 2016 L4 2.0L Turbo AWD Automatic
430i 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2020 L4 2.0L Turbo RWD Automatic & Manual
Base Coupe 2017 - 2020 L4 2.0L Turbo RWD Automatic & Manual
Gran Coupe Sport Line Hatchback 2017 L4 2.0L Turbo RWD Automatic
M Sport Convertible 2020 L4 2.0L Turbo RWD Automatic
M Sport Coupe 2020 L4 2.0L Turbo RWD Automatic
Sport Line Convertible 2017 - 2020 L4 2.0L Turbo RWD Automatic
Sport Line Coupe 2017 - 2020 L4 2.0L Turbo RWD Automatic
430i Gran Coupe 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2018 - 2020 L4 2.0L Turbo RWD Manual
Base Hatchback 2017 - 2020 L4 2.0L Turbo RWD Automatic
M Sport Hatchback 2020 L4 2.0L Turbo RWD Automatic
Sport Line Hatchback 2018 - 2020 L4 2.0L Turbo RWD Automatic
430i xDrive 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2017 - 2020 L4 2.0L Turbo AWD Automatic
Base Coupe 2017 - 2020 L4 2.0L Turbo AWD Automatic
430i xDrive Gran Coupe 2017-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 2017 - 2020 L4 2.0L Turbo AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand Part Number
Akebono BN0274
Akebono BN0274E
Ashuki P331149
Bendix 521687
Bendix BR2285EURO
Blue Print ADB114334
BMW 34 42 6 222 229
BMW 34 42 6 490 900
BMW 6 864 900
BMW 6792229
Borg & Beck BBD5259
Bosch 0986479045
Bosch 0986AB5802
Bosch 0986AB5956
Brake Engineering DI957011
Brembo 09B33811
Brembo 09B3381E
Brembo 09B3381X
Brembo 59E11475
Cifam 8001453C
Delphi BG4243C
Delphi BG5223C
Delphi BG5223C18B1
DON PCD11822
Dynamic Friction Company 600-31117
Dynamic Friction Company 604-31117
Dynamic Friction Company 900-31117
Febi-Bilstein 43868
Ferodo DDF2313C
Ferodo DDF2313C1D
Ferodo DDF2313CD
Ferodo DDF2313DLC1D
Ferodo DDF2313DRC1D
FREMAX BRAKE ROTORS AND DRUMS BD3418
FTE 9072111
FTE 9082201
FTE BS7355
FTE BS7355B
Girling 6065135
Hella Pagid 55397PROHCNA
Hella Pagid 8DD355123152
Japan Parts DP0116
Japan Parts DP0116C
JP Group A/S 1463205600
Jurid 563153JC
LPR B2060V
LPR B2060VR
METELLI 231453C
MEYLE 3155230018PD
MEYLE 3155230032PD
Mintex MDC2356
Mintex MDC82356C
NK Autoparts 201597
NK Autoparts 311597
NK Autoparts 341597
Optimal BS9210
Optimal BS9210C
PAGID Racing 55397
PAGID Racing 55397PRO
Remsa 6145310
SBS 1815201597
SBS 1815311597
SBS 1815341597
Textar 92239703
Textar 92239705
Textar 98200239701
Topran 503014
Trucktec 0835250
TRW DF6513S
TRW DF8049
TRW Steering and Suspension Parts DF968
VAICO V2040056
Valeo 196045
Valeo 197786
Valeo 672778
Zimmermann 150290220
Zimmermann 150290252
Zimmermann 150290253

Fits Years: 2013 2014 2015 2016 2017 2018 2019 2020

Fits Models: 320i xDrive, 328d xDrive, 328i, 328i GT xDrive, 328i xDrive, 330e, 330i, 330i GT xDrive, 330i xDrive, 428i, 428i Gran Coupe, 428i xDrive, 428i xDrive Gran Coupe, 430i, 430i Gran Coupe, 430i xDrive, 430i xDrive Gran Coupe

Expert Guide

Disc Brake Rotor Guide for the 2012-2016 BMW 328i (F30)

Choosing the right aftermarket brake rotors is key to maintaining your 328i's signature stopping power and feel.

 Read Full Guide →
Why Millions Choose Go-Parts

Your Go-To Place
for auto parts.

In operation since 2007. Trusted by over a million DIYers, mechanics, and body shops across all 50 states.

100%
Money-Back Guarantee

Shop With Total Confidence

If it doesn't fit, we make it right. No gimmicks, no fine print.

120
Day Return Window

4× the Industry Standard

Most retailers stop at 30 days. We give you a full four months to install, test, and return for a 100% refund — return shipping on us.

NEW
Direct-Fit Replacement

Engineered To OEM Specs

Brand-new aftermarket parts from trusted suppliers — built to original-equipment specifications so they fit and function like the factory unit, at a fraction of the price.

What buyers are saying.

★★★★★ 4.9 1,451 verified reviews

Racing Partner Videos

Racing partner video
Racing partner video
Racing partner video
Racing partner video
×

Search by Vehicle

1
2
3
Added to cart · Part
