| Attribute | Value |
|---|---|
| Bearing Cap Diameter (1) | 1.062 |
| Bearing Cap Diameter (2) | 1.125 |
| Bearing Cap Diameter A (mm) | 26.975 |
| Bearing Cap Diameter B (mm) | 28.6 |
| Bearing Cap Finish | Ground |
| Bearing Cap Type | Round |
| Bearing Cap Type A | Osr |
| Bearing Cap Type B | Osr |
| Coating Type | None |
| Grease Fitting Location | Side Of Cross |
| Grease Type | N.l.g.i. Grade 2 |
| Grease Zerk Included | Y |
| Greaseable | Y |
| Length A (In) | 3.625 |
| Length A (mm) | 92.1 |
| Length B (In) | 3.625 |
| Length B (mm) | 92.1 |
| Material | Steel |
| Model Number | Spicer 1330 |
| Mounting Hardware Included | N |
| OEM Mfg | Spicer |
| OEM Series | 1330spec |
| Pre Greased | N |
| Prop 65 | Yes |
| SR(1)Brng Cap To Brng Cap(OSR) | 3.625 |
| SR(2)Brng Cap To Brng Cap(OSR) | 3.625 |
| Seal Color/Finish | Blue |
| Seal Material | Rubber |

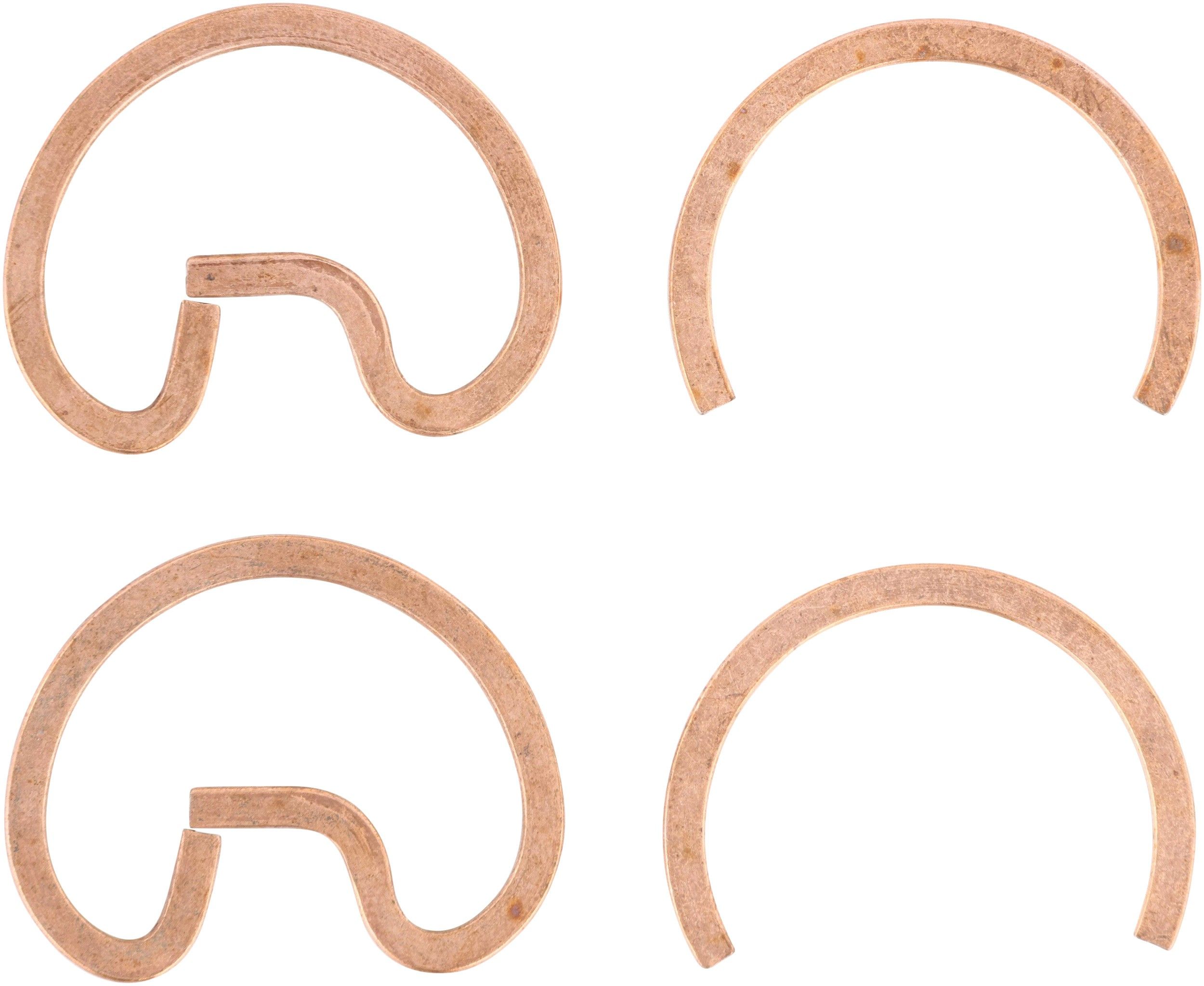

| Snap Ring Included | Y |
| Snap Ring Type | External |
| Type | Osr Style |
This part fits the following vehicles:
This is a universal part that fits 3,257 vehicle configurations across 5 makes.
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | 45U0105 |
| ACDelco | 45U0118 |
| ACDelco | 45U0144 |
| Daimler Truck North America | SP 5 1204X |
| Daimler Truck North America | SP 5 1204XHP |
| Dana Commercial Vehicle Service Parts | 2104-51204X |
| Dana Commercial Vehicle Service Parts | 5-1204XSB |
| Dana Commercial Vehicle Service Parts | DT1204 |
| Dana Commercial Vehicle Service Parts | SP51204X |
| International Harvester IHC | 1662202C91 |
| International Harvester IHC | 5 1204X |
| International Harvester IHC | 51204X |
| International Harvester IHC | D51204X |
| International Harvester IHC | E51204X |
| International Harvester IHC | ZJU51204X |
| Mazda | ZZM0-25-060 |
| Mazda | ZZM0-25-060A |
| Mazda | ZZM025060 |
| Mazda | ZZM025060A |
| McNeilus | 2GN211 |
| Meritor | CP1204X |
| Midwest | 5-1204XR |
| Navistar | DS51204X |
| Paccar Parts | 5-1204X |
| Precision | 264 |
| Precision | 265 |
| Precision | 434 |
| Rockwell International | CP 1204X |
| SKF | 2-4900 |
| SKF | 2-4900G |
| SKF | UJ264 |
| SKF | UJ265 |
| SKF | UJ434 |
| SVL | 15-1204X |
| Volvo | SHP51204X |
| Volvo | SP 51204X |
Fits Years: 1962 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
