Disc Brake Rotor

Disc Brake Rotor - Rear (Pagid) for 2004-2010 BMW 535i, 545i, 550i, 645Ci, 650i NEW

$ 165 .30
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Rear
High Carbon, Fully Coated
Integral One-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New
See All Other Disc Brake Rotors
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

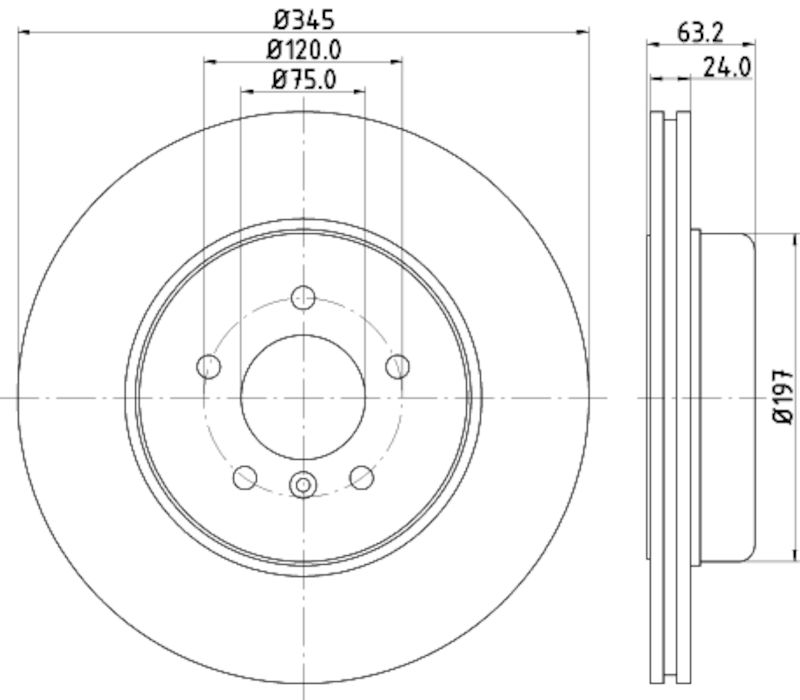

Specifications & Info


Attribute Value
120.00
ABS Tone Ring Included No
Assy/Disassy By Qualified Personnel Required! .
Balancing Type Mill Balancing
Bearings Included No
Bolt Hole Circle Ø [in] 4.72
Bolt Hole Circle Ø [mm] 120
Bolt Hole Quantity 6
Brake Disc Thickness [in] 0.94
Brake Disc Thickness [mm] 24
Brake Disc Type Internally Vented
California Proposition 65 Required No
Center Hole Diameter 114.3
Centering Diameter [in] 2.95
Construction Full Cast
Directional Or Non Directional Brake Surface Non-directional
Disc Finish Coated
Discard Thickness 22.40
Grade Type Standard Replacement
Hat Finish Coated
Hole Arrangement / Number 05/06
Hole Arrangement/Number 05/06
Inner Diameter [in] 7.28
Inside Diameter 75.0
Material Gray Cast Iron
Minimum Thickness [mm] 22,4, 22.4
Mounting Bolt Hole Circle Diameter 120.00
Mounting Bolt Hole Quantity 6
Nominal Thickness 24.00
Outer Diameter [in] 13.58
Overall Height 63.20
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Surface Coated
Surface Type Smooth
Technical Information Number 54825pro
Weight [kg] 9,4, 9.4
Wheel Bolt Bore Diameter [mm] 14.5
Wheel Bolt Bore Ø [mm] 14.5

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 5 models (tapclick to expand)(tapclick to hide)
535i 2008-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2008 - 2010 L6 3.0L Turbo RWD Automatic & Manual
Base Wagon 2010 L6 3.0L Turbo RWD Automatic & Manual
Gran Turismo Hatchback 2010 L6 3.0L Turbo RWD Automatic
545i 2004-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Sedan 2004 - 2005 V8 4.4L RWD Automatic & Manual
550i 2006-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Active Dynamic Sedan 2010 V8 4.8L RWD Automatic & Manual
Base Sedan 2006 - 2010 V8 4.8L RWD Automatic & Manual
Formula 1 Sedan 2006 - 2009 V8 4.8L RWD Automatic & Manual
Top Sedan 2006 - 2009 V8 4.8L RWD Automatic & Manual
645Ci 2004-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2004 - 2005 V8 4.4L RWD Automatic & Manual
Base Coupe 2004 - 2005 V8 4.4L RWD Automatic & Manual
650i 2006-2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2006 - 2010 V8 4.8L RWD Automatic & Manual
Base Coupe 2006 - 2010 V8 4.8L RWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand Part Number
ATE 24012402012
Blue Print ADB114369
BMW 34 42 6 382 827
BMW 6 763 827
Borg & Beck BBD5803S
Bosch 0 986 479 729
Bosch 0986479E13
Brake Engineering DI956488S
Brembo 09C41813
Delphi BG4753C
Dynamic Friction Company 600-31064
Dynamic Friction Company 604-31064
Dynamic Friction Company 900-31064
Dynamic Friction Company 900-31064A
EBC Brakes D1219
EBC Brakes D2070R
EBC Brakes USR2070R
Febi-Bilstein 104807
Ferodo DDF2154C
Ferodo DDF2154C1
FREMAX BRAKE ROTORS AND DRUMS BD3403
FTE BS7241HB
Girling 6066245
Hella Pagid 54825PRO
Hella Pagid 8DD355119341
Jurid 563069JC
Jurid 563069JC1
LPR B2048V
LPR B2048VBR
MEYLE 3835231002PD
Mintex MDCB2586
NK Autoparts 3415113
NK Autoparts 341591
Optimal BS9356
Optimal BS9356HC
PAGID Racing 54825
PAGID Racing 65157
PAGID Racing 65157HC
Remsa 6196110
SBS 18153415113
SBS 1815341591
Textar 92182503
Textar 92182505
Textar 92182525
Textar 98200182501
TRW DF6624S
VAICO V2080085
Zimmermann 150346120
Zimmermann 150346132
Zimmermann 150346152
Zimmermann 150346154
Zimmermann 150346155

Fits Years: 2004 2005 2006 2007 2008 2009 2010

Fits Models: 535i, 545i, 550i, 645Ci, 650i
