Quick Summary

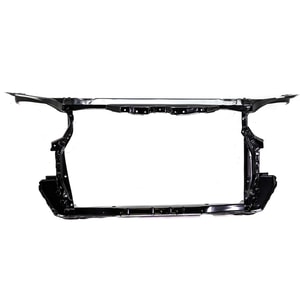

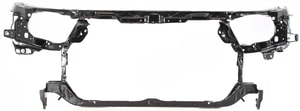

The radiator support-also called the radiator core support, front cradle, or upper tie-bar-is the metal frame that holds the radiator, A/C condenser, headlights, hood latch, and some wiring at the very front of your Toyota Camry. When it is straight and strong, the cooling system stays in place, body gaps line up, and crash forces travel safely into the side rails. If it bends or rusts, you can get coolant leaks, noisy vibration, poor hood-to-fender gaps, or even reduced crash protection. (Go-Parts, firstgenmc.com)

What It Does

• Mounting hub. The support gives hard mounting points for the radiator and condenser so they do not shift on bumpy roads. (Go-Parts)
• Front-end alignment. Side-to-side adjustment slots let technicians fine-tune hood and fender alignment after service or a crash. (firstgenmc.com)
• Crash energy path. In a small-overlap crash, the upper rail, bumper beam, and radiator support work together to direct force around the cabin. (IIHS-HLDI, ROSA P)

Location & Parts

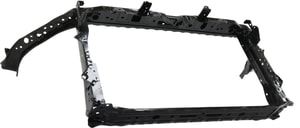

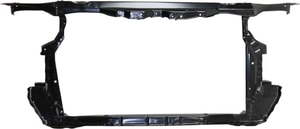

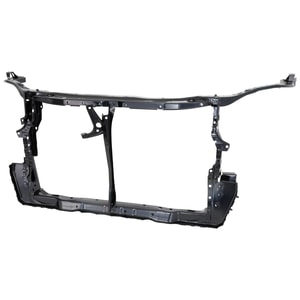

Stand in front of the car with the hood up. The radiator support is the box-shaped metal frame running left to right behind the bumper cover. It bolts to the front sub-frame on rubber bushings and spot-welds to the inner aprons. Headlight brackets, horn, hood latch, and ambient-air-temp sensor all bolt to it. (toyota.aitnet.org, YouTube)

Signs of Trouble

← scroll table horizontally →

Camry Generations

• 1997-2001 (XV20): Weld-in lower cradle and bolt-on upper bar. Easy to section at factory seams if needed. (JustAnswer)
• 2002-2006 (XV30): One-piece stamped steel; hybrid model adds condenser-cooling fan brackets.
• 2007-2011 (XV40): Thicker high-strength steel to improve frontal crash rating after 2002 "Poor" small-overlap result. (Latin Times)
• 2012-2017 (XV50): Removable upper tie-bar makes A/C service simpler; see this step-by-step video.
• 2018-Present (XV70): Uses ultra-high-strength steel in critical zones and plastic/composite side shields for airflow. (Toyota Parts and Service)

Materials & Design

Most supports are multi-piece assemblies spot-welded from 500-MPa steel. Upper bars may use lighter 340-MPa material; lower cross-members can be 700-MPa for stiffness. Hybrid models add foam-filled plastic shields to channel cooling air. Toyota collision information warns against substituting adhesive for welds except where the body manual allows. (I-CAR RTS, Toyota Parts and Service)

Safety Role

IIHS says structural performance in the small-overlap test depends on the radiator support's ability to stay attached to the side rails and bumper beam. (IIHS-HLDI) A U.S. DOT research program used Camry computer models and found that strengthening this area reduced cabin intrusion by up to 69 percent. (ROSA P) Updated designs earned a "Good" rating for 2023-2025 Camry models. Watch the 40 mph test video. (YouTube)

Repair vs Replace

• Minor bends: Techs can sometimes cold-pull minor tweaks if paint is not cracked.
• Moderate damage: Spot-weld drills remove the upper bar; a service piece bolts in using flange nuts and factory holes. (toyotanation.com)
• Severe kinks or rust: Replace the full assembly. Weld-through primer, correct squeeze-type resistance spot welding, and post-repair corrosion sealant are required. (I-CAR RTS)
• Regulatory note: On recall work, NHTSA allows the campaign label to be placed on the radiator support if the hood skin lacks space. (NHTSA Static)

Installation Tips

1. Disconnect the battery (air-bag sensors sit near the latch).
2. Remove bumper cover, headlights, and A/C condenser bolts.
3. Support the engine cooling fan shroud before lifting the radiator.
4. Hand-start all bolts, then torque them evenly: upper M6 bolts = 7 ft-lb; lower M10 bolts = 37 ft-lb (from Toyota body manual). (toyota.aitnet.org)
5. Leave the two cradle-to-frame bolts snug, close the hood, center gaps, then torque fully. (firstgenmc.com)
6. After collision repairs, clear any radar or camera DTCs and perform front-radar aiming if equipped with Toyota Safety Sense.

Compatibility & Fit

Check year, engine size, and whether the car is hybrid. Hybrid versions often have extra mounting tabs for the inverter coolant radiator. Upper tie-bars differ between pre-facelift (2018-2020) and facelift (2021-2024) models. Always match the eighth digit of the VIN when buying the part to avoid headlight or latch mis-alignment. (I-CAR RTS)

Frequently Asked Questions

Q: What is a radiator support?
A: It is the metal frame that holds the radiator, condenser, headlights, and hood latch at the front of the car. (Go-Parts)

Q: Is it safe to drive with a bent support?
A: No. A loose radiator can leak coolant and a bent frame can weaken crash protection. (Reddit)

Q: How do I know mine is bad?
A: Look for crooked hood gaps, coolant leaks after a small bump, or vibration noises from the front. (berneystire.com)

Q: Can I straighten it myself?
A: Small tweaks might be possible, but any weld-on repair needs training and the right welder. (JustAnswer)

Q: Is the support welded or bolted?
A: Older Camrys have welded lowers and bolt-on uppers; many 2012-up models use bolt-on upper bars for easier service. (toyotanation.com)

Q: Do I remove the bumper first?
A: Yes. The bumper cover, absorber, and headlights must come off to access the support bolts. (YouTube)

Q: Will replacing it affect my airbags?
A: Disconnect the battery and do a post-repair scan; radar and camera sensors near the grille may need recalibration. (NHTSA Static)

Q: Does material matter?
A: Yes. Toyota uses different grades of steel; use a part that meets factory specs to keep strength. (I-CAR RTS)

Q: What torque for the upper bolts?
A: Around 7 ft-lb (10 N·m) for M6 bolts and 37 ft-lb (50 N·m) for the larger M10 cradle bolts. (toyota.aitnet.org)

Q: Can I use adhesive instead of welding?
A: Only where Toyota's body manual lists adhesive bonding. Most joints must be spot-welded. (I-CAR RTS)

Q: Why did earlier Camrys score poorly in crash tests?
A: The 2012 model's radiator support and front rail let the wheel push into the cabin in the small-overlap test. Later designs fixed this. (Latin Times)

Q: Do hybrids use a different support?
A: They often add brackets for the hybrid system's extra cooler, so check the VIN.

Q: Will aftermarket parts fit the same?
A: Fit will depend on build quality and following factory seam-welding patterns. Always test-fit before final paint.

Q: Does rust matter up front?
A: Yes. Rusted supports can crack at spot-welds, letting the radiator shake and leak. Replace if you see flaking metal. (toyotanation.com)

Q: Where can I read official repair steps?
A: Toyota's Technical Information System sells short-term subscriptions for full body manuals. (toyota.aitnet.org)

Helpful Resources

• Watch a clear upper-bar replacement video for 2012-2017 models.
• Review IIHS ratings for the latest Camry.
• Read NHTSA campaign bulletins that mention radiator support label placement here.
• See Toyota collision welding rules on the I-CAR OEM portal.
• Learn general radiator failure signs from this easy blog post.

This information should help any reader understand, diagnose, and discuss the Toyota Camry radiator support with confidence.
