Buy Toyota Matrix Tail Light Assembly
-

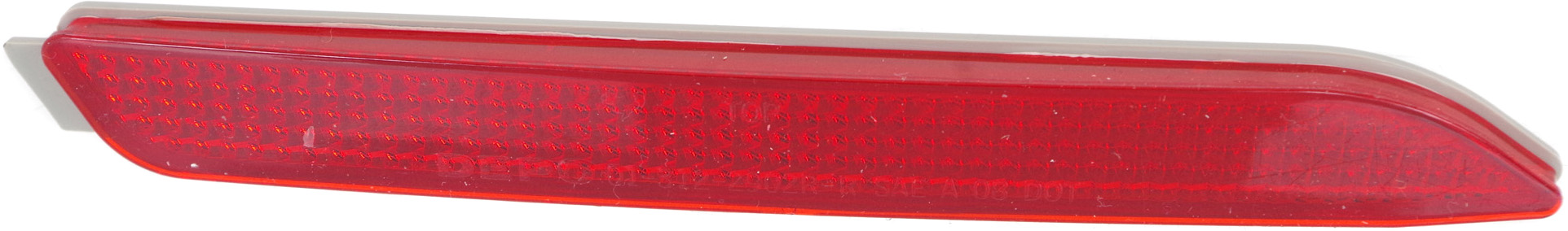

Rear Bumper Reflector Light for Lexus NX300 (2018-2021) and Toyota RAV4 (2019-2023), Left Driver Side, Replacement
High-Quality TYC/DEPO-brand item; OEM #8192008010, Partslink #: LX2830100 -
Rear Bumper Reflector Light for Lexus NX300 (2018-2021), Toyota RAV4 (2019-2023), Right Passenger Side, Replacement
High-Quality TYC/DEPO-brand item; OEM #8191008010, Partslink #: LX2831100 -

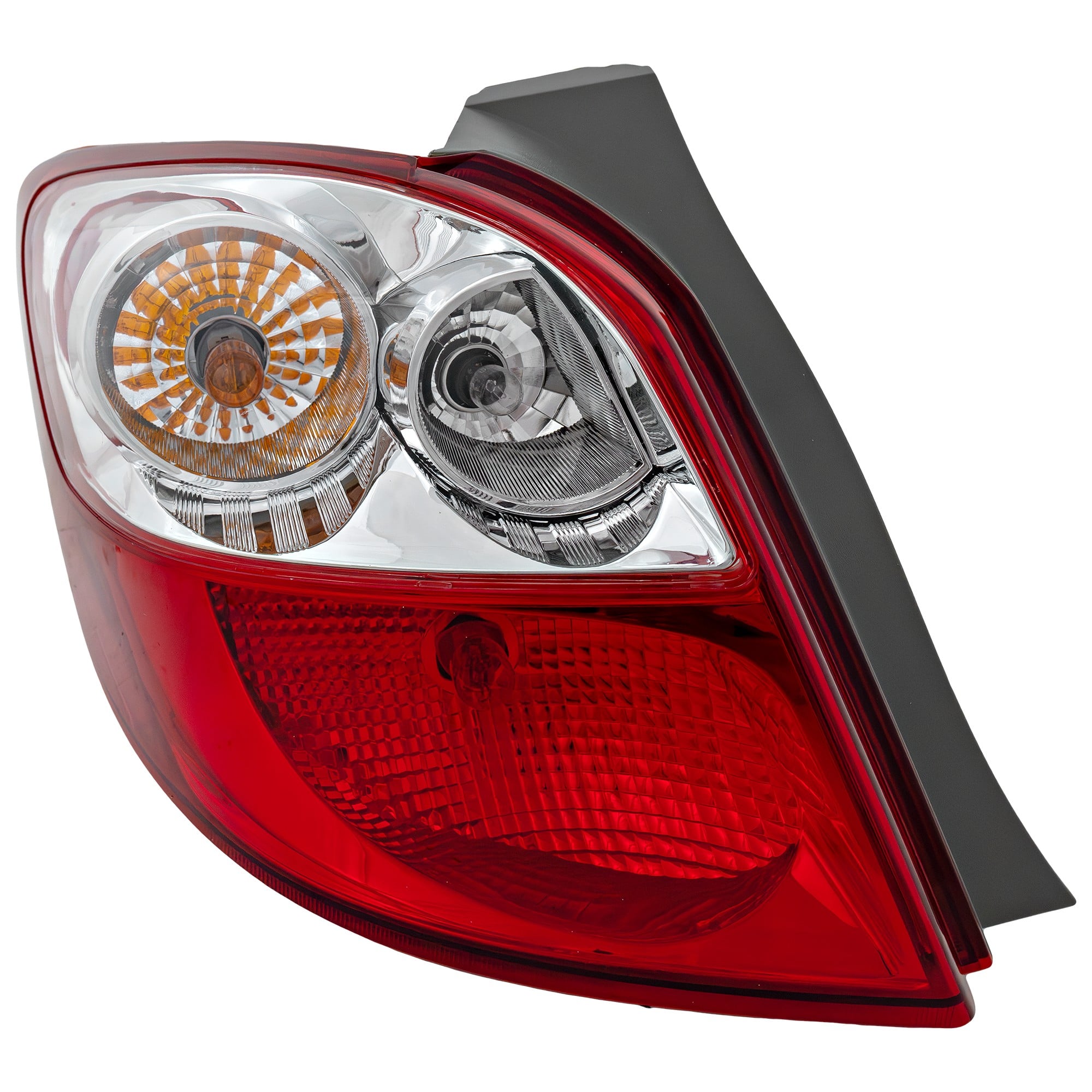

Tail Light Assembly for Toyota Matrix 2009-2014, Left Driver Side, Replacement
OEM #8156002450, Partslink #: TO2800182 -

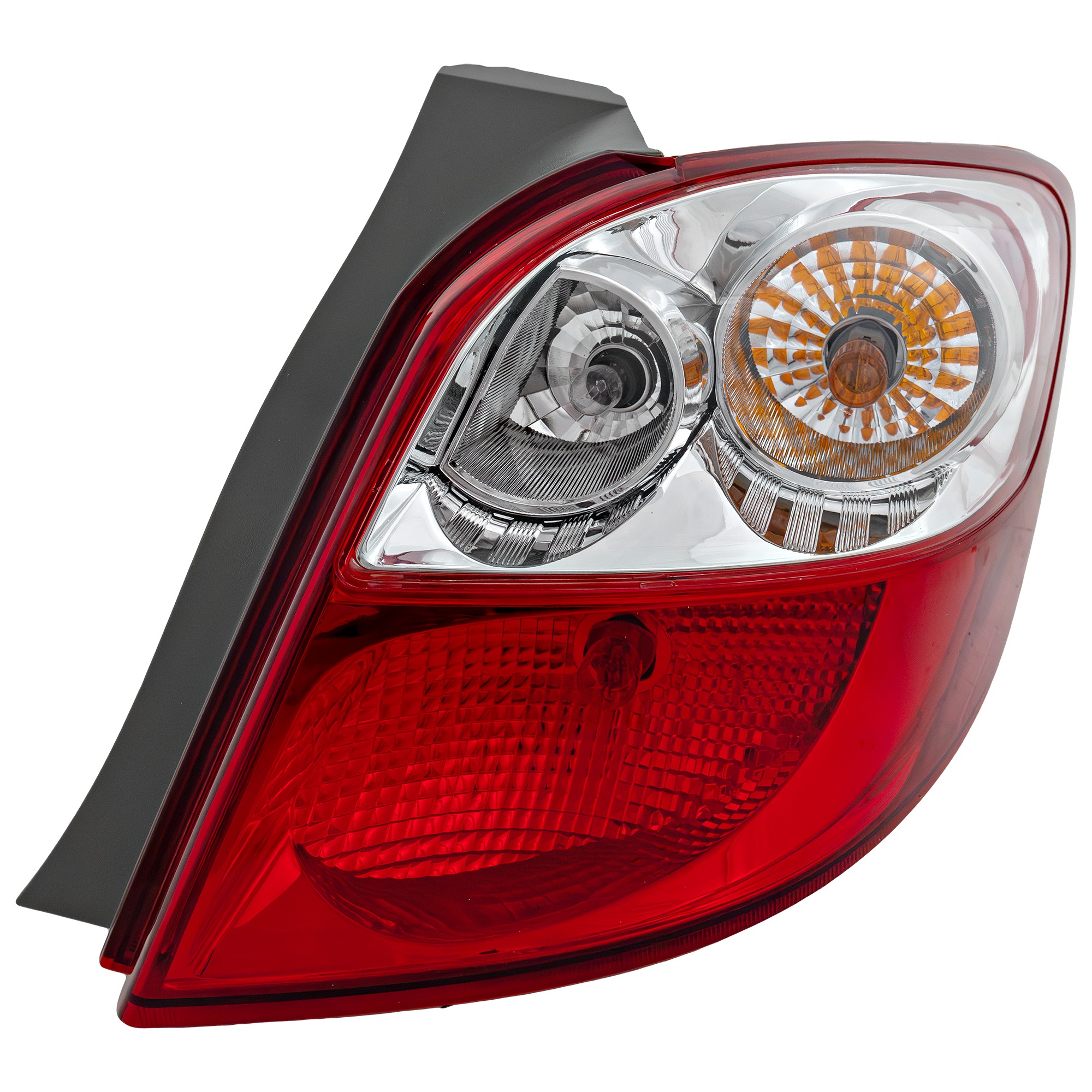

Tail Light Assembly for Toyota Matrix 2009-2014, Right Passenger Side, Replacement
OEM #8155002450, Partslink #: TO2801182 -

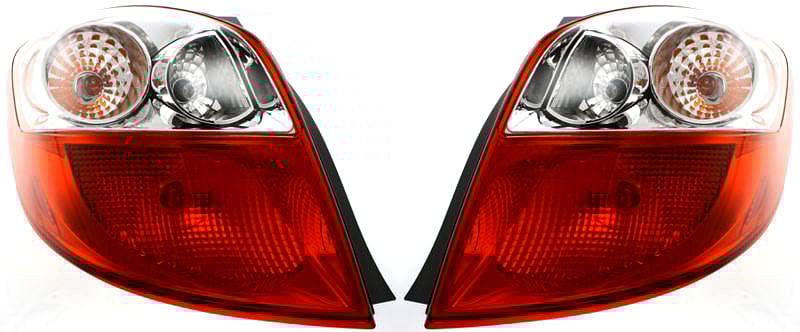

Tail Light Assembly for 2009-2014 Toyota Matrix, Halogen, Pair/Set of 2, Right Passenger and Left Driver, Replacement
MATRIX 09-14 TAIL LAMP Right (Passenger) AND Left (Driver), Assembly, Halogen, Set of 2
OEM #s: 8156002450, 8155002450
Partslink #s: TO2801182,TO2800182, Partslink #: SET-REPT730125 -
Tail Light Assembly for Toyota Matrix 2005-2008, Left Driver, Replacement
OEM #8156002322, Partslink #: TO2800157 -
Tail Light Assembly for Toyota Matrix 2005-2008, Right Passenger, Replacement
OEM #8155002322, Partslink #: TO2801157 -

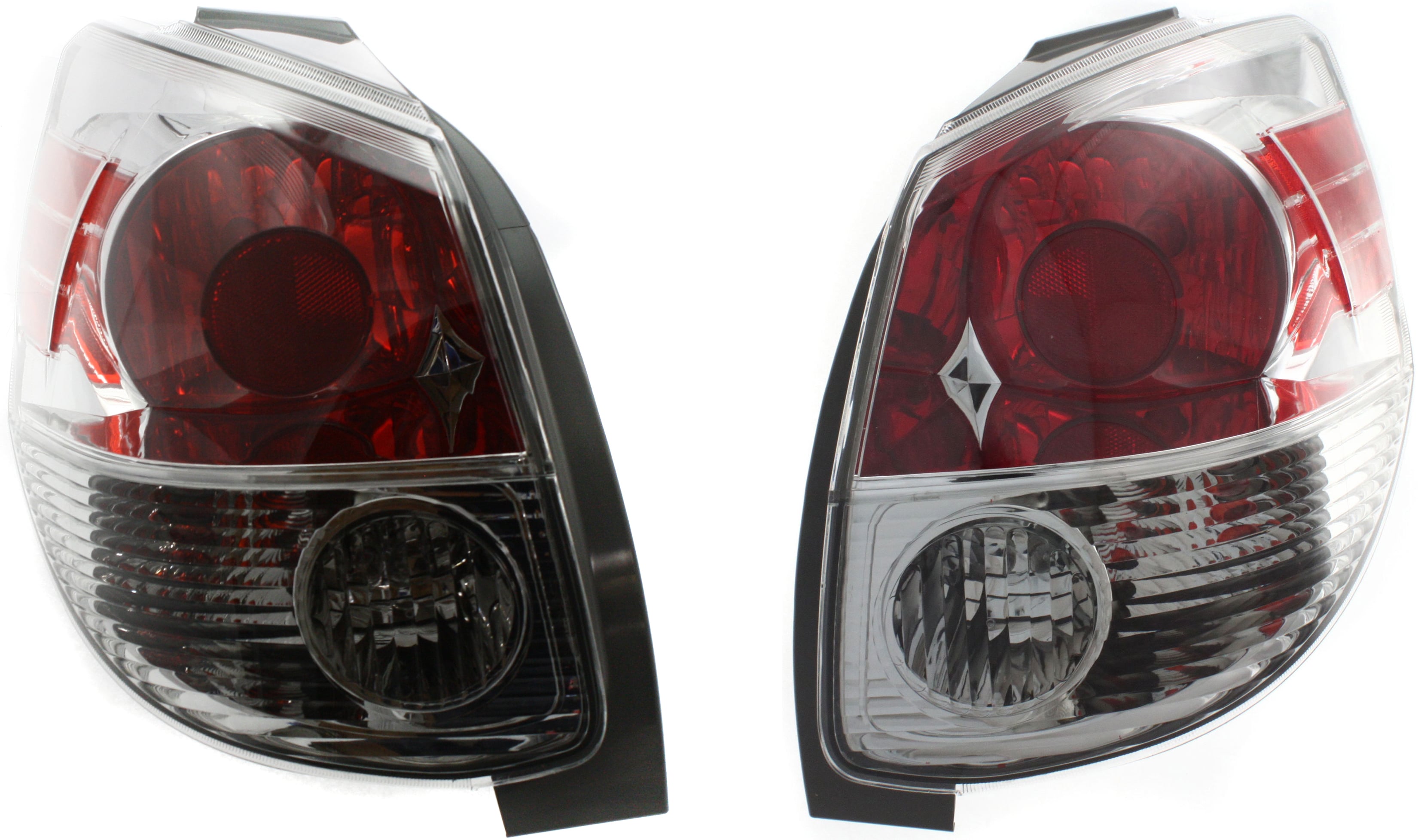

Tail Light Assembly Pair/Set for 2004-2008 Matrix, Includes Right Passenger and Left Driver Replacement Parts
MATRIX 04-08 TAIL LAMP Right (Passenger) AND Left (Driver), Assembly
OEM #s: 8156002322, 8155002322
Partslink #s: TO2801157,TO2800157, Partslink #: SET-T730135 -

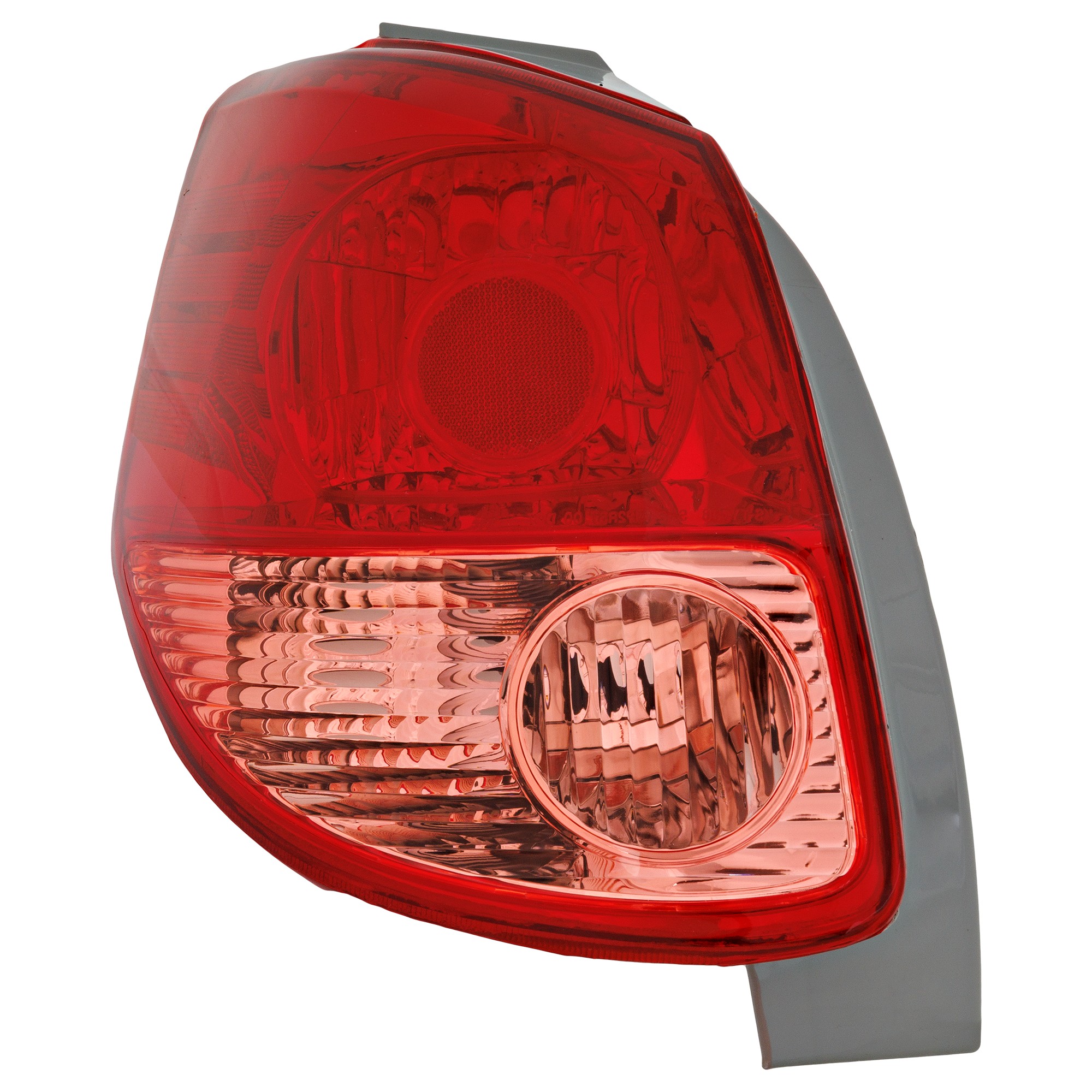

Tail Light for Toyota Matrix 2003-2004, Left Driver Side, Lens and Housing, Replacement
Lens/Cover/Housing; OEM #8156002210, Partslink #: TO2818118 -

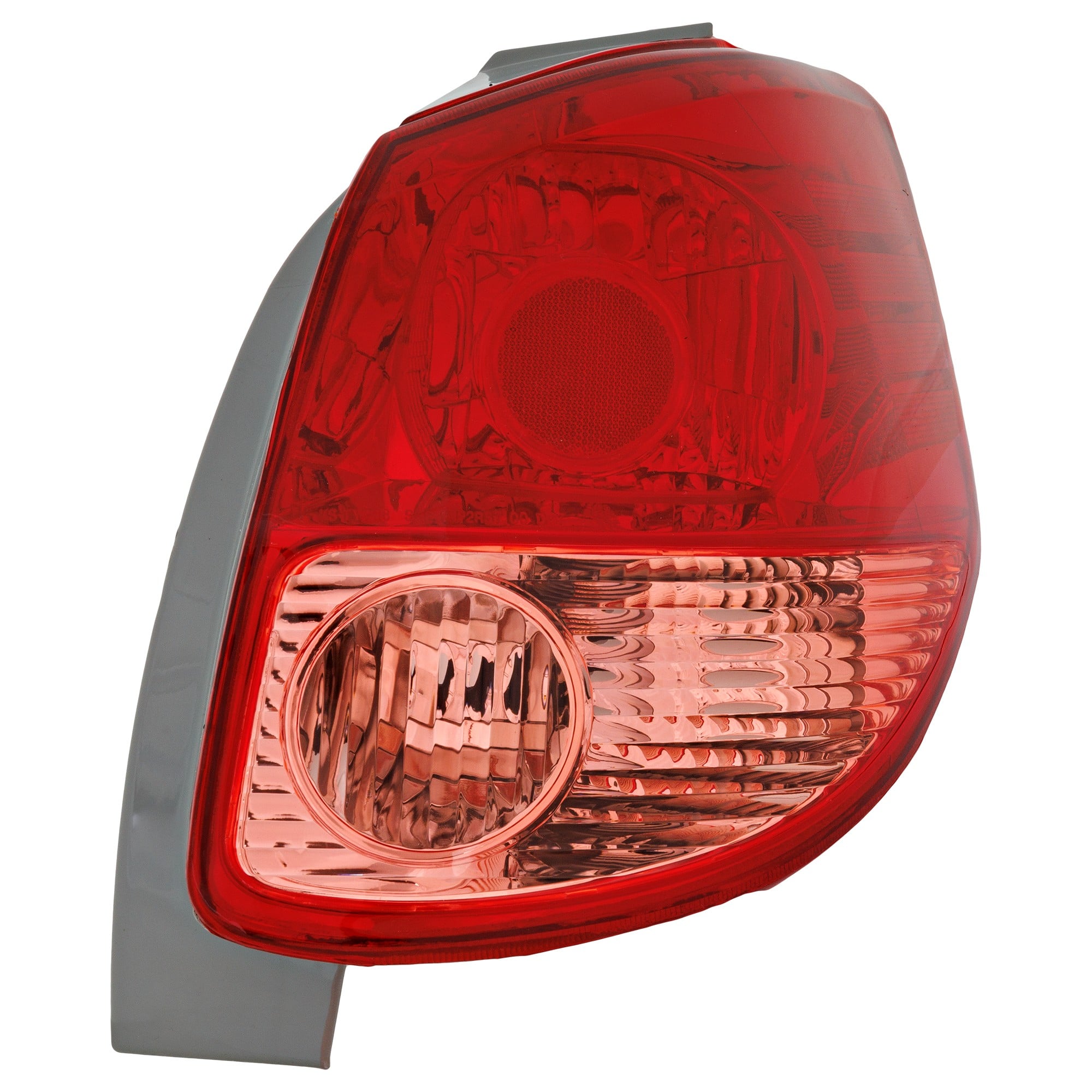

Tail Light for Toyota Matrix 2003-2004, Right Passenger Side, Lens and Housing, Replacement
Lens/Cover/Housing; OEM #8155002210, Partslink #: TO2819118 -

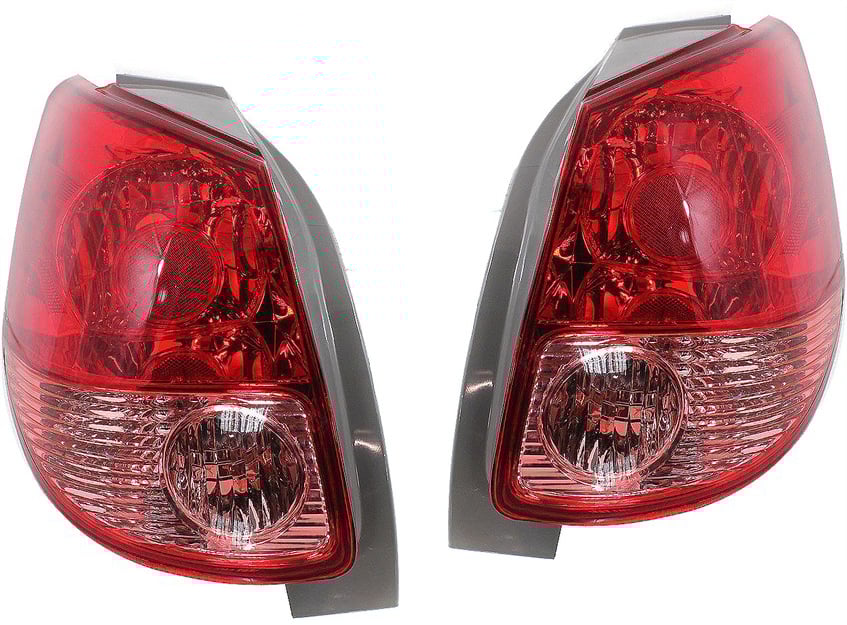

Tail Light Pair/Set for 2003-2004 Toyota Matrix, with Right Passenger and Left Driver Lens and Housing, Replacement
MATRIX 03-04 TAIL LAMP Right (Passenger) AND Left (Driver), Lens and Housing
OEM #s: 8156002210, 8155002210
Partslink #s: TO2819118,TO2818118, Partslink #: SET-T730105
- Highest Quality Parts
- 100% Guaranteed
- 90-Day Free Returns
- Limited Lifetime Warranty
- No Restocking Fees
- Fast Shipping
Your Go-To Place for Auto Parts!
Quick Overview
The Matrix tail light sits on the hatch and lights up red whenever you hit the brakes or switch on your running lights. Inside the plastic lens are separate circuits for the stop/tail filament, rear turn signal, and back-up (reverse) light. Toyota specifies a dual-filament 7443 bulb for the stop/tail, a single-filament 7440/7440NA or 21-watt 921 for other rear lamps, and a 15-amp "TAIL" fuse that feeds the whole circuit (Fuse Box).
Bulb & Fuse Chart
| Model year | Stop / tail | Turn signal | Reverse | Center high mount | Tail-light fuse |
| 2003-2008 | 7443 21/5 W | 7440 NA 21 W | 921 16 W | Sealed LED bar | 15 A "TAIL" fuse (passenger-box pos. 18) |
| 2009-2014 | 7443 21/5 W | 7440 NA 21 W | 921 16 W | Sealed LED bar | 15 A "TAIL" fuse (driver-box pos. 16) |
← scroll table horizontally →
(Table values from the 2010 owner's manual bulb list and fuse-box diagram.)
Fit & Compatibility
- Platform twins - The Pontiac Vibe was co-developed with the Matrix, but its tail-lamp shape differs, so housings do not interchange (forums.genvibe.com).
- Corolla cousin - Some bulbs and gaskets match the Corolla, yet the complete lamp housing is unique to the Matrix hatch.
- Mounting points - All Matrix years bolt on from inside the hatch trim with two 10 mm nuts and one guide pin; no exterior screws are exposed (CarCareKiosk).
Common Problems
- Condensation or water - A worn foam seal or unplugged vent lets moist air enter. Owners often dry the lamp in sunlight and reseal with silicone (Toyota Nation, Toyota Nation).
- Blown fuse, no rear lights - If every rear light is dark but brake lamps work, check the 15 A "TAIL" fuse or the tail-lamp relay behind the glove box (Fuse Box, JustAnswer).
- Fast-blinking turn signal - One rear bulb is burned out; replace with a 7440NA amber bulb to restore normal flash rate .
Step-by-Step Replacement
- Open the hatch and pry off the trim cover.
- Remove the two 10 mm nuts; support the lamp so it doesn't drop.
- Pull straight back to release the guide pin.
- Twist the bulb holders counter-clockwise and swap in new bulbs-never touch the glass (CarCareKiosk).
- Reverse steps to reinstall; test brake, tail, and turn functions before closing the hatch.
Need a video? Toyota techs walk through the whole process in this (3 min watch).
Upgrade Ideas
- LED retrofit bulbs - Swapping the 7443 incandescent for an LED draws less power and lights quicker, which NHTSA research links to reduced rear-end crashes (Crash Statistics).
- Amber rear turns - FMVSS 108 allows red or amber signals; studies show amber cuts crash risk by ~5 % (Crash Statistics).
- Smoke or clear lenses - Check local laws; darker lenses must still meet DOT photometry rules.
Legal & Safety Notes
U.S. Federal Motor Vehicle Safety Standard 108 sets color (red tail/stop, amber or red turn), mounting height, brightness, and lens markings (, Crash Statistics). Failing lamps can invite a traffic citation and reduce night visibility.
Maintenance Tips
- Keep the lens clean; dirt can cut light output up to 50 %.
- Replace bulbs in pairs so brightness matches.
- Check seals yearly; a quick bead of RTV silicone stops water entry.
- Use dielectric grease on bulb bases to prevent corrosion.
Troubleshooting Quick List
| Symptom | Likely cause | Fix |
| No tail lamps, brake still works | "TAIL" fuse blown | Replace 15 A fuse; trace shorts |
| One side dark | Burned bulb or broken ground G303 | New bulb; inspect harness |
| Rapid turn flash | Burned 7440 bulb | Replace bulb |
| Water inside lens | Damaged seal or vent | Dry out, reseal gasket |
← scroll table horizontally →
(Data sources: owner's manual, fuse-box.info, user forums.) (Fuse Box, Toyota Nation)
Frequently Asked Questions
Q: What bulb number fits the Matrix brake/tail?
A: A dual-filament 7443 bulb fits every Matrix year.
Q: Where is the tail-light fuse?
A: In the under-dash panel; position 18 (2003-08) or 16 (2009-14) and labeled "TAIL." (Fuse Box)
Q: Can I swap Matrix and Vibe tail lamps?
A: No. The housings are different shapes even though many mechanical parts interchange. (forums.genvibe.com)
Q: Why do my brake lights stay on after bulb swap?
A: Check that the stop-lamp switch at the pedal isn't stuck and that you used the correct dual-filament bulb. (Reddit)
Q: Is condensation normal?
A: A light fog after rain is common. Pooled water or large droplets mean the seal needs repair. (Toyota Nation)
Q: Are LED bulbs legal?
A: Yes, if they are DOT-compliant and match or exceed the factory lumen output. (Crash Statistics)
Q: What tools do I need to remove the light?
A: A trim pry tool, a 10 mm socket, and gloves to keep oil off the bulb glass. (CarCareKiosk)
Helpful Resources
- Toyota Owner's Manual PDF (pages 336-344 cover bulb replacement): 2010 Matrix Manual
- Fuse locations with photos: Fuse-Box.info guide
- NHTSA FMVSS 108 text and lighting studies: Amber vs. Red Signals
- DIY bulb change video: CarCareKiosk Matrix Tail Light
"
