Buy Toyota Tacoma Tail Light Assembly

Toyota Tacoma tail lights-also called tail lamps, rear light assemblies, or rear combination lamps-keep you visible from behind by housing brake, running, turn-signal, and reverse lights in one unit. LEDs are now common because they shine brighter, last longer, and light up about a quarter-second faster than old bulbs, giving drivers behind you up to 30 feet more stopping distance. (Carifex, NHTSA)

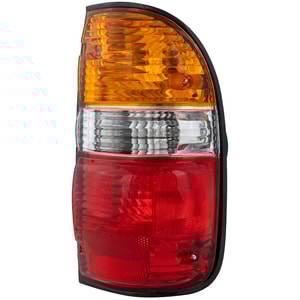

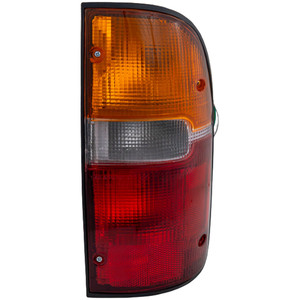

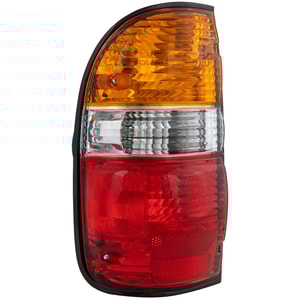

• 1st Gen (1995-2004) tail lights mount with two 10 mm bolts and a tab; fuse 6 ("TAIL," 10 A) powers them. (Fuse Box)

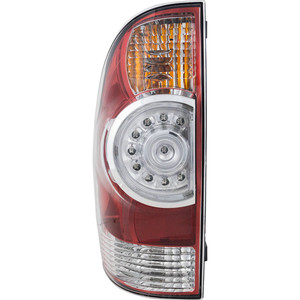

• 2nd Gen (2005-2015) keeps the same bolt pattern but moves to a multi-pin plug; fuse-box slot 13 ("TURN & HAZ," 15 A) feeds the turn and hazard bulbs. (Fuse Box)

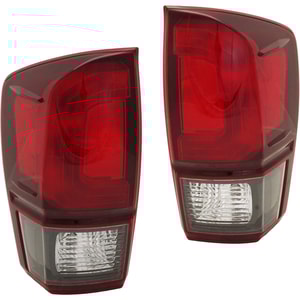

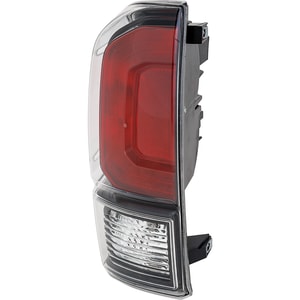

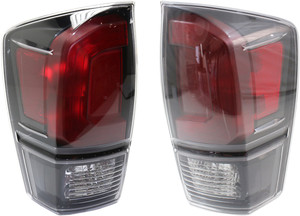

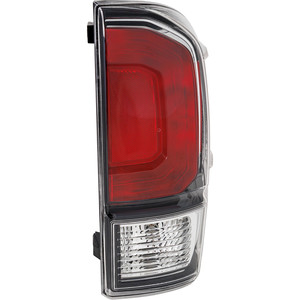

• 3rd Gen (2016-2023) adds factory LEDs on higher trims and uses bulb size 7443/7444 or LED modules for brake/running lights. (Tacoma World)
• 4th Gen (2024-) continues with full-LED assemblies on all grades, following the design first seen on the Trailhunter concept. (MotorTrend)
  Always match your Tacoma's build year when ordering a replacement rear lamp.

A Tacoma tail light assembly provides:

1. Tail/running lamp-steady red glow when the head-/park-lights are on.
2. Stop lamp-brighter red when you press the brake.
3. Turn indication-amber or red flash to show a lane change or turn. Amber turn lamps shorten following-driver reaction time in tests. (NHTSA)
4. Reverse lamp-white light that points backward in reverse.
5. Reflector-non-powered red piece that reflects headlights when the truck is parked.
   The whole unit must meet Federal Motor Vehicle Safety Standard 108 for brightness, color, and placement. (eCFR)

• Cracks & road chips: Plastic lenses can fracture from debris, letting water enter and fog the lamp.
• Water leaks: 2016-18 Tacomas had a service bulletin for moisture at the center high-mount stop lamp; Toyota released a revised gasket kit. (static.nhtsa.gov)
• Gasket shrinkage: Owners report cab leaks fixed by resealing the third-brake-light gasket or vents. (Tacoma Forum - Toyota Tacoma Owners)
• Blown fuse: If all rear lamps go dark, check the 10 A "TAIL" or 15 A "TURN & HAZ" fuses first. (Fuse Box)
• Socket corrosion: Coastal salt can corrode the bulb socket; clean with electrical-contact spray.

1. Lower the tailgate to reveal the two 10 mm bolts.
2. Remove bolts; pull the lamp straight back-there's a tension clip.
3. Twist the bulb holder counter-clockwise and swap the bulb, or unplug the LED harness.
4. Re-seat the assembly and snug bolts to about 6-8 ft-lb (hand-tight; do not over-torque). (Tacoma World)
   Time: about 10 minutes per side.
   Tip: Wipe the gasket and apply a thin bead of dielectric grease to keep water out.

• Rear lamps must emit red light at night and during braking; clear or smoked lenses are legal only if brightness still meets FMVSS 108. (eCFR)
• Mounting height on trucks may not place the lens lower than 15″ above the road.
• LEDs and micro-optic lensing spread light evenly, helping drivers judge distance better. (SAE Mobilus)
• Check operation weekly; a single dark lamp can invite a traffic citation.

• Clean lenses with mild soap; harsh cleaners dull the polycarbonate surface.
• Inspect seals after off-road trips; dirt between lamp and body can break the seal.
• Replace in pairs so brightness and color match.
• Use dielectric grease on bulb bases to fight corrosion.
• Choose quality LEDs-they draw less current, run cooler, and can last 10+ years when properly sealed. (Carifex)

• Plug-and-play LED assemblies give instant-on light and crisp styling; ensure they include built-in load resistors to prevent hyper-flash.
• Sequential turn signals add sweeping amber movement but must still flash 60-120 times per minute to be road-legal.
• Smoke or black-housing lamps look stealthy yet can reduce daytime brightness-verify DOT/SAE markings before installation.
• Off-grid setups can tie tail lamps into auxiliary trailer or roof-rack lights for better rear visibility when camping.

Q: What size bulb fits a 2012 Tacoma tail light?
A: Use a 7443 dual-filament bulb (or an LED equivalent) for brake/park, and 7440 for reverse on most 2005-15 models. (Fuse Box)

Q: My 2020 Tacoma tail lamp looks foggy inside. Is it bad?
A: Light condensation is normal and usually clears after driving; heavy water droplets mean the seal is compromised and the unit needs drying or replacement. (static.nhtsa.gov)

Q: How tight should I torque the bolts when reinstalling?
A: Hand-tighten the 10 mm bolts to about 6-8 ft-lb (7-10 Nm)-just snug. (Tacoma World)

Q: Do I need to remove the truck bed to change the rear lamp?
A: No-only the two bolts and one clip hold the assembly; the job takes about 10 minutes. (YouTube)

Q: Are LED tail lights plug-and-play?
A: Yes for power, but some need resistors or a flash-relay swap so the turn signals blink at the correct speed. (Carifex)

Q: Will amber turn signals fit my Tacoma?
A: Many aftermarket lamps use amber LEDs; studies show amber signals cut following-driver reaction time, making them a smart upgrade. (NHTSA)

Q: Which fuse controls the tail lights?
A: On 2005-15 models, check fuse #6 "TAIL" 10 A in the cab fuse box. (Fuse Box)

Q: What does FMVSS 108 mean for my replacement lamp?
A: It sets federal rules for brightness, color, and placement; any street-legal lamp will have "DOT SAE" embossed on the lens to show compliance. (eCFR)

Q: Can I legally tint my tail lights?
A: Only if the finished lamp still meets brightness rules-many dark films fail a light-meter test, so proceed with caution.

Q: Why are LEDs considered safer?
A: They light up roughly 0.25-0.35 seconds sooner than incandescent bulbs, giving traffic behind extra stopping distance. (NHTSA)

Q: How often should I inspect the lamps?
A: Test them monthly; a helper or reflective surface lets you confirm brake, turn, and reverse lights.

Q: What's the benefit of micro-optic lenses?
A: They spread LED light evenly, preventing hot spots and improving appearance without sacrificing brightness. (SAE Mobilus)

Q: Do rear lamp upgrades void warranty?
A: Swapping the entire lamp usually doesn't affect warranty as long as wiring isn't cut; keep the stock set in case of warranty claims.

Q: Can a trailer wiring harness cause tail light issues?
A: Yes-shorts or corrosion in the 4- or 7-pin connector can blow the tail-lamp fuse.

Q: How do I stop hyper-flash after installing LEDs?
A: Add 6-ohm load resistors or install an LED-ready flasher relay to restore normal blink speed.

Q: Are sequential turn signals legal everywhere?
A: They are legal in most U.S. states if they flash within the standard 60-120 flashes per minute and remain amber or red. Check local code.

Q: Does replacing only one tail light create mismatched brightness?
A: Yes-LEDs fade slowly over time, so swapping both sides keeps brightness uniform.

Q: What cleaning products are safe for the lens?
A: Use car-wash soap and water; avoid ammonia-based cleaners that can haze polycarbonate.

Q: Is dielectric grease necessary?
A: It prevents corrosion in bulb sockets and is inexpensive protection, especially in humid or salty climates.

Q: How long do LED assemblies last?
A: Quality units are rated for 30,000-50,000 hours-often longer than the truck itself, provided the seals stay intact. (Carifex)

By understanding how your Toyota Tacoma's tail light works, what causes failures, and how to maintain or upgrade it, you'll keep your truck safer and looking sharp on every drive.
