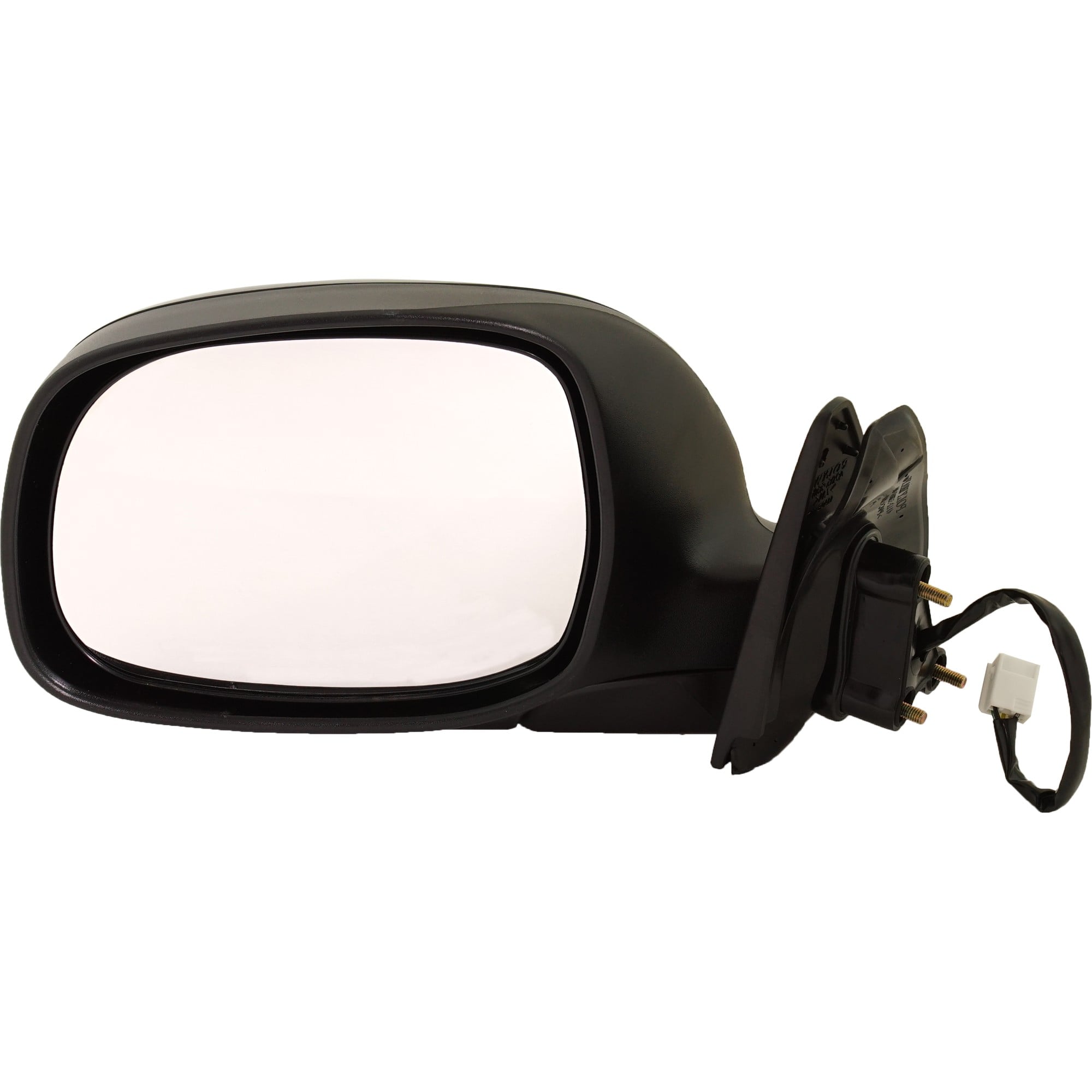

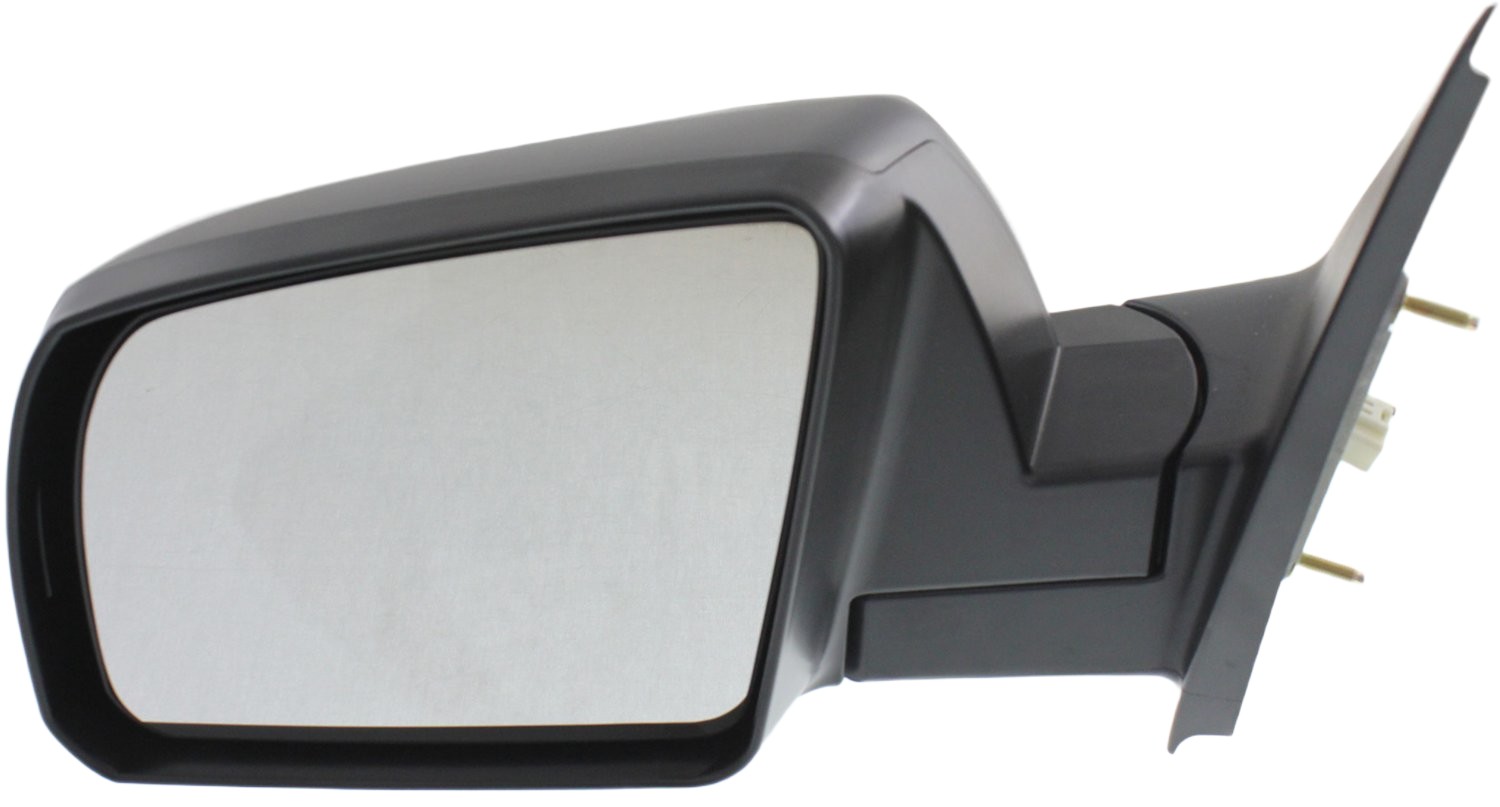

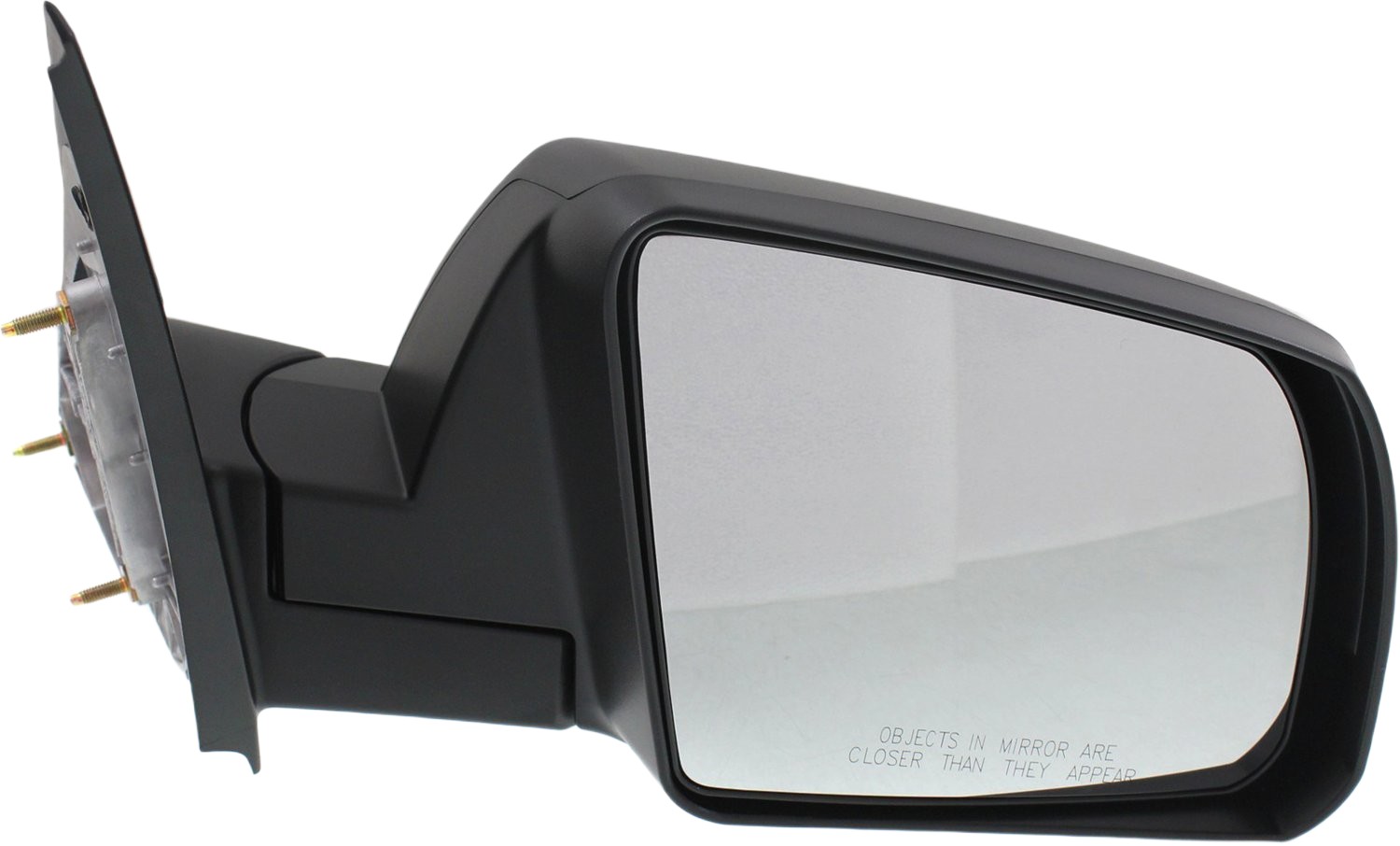

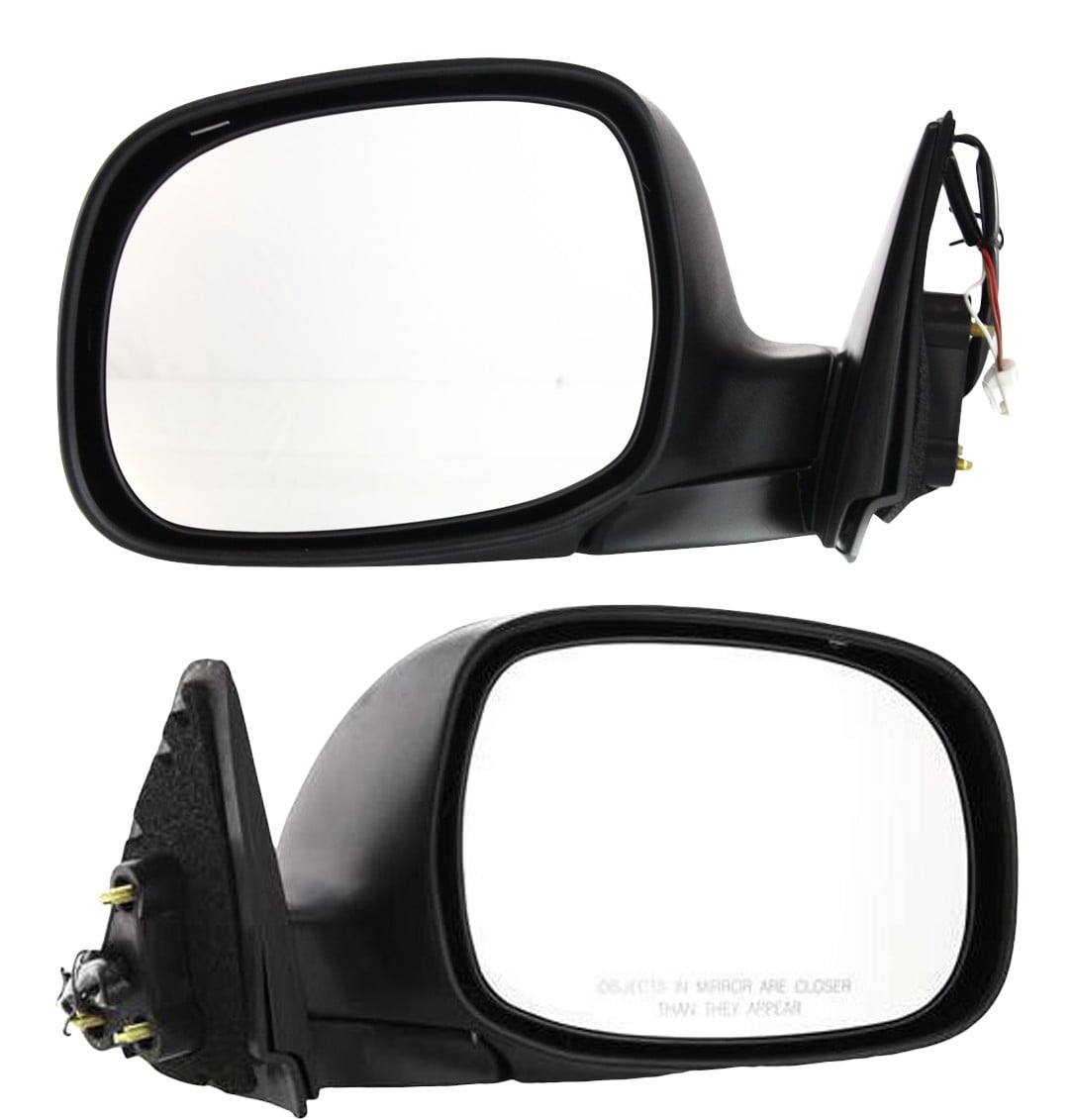

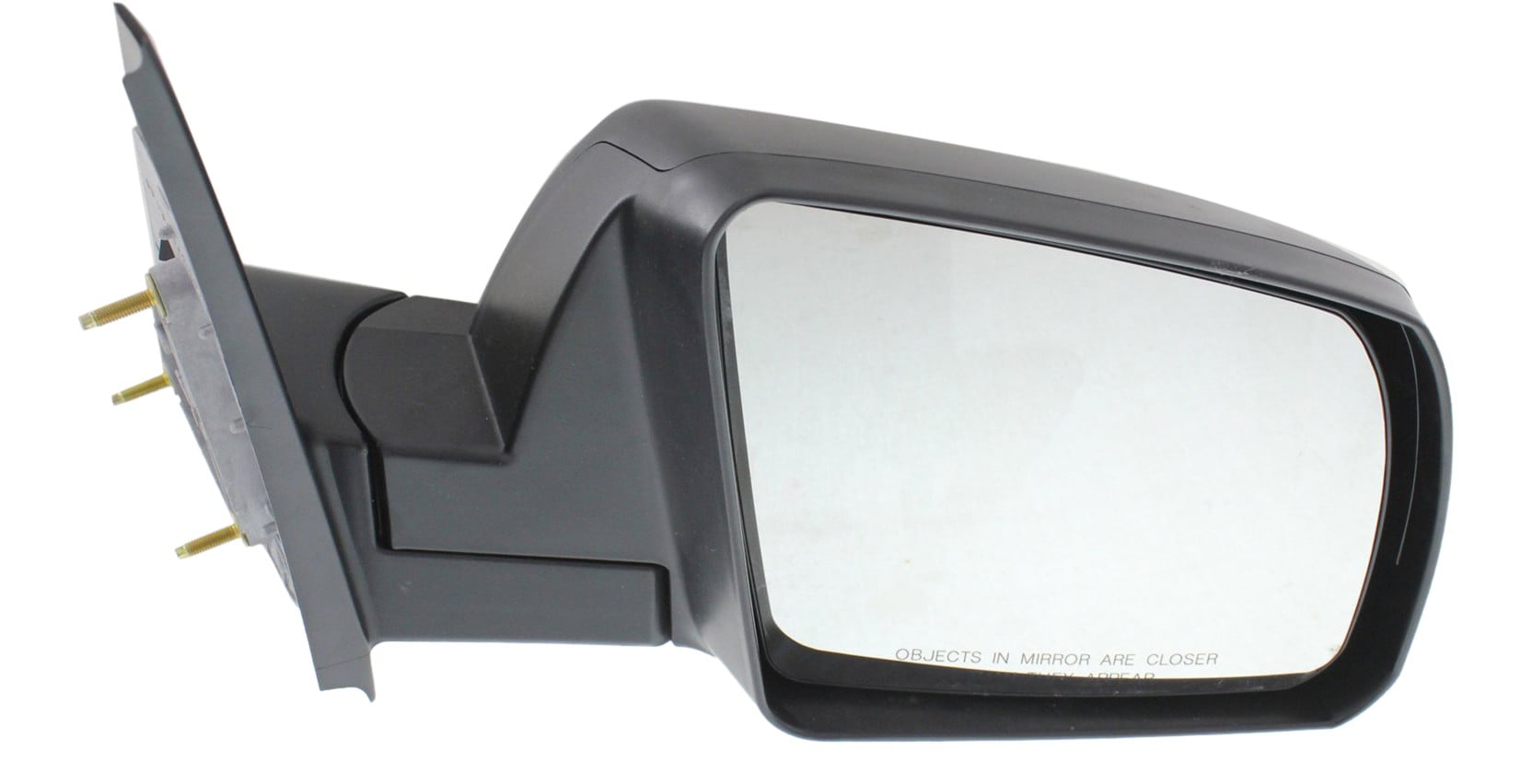

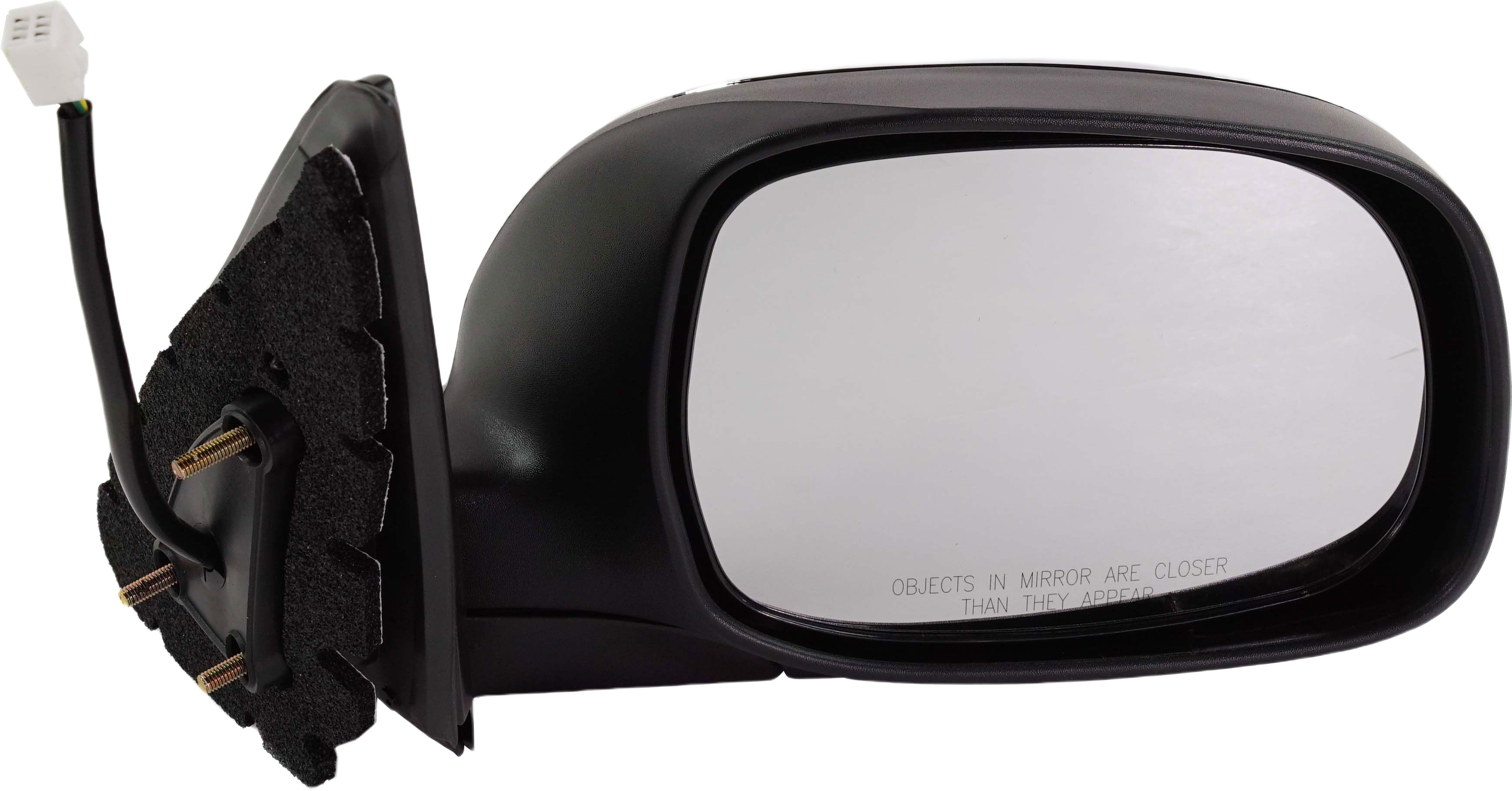

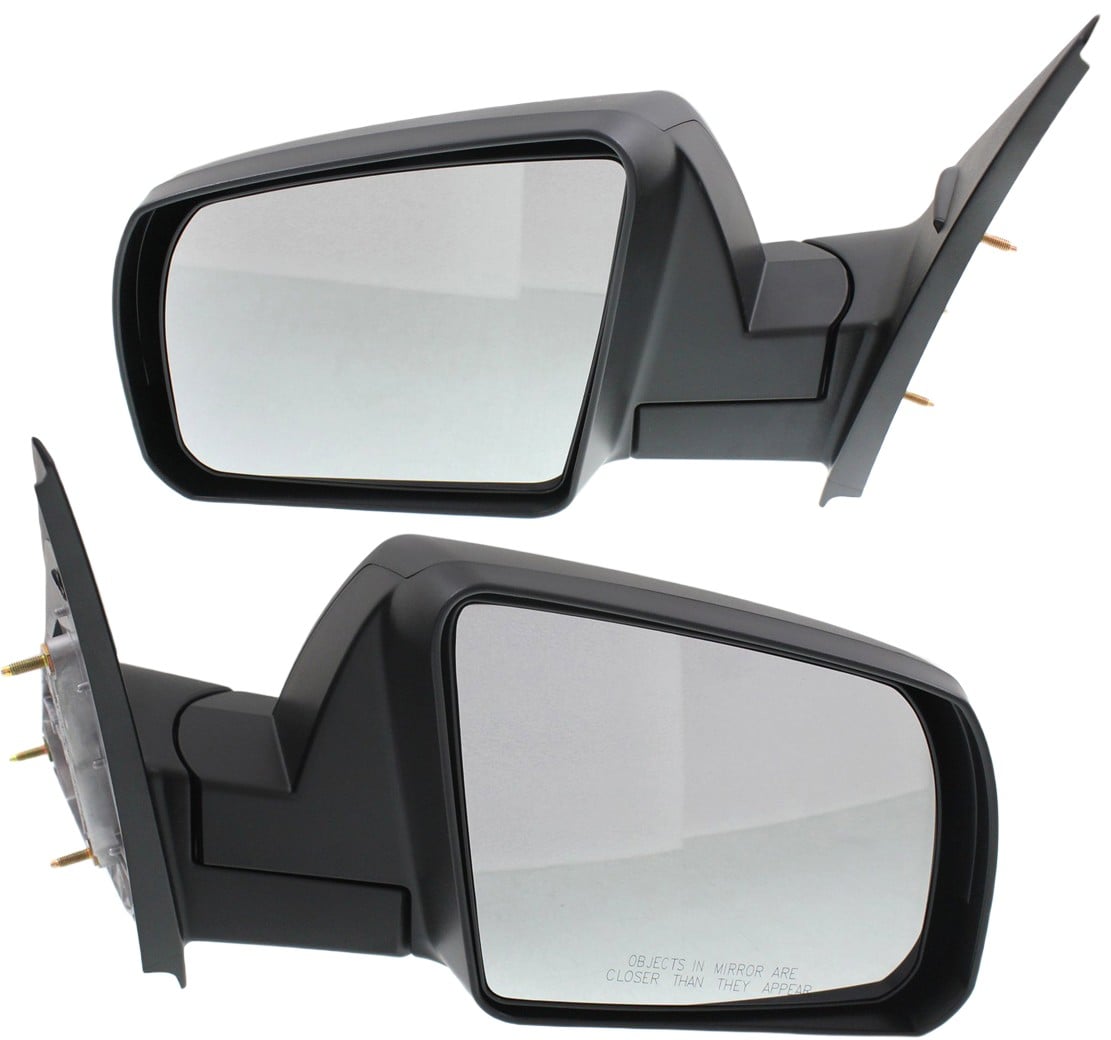

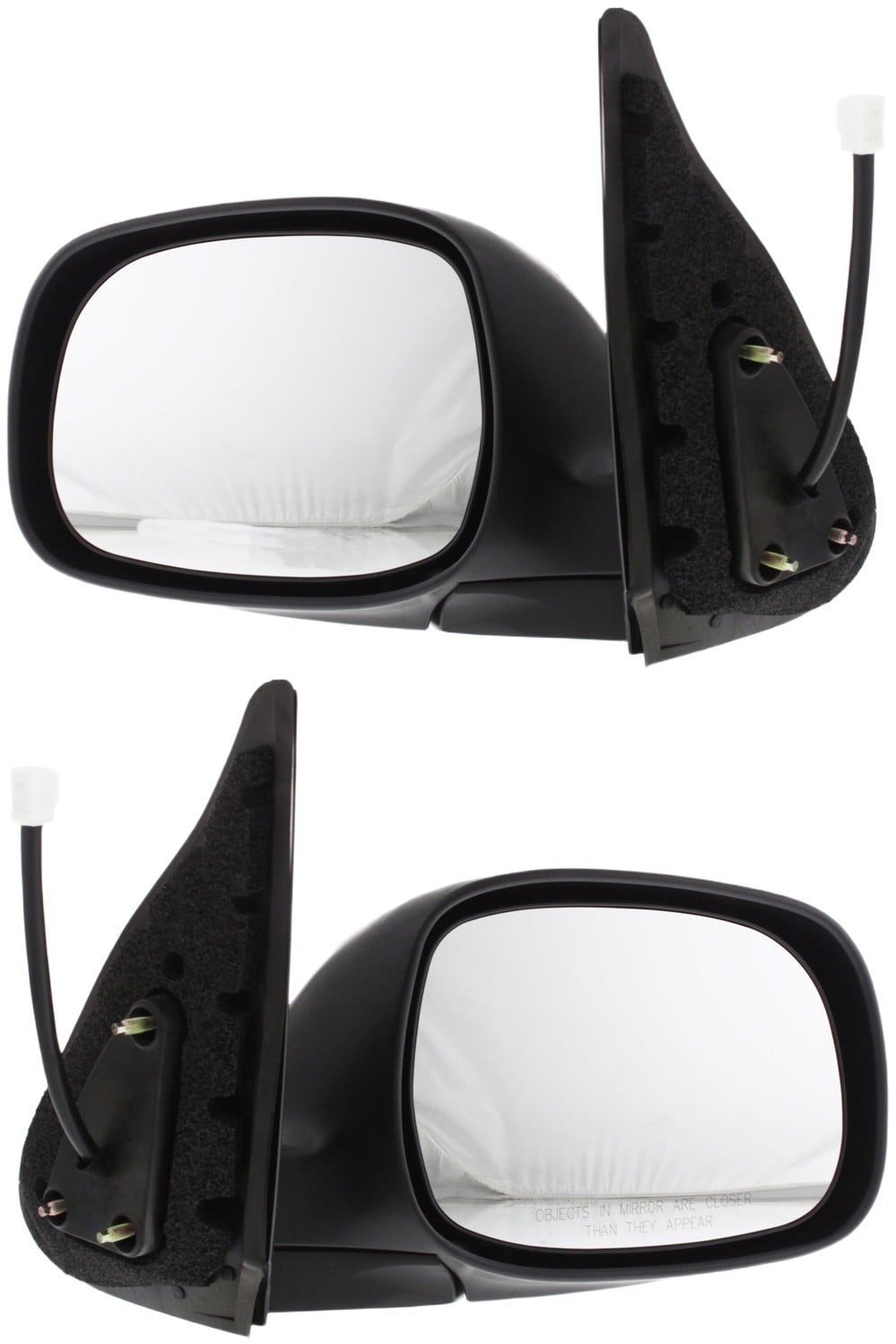

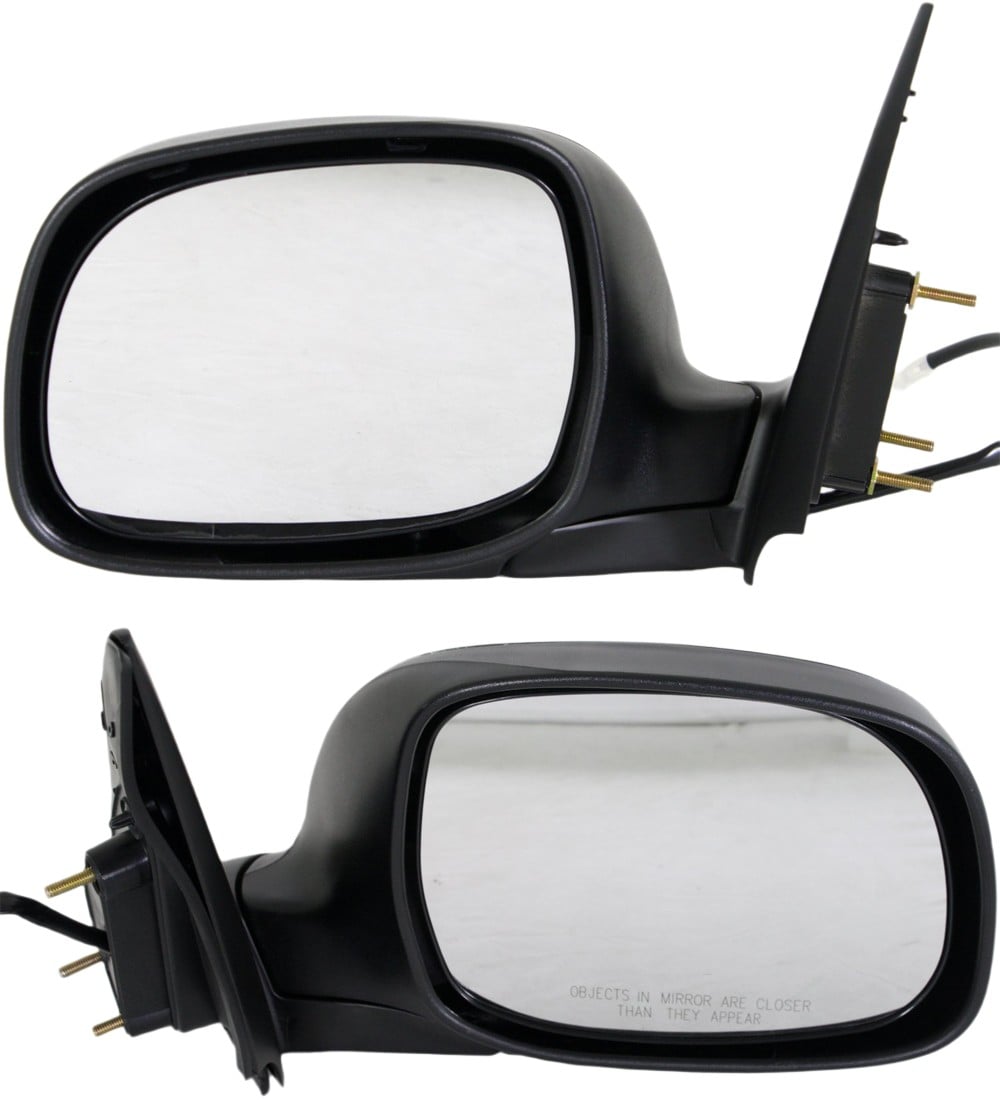

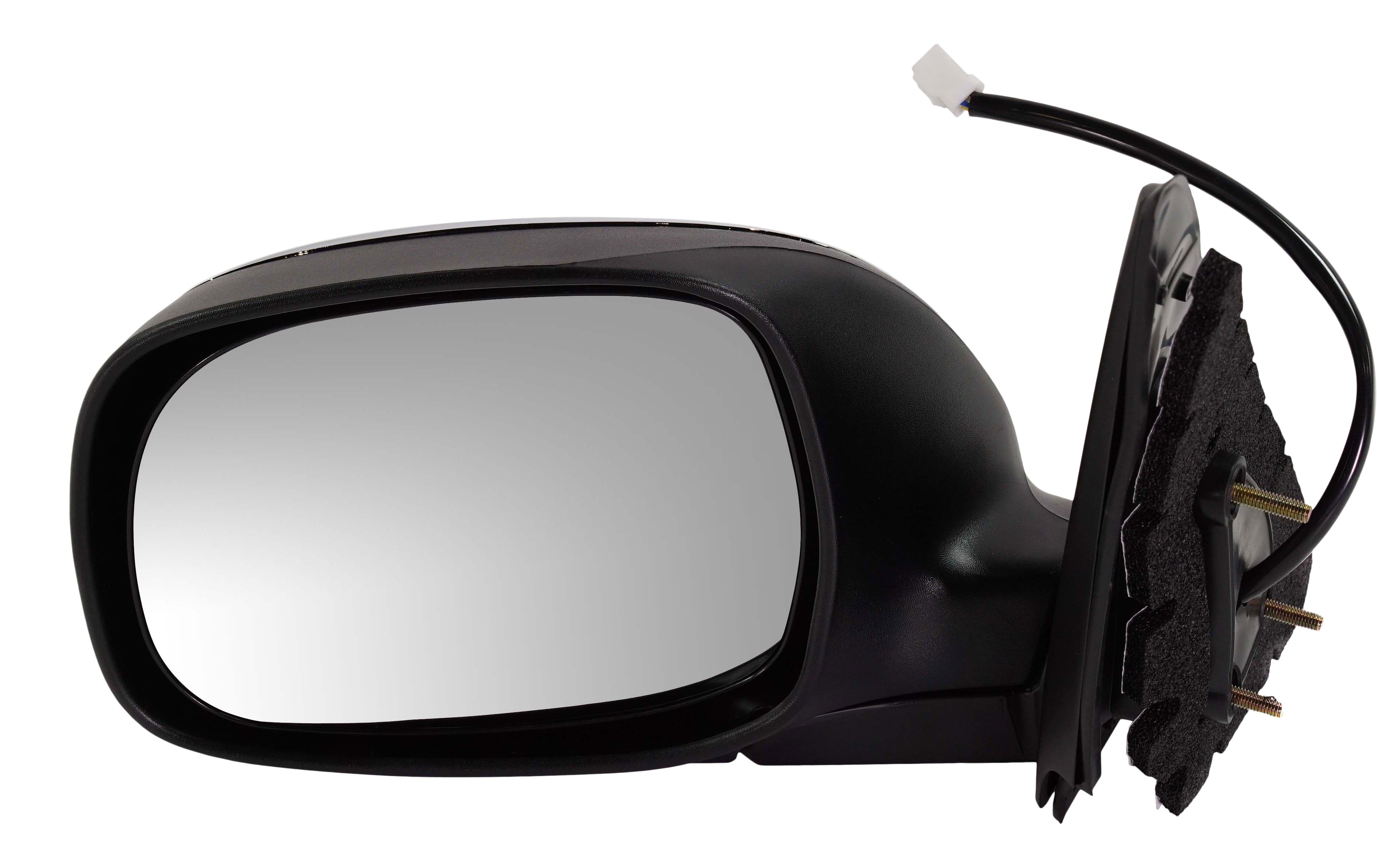

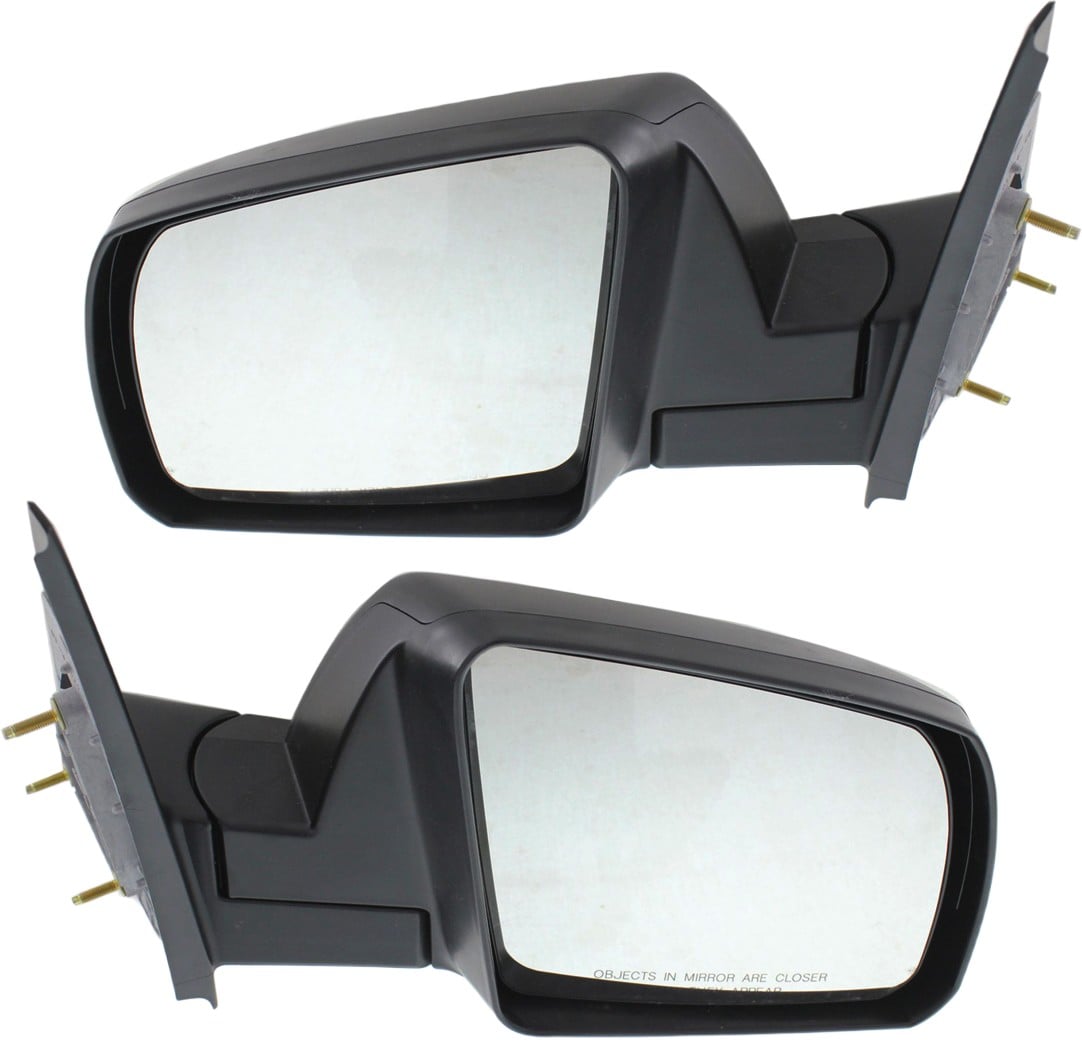

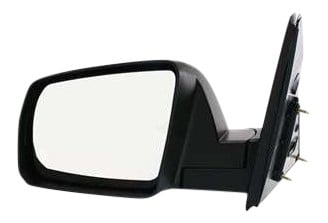

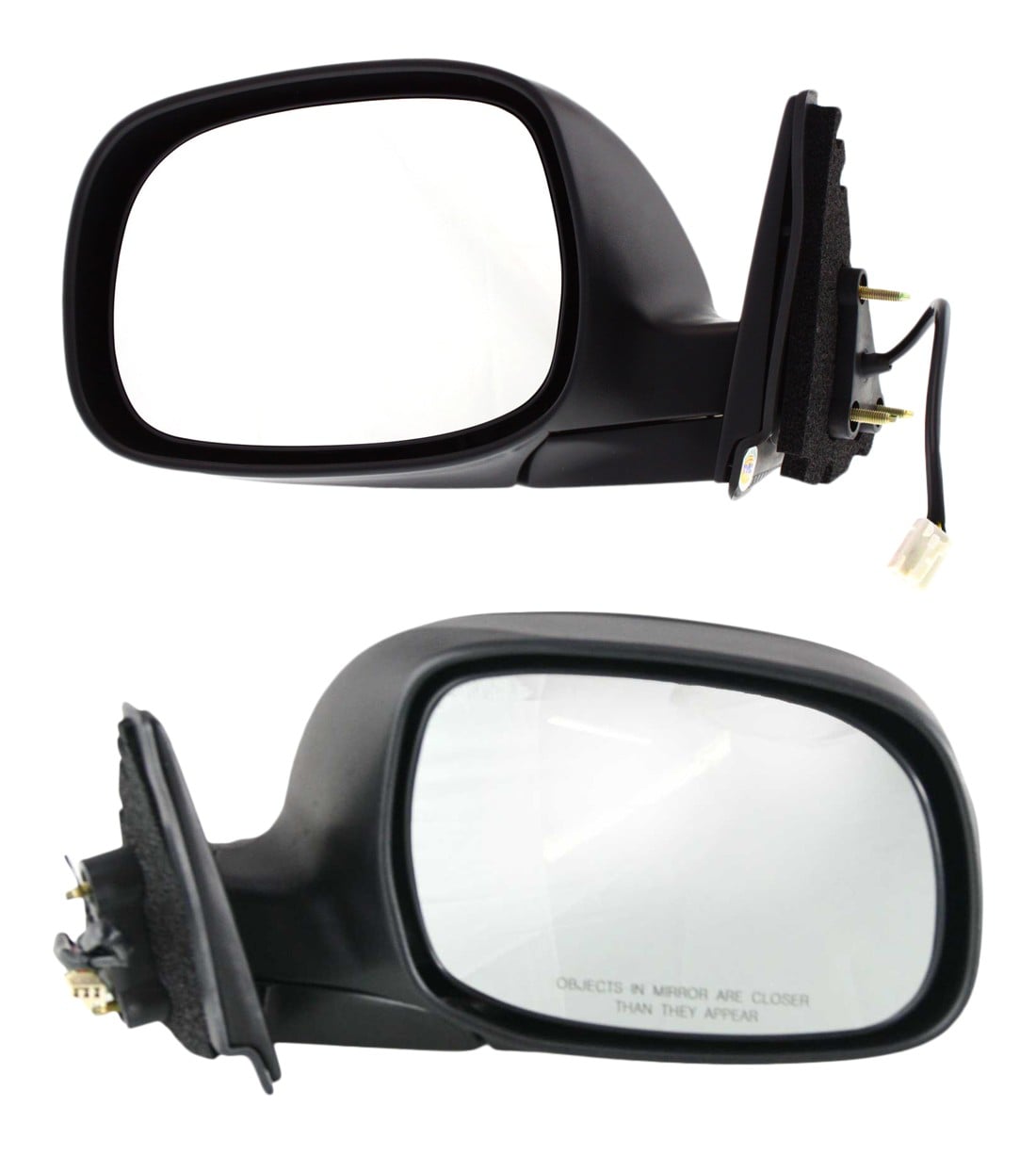

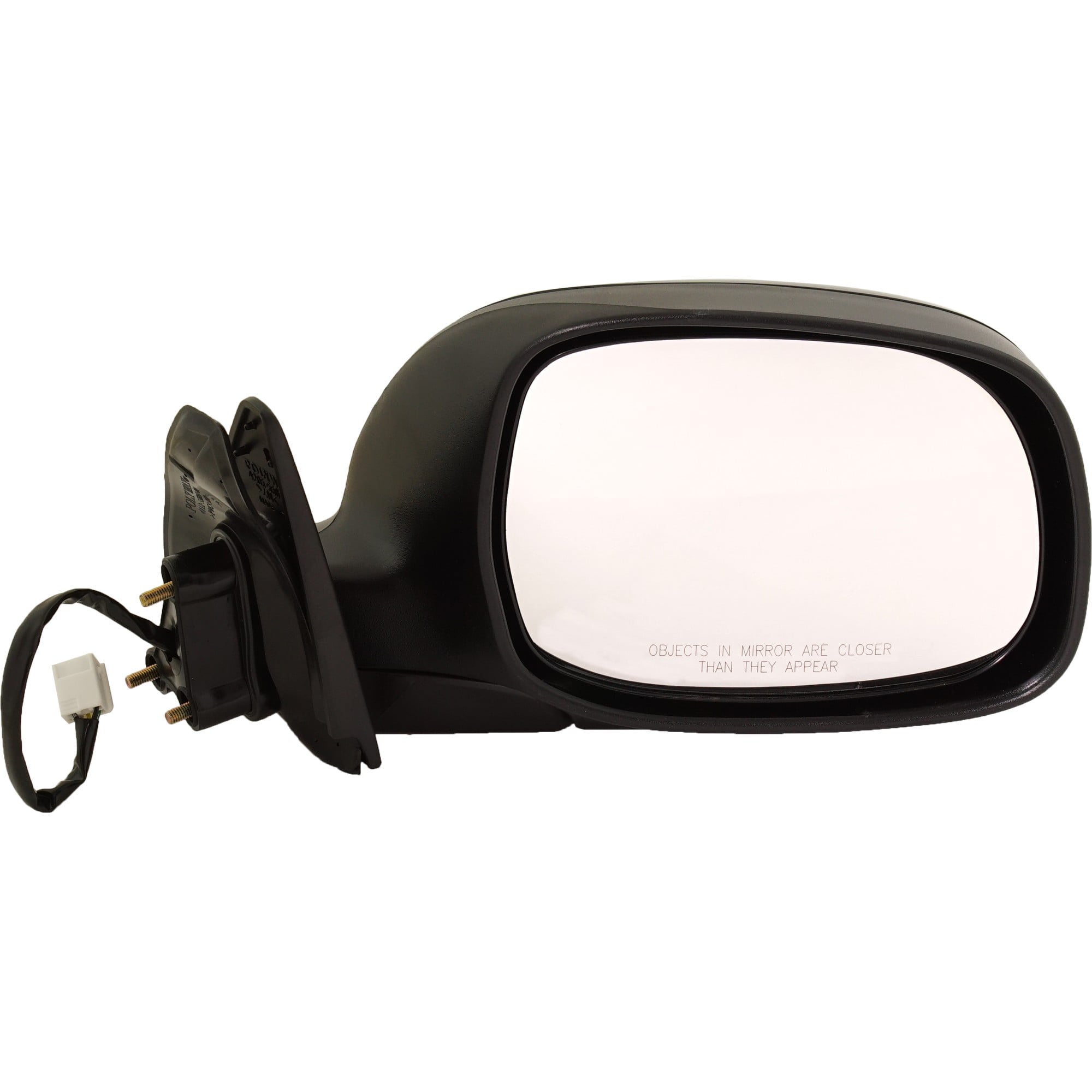

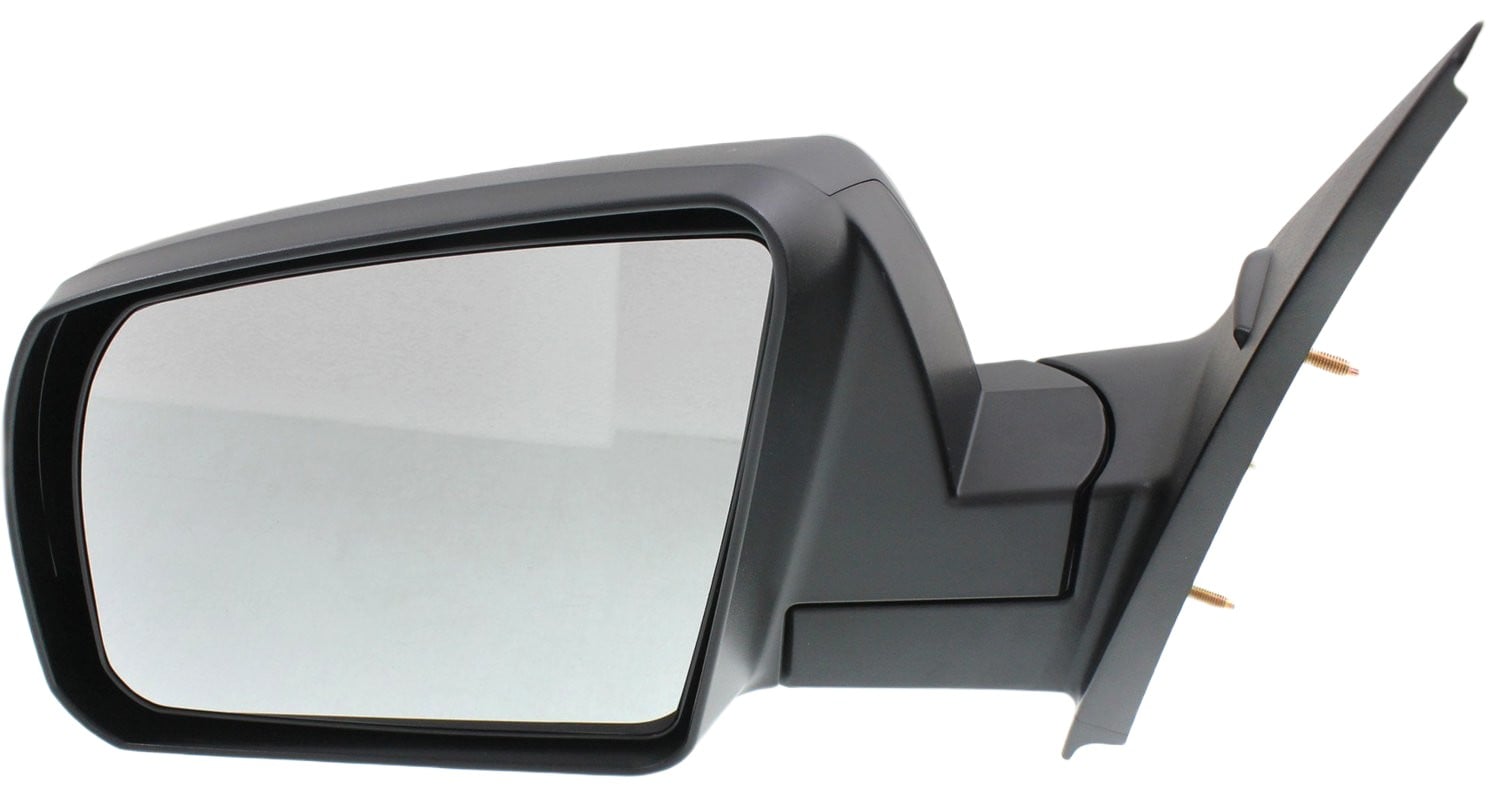

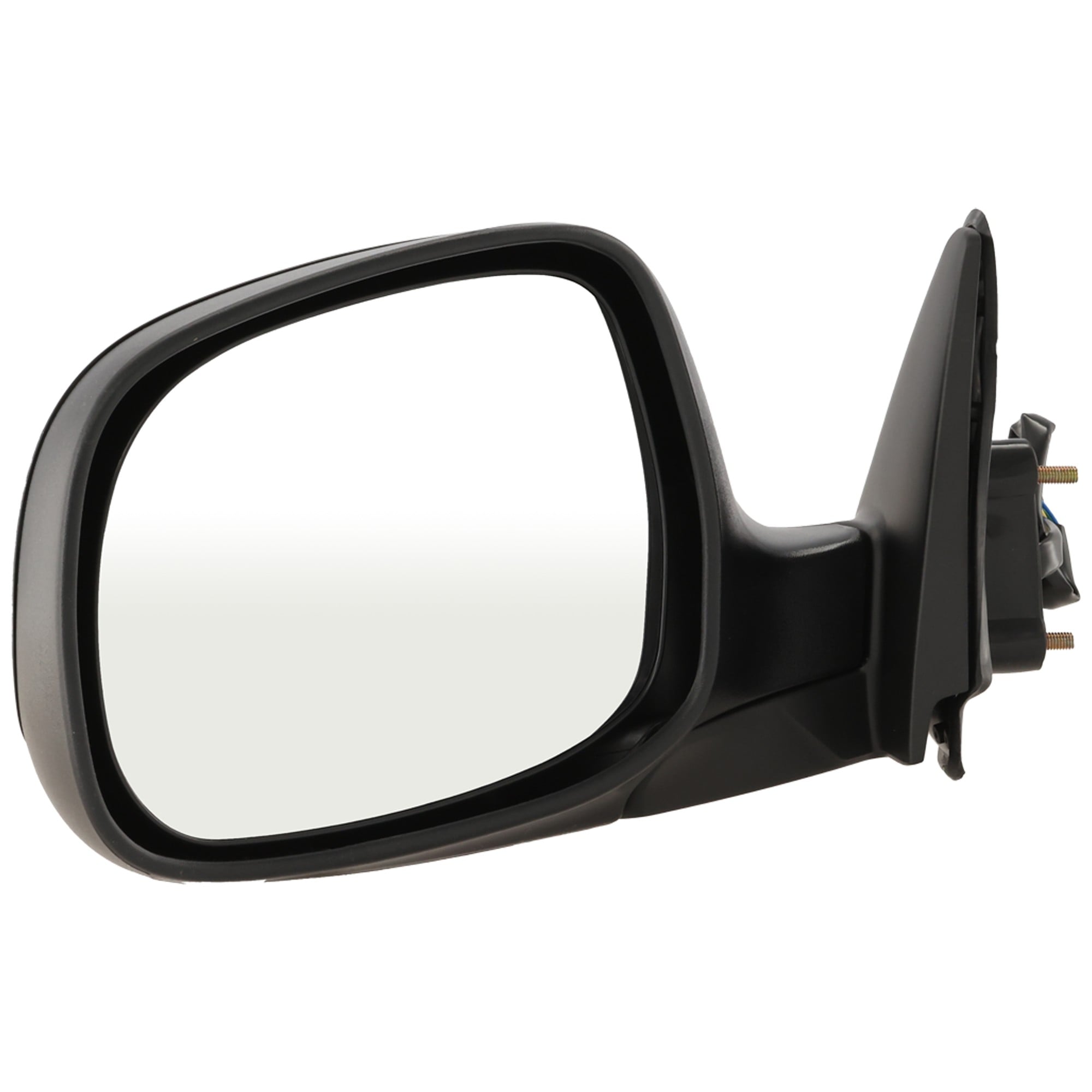

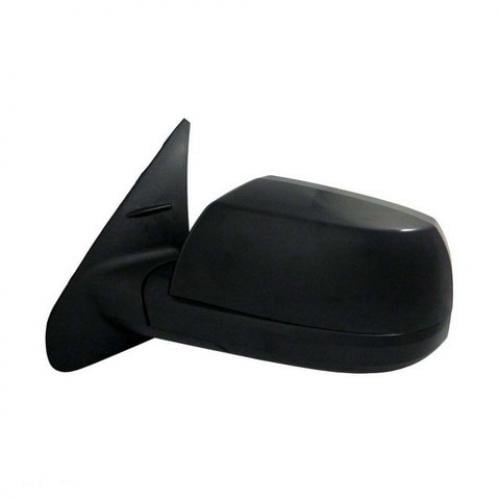

The mirror housing bolts to the front door with three studs; the plug sends power for glass motors, heaters, turn-signal LEDs, and Blind Spot Monitor (BSM) lights. (YouTube, Toyota Tundra Forum)

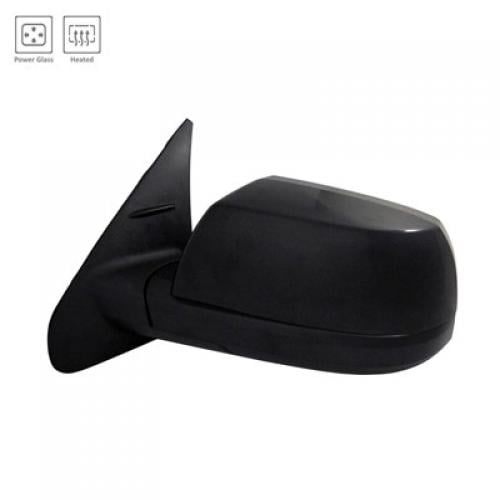

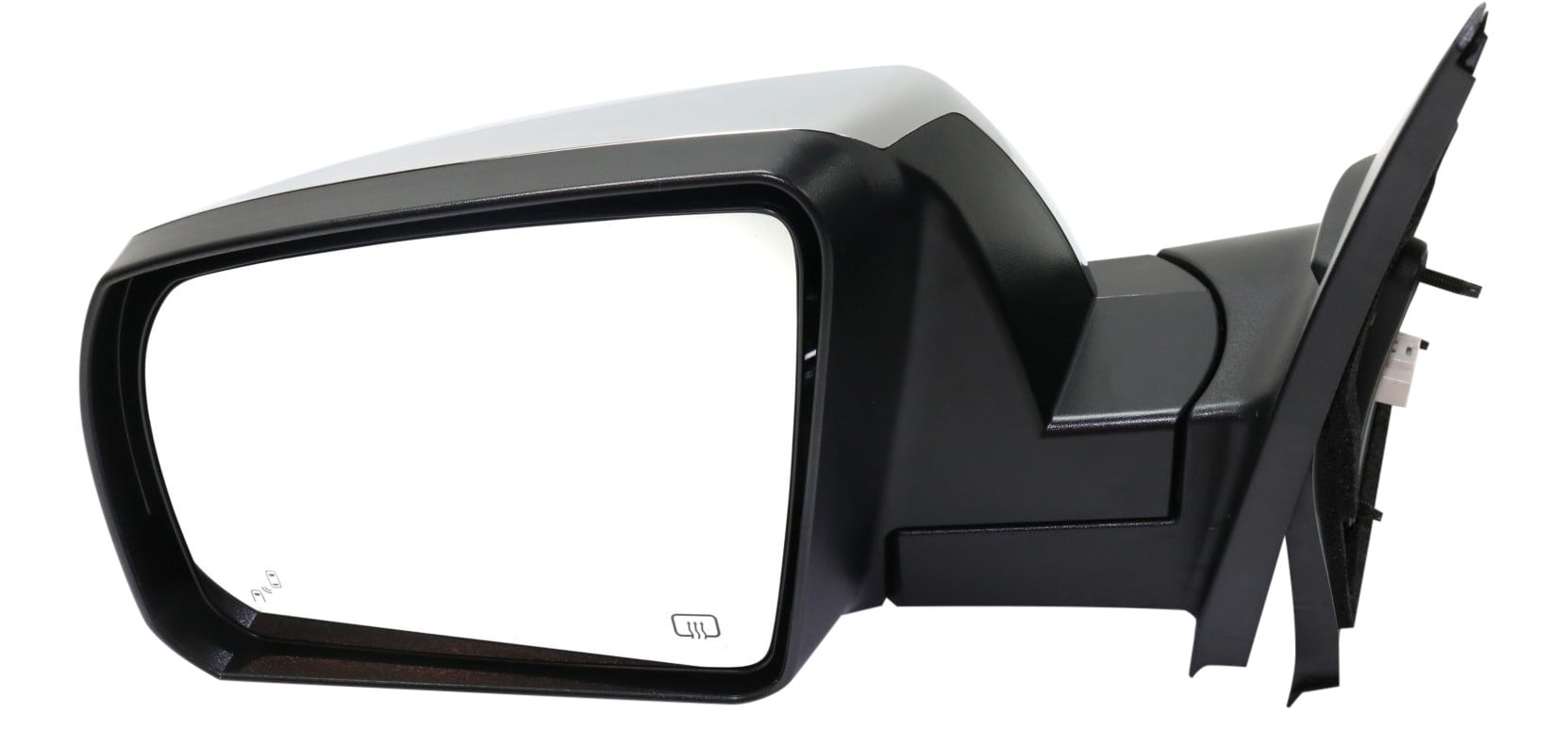

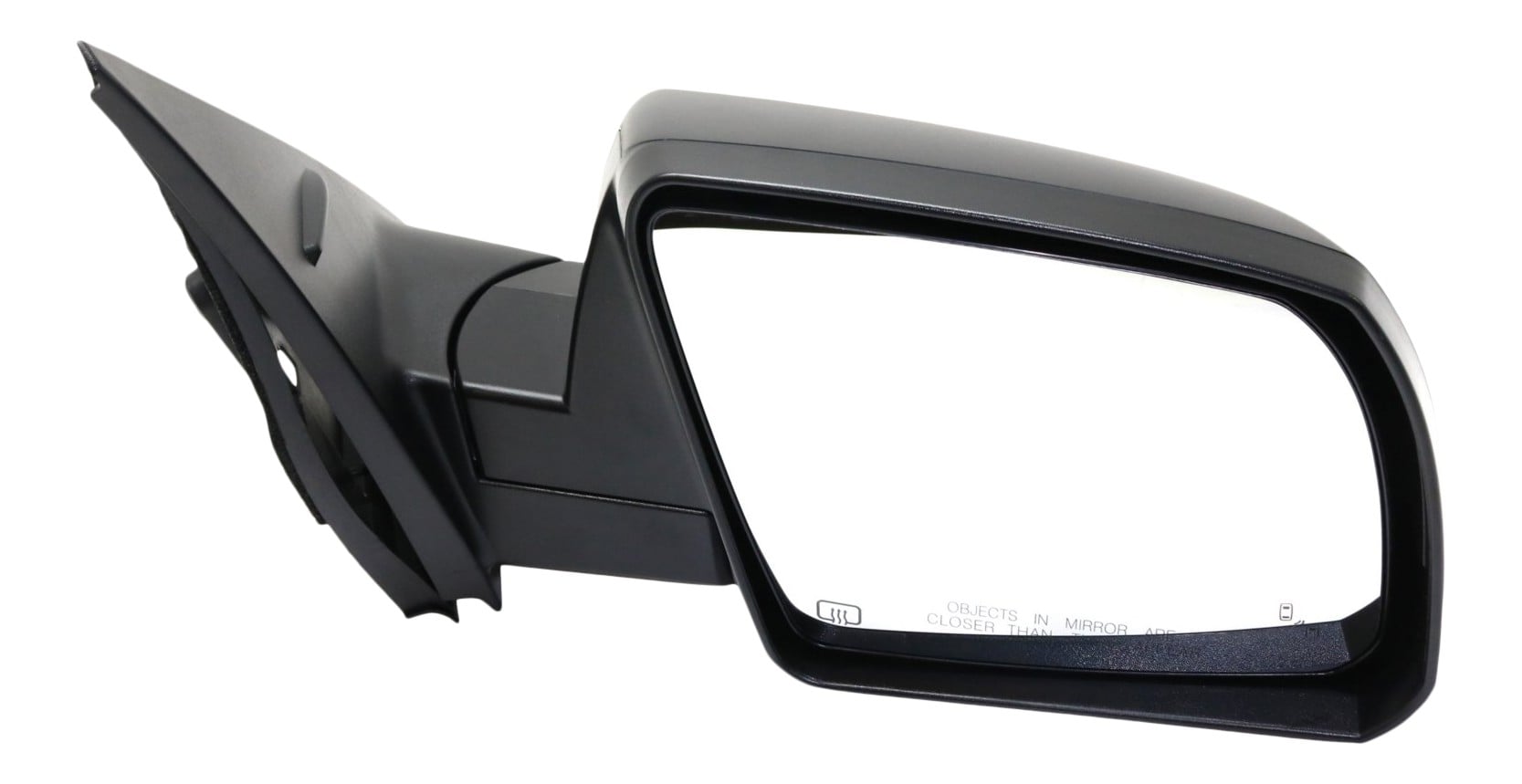

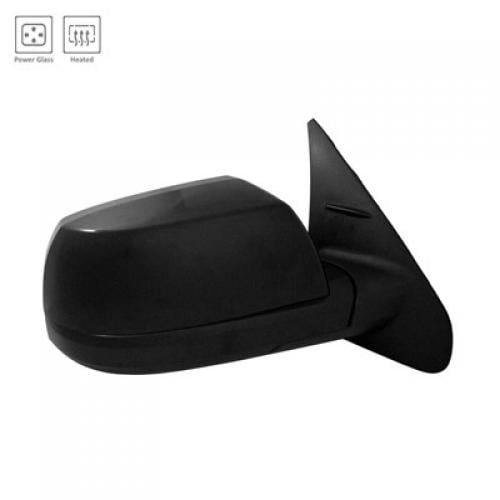

Power glass lets you tilt the reflective panel from inside the truck; heated glass clears frost; auto-dim glass cuts glare at night. (Toyota Assets, Toyota USA Newsroom)

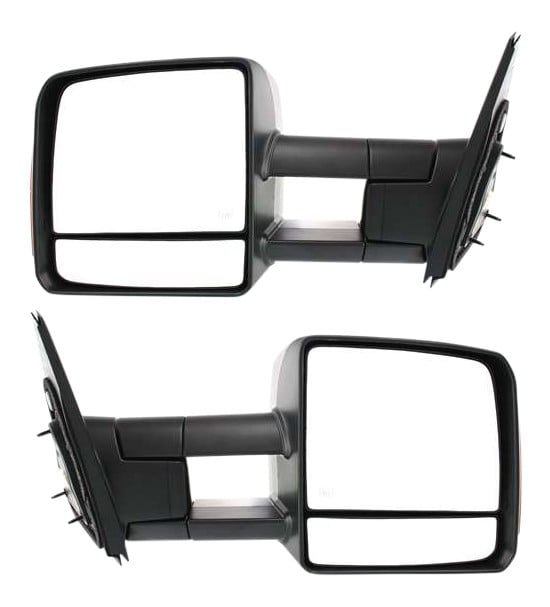

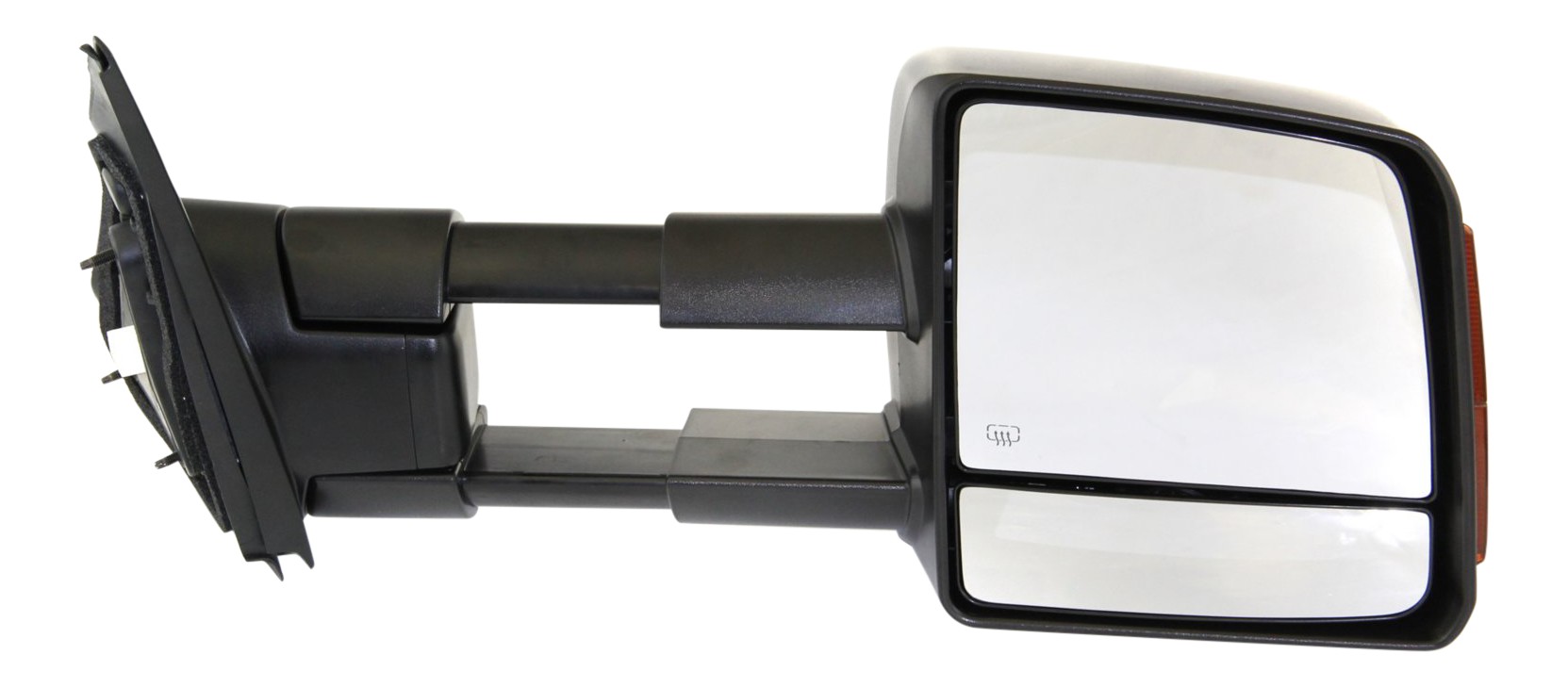

Tundra towing mirrors can slide out about 2 inches for a wider rear view when you haul a camper or boat.

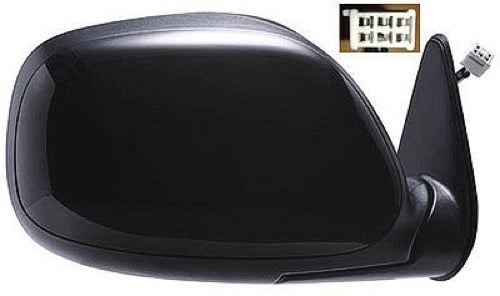

• 2007-2021 trucks share the same three-bolt pattern and 10-pin or 12-pin connector, so mirrors from those years often interchange if the plug matches. (Toyota Tundra Forum)
• 2022-2025 mirrors got taller shells, built-in cameras for the Panoramic View/Trailer Backup system, and a 15-pin plug-older units will not fit. (Toyota USA Newsroom, Toyota USA Newsroom)
• Power-folding mirrors were standard on high-level Platinum and 1794 trims after 2013 and returned across the line for 2024. (Reddit)

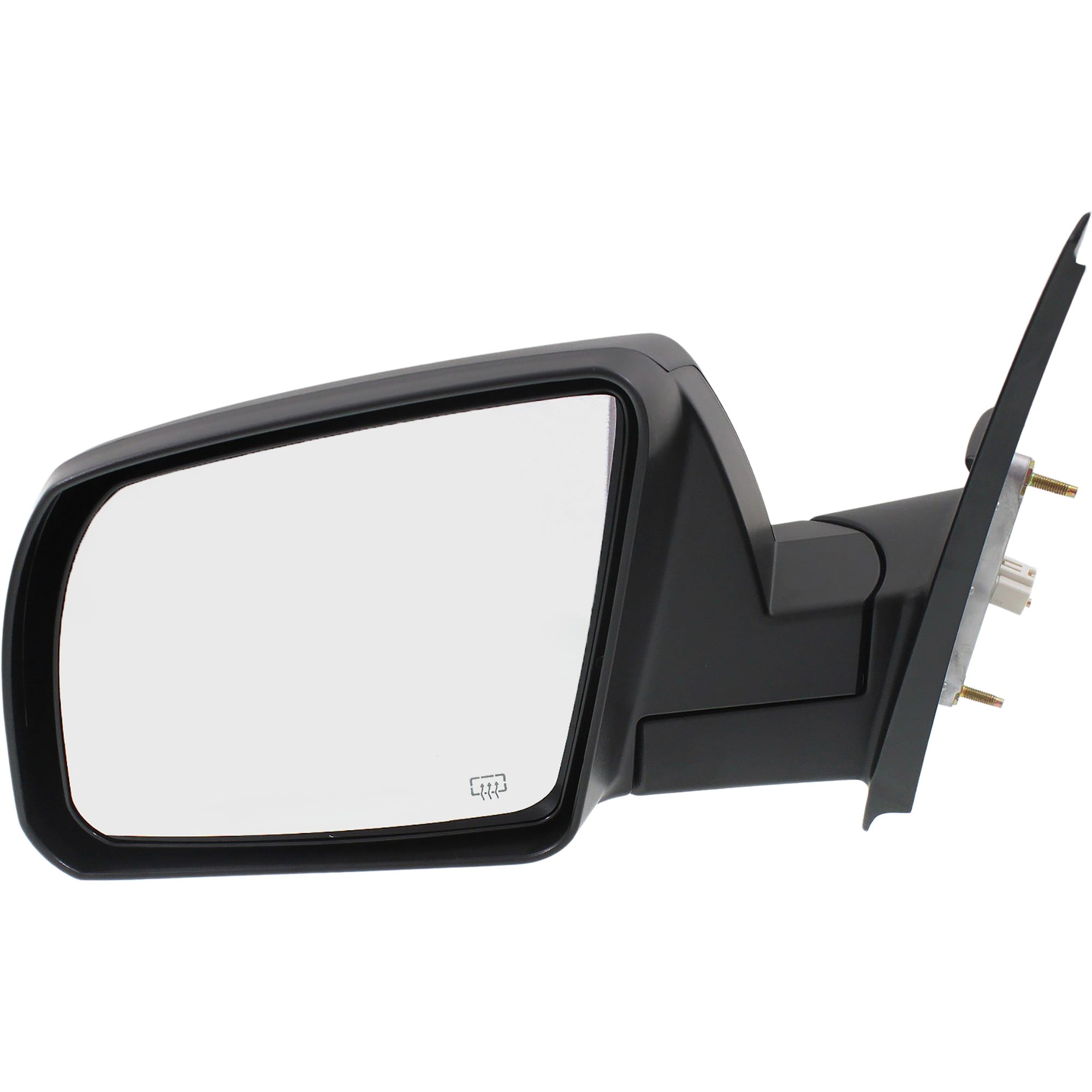

• Heating element: a thin grid on the back of the glass melts ice in under two minutes. (Toyota Assets)

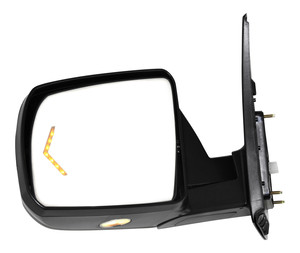

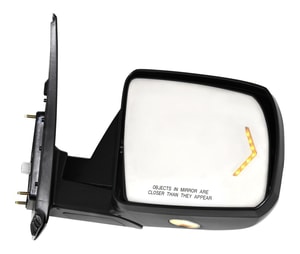

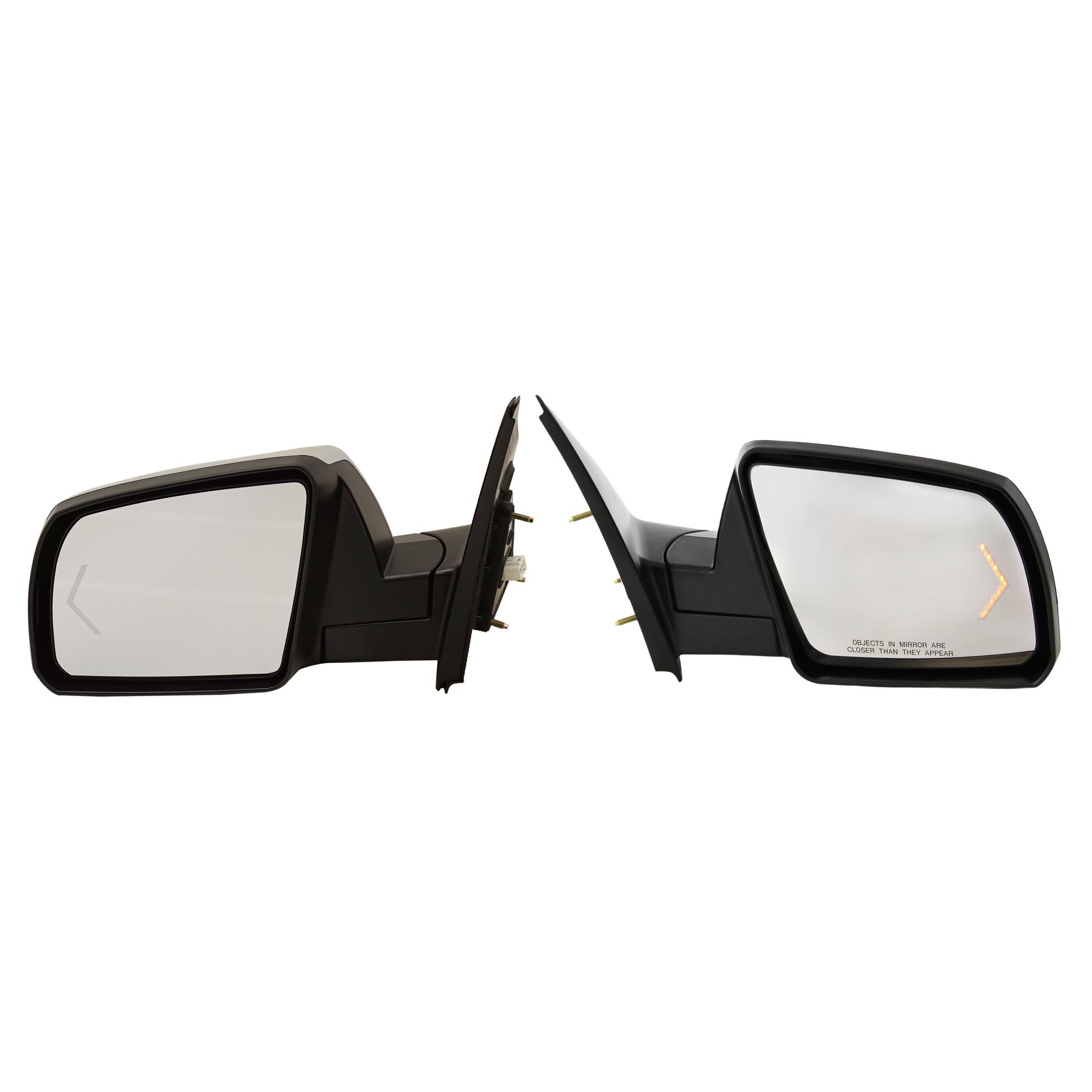

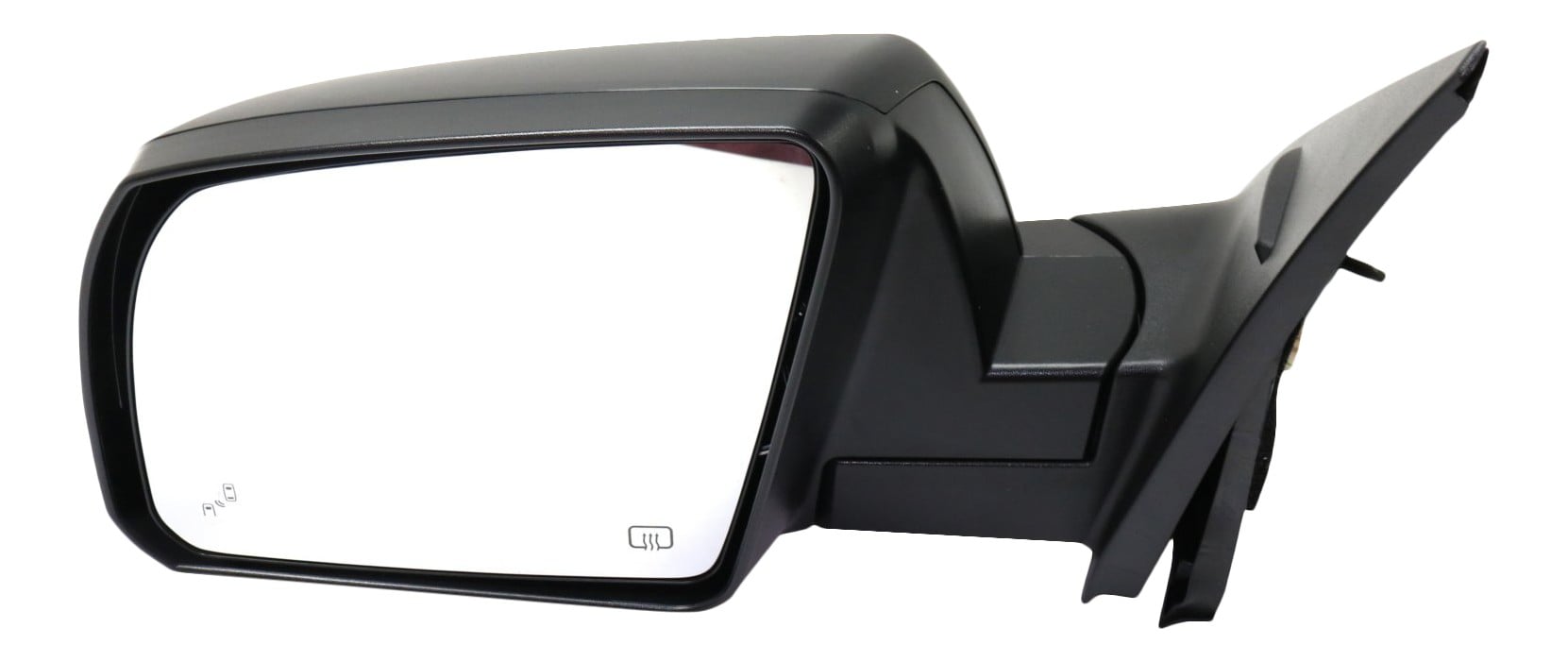

• Blind Spot Monitor light: amber icon lights up when radar sees a vehicle in the blind zone. (engage.toyota.com, IIHS Crash Testing)
• Power-extend tow mirror: telescopes by switch; shell is taller and curved for a wider field. (Toyota USA Newsroom)
• Auto-dimming: electro-chromic layer darkens to cut glare from headlights. (eBay)
• Camera pocket: houses 360-degree and trailer rear-view cameras on 2022+. (Toyota USA Newsroom)

Federal Motor Vehicle Safety Standard 111 says pickups over 10,000 lb must have adjustable mirrors on both sides that stay steady while driving. (Federal Register)
IIHS notes that blind-spot detection in the mirror cuts lane-change crashes. (IIHS Crash Testing)
NHTSA research shows poor mirror coverage increases back-over risk; larger towing mirrors reduce that danger. (NHTSA)

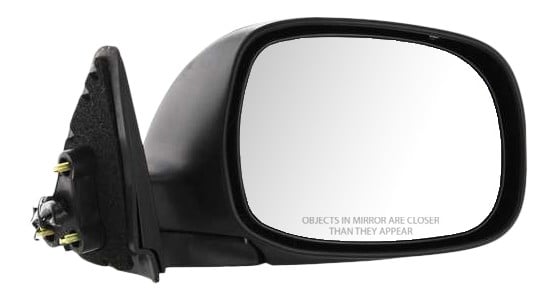

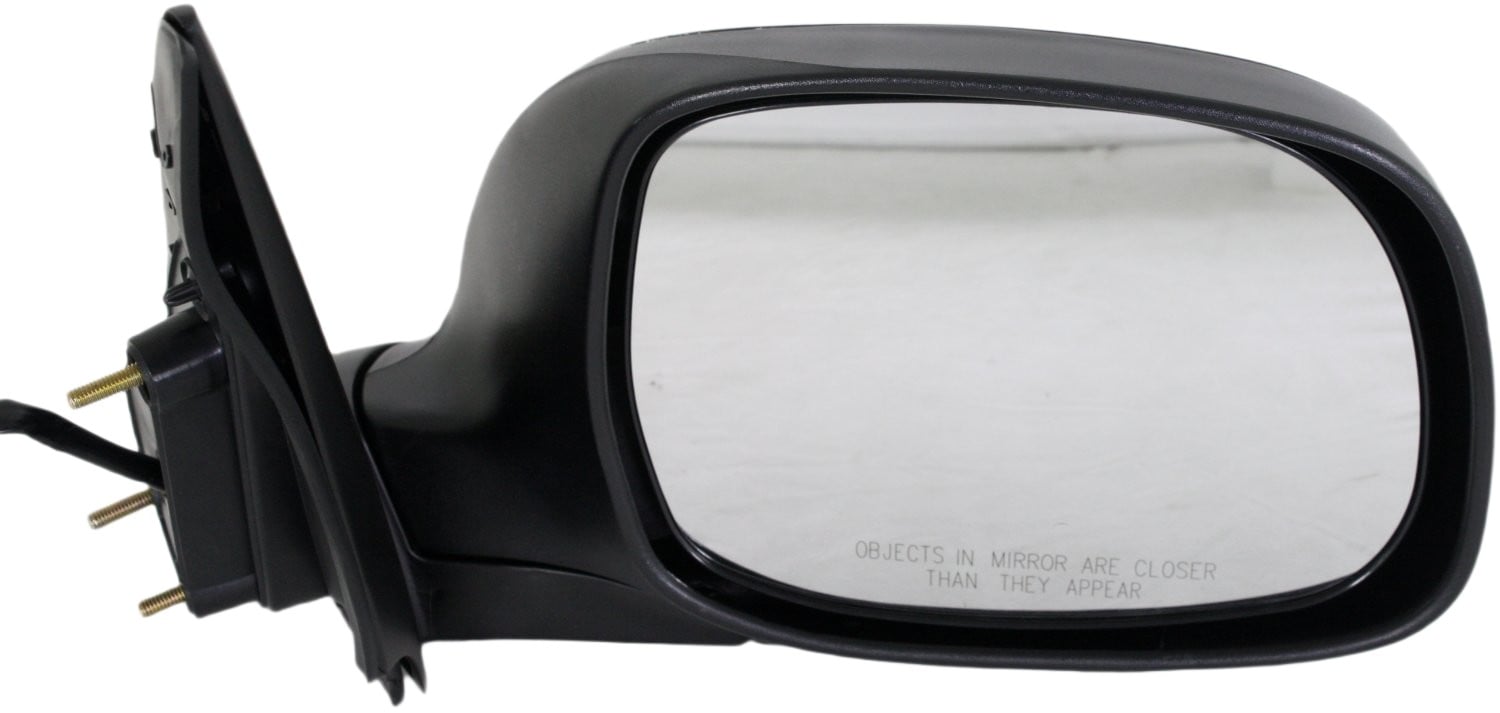

Most Tundra mirror shells use impact-resistant ABS plastic; glass is either flat (driver side) or slightly convex (passenger side) to widen the view. (Engineering.com)

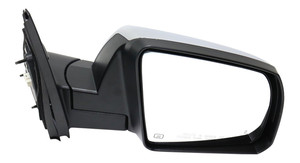

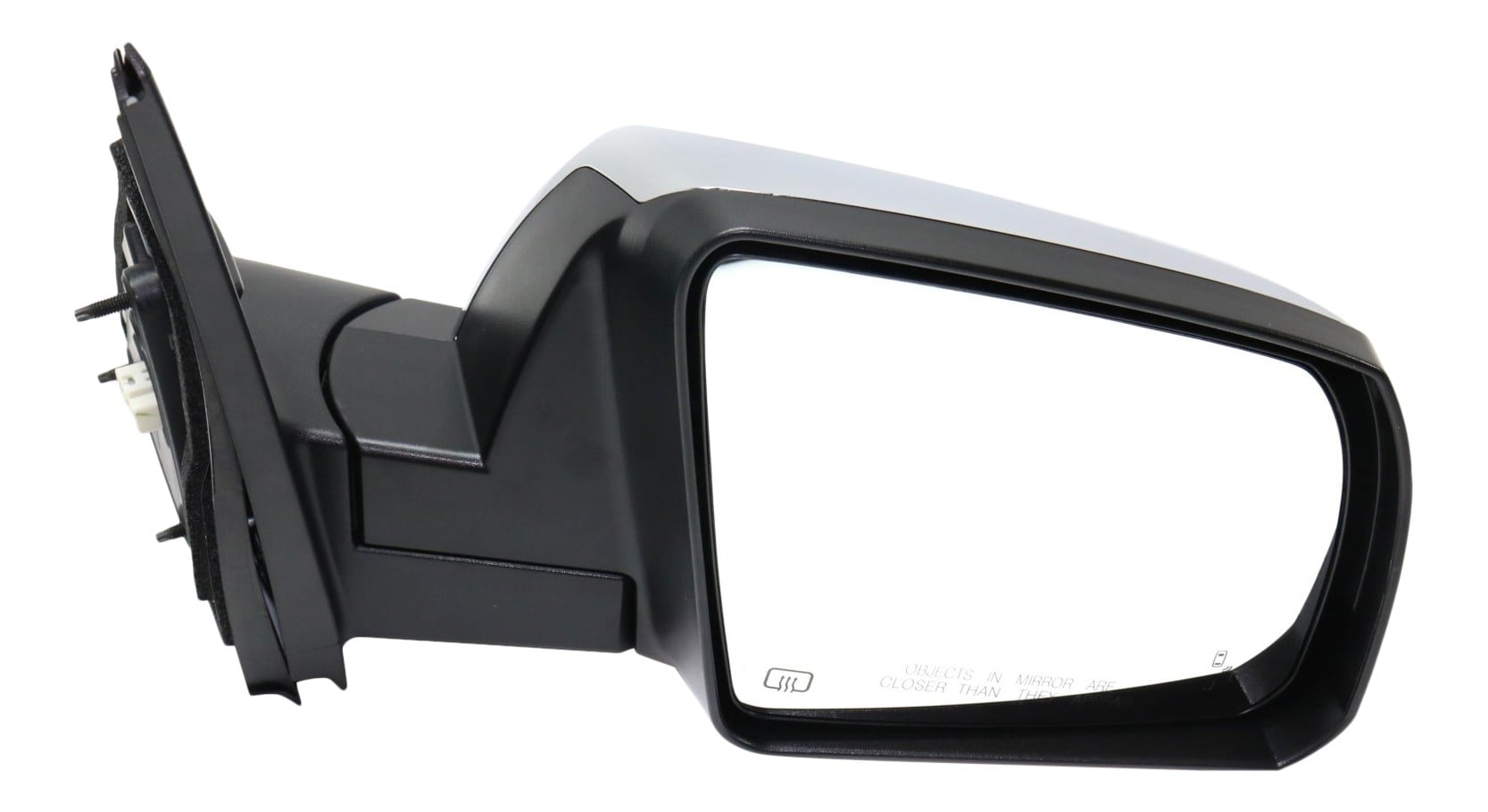

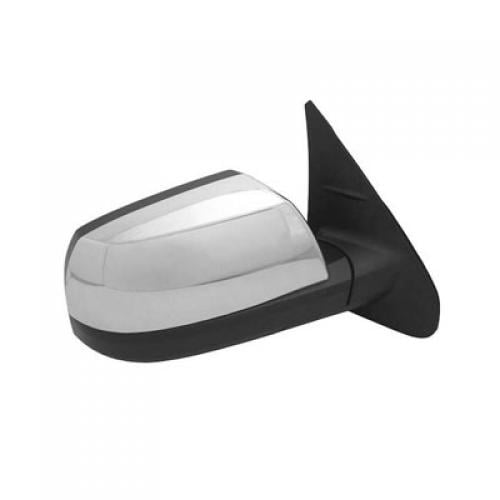

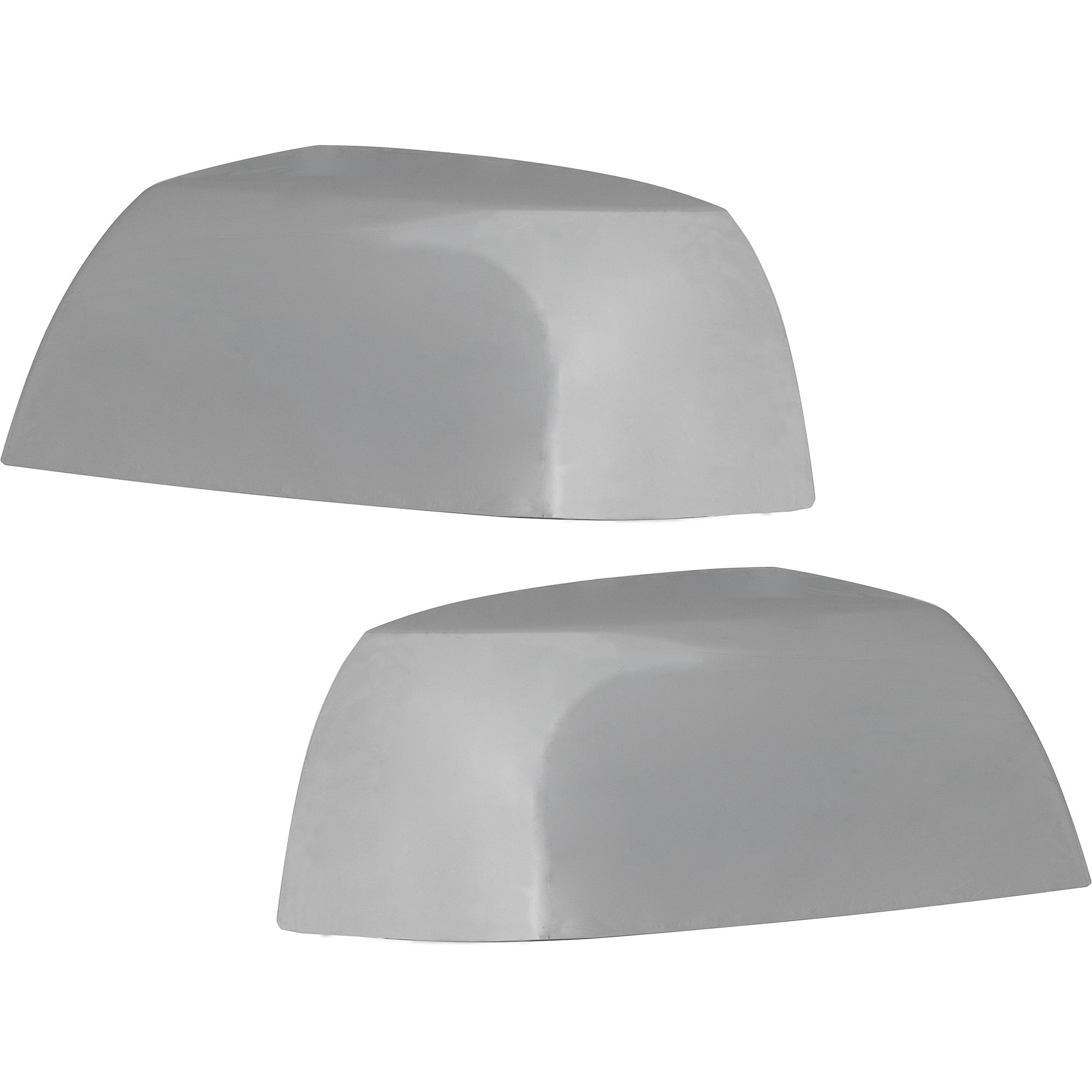

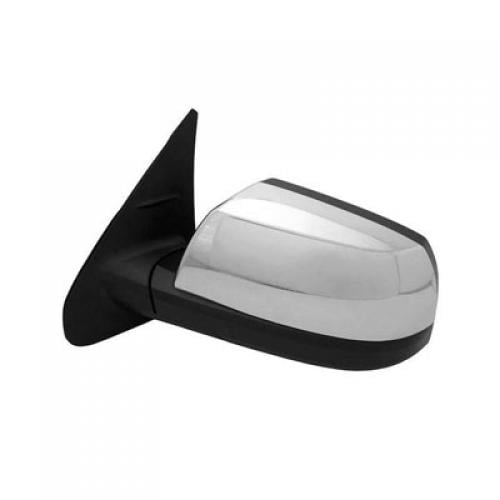

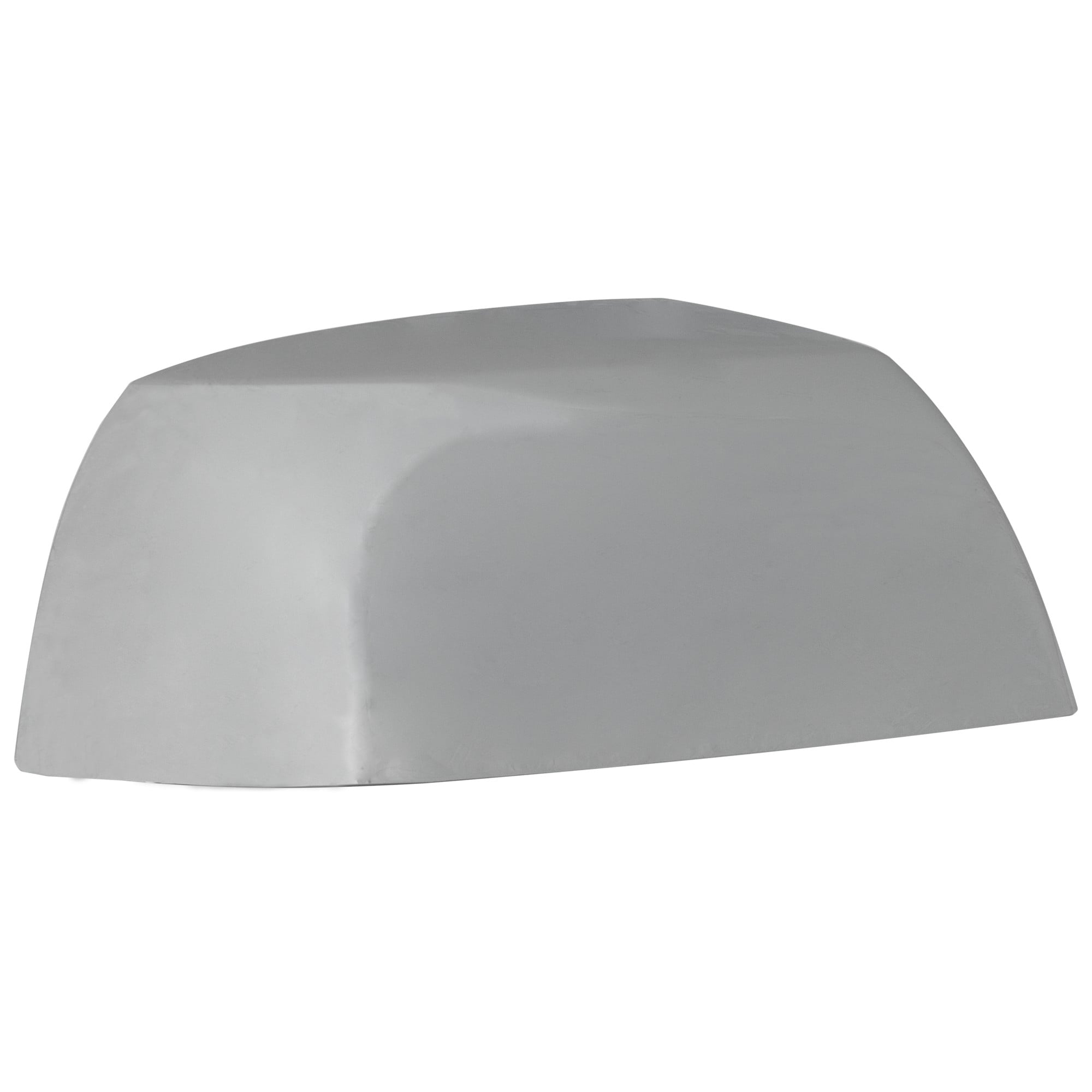

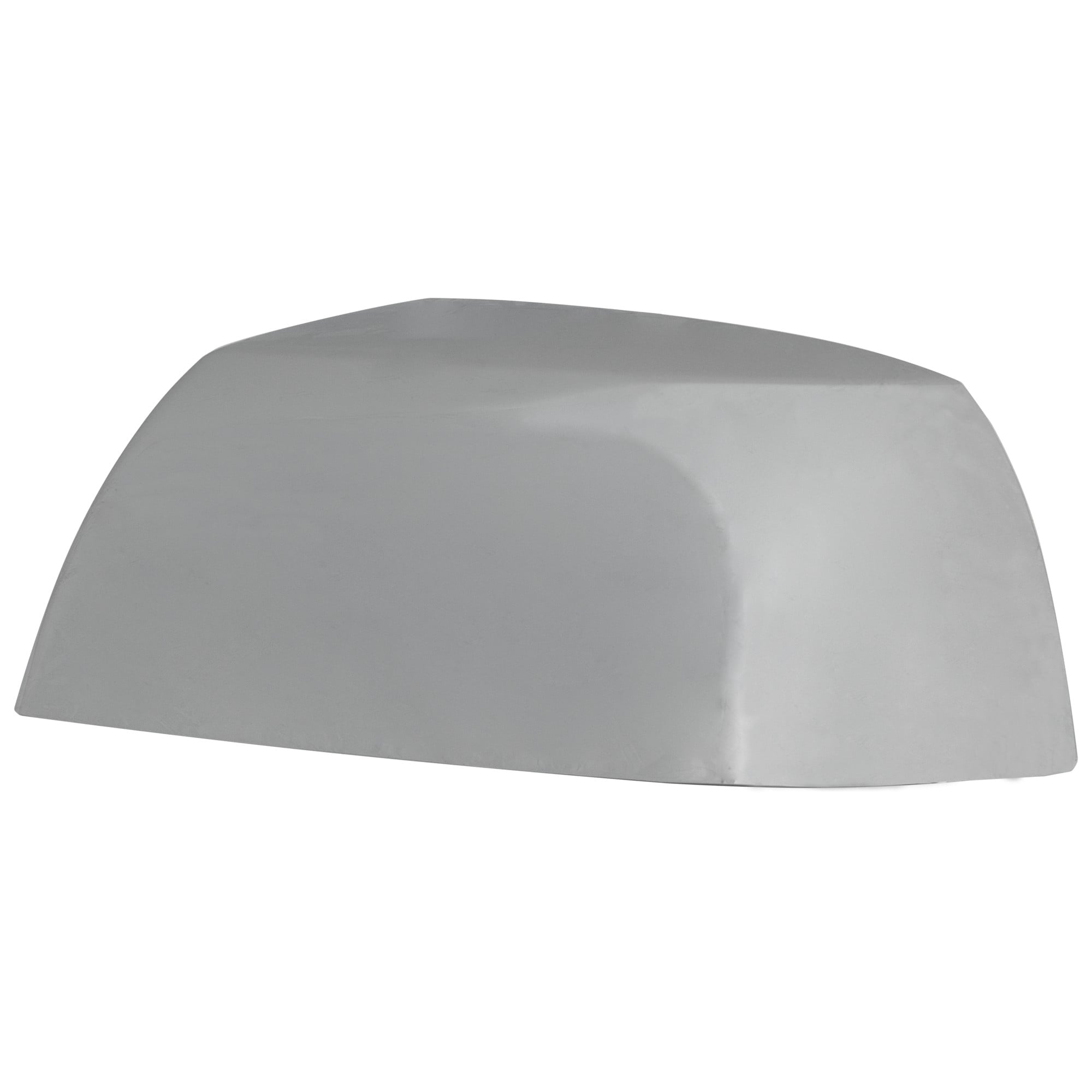

Caps come textured black, chrome, or factory-painted; they snap off for color swaps. (Toyota USA Newsroom)
Internally, a small DC motor drives two cables to tilt the mirror plate, and a nichrome pad provides heat. (Toyota Tundra Forum)

• Wind whistle above 45 mph-usually a seam under the bottom camera cover; sealing with thin weather-strip tape stops the noise. (Reddit, Reddit)
• Broken glass from rock strikes; the plate snaps off and costs far less than a full assembly. (YouTube)
• Power-fold motor stall-often caused by water inside the gear housing. (Tundra Talk)

1. Disconnect battery to prevent accidental window movement.
2. Pop off the interior sail panel; unplug the harness. (YouTube)
3. Remove three 10 mm nuts; support the mirror so it doesn't drop.
4. Swap mirror; tighten nuts to about 7 ft-lb.
5. Reconnect plug; cycle the glass, fold, and BSM to confirm.
   For glass-only jobs, pry off the cracked plate and press the new heated pad into place. (YouTube)

Owners often install aftermarket towing mirrors with larger upper glass and a convex lower spotter. (YouTube)

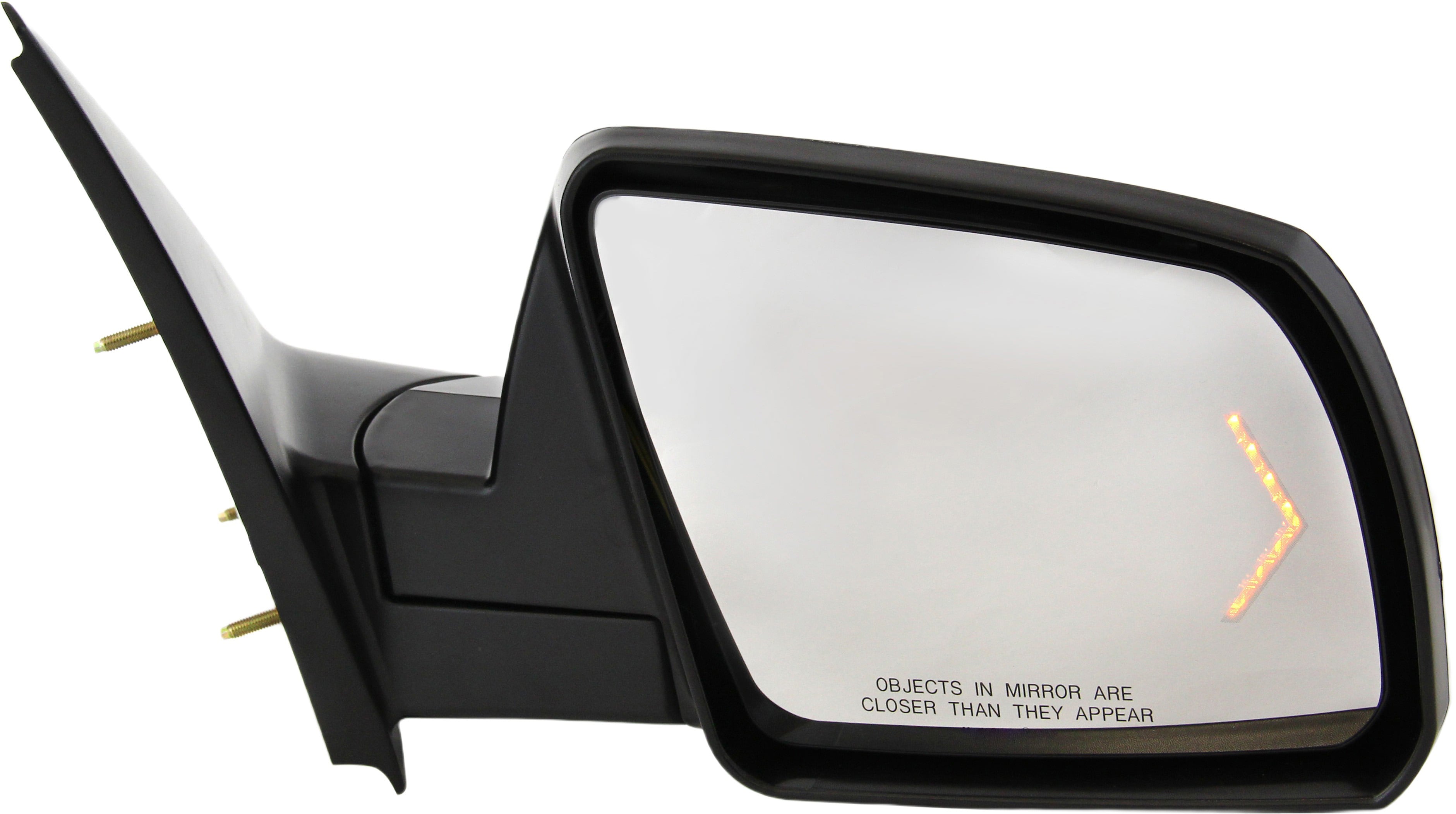

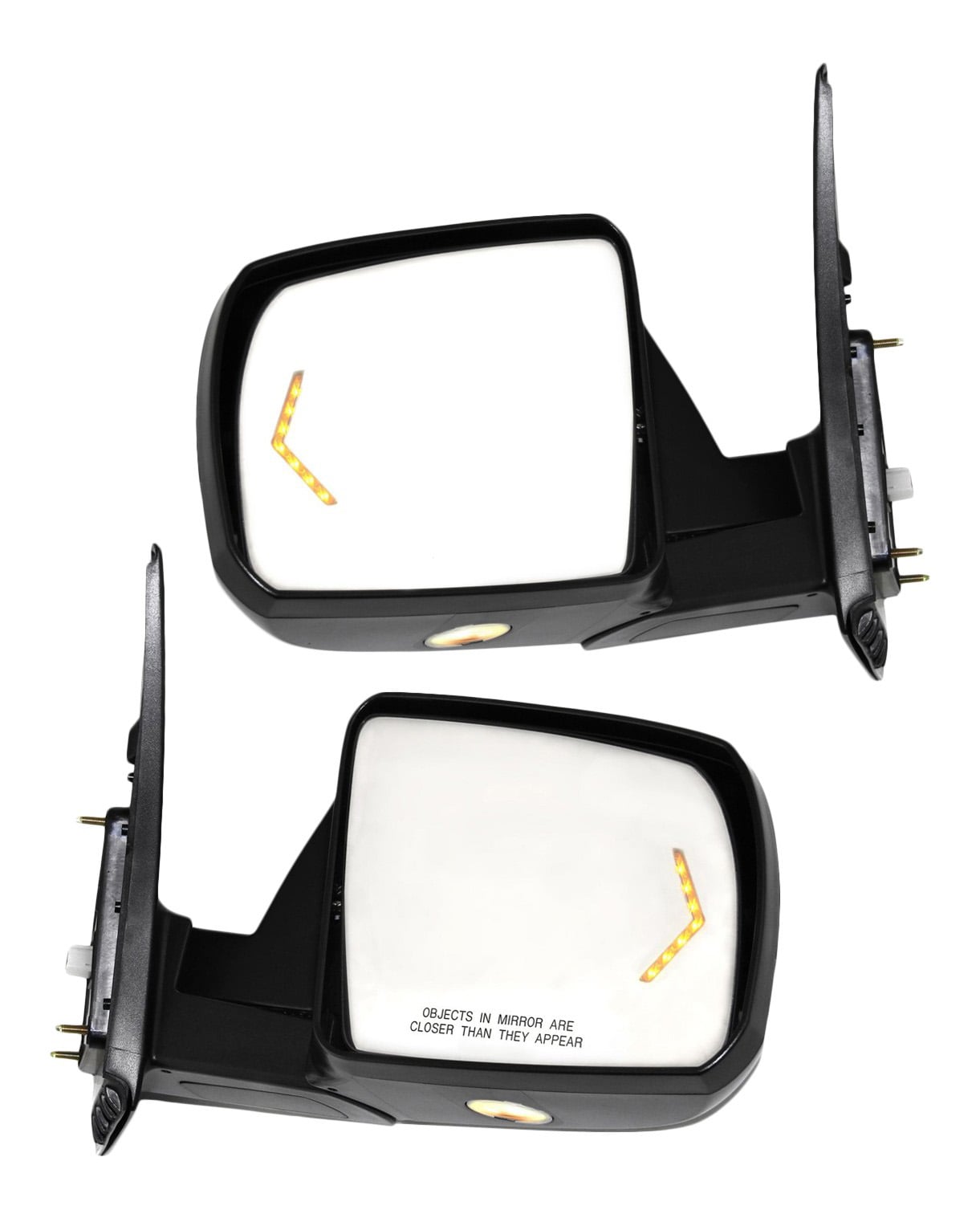

LED turn signals, sequential running lights, and puddle lamps fit into the cap without rewiring the truck if the plug has spare pins. (Toyota Tundra Forum)

Clean with a soft cloth and mild soap; harsh glass cleaners can damage the heater grid.
Fold manually in tight parking, but don't force the arm backward-use the switch if equipped.
If the Blind Spot Monitor icon stays lit, check calibration in the head unit after replacing the mirror. (engage.toyota.com)

A bare mirror shell for a 2010 truck averages US $90; adding heat and power raises it to about $160, and a 2022 mirror with camera, auto-dim, and BSM can exceed $450. (eBay)
Labor at a shop runs roughly one hour, but DIY is usually under fifteen minutes with basic tools. (YouTube)

Q: What tools do I need to change a mirror?
A: A 10 mm deep socket, small pry tool, and a blanket to protect paint. (YouTube)

Q: Will a 2014 mirror fit a 2023 Tundra?
A: No. The newer body uses a taller shell and a 15-pin plug that older trucks lack. (Toyota USA Newsroom)

Q: Do all Tundras have heated mirrors?
A: Heat was standard on Limited and above from 2010; lower trims may have it in cold-weather packages. (Toyota Assets)

Q: How do I stop the whistle noise?
A: Seal the gap on the underside with thin weather-strip tape or silicone; many owners report instant silence. (Reddit, Reddit)

Q: Why does my BSM light flash after I swap the glass?
A: The radar saw a car while your turn signal was on; the system is working. If it stays on, re-calibrate via the settings menu. (engage.toyota.com)

Q: Can I add power fold to a truck that didn't have it?
A: Yes; you need mirrors with fold motors and a switch; wiring harnesses are pre-run on many 2014-2021 models. (Tundra Talk)

Q: Are towing mirrors legal on city streets?
A: Yes, as long as they don't extend past the legal vehicle width (102 inches in most U.S. states). (Federal Register)

Q: How hot do heated mirrors get?
A: About 104 °F (40 °C), warm enough to melt ice but not crack glass. (Toyota Assets)

Q: Where is the fuse for the mirror?
A: It sits in the cabin fuse box under the driver footwell; check the 10 A "MIR HTR" slot. (Toyota Tundra Forum)

Q: Can I paint the cap myself?
A: Lightly sand, use plastic primer, then apply two coats of color and clear; ABS plastic accepts paint well. (Engineering.com)

Q: Do convex mirrors distort distance?
A: Yes; objects appear smaller, so they look farther away-watch carefully before lane changes. (NHTSA)

Q: What's the torque spec for mirror nuts?
A: About 7 ft-lb (10 N·m) following Toyota's body repair manual. (YouTube)
