Quick Summary

The Toyota Tundra step bumper-also called a rear step bar, tail bumper, or pickup bed step-adds an easy foothold, protects the truck's back end in low-speed bumps, and can tow light trailers when equipped with a ball hole. It is usually made from stamped or roll-formed steel with chrome, painted, or powder-coat finishes. Newer Tundra generations hide parking sensors, radar for Blind-Spot Monitor, and kick-sensor bed-steps inside this bumper. Typical step load is 300 lb, while bumper-mounted hitches are limited to 5,000 lb gross trailer weight. Regulations focus on impact resistance rather than style, so owners often swap finishes, add recovery points, or install heavier off-road bumpers. Regular washing and rust-proof coatings keep corrosion away.

What It Is

A step bumper is a steel plate that stretches across the truck's tail, shaped with a flat pad you can stand on. On a Tundra, it lines up with the bed floor so you can climb in without dropping the tailgate. The part also shields lamps and sheet-metal from low-speed hits, absorbing energy before it reaches the frame. (Wikipedia)

Key Features

• Built-in step pad-textured for grip so muddy boots do not slip. The official Toyota BedStep® accessory rates the pad at 300 lb. (Toyota)
• Tow-ball hole-center recess accepts a 2-in. ball. When towing from the bumper, Toyota limits you to 5,000 lb gross trailer weight. (Toyota)

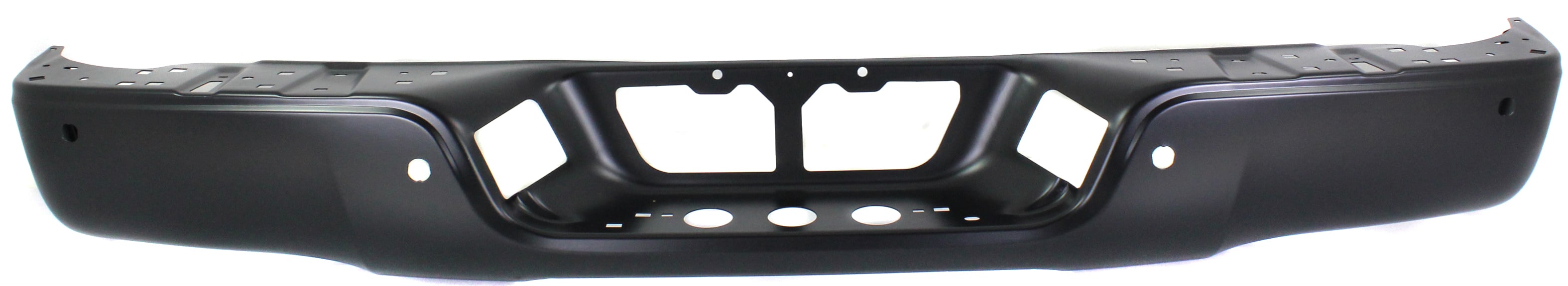

• Sensor pockets-round circles on each end hide four ultrasonic parking sensors that beep when you reverse. (Toyota Support, Wikipedia)
• Radar modules-on higher trims, the bumper houses side-facing radar for Blind-Spot Monitor and Rear Cross-Traffic Alert. (Toyota Engage)
• Steel recovery holes (after-market) let owners slide in D-rings for off-road pulls. (CARiD)

Materials & Finishes

Most stock Tundra step bumpers use high-tensile steel 3 mm thick, then:

← scroll table horizontally →

Owners on Tundras.com report that powder-coat holds up longer than thin chrome in wet climates. (Toyota Tundra Forum, Toyota Tundra Forum)

Model Compatibility

• 1st Gen (2000-2006) - Narrower body; bumper mounts differ from later years.
• 2nd Gen (2007-2021) - Wider frame; single-exhaust cut-outs on many trims.
• 3rd Gen (2022-present) - All-new aluminum-reinforced design with integrated sonar and wide tow-step. (MotorTrend, MotorTrend)

Swapping across generations usually needs new brackets, so check the year before ordering. Forum users describe simple bolt-on swaps within the same gen. (Toyota Tundra Forum)

Towing & Weight

Toyota says:

• Bumper-level hitch ball may tow up to 5,000 lb; more than that needs a frame-mounted receiver and weight-distributing bars. (Toyota)
• Keep tongue weight near 10 % of trailer weight to stop fishtailing. (Toyota Assets)

Remember the bumper is not designed for heavy fifth-wheel or gooseneck loads.

Sensors & Safety

The bumper sits at the exact height set by the U.S. bumper standard for passenger vehicles. (eCFR)
While full-size pickups over 10,000 lb GVWR are exempt, Tundra models fall below that, so Toyota still aligns with the rule. Parking sonar warns at about 1.5 ft; radar spots cars to 98 ft in your blind spot. (Toyota Support, Toyota Engage)
Commercial trailers need a rear-impact guard under 49 CFR 393.86, but a pickup bumper already blocks most underride in slow traffic. (CSA System)

Installation Tips

1. Unbolt the old bumper (8 main bolts on Gen 3; 6 on Gen 2).
2. Detach sensor harnesses and license-plate lights.
3. Lift new bumper with a helper (about 55 lb bare).
4. Torque bracket bolts to 65 ft-lb.
5. Re-connect wiring; test sensors before finishing.

Most DIYers complete the job in under two hours with metric sockets and a trim-panel tool. (YouTube, YouTube)

Care & Maintenance

• Rinse salt and mud weekly; salt speeds rust on chrome corners. (MotorTrend)
• Wax painted or chrome surfaces every season.
• Touch-up rock chips quickly to stop bubbling rust.
• In coastal zones, a spray-on rust-convertor plus under-body sealant is cheap insurance. Forum users who under-coat yearly see far less corrosion. (Toyota Tundra Forum, Toyota Tundra Forum)

Common Problems

← scroll table horizontally →

Regulations

• 49 CFR Part 581 sets low-speed impact rules; step bumpers help meet them by absorbing bumps up to 2.5 mph. (eCFR)
• FMCSA 393.86 covers rear-impact guards on commercial trailers; pickups are not required but many aftermarket "tow" bumpers meet the spec. (CSA System)

Environmental Impact

Modern Tundra bumpers include plastic step pads made from recyclable polypropylene, and most steel cores already contain recycled scrap. Choosing a painted or powder-coated finish over chrome avoids toxic chrome-plating baths. Toyota also shifted to water-borne primers to cut VOCs on the 2022 redesign. (MotorTrend)

Popular Upgrades

• Powder-coated high-clearance bumper - gains departure angle for off-roading. (CARiD)
• BedStep® flip-down step - folds under the bumper, keeps hitch free. (Toyota)
• Integrated D-ring mounts - handy for recovery straps on the trail.
• LED pod cut-outs - light up a trailer coupler at night.

Frequently Asked Questions

Q: Will a 2023 bumper fit my 2015 Tundra?
A: No. The 2022+ generation uses different frame brackets and wiring. Stay within the same generation or buy adapter brackets. (MotorTrend)

Q: How much weight can I step on?
A: Toyota rates the step pad at 300 lb for normal use. (Toyota)

Q: Can I tow my boat from the bumper?
A: Yes, up to 5,000 lb gross trailer weight with a 2-in. ball. Heavier loads need a frame-mounted receiver. (Toyota)

Q: What are the little circles on my bumper?
A: They are ultrasonic parking sensors that beep as you get close to obstacles. (Wikipedia)

Q: Why does my chrome bumper rust so fast?
A: Chrome is only a thin plating. Once it gets chipped, salt creeps underneath and flakes it off. Regular waxing and touch-up paint help. (MotorTrend)

Q: Are there laws about bumper height?
A: For passenger vehicles under 10,000 lb GVWR, federal rules require bumpers to align for low-speed impacts; the Tundra step bumper meets that. (eCFR)

Q: Do I need to recalibrate sensors after a bumper swap?
A: No special tool is needed; just plug the harness in. The system runs a self-check when you start the truck.

Q: How can I protect the finish on black powder-coat?
A: Wash with mild soap, avoid harsh wheel cleaners, and apply a silicon-free spray wax; forum users report this keeps the matte look sharp. (Toyota Tundra Forum)

Q: Does the bumper affect the truck's departure angle?
A: Yes. Stock bumpers hang lower than high-clearance off-road styles, so swapping can add about 5° of extra departure angle. (CARiD)

Q: What if my step feels loose?
A: Check that the mounting bolts are at 65 ft-lb and inspect the plastic step pad clips. Replace damaged clips to stop rattles.
