Quick Summary

The bumper bracket on a Volkswagen CC (often called a mounting guide, support rail, retainer clip, or alignment brace) is the hidden metal-or-plastic piece that locks the front or rear bumper cover to the body, keeps panel gaps straight, and helps the bumper beam do its job in a low-speed hit. When the bracket bends, cracks, or its tabs snap off, the bumper can sag, rub the tire, or even fall away. Replacing the bracket is cheap compared with fixing paint, lights, and sensors that break if the bumper is loose.

What Is It

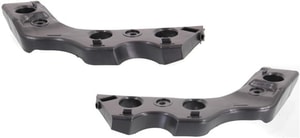

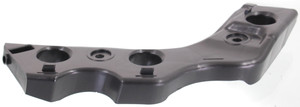

A bumper bracket is a shaped rail with slots and tabs that match the CC's bumper cover and fenders. It lines up the bumper, spreads crash loads, and gives installers a reference point so the cover snaps in with even gaps (VWVortex). On the CC, brackets are bolted to the crash beam and inner apron, then hidden under the plastic cover (YouTube).

Why It Matters

U.S. law says passenger-car bumpers must survive 2.5 mph pendulum and barrier hits with only minor damage to the bracket or face bar (NHTSA). Regulators warn that a weak bracket lets the bumper drop, exposing lamps and parking sensors to expensive harm (NHTSA). Stronger brackets also help with newer tech like Automatic Emergency Braking sensors mounted in the bumper skin.

Fit & Years

• VW Passat CC / CC model years 2009-2017 in North America, 2008-2016 in Europe and most of Asia (Wikipedia).
• Typical front left bracket PN 3C8 807 183 C; front right 3C8 807 184 C (2012-2017 facelift).
• Earlier 2009-2011 cars use bracket set 3C8 807 183 A/B.
• Rear brackets share numbers 3C5 807 393 A (left) and 3C5 807 394 A (right), carried over from the B6 Passat platform.

Signs Of Trouble

• Bumper corner sticks out or won't "click" in place (YourMechanic)
• Gap widens after hitting a curb stop or parking block (TDIClub Forums)
• Rattle over bumps or flutter at highway speed
• Parking sensor or washer jet pushed inside the skin

Common Causes

• Light parking impacts that shear off the guide tab
• Rust on early steel brackets where paint chips off
• Heat-cycling of plastic clips (sun and engine heat)
• Improper bumper removal that twists locator pins (YouTube)

Do-It-Yourself Tips

1. Jack the car and remove five torx screws in each wheel-arch liner, six across the top grille, and two under the splash shield (VWVortex).
2. Unplug fog lamps, sensors, and the temp probe.
3. Slide the cover forward; the damaged bracket stays on the body.
4. Swap bracket-torque M6 bolts to 9 Nm and M8 bolts to 20 Nm (per VW Quick-Spec Book) (NHTSA).
5. Re-fit the cover, starting at the fender lip and working toward the grille until all tabs snap.

Tools & Torque

• T25/T30 torx drivers
• 10 mm and 13 mm sockets
• Trim-clip pliers
• Torque wrench (6-25 Nm range)
• Painter's tape to protect paint edges

Part Numbers

← scroll table horizontally →

Safety Rules

Federal bumper rules focus on cosmetic, not life-saving, crashes, but IIHS tests prove flimsy brackets can lead to big repair bills even at 5 mph (IIHS HLDI). Always torque fasteners and replace any cracked clip so the bumper can absorb energy as designed.

Cost Guide

• Bracket price: USD $15-$60 each (steel costs more than plastic).
• Labor: 0.7-1.0 hour front, 0.5 hour rear at average shop rates.
• Skipping repair can total $1,000+ in lamp and radar damage after a parking bump (RepairPal.com).

Green Notes

Modern brackets often use high-strength polymer, cutting weight and saving fuel while still passing impact tests (ResearchGate). Engineers also study carbon-fiber reinforced plastic (CFRP) brackets that can cut weight by 40 percent yet stay intact in impacts (ResearchGate).

Related Parts

• Bumper cover (fascia)
• Reinforcement beam
• Energy absorber (foam/foam plastic)
• Fender liner and splash shield
• Parking sensor clips

Frequently Asked Questions

Q: What does the bracket actually do in a crash?
A: It keeps the cover aligned so the hidden energy absorber meets the impact bar squarely, letting the bumper system spread force over a wide area (Wikipedia).

Q: Can I keep driving with a loose bumper corner?
A: It may flap into the wheel and rip off paint or wires. Fix it soon to avoid costlier repairs (YourMechanic).

Q: Steel or plastic bracket-what's better?
A: Steel is stiffer and resists heat but can rust; glass-fiber-reinforced plastic is lighter and resists corrosion yet can crack if over-torqued (ResearchGate).

Q: Do I need to remove headlights to change the front bracket?
A: No. On the CC the headlamps stay put; the bracket unbolts once the cover is off (VWVortex).

Q: Does replacing a bracket affect crash sensors?
A: Not if installed correctly. Make sure radar and parking sensors sit flush in the bumper skin afterwards (YouTube).

Q: How tight should the bolts be?
A: VW's spec is 9 Nm for small M6 bolts and 20 Nm for M8 bolts (NHTSA).

Q: Why did my bracket snap without a crash?
A: UV and heat age the plastic; repeated bumper removals can weaken the locator tabs (TDIClub Forums).

Q: I tow a small trailer-will a beefier bracket help?
A: The bracket only holds the cover; trailer loads act on the frame and hitch. Use a rated hitch instead (Chief Delphi).

Q: Are recalls common for bumper brackets?
A: Rare, but some trucks with resin brackets were recalled when steps broke under weight (RepairPal.com).

Q: Could future CC owners get carbon-fiber brackets?
A: Research shows CFRP brackets survive lab impacts and weigh less, so future sporty models may adopt them (ResearchGate).
