Buy Volkswagen Jetta Radiators

Overview

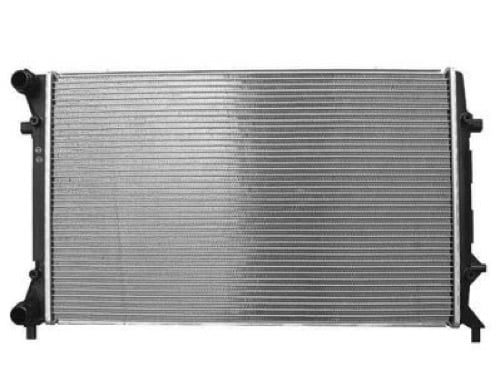

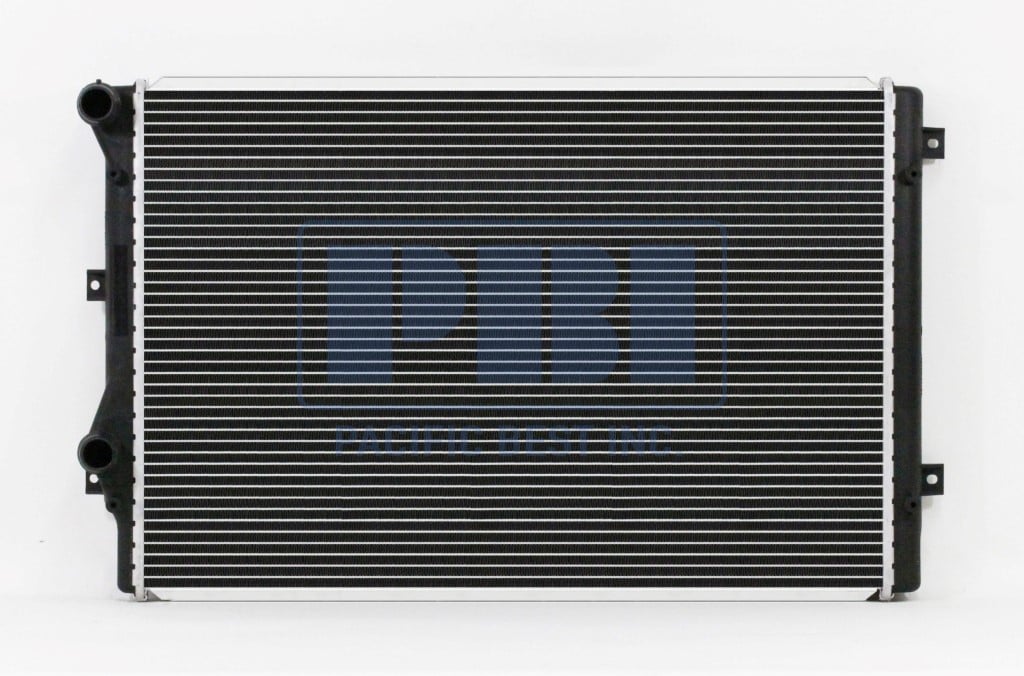

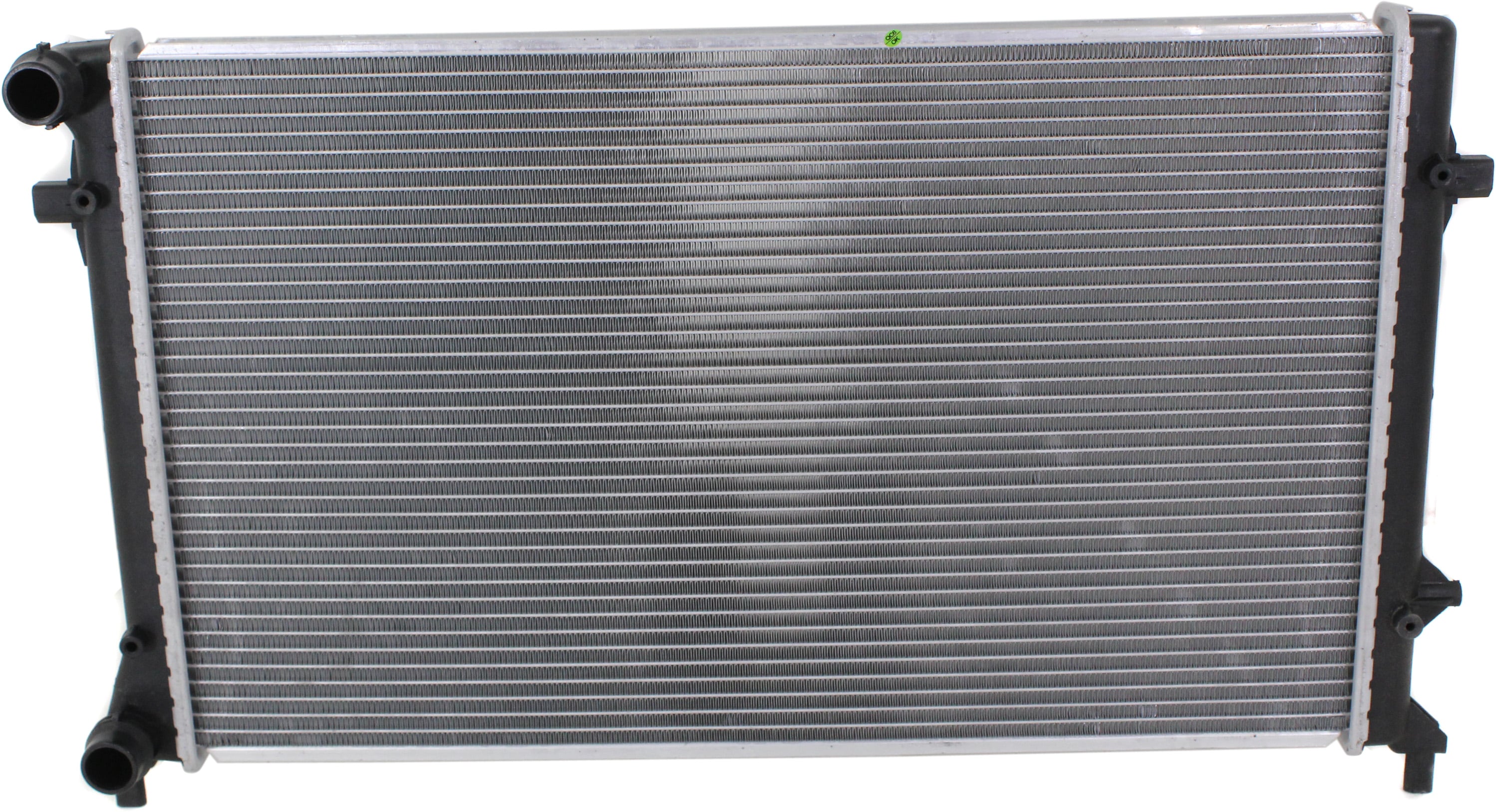

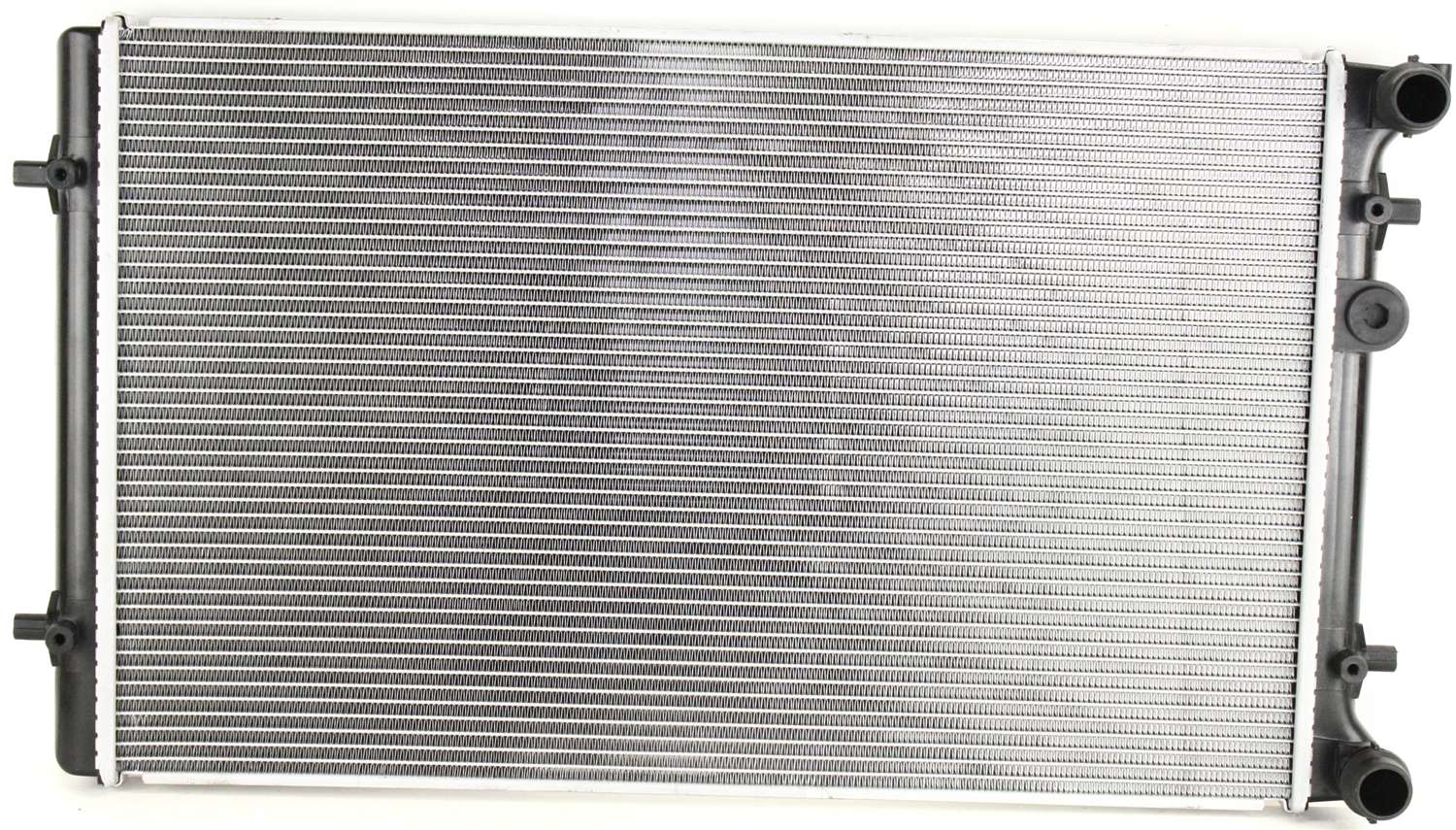

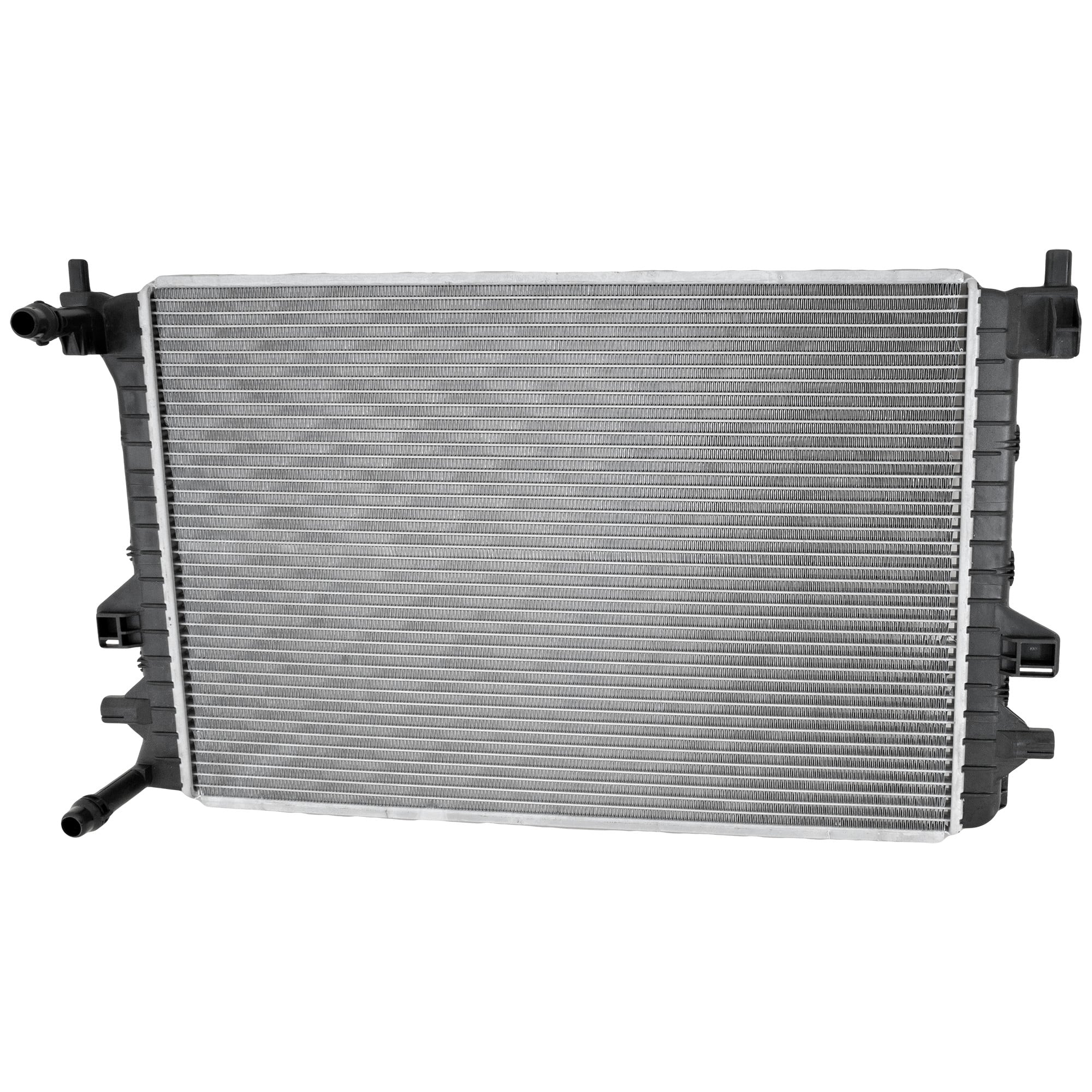

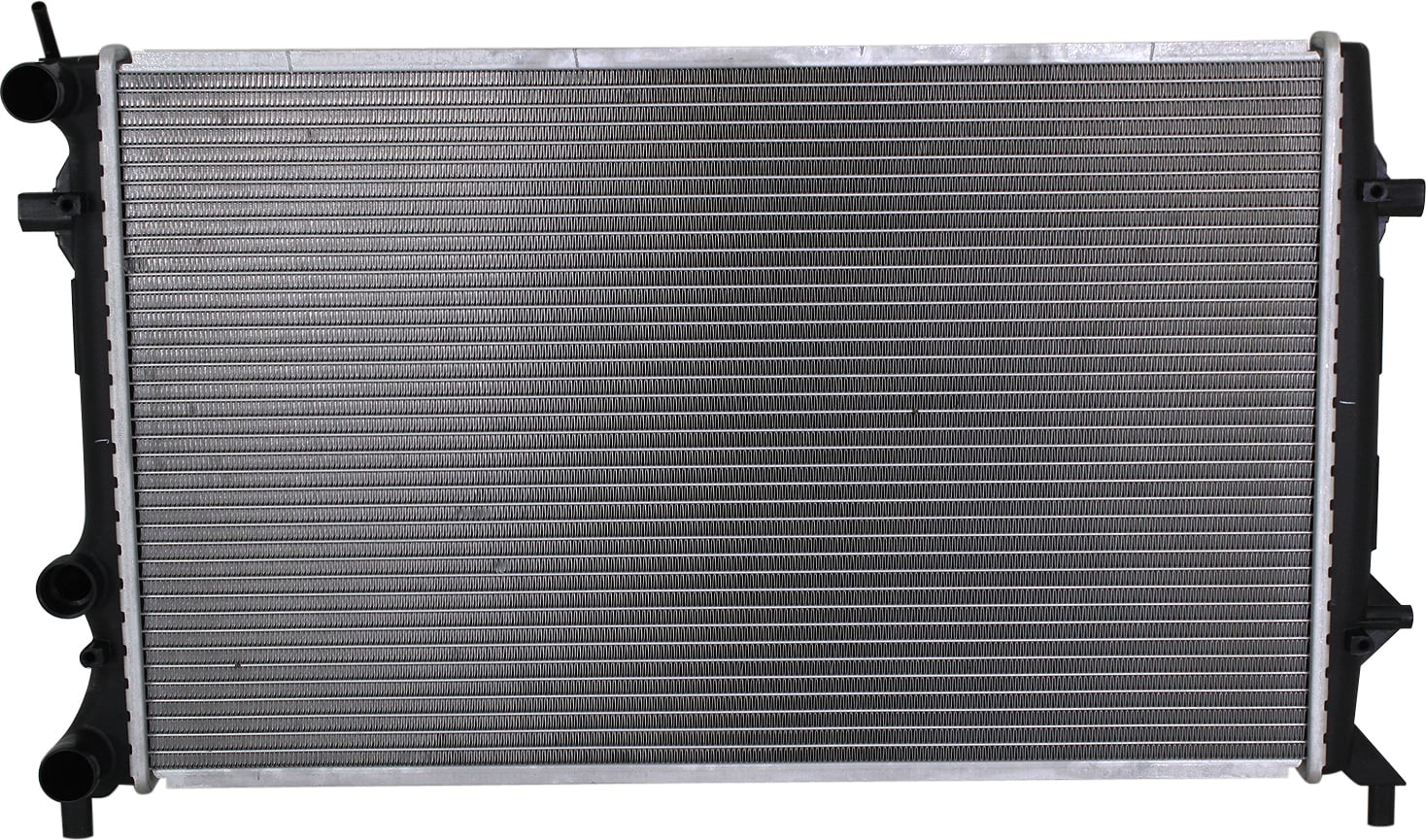

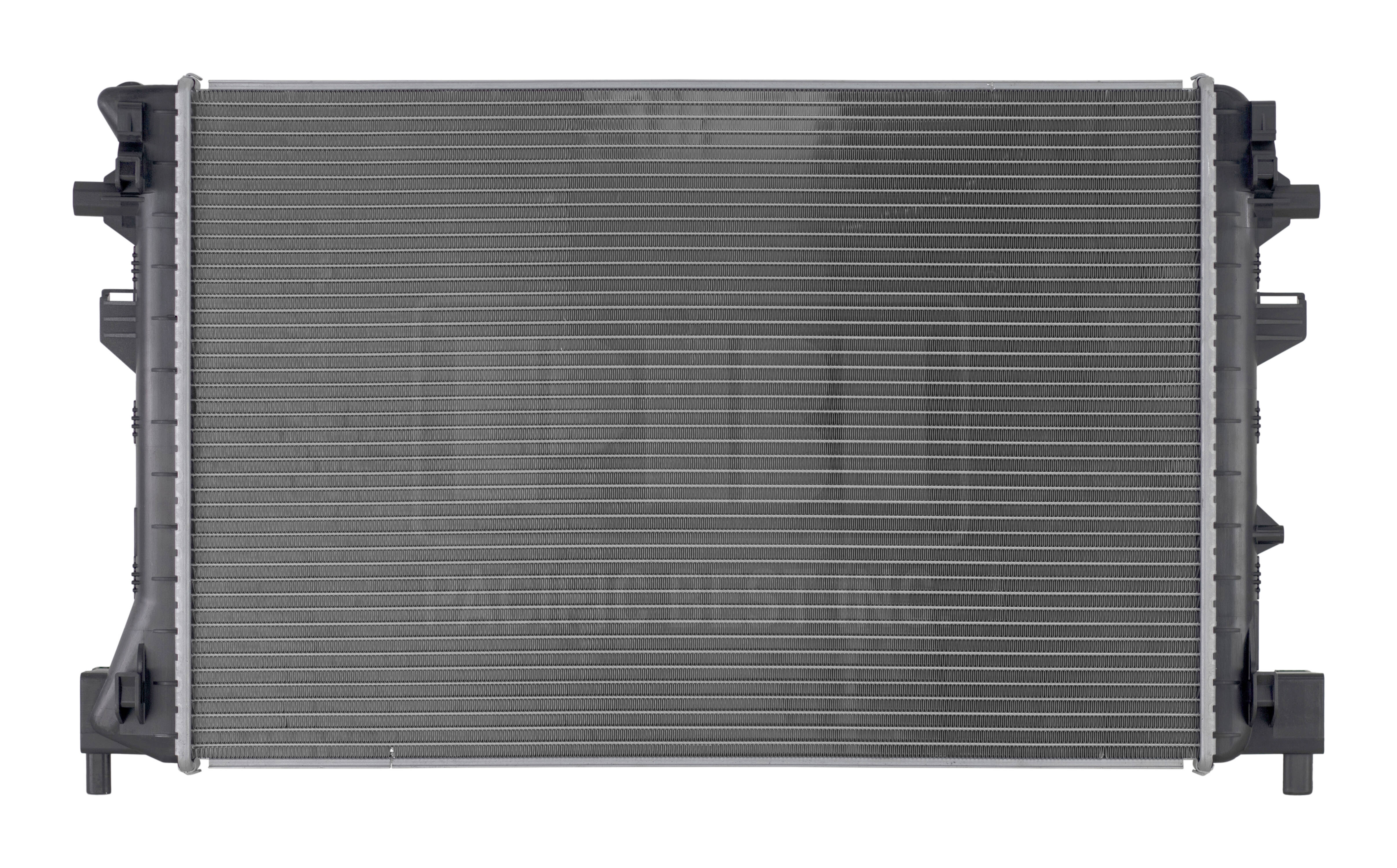

The radiator in a Volkswagen Jetta is a flat metal heat exchanger that keeps engine temperature in a safe zone. It moves heat from the coolant to outside air so the motor does not overheat . Most stock Jetta radiators are aluminum with plastic end tanks; they last many years but can fail if coolant is not serviced on time . When problems do appear-like leaks, cracks, or clogs-replacing the cooling unit quickly prevents bigger engine damage.

How It Works

A pump pushes coolant through the engine, then into the radiator core where thin fins give off heat as air flows past . On newer Jettas, an active grille shutter and electric fans help control airflow for better fuel economy . Volkswagen now fills cars with G-12 Evo coolant, which protects aluminum parts and lets the system run under pressure without boiling . Correct coolant mix (about 50/50 water and antifreeze) raises the boiling point and stops internal rust .

Common Symptoms

• Puddles or Drips Under the Car - pink or orange coolant on the driveway means a leak .
• Sweet Smell - antifreeze vapor smells sugary when it escapes .
• High Temp Gauge or Overheat Light - if ignored, the engine can cook itself and even start a fire .
• Low Cabin Heat - a clogged cooler can stop warm air from reaching the heater core .
• Rusty Coolant or Sludge - shows corrosion eating the inside of the radiator .

Model Fit & Specs

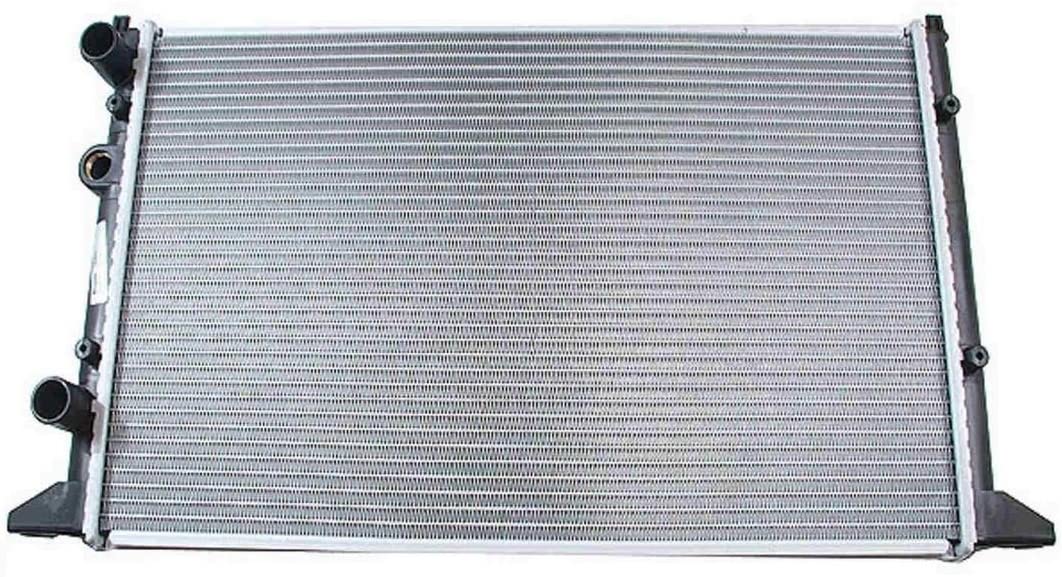

• 1999-2005 (Mk 4) Jetta uses a side-mount radiator with approx. 6-7 liters of total coolant .
• 2006-2010 (Mk 5) and 2011-2018 (Mk 6) models share a front-mount style but have different hose outlet angles-check your engine code.

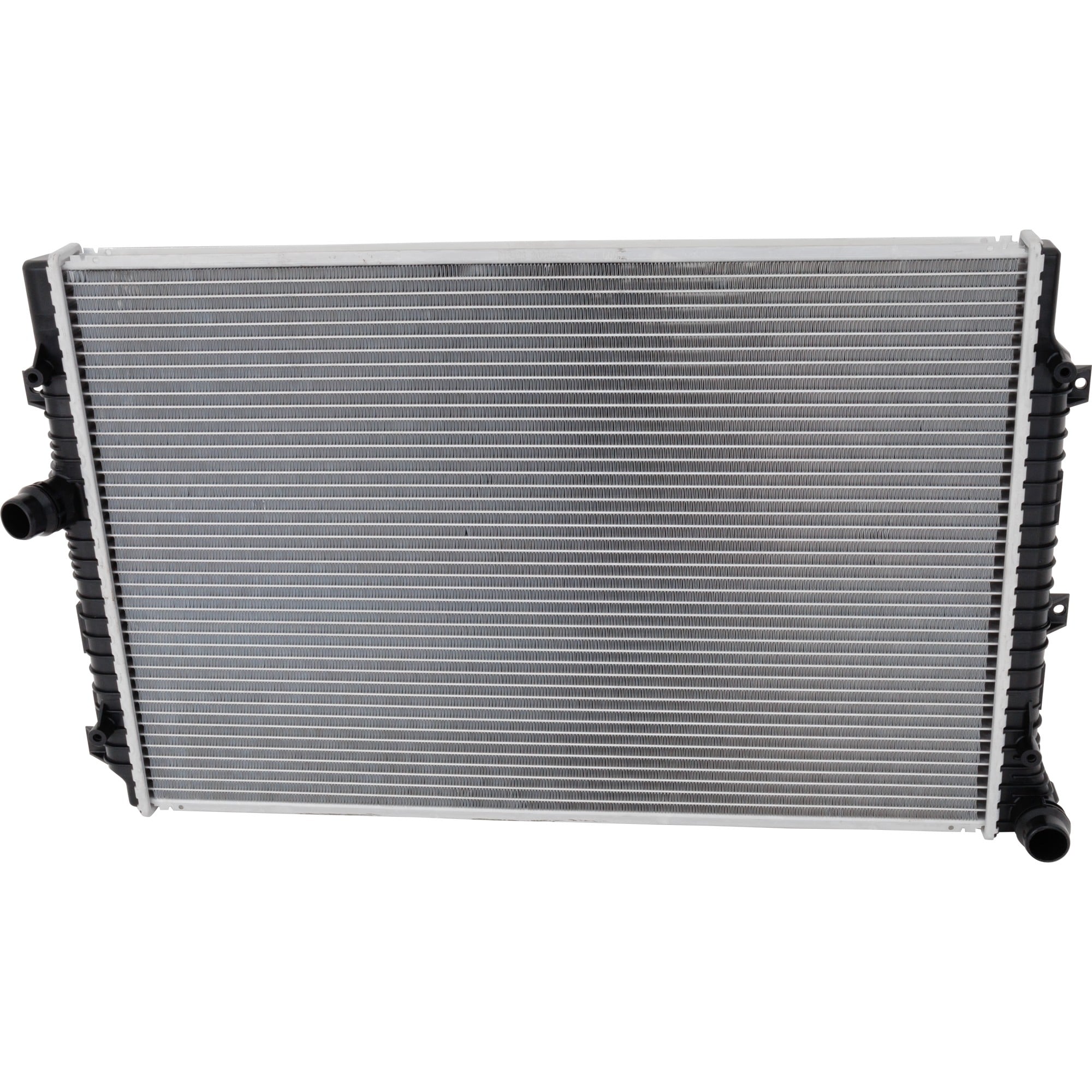

• 2019-present (Mk 7) cars carry VW part numbers in the 5Q0-121-251 range, with built-in sensor bosses for fan control .
• Turbo, diesel, and gasoline engines need radiators sized for their cooling load; diesels may use an extra low-temp radiator for charge-air cooling.

Maintenance Tips

• Flush Interval - VW's guide says every 10,000 miles/12 months coolant is inspected, but full replacement is usually every 5 years or 100,000 miles .
• Use Only Approved Coolant - mixing brands can cause gel build-up; stick to G-12 Evo or, for some 2015 TDIs, G13 only .
• Clean Fins Gently - spray bug debris out with low-pressure water, not a hard jet that bends fins .
• Check Hoses - soft, bulging, or oil-soaked hoses raise failure risk; swap them during a radiator job .

Replacement Steps (DIY)

1. Disconnect battery and drain coolant into a clean pan.
2. Remove bumper cover and set carrier to "service position."

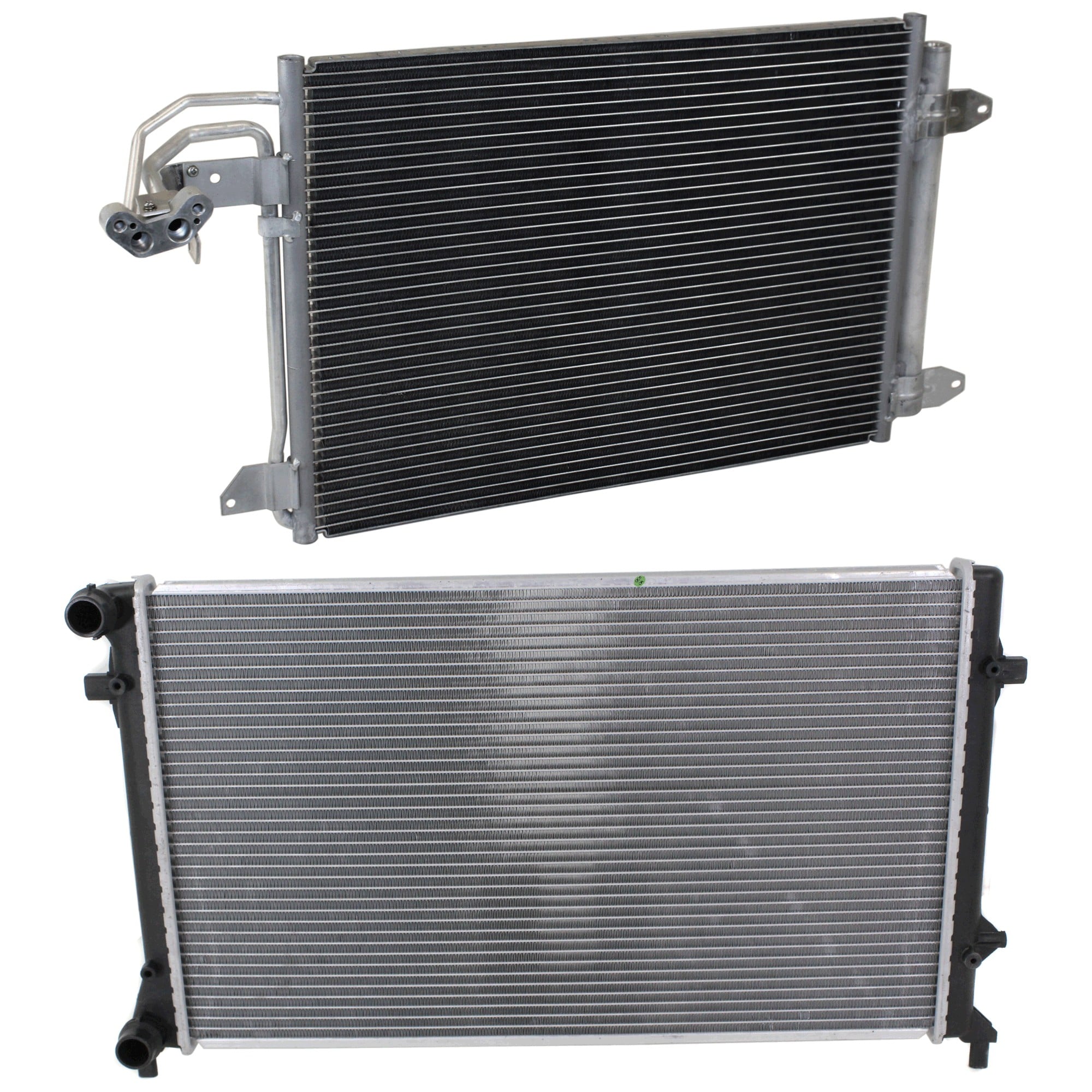

3. Unbolt fan shroud and AC condenser; tie condenser forward so lines stay sealed .
4. Lift out old radiator; install new unit with fresh rubber mounts and O-rings.
5. Refill with 50/50 mix and bleed air with heater on full hot.
6. Verify no leaks, fans cycle, and temp holds steady on a long drive.

Tip: Allow 4-6 labor hours; use gloves-a spinning fan can start suddenly when key is on .

Cost & Labor

• National repair average: $1,479-$1,780 parts + labor .
• DIY parts cost can drop to under half, but professional labor protects your warranty.
• Owners report quotes as low as $800 in low-labor-rate regions and as high as $1,100+ where shop rates top $150/hr .

Performance Upgrades

A high-flow all-aluminum radiator adds about 20 % more cooling capacity, useful for tuned or track-day Jettas . Pairing the bigger heat exchanger with a low-temp thermostat and quality fans helps keep intake air temps down on turbo models.

Environmental Recycling

Aluminum radiators are 100 % recyclable. Scrap yards often pay by weight, saving energy that would be spent mining new ore . Used antifreeze should never go down a storm drain; the EPA recommends recycling on-site or through a licensed facility .

Safety Notes

• Never open a hot radiator cap-super-heated coolant can spray and burn skin .
• During software updates or some diagnostics, fans may run at full speed without warning .
• VW issued recall 19Q8 on certain 2019-2020 Jettas for loose intercooler-to-radiator connections that could cause coolant loss and fire risk . Check your VIN.

Frequently Asked Questions

Q: What does a radiator do in my Jetta?
A: It is a metal cooling unit that moves heat from engine coolant to the air so the engine stays in a safe temperature range .

Q: How long should the factory radiator last?
A: With proper coolant changes, many last 8-12 years. Corrosion or rock damage can shorten life .

Q: Can I mix green antifreeze with VW pink coolant in an emergency?
A: No. Mixing can create sludge; top up with distilled water until the correct G-12 Evo coolant is available .

Q: My temp light blinked blue, then red. What does that mean?
A: Blue light = engine cold. Red flashing light = overheating or low coolant-stop safely and check levels .

Q: How much coolant does a 2015 Jetta 1.8 T need?
A: About 6 liters for a full drain and refill, plus extra for the overflow tank .

Q: What tools are required to swap the radiator?
A: Basic socket set, hose clamp pliers, trim-clip remover, and a coolant funnel kit .

Q: Will a clogged radiator hurt fuel economy?
A: Yes. High engine temps can force the ECU into limp mode and reduce efficiency .

Q: Is flushing coolant at home allowed?
A: Yes, but capture and recycle the fluid according to EPA guidelines .

Q: Are performance radiators street-legal?
A: Aftermarket aluminum radiators are legal as long as they do not delete emissions equipment and fit within the crash structure .

Q: Does replacing the radiator void my warranty?
A: No, if the part meets or exceeds OEM specifications and installation follows correct procedures. Keep receipts and document coolant type .
