Overview

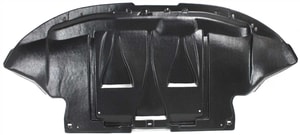

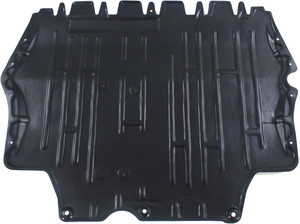

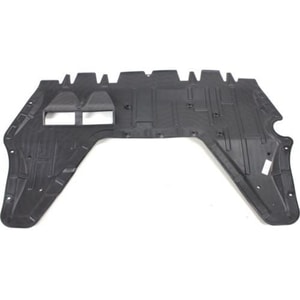

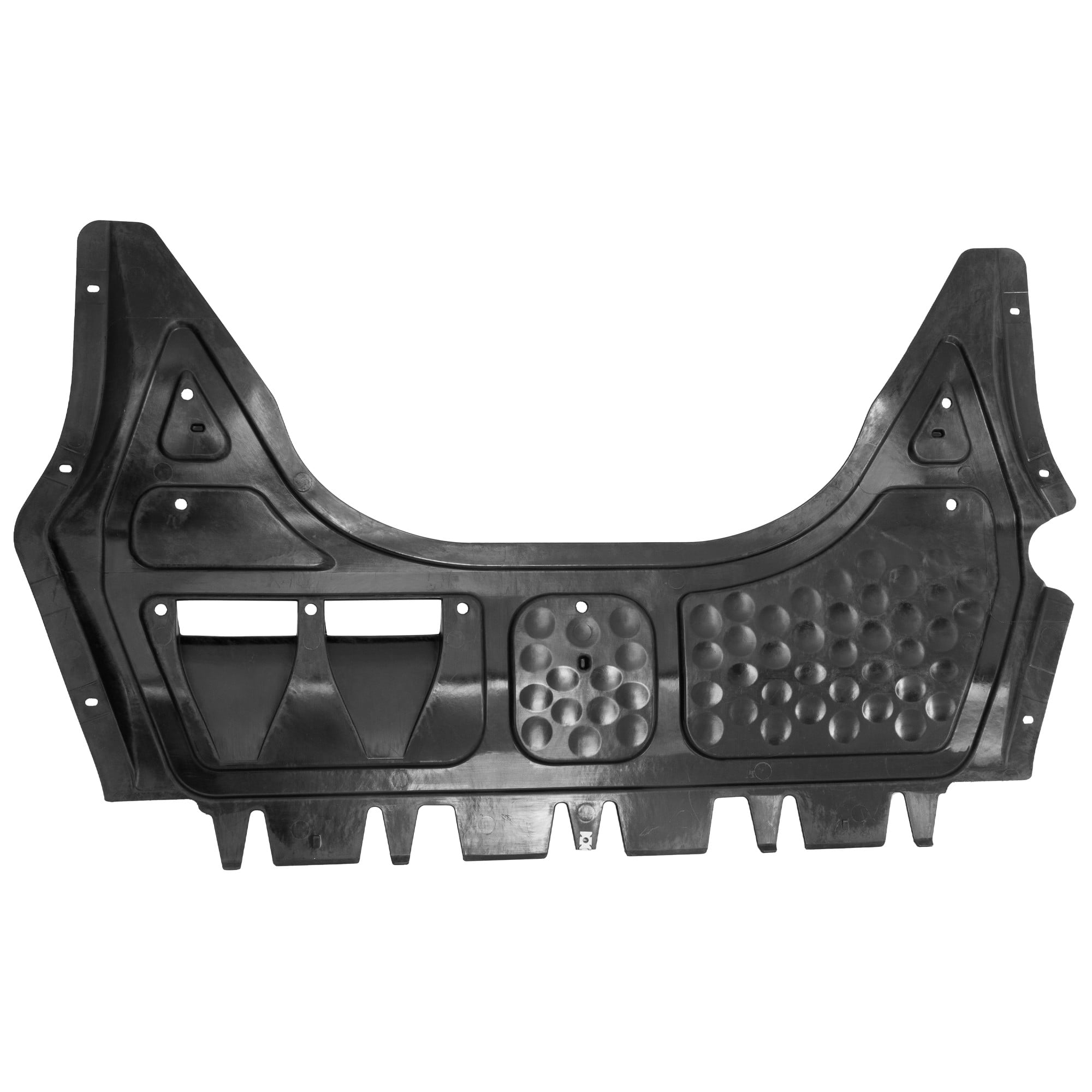

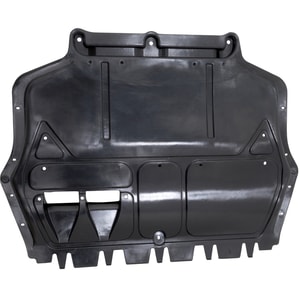

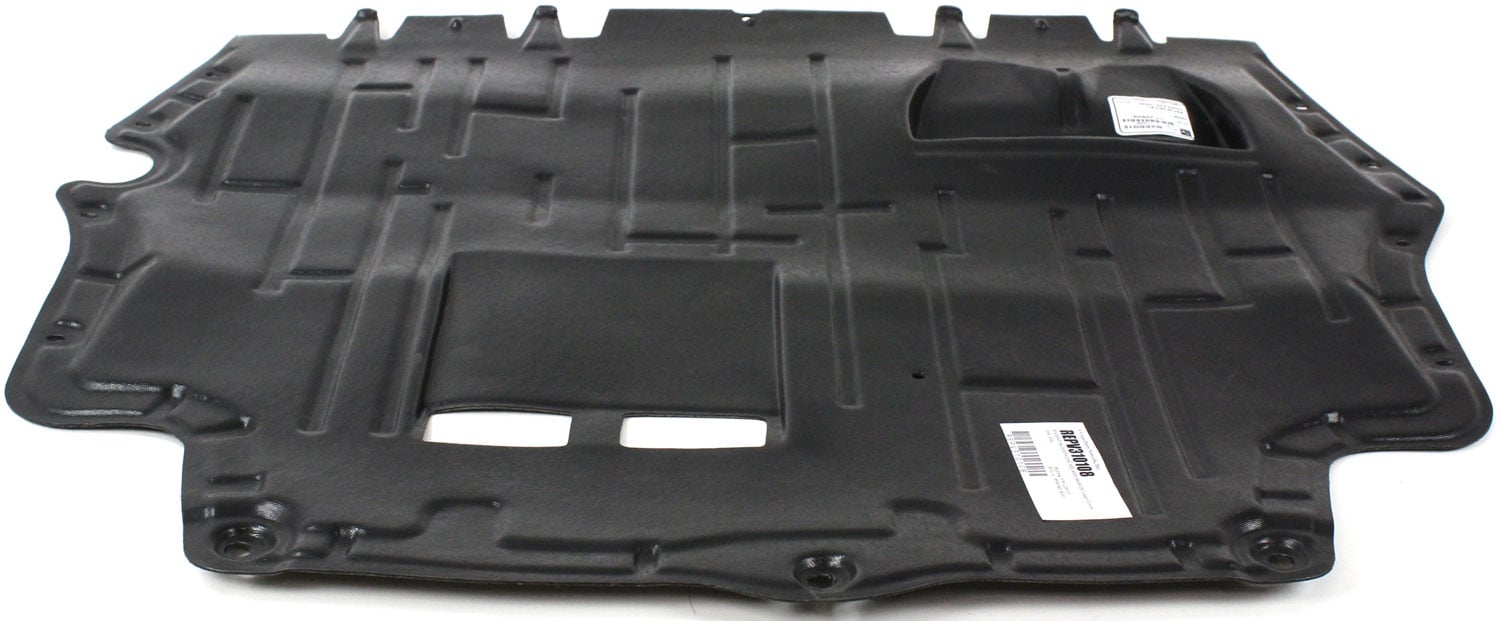

The engine splash shield-also called an under-engine cover, belly pan, lower engine guard, or skid plate-is a flat panel that bolts to the bottom of the Volkswagen Passat's engine bay. It keeps water, rocks, ice, and road grime away from vital parts, cuts wind drag under the car, and quiets engine noise. For most Passat models from 1998-2025, the shield is made of molded plastic; heavy-duty steel or aluminum upgrades are popular for rough roads. Typical part numbers you may see include 3C0 825 237, 561 825 237 D, and 5C0 825 237 B. A sound shield in good shape can even help the sedan get a little better fuel mileage and stay cleaner inside the bay. (Mechanic Base)

Fitment & Compatibility

• B5/B5.5 (1998-2005) - Uses a two-piece belly pan plus side guards.
• B6 (2006-2010) - One large front under-tray held by eight T25 screws and three T45 bolts. (VWVortex)
• B7 (2012-2015) - Most 2.5 L and 3.6 L cars share part # 561 825 237 D.
• B8 (2016-2025) - Similar shape but mounting clips revised; look for the 5C0-series shield on later sedans.

Always match the VIN and engine code (e.g., CCTA, CKRA, CDVC) before ordering a panel so the oil-change door lines up correctly.

Functions & Benefits

• Debris blocker - Stops gravel, salt, and road splash from striking the oil pan, belts, and sensors. (Mechanic Base)
• Water guard - Keeps puddle water off coils and wiring, lowering the chance of shorts. (YourMechanic)
• Aerodynamics - A smoother underside reduces drag; DIY testers saw small but repeatable MPG gains after adding a full under-tray. (EcoModder)
• Noise damping - The shield reflects engine sound downward, cutting cabin noise by a few dB according to underbody acoustic studies. (ScienceDirect)

Materials & Build

• Plastic (PP-GF30) - Standard on most Passats; light and cheap, but cracks if it scrapes curbs. (Mechanic Base)
• Aluminum (3 mm) - Stronger, resists heat, preferred for gravel or snow use.
• Steel (2 - 3 mm, powder-coated) - Heavy but nearly puncture-proof; common in off-road kits.

Plastic costs $25-150; metal versions run $75-250 before labor.

Installation Steps

1. Raise vehicle on ramps or a lift; set the parking brake.
2. Remove fasteners - Torx-25 screws around the perimeter and three Torx-45 bolts at the rear on many B6/B7 pans. (VWVortex)
3. Drop the shield and check clips.
4. Slide the new cover in place; hand-start bolts to avoid cross-threading.
5. Torque small screws to about 2 N·m and the larger bolts to 20 N·m. (VWVortex)

Tip: A damaged panel that's dragging the ground should be re-secured right away to keep water out and avoid tire blow-off. (YourMechanic)

Maintenance Tips

• Inspect the belly pan at every oil change.
• Replace missing clips quickly-loose edges flap in the wind and can tear off. (YourMechanic)
• Rinse winter salt from the shield to slow corrosion on metal plates.
• If you drive on gravel often, consider a metal upgrade to prevent cracks. (Mechanic Base)

Signs of Wear & Failure

• Cracks or holes visible from the front bumper.
• Shield hangs down or scrapes speed bumps.
• Oil drips collecting on the panel (may hide a leak).
• Missing fasteners or distorted clip slots. (YourMechanic)

Performance & Safety Notes

Wind-tunnel work published by SAE shows that smoother under-body panels can cut drag by 2-8 %, a benefit that grows at highway speed. (SAE International)

Volkswagen issued recall 23T3 on some 2012-2014 Passat TDI cars because water could reach an under-body sensor connector; dealers sealed the joint and checked the splash shield fit. (NHTSA)

In 2025 the company also recalled 177,000 U.S. SUVs for a separate loose engine cover issue, reminding owners why secure shielding matters. (Reuters)

Environmental Impact

Keeping the shield intact prevents oil drips from hitting the road and entering storm drains, and the small aerodynamic gain can save several gallons of fuel each year-good for the planet and your wallet. (Mechanic Base)

Frequently Asked Questions

Q: Is it safe to drive without the lower engine cover?
A: You can drive, but extra dirt, water, and stones reach the belts and wiring, raising the odds of costly damage. It's best to fix or replace the shield as soon as you can. (YourMechanic)

Q: Plastic vs. metal-which splash guard lasts longer?
A: Metal plates (steel or aluminum) cost more but survive impacts far better than plastic and can last the life of the car, especially for rough-road driving. (Mechanic Base)

Q: Will a belly pan really improve fuel economy?
A: Tests by eco-driving enthusiasts saw 1-3 % better highway MPG after smoothing the Passat's under-body with full panelling. (EcoModder)

Q: How often should I replace the mounting clips?
A: Clips usually last years, but any that snap or rust should be swapped immediately; loose edges are what cause shields to tear off. (YourMechanic)

Q: What tools do I need?
A: A Torx bit set (T25 and T45), a trim-clip puller, and a ¼-inch torque wrench handle most Passat shields. (VWVortex)

Q: Are there any noise benefits?
A: Yes-lab work on under-body acoustic panels shows interior sound levels drop by up to 3 dB when the shield is intact. (ScienceDirect)

Q: Do I need to remove the shield for oil changes?
A: Newer B8 Passats have a service flap; earlier cars require pulling the whole panel. Always reinstall the fasteners to spec. (VWVortex)

Q: What if the shield melts or warps?
A: Severe heat damage is rare; if it happens, replace the panel and check for exhaust leaks or missing heat shields.

Q: Can an upgraded skid plate void my warranty?
A: Using a well-fitting aftermarket shield that doesn't alter structural parts should not affect warranty coverage, but keep all receipts and follow torque specs.

Q: Where is the part number located?
A: Look for a raised number on the back corner of the old panel-usually a 9-digit VW code like 3C0 825 237 E.
