Background Info

The Volkswagen Rabbit headlight-also called a headlamp, front lamp, or head-light assembly-plays a key safety role by lighting the road, making the car visible, and housing turn-signal and parking bulbs. Two major generations matter to owners: early-model Rabbits (1975-1984) use a 7-inch sealed-beam lamp, while later U.S.-market Rabbits (2006-2009, Mk 5) use a composite halogen or HID unit. Knowing the right bulb sizes (H6024, H7, or D2S), how to aim the beams, handle moisture, and follow U.S. lighting rules (FMVSS 108) helps drivers keep visibility high and avoid tickets. A 2007 federal safety recall also affects many Mk 5 cars.

Fitment Years

• 1975-1984 Rabbit & Rabbit Pickup - 7-inch round sealed-beam lamp (PAR-56 design) (cecindustries.com)

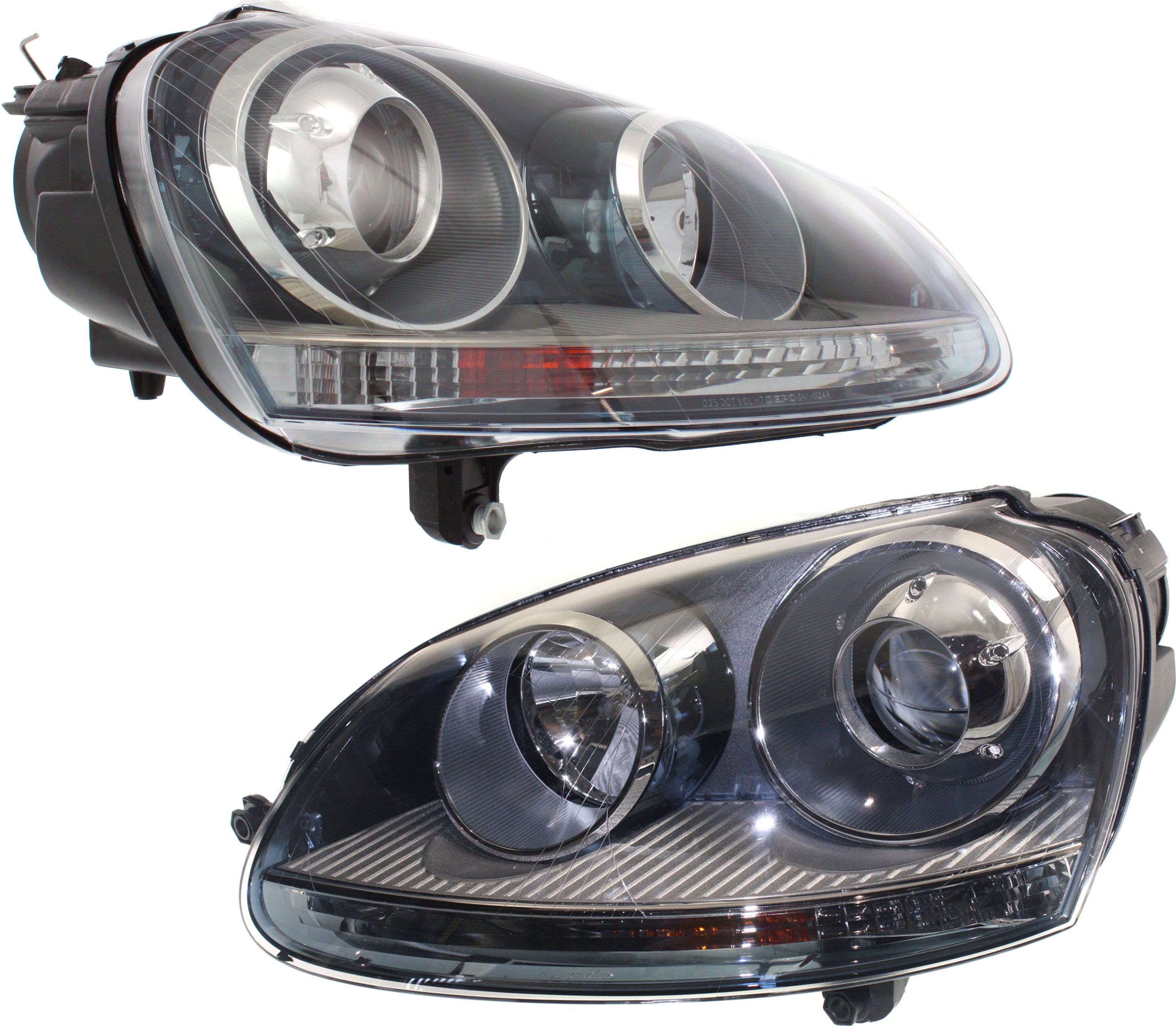

• 2006-2009 Rabbit (Mk 5) - clear polycarbonate composite housing that accepts a halogen H7 low-beam and an H15 or dual-filament high-beam/DRL; some trims came with factory D2S HID projectors (carcarekiosk.com, YouTube)

Bulb Types

• Sealed-beam H6024: 12.8 V, 60 W high / 35-55 W low, 3-lug base (cecindustries.com)
• Halogen H7: single-filament 12 V bulb used for low beam in Mk 5 cars (YouTube)
• Halogen/HID options: D2S burners were optional on some Mk 5 headlights
• LED retrofit kits must replicate the exact H7 focal point and include CAN-bus resistors to avoid a dash warning light (Reddit)

Materials

• Early lamps use glass lenses; later housings use hard-coated polycarbonate to save weight.
• Reflectors are aluminumized plastic; projector versions add a metal shield.
• Weather seals are butyl rubber to keep out water-if they crack, condensation forms inside the lens (Reddit).

Common Issues

• Burned-out bulbs (average halogen life 500-1,000 hours) (Headlight Revolution Blog)
• Cloudy outer lens from UV exposure, cutting light output.
• Condensation after heavy rain can scatter the beam and fail inspections (Reddit)
• Mis-aimed beams-especially after front-end repairs-reduce road reach and can blind others (VW Vortex).

Troubleshooting

Step-by-step guides show owners how to pop off the rear dust cover, unclip the spring, and twist out the H7 bulb on Mk 5 cars in under 10 minutes (VWEOS Club, carcarekiosk.com). On older sealed-beam Rabbits, four Phillips screws release the rim; the entire lamp unplugs like a household bulb (Sylvania Automotive). If the new bulb won't lock or the bumper blocks access, the headlight may have to be unbolted from behind the plastic bumper cover-a tight job many forum users mention (VW Vortex).

Upgrades

• Plug-in LED H7 kits can double measured lux but must stay under FMVSS 108 glare limits and be aimed carefully (CrashStats, YouTube).
• Projector retrofits add cutoff shields for sharper patterns and accept HID or modern LED light sources (YouTube).
• Vintage Rabbit owners often fit quartz-halogen "H4-conversion" sealed-beam units for 30 % more light while keeping the classic round look (JBugs).

Legal Rules

U.S. Federal Motor Vehicle Safety Standard 108 sets minimum and maximum candlepower, beam pattern, color temperature (white or selective-yellow only), and prohibits horizontal adjustment on some models (CrashStats). Always re-aim the lamp after bulb, strut, or bumper work: on level ground, the top of the low-beam cutoff should sit about two inches below head-center height at 25 ft (VW Vortex).

Recall Info

Recall 07V-442 (VW Campaign Q8) affects 2006-2008 Rabbit models built 6/05-3/08; a missing cap lets owners change horizontal aim, causing possible glare. Dealers installed a block-off cover at no charge (NHTSA Static, NHTSA Static, RepairPal.com). Owners can confirm their VIN on Volkswagen's recall portal (Volkswagen).

Maintenance Tips

• Volkswagen recommends inspecting all exterior lights at each 10,000-mile / 12-month service interval (Volkswagen).
• Never touch the glass of a halogen bulb-oil from fingers creates hot spots and shortens life (carcarekiosk.com).
• Tiny desiccant packets inside the housing help control moisture; replace the rear cap tightly after service (Reddit).
• Polish a hazed lens with an approved plastic-lens restoration kit rather than abrasive household cleaners to avoid scratching.

Install Steps

1. Switch off lights and disconnect the battery negative terminal.
2. Remove the rubber cover (Mk 5) or screw ring (Mk 1).
3. Unclip and pull the old bulb straight back.
4. Seat the new bulb so the notch lines up-do not twist the filament out of position.
5. Re-install the cover; then test low and high beams.
6. Aim the lamp: use the Torx screw on top for vertical trim; a side screw controls left-right on Mk 5 assemblies (VW Vortex).

Frequently Asked Questions

Q: What bulb goes in a 2007 Rabbit low beam?
A: An H7 12-volt halogen bulb fits the low-beam socket on 2006-2009 Rabbits. Some cars with factory xenon use a D2S HID capsule instead (YouTube).

Q: Do early Rabbits use the same lamp?
A: No. 1975-1984 cars use a one-piece 7-inch sealed-beam (H6024) that combines bulb, reflector, and lens in a single unit (cecindustries.com).

Q: How long do halogen bulbs last?
A: Standard H7 or H6024 halogen filaments usually glow for 500-1,000 hours before dimming or burning out (Headlight Revolution Blog).

Q: My headlight fogs up after rain-what now?
A: Remove the rear dust cap on a dry day, let the housing vent, then reseal. Persistent moisture signals a cracked lens gasket that needs replacement (Reddit).

Q: Can I swap in LEDs?
A: Yes, but pick a kit designed for the Rabbit's tight reflector shell, with a built-in resistor to avoid bulb warnings, and re-aim to stay street-legal under FMVSS 108 (Reddit, CrashStats).

Q: Why did Volkswagen recall some Rabbit headlights?
A: A missing cap let owners change horizontal aim, violating federal rules and risking glare; dealers added a block-off to lock the adjustment (NHTSA Static, RepairPal.com).

Q: How often should I check my lights?
A: At every 10,000-mile service-or sooner if you notice dimming, condensation, or a bulb-out warning (Volkswagen).

Q: Do I need to remove the bumper to change the bulb?
A: Usually no, but tight space means some DIYers pull the headlight or loosen the bumper for clearance on Mk 5 models (VW Vortex).

Q: What's the legal color for headlights?
A: U.S. law allows white or selective-yellow only; blue-tinted bulbs that look "HID" but exceed color limits can fail inspection (CrashStats).

Q: How do I aim the beams at home?
A: Park 25 ft (7.6 m) from a wall on level ground, measure lamp center height, then adjust so the top of the low-beam cutoff hits two inches below that mark; repeat for the other side (VW Vortex).
