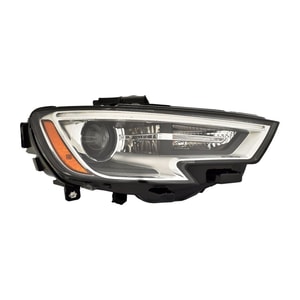

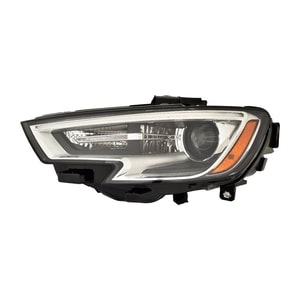

Buy Audi A3 Headlight Assembly

Background Info

Audi A 3 headlights-also called headlamps, front lamps, or light assemblies-have evolved from simple halogen bulbs in the 1990s to today's digital-pixel LED systems. They now include adaptive high beams, LED daytime running lights (DRLs), automatic leveling, and safety features that help the A 3 earn top crash-test marks worldwide. Recent studies and regulations show why proper aim, clean lenses, and timely upgrades make a big difference in night-time visibility and driver safety. (Audi, Audi Media, IIHS, AAA Newsroom)

Model Generations

1996-2003 (8L)

• Halogen H7 low-beam and H1 high-beam bulbs were standard. (Popular Mechanics)

2004-2013 (8P)

• Optional Bi-Xenon D1S projectors improved range and added static cornering lights.

2013-2020 (8V)

• Full LED headlights became available; DRL light pipes gave the car its "eyebrow" look. (Audi)

2022-present (8Y)

• All trims now ship with LED projectors, while Matrix-design LED units with 24-pixel elements add adaptive high-beam zoning. (Audi, Audi Media)

Key Features

• LED DRL strips switch on automatically and consume far less power than old halogen parking lights. (Audi)
• Matrix LEDs mask portions of the beam to avoid glare while keeping other zones bright, a technology the U.S. only recently allowed under a 2022 rule. (NHTSA, Car and Driver)
• Automatic headlamp leveling keeps the cutoff straight when passengers or cargo change ride height, meeting UNECE R48 rules in most global markets. (UNECE)
• High-beam assist toggles between low and high beams on dark roads and earned the 2024 A 3 a "Good" rating from IIHS. (IIHS)
• Multi-collision braking lights flash during hard stops to warn following traffic, contributing to a 5-star Euro NCAP score. (Euro NCAP)

Bulb & Module Guide

← scroll table horizontally →

Common Issues & Fixes

• Moisture inside lens-often caused by torn rear caps-can be cleared by removing bulbs, using low-heat air, and resealing with fresh butyl rubber. (Audizine, Audizine)
• Yellow or cloudy plastic cuts light output by up to 80 percent; polishing kits or lens replacement restore clarity. (AAA Newsroom)
• Burned DRL strip on 2017-2020 LED units results from heat stress; modules are serviceable separately from the whole housing. (Automotive parts online)

Maintenance Tips

• Aim your lights after any suspension work. Align the cutoff line 3 in (75 mm) lower than the bulb height at 25 ft (7.6 m) distance, matching Transport Canada's TSD 108 guide. (Transport Canada)
• Clean lenses monthly with mild soap; avoid abrasive cleaners that strip UV coating. (Popular Mechanics)
• Replace bulbs in pairs; mismatched color temperatures reduce beam uniformity. (Popular Mechanics)

Safety & Regulations

• The U.S. Federal Motor Vehicle Safety Standard 108 now permits adaptive driving beams, letting A 3 Matrix units operate at full capability. (NHTSA)
• SAE J1383 sets performance targets for beam pattern and glare that A 3 projectors are designed to meet. (SAE International)
• Canadian CMVSS 108 mirrors U.S. rules but also mandates automatic light activation by 2021. (Transport Canada, Transport Canada)
• New lighting tech such as digital OLED segments may soon display warnings on the road surface, according to industry analysts. (WIRED)

Upgrade Paths

• Factory retrofit: Owners of halogen cars can swap to OEM LED housings plus coding for headlight-control module 09 adaptations. (Ross-Tech Forums)
• Aftermarket projectors: Ensure any kit carries "DOT" or "E-Mark" marks to remain road legal. (UNECE)
• Lens protection film: Clear urethane covers block UV and stone chips, preserving clarity longer. (AAA Newsroom)

Frequently Asked Questions

Q: How do I know which headlamp my A 3 uses?
A: Check the build sticker in the trunk; codes "8X1" or "PXE" indicate LED or Xenon units. (IIHS)

Q: Can I fit LED bulbs into a halogen reflector?
A: It is legal only if the bulb and reflector are tested together to FMVSS 108 / CMVSS 108 standards; drop-in LEDs without testing can cause glare. (NHTSA, Transport Canada)

Q: Why does condensation appear after a car-wash?
A: Sudden temperature changes draw moist air into the housing through the vent; it should clear within an hour of driving with lamps on. (Audizine)

Q: My DRL strip went dim-do I need a whole lamp?
A: No. The A 3's LED DRL driver sits on a small board that can be replaced separately. (Automotive parts online)

Q: What's special about Matrix LEDs?
A: They contain tiny segments that switch off around oncoming cars, so you keep high-beam brightness without glare. (Audi Media, NHTSA)

Q: Are aftermarket tint films safe?
A: Dark films cut light; use clear or lightly shaded films labeled 90 percent transmission or higher. (AAA Newsroom)

Q: How often should I polish plastic lenses?
A: Every two years in sunny climates or when haze becomes visible. (Popular Mechanics)

Q: Does headlamp aim change after lowering springs?
A: Yes-re-aim immediately, as even a 1-degree error can shorten sight distance by 50 ft (15 m). (Transport Canada, AAA Newsroom)

Q: What headlight rating did the 2024 A 3 receive?
A: IIHS rated its standard LED projectors "Good," the top score. (IIHS)

Q: Do headlights affect Euro NCAP scores?
A: Yes. Adequate night visibility is part of the Vulnerable Road-User metric that helped the A 3 earn five stars in 2020. (Euro NCAP)

Q: Will cleaning the inside of the lens improve brightness?
A: No. Cloudiness is on the outside; sanding and clear-coat restore clarity. (Popular Mechanics)

Q: Can I code "coming-home" light animation myself?
A: Yes-OBD apps let you enable light shows on many A 3s built after 2015. (Audi)
