Quick Summary

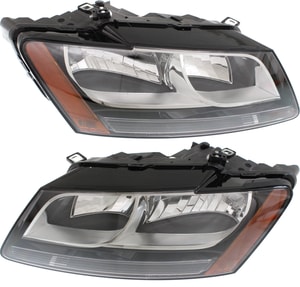

Audi Q5 headlights - also called headlamps, front-light assemblies, or beam lights - let you see the road, signal other drivers, and shape the look of the SUV. Over the years Audi has offered four main versions: basic halogen bulbs, high-intensity-discharge (xenon HID) lamps, full LED units, and the newest matrix-LED adaptive headlights that carve the beam around traffic. LED designs last longer and use about 95 percent less power than xenon units (Automotive Training Centre), while a single bulb swap averages roughly $147 in parts and labor (YourMechanic). A complete matrix-LED housing can cost much more, so careful aiming, moisture control, and software updates protect your investment.

What It Does

A headlight is a sealed lighting unit that throws low and high beams forward so you can drive safely at night or in bad weather (Federal Register). Daytime running lights (DRL) make the SUV easier to spot in daylight, and turn-signal modules inside the same housing tell others when you are about to move. Each light also makes the Audi Q5 meet federal visibility rules set by the .

Light Options

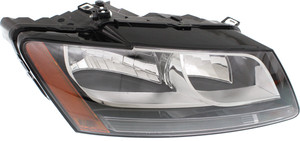

• Halogen (H7 bulb). Standard on early 2009-2012 Q5 SUVs; easy to replace but dimmer than newer tech (SEALIGHT).

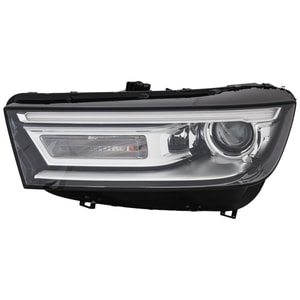

• Xenon HID (D3S/D3R). Brighter bluish-white arc lamp offered on 2013-2017 models; uses auto-leveling motors to keep glare low (Ross-Tech Wiki).

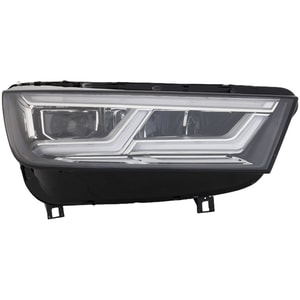

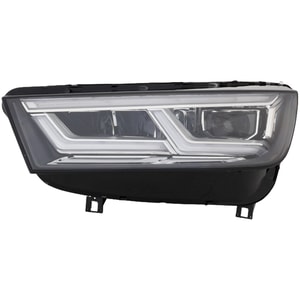

• Full LED. Became common with the 2018 redesign; draws less energy and reaches full brightness instantly (Audi).
• Matrix LED. Optional on upper trims; dozens of LED pixels switch off around oncoming cars, so you can drive with high beams nearly all the time (Carifex).

LED light has a daylight-like color of about 5,500 Kelvin, which helps reduce eye strain on long night drives (Audi).

Key Features

• Adaptive beams. Radar and camera sensors tell matrix LEDs when to shade certain pixels so they do not dazzle other drivers (Carifex).
• Cornering motors. On xenon and LED setups, small servos swivel the projector lens into a turn.
• Headlight washers. Tiny high-pressure nozzles pop out and spray the lenses to keep light output strong in slush or mud (OBDeleven).
• Auto-leveling control module ("55-Headlight Range"). Keeps the beam height correct as cargo weight changes (Ross-Tech Wiki).

The 2022 Q5 earned a "Good" rating for its top-trim headlights from the Insurance Institute for Highway Safety (IIHS rating page) .

Fit & Compatibility

Audi built two body generations plus a Sportback variant. Always confirm fit with your 17-character VIN using Audi's recall & service checker .

← scroll table horizontally →

If your DRL strip flickers, the internal LED driver may have failed; owners report simple module swaps fix the issue (Audi World).

Replacement Steps

1. Disconnect the battery. Prevent short circuits before you unplug the lighting unit.
2. Remove wheel-well fasteners. This creates space to slide out the lamp housing (YouTube).
3. Unclip wiring harnesses and lift the old assembly straight out.
4. Swap bulbs without touching the glass.
5. Reinstall, then aim. A #25 Torx turns the vertical adjuster; a simple garage-door test helps you center both beams (YouTube).
6. Check the fuse (Panel C, slot F26 on 2009-2017 models) if the lamp stays dark (YouTube).

Care & Troubleshooting

• Condensation. Small water beads inside the lens often clear after a warm drive; stubborn fog can be fixed by drying the housing and adding a new gasket (Reddit).
• Washer jets. If sprays stop working, clogged nozzles or a frozen pump are common culprits (OBDeleven).
• Adaptive fault codes. A scan tool can recode new lamps after an upgrade to stop dashboard warnings (Audizine).

Regularly wipe road film off the clear polycarbonate lens with a soft cloth; harsh cleaners can cloud the surface.

Rules & Safety

U.S. law caps glare and sets beam-pattern zones; a new adaptive-beam rule (FMVSS 108) now lets matrix LEDs run here as long as they dim around other traffic (Federal Register). Some drivers feel modern lamps are "too bright," yet safety groups point out that better lighting cuts night-time crashes (The Guardian). Keeping your lamps aimed below the trunk line of cars ahead protects vision for everyone.

Upgrade Ideas

• LED retrofit kits for early halogen housings cut current draw and last longer, but must match the heat sink space (Automotive Training Centre).
• Matrix-style swaps are possible on 2018-2020 Q5s by adding corner modules and coding them with diagnostic software (Audizine).
• Tint films darker than 50 percent light transmission violate most state laws; stay clear to keep output legal (Federal Register).

Cost Guide

A single halogen or xenon bulb averages $147 installed (YourMechanic). Full LED modules cost more because the light chips are built into the housing; labor also rises since bumper covers often need to come off. Reusing intact ballasts and learning DIY removal from a free video tutorial saves shop fees (YouTube).

Green Impact

LED headlights sip power, cutting alternator load and fuel use. One study shows LEDs draw about 5 percent of the wattage of xenon lamps while delivering equal or better road light (Automotive Training Centre). Longer life also means fewer parts in landfills.

Frequently Asked Questions

Q: What bulb size does a 2014 Audi Q5 use?
A: Low beam uses an H7 halogen bulb in base trims or a D3S xenon burner in premium trims (SEALIGHT).

Q: How long do the factory LEDs last?
A: Audi rates its LED chips for up to 20,000 hours, which equals many years of night driving (Audi).

Q: Why do my headlights fog up after rain?
A: Moist air sneaks past the rear seal; drying the lamp and renewing the gasket usually cures it (Reddit).

Q: Can I aim the beams myself?
A: Yes-park 25 feet from a wall, mark lamp center height, and use the adjusters so the low-beam cutoff sits just under the line (YouTube).

Q: Are matrix LEDs legal in the United States?
A: They are now permitted under the revised federal adaptive-beam rule published in late 2024 (Federal Register).

Q: Do brighter lights blind other drivers?
A: Poorly aimed lights cause glare; adaptive units shape the beam to avoid oncoming cars (The Guardian).

Q: How do I turn on the headlight washers?
A: Pull the windshield-washer stalk with headlights on; high pressure jets pop out automatically (OBDeleven).

Q: My daytime running lights flicker-what's wrong?
A: The LED driver may be failing; replacing the module behind the strip usually fixes flicker (Audi World).

Q: Is there a headlight recall for my VIN?
A: Enter your VIN in Audi's online recall checker to see if a lighting campaign applies (web.audiusa.com).

Q: Where is the headlight fuse?
A: For 2009-2017 Q5, open the right-side dash panel; fuse F26 (10 amp) protects the left headlight (YouTube).

Q: Can I swap xenon bulbs left to right?
A: No-bulbs age in pairs. Replace both so color and brightness stay even (YourMechanic).

Q: Will LED upgrades pass inspection?
A: They will if beam cutoff, brightness, and color stay within state limits; aim them carefully (Federal Register).

Q: What is the color temperature of factory LEDs?
A: Around 5,500 Kelvin, close to daylight (Audi).

Q: Does washing the lens reduce glare?
A: Yes-clean plastic lets more light through and keeps the beam pattern sharp (OBDeleven).

Q: Are there environmental benefits to LEDs?
A: Lower power draw saves fuel and cuts CO₂ over the vehicle's life (Automotive Training Centre).

By knowing the bulb type, keeping the assembly dry, and following aiming rules, you can keep your Audi Q5's headlight-whether halogen, xenon, LED, or adaptive matrix-bright, legal, and long-lasting.
