Snapshot

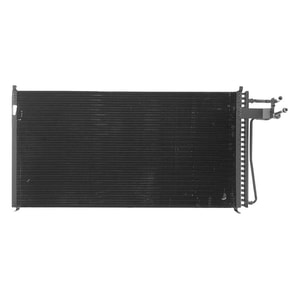

The Chevrolet Caprice A/C condenser-also called the air-conditioning radiator-sits in front of the engine's coolant radiator. It turns hot, high-pressure refrigerant gas coming from the compressor into a cooler liquid so the cabin can stay comfortable. From the full-size, body-on-frame Caprices of the 1960s through the Police Patrol Vehicle (PPV) sedans built through 2017, all generations rely on this vital heat-exchanger. Keeping it clean, damage-free, and correctly torqued at its fittings prevents leaks, improves fuel economy, and protects the environment. (Cars.com, Wikipedia, US EPA)

Vehicle Fit

B-body & Zeta platforms

• 1966-1990: Third-generation Caprice-vertical-flow condenser, usually R-12 refrigerant.
• 1991-1996: Fourth-generation-slimmer parallel-flow design became more common, easing later R-134a conversions.
• 2011-2017 PPV (Holden-based Zeta chassis)-high-efficiency 27.8 × 14.5 in. parallel-flow coil paired with HFC-134a. (Wikipedia)

Most aftermarket condensers now ship as parallel-flow units; they drop vent-air temperature 5-10 °F versus the older serpentine style while using less compressor power. (ChevyTalk)

How It Works

Hot refrigerant vapor leaves the compressor and passes through the Caprice's front-mounted cooling coil. Air flowing through the grille or the electric fan strips heat, turning the vapor into a high-pressure liquid before it heads to the firewall evaporator. Because the condenser looks and acts like a tiny radiator, smashed fins, bugs, or bent tubes immediately cut performance. (Hagerty, Cars.com)

Common Symptoms

• Warm or inconsistent vent air. (Mechanic Base)
• Visible green dye or oily residue around the fittings.
• Engine begins to overheat at long idle because the condenser can no longer dump heat efficiently.
• A/C clutch cycles rapidly-often a sign of pressure loss from a pin-hole leak. (NHTSA)

Failure Causes

• Road debris-rocks and salt corrode or puncture tubes in the Caprice's low-mount grille opening.
• Internal blockage from desiccant breakdown after moisture enters an open system.
• High head pressure created by using a serpentine condenser with modern R-134a or HFO-1234yf refrigerants. (classicautoair.com, US EPA)
• Fan relay faults; if the condenser fan never powers up, head pressures soar until the high-side switch opens. (YourMechanic)

Replacement Tips

1. Recover any remaining refrigerant first.
2. Flush the lines; debris left behind can scrap the new part.
3. Torque the high-side and low-side line bolts to 16 N·m (12 lb-ft)-a common GM spec for condenser fittings-to prevent O-ring distortion or leaks. (LS1.com | GM LSx Performance Forum)
4. Always add the correct PAG-46 or PAG-100 oil volume (read the under-hood label).
5. On 1991-1996 cars, choose a parallel-flow upgrade for best R-134a performance; no body mods required. (Auto AC Solutions)

Maintenance

• Annual rinse-a simple hose-down clears bugs and dirt; never bend the fins with high-pressure jets. (The Irish Sun)
• Check fan operation; both radiator and condenser fans should run whenever the A/C is on. (YourMechanic)
• Cabin air filter-replace it yearly so airflow stays strong and the evaporator does not ice up. (The Irish Sun)

Environmental Notes

Early Caprices used CFC-12 (R-12) with a Global Warming Potential (GWP) of 10,900. U.S. law banned R-12 in new cars after 1995, and most 1993-up Caprices left the factory with HFC-134a (GWP 1,430). Modern retrofits can choose ultra-low-GWP HFO-1234yf or even CO₂ (R-744) once hardware is available. (US EPA)

DIY or Pro?

A basic driveway swap requires hand tools, a vacuum pump, and a gauge set. However, federal rules demand certified recovery equipment when handling refrigerants, and vacuum leaks as small as 1/4 oz. per year will ruin system efficiency. If you lack these tools, having a licensed technician evacuate and recharge is safer and often faster. (classicautoair.com)

Frequently Asked Questions

Q: Where is the condenser on my Caprice?
A: It sits directly in front of the engine coolant radiator, behind the grille. Remove the upper sight shield and you can see its aluminum fins. (Hagerty)

Q: Can I flush and reuse my old condenser?
A: If it's a parallel-flow unit, trapped debris is difficult to remove; replacement is the safest fix when a compressor fails. (classicautoair.com)

Q: Do I need a different condenser for R-134a?
A: Pre-1993 serpentine condensers work, but a modern parallel-flow coil lowers pressures and vent temps for R-134a or 1234yf. (ChevyTalk, classicautoair.com)

Q: What causes warm air only at idle?
A: Likely a dead fan relay or clogged fins; without airflow, the condenser cannot shed heat when the car isn't moving. (YourMechanic)

Q: How often should I recharge the system?
A: A healthy Caprice A/C loses about 15 % of its charge per year; if cooling drops sooner, inspect for leaks before adding gas. (YourMechanic)

Q: Are PPV condensers different from civilian models?
A: Yes. PPV sedans have a larger-surface condenser and a heavy-duty fan package to handle long idling on patrol. They interchange with civilian export Caprices of the same years.

Q: What torque spec should I use on the line fittings?
A: GM lists 16 N·m (12 lb-ft) for the condenser hose bolt at the accumulator and 33 N·m (24 lb-ft) at the compressor block. (LS1.com | GM LSx Performance Forum)

Q: Will a front-end collision always ruin the condenser?
A: Even minor grille strikes can bend tubes; if pressures climb or leaks appear after a crash, replace the coil rather than trying to straighten fins. (Mechanic Base)

Delivering reliable cooling begins with a clean, properly sealed Chevrolet Caprice condenser. Follow the service pointers above, use the correct torque and refrigerant, and the system can keep cabin temps low for the life of the vehicle.
