Buy Chevrolet (Chevy) Silverado 1500 Radiators

The Chevrolet Silverado 1500's radiator-also called the cooling core, heat-exchanger, or engine-cooler-is the part of the truck's cooling system that pulls heat out of the coolant so the V-6 or V-8 stays at the right temperature. A healthy radiator prevents boil-over, stops metal parts from warping, and gives you steady cabin heat and towing power.

Key Purpose

A radiator works by pumping hot coolant from the block through narrow tubes; air flowing across its fins carries the heat away before the fluid circles back to the engine. (Wikipedia)
Because the Silverado's engine can produce well over 300 horsepower, the cooling core has to shed roughly one-third of that energy as heat every minute under load. (MotorTrend, MotorTrend)

Fitment Years

• The same basic radiator layout is used on 2014-present K2XX and T1XX Silverado 1500 trucks with 4.3 L V-6, 2.7 L turbo, 5.3 L, and 6.2 L V-8 engines, but core thickness, hose routing, and transmission-oil cooler ports vary. (NHTSA)
• Cooling-system capacity is about 16.6-18.3 qt (15.7-17.3 L) for the popular 5.3 L V-8, depending on model year and tow-package equipment. (GM-Trucks.com, CarCareKiosk)

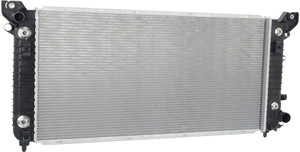

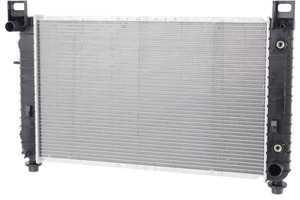

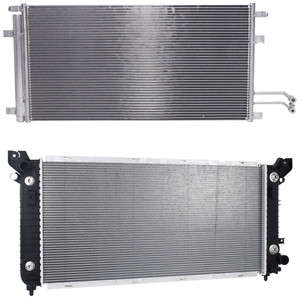

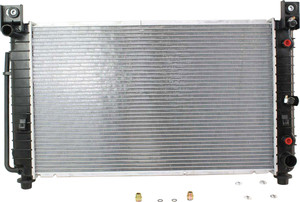

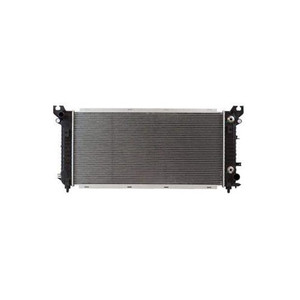

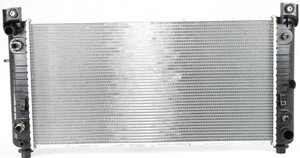

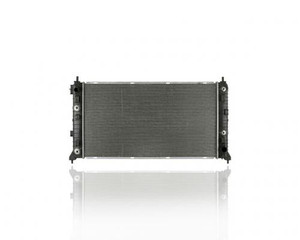

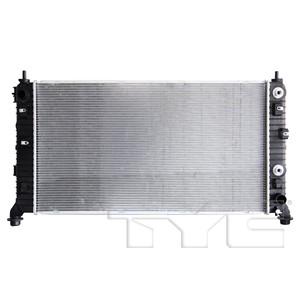

Anatomy

• Tanks: Plastic end tanks are crimped to an aluminum core for light weight.
• Core: Two rows of 1-inch tubes give strong heat transfer without blocking airflow. (MotorTrend)
• Built-in coolers: Many Silverado radiators include extra passages for automatic-transmission fluid. (Wikipedia)

Common Symptoms

1. Temperature gauge creeping past halfway.
2. Sweet-smelling puddle under the bumper.
3. White steam from the grille at stoplights.
4. Visible green-orange crust around the tank crimp seams. (kemptonchevrolet.com)

Known Causes

• GM's 2014-2016 trucks can develop hairline tube cracks from excess thermostat cycling, leading to coolant odor or seepage. A service bulletin instructs replacing both the radiator and thermostat to cure the issue. (NHTSA)
• Clogged fins from bugs or mud cut airflow and raise temps, common on off-road Z71 models. (CarCareKiosk)

Maintenance Steps

• Flush interval: GM specifies DEX-COOL replacement every 5 years or 150,000 mi-whichever comes first; after the first service, change every two years or 30 k mi if you mix coolants. (Bob Is The Oil Guy)
• DIY drain & fill: Open the petcock, drain about 2 gal, refill 50/50 mix, run engine with heater on, then "burp" air at the surge tank. A detailed walk-through video shows the exact petcock location on 2019 models. (CarCareKiosk)

Replacement Tips

• Expect 4-6 hours flat-rate labor; driveway swaps take most home mechanics a Saturday.
• Always use new O-rings on quick-connect hose fittings and torque fan-shroud bolts to spec (89 in-lb typical). (normaamericasds.com)
• Bleed air pockets or the engine may overheat even with a brand-new heat-exchanger. (CarCareKiosk)

Coolant Facts

• Silverado engines leave the factory with orange Organic Acid Technology (OAT) coolant. Mixing "universal" green IAT with orange can cut service life to 2 years. (Bob Is The Oil Guy)
• Under normal pressure (15 psi cap) a 50/50 mix boils at ~265 °F, giving plenty of buffer on steep grades. (MotorTrend)

Upgrade Options

A performance-tuned Silverado doing heavy towing benefits from a dual-core aluminum radiator with 1-inch tubes and dual electric puller fans-these move more air at idle while saving weight over copper/brass units. (MotorTrend)

Safety & Disposal

• Never pour used coolant down a drain; ethylene glycol can poison wildlife and carries heavy metals after long service. The U.S. EPA recommends on-site, mobile, or off-site recycling instead. (US EPA)
• Scrap aluminum radiators have cash value. Many regional metals yards run buy-back programs that keep the alloy in circulation. (Sutter Metals)

Frequently Asked Questions

Q: What does the radiator do on a Silverado 1500?
A: It's a heat-exchanger that cools hot antifreeze before it returns to the engine. (Wikipedia)

Q: How much coolant does it hold?
A: Around 16-18 quarts (15-17 liters) for most 2014-present 5.3 L trucks. (GM-Trucks.com)

Q: Which coolant should I use?
A: GM-approved orange DEX-COOL or an equivalent OAT blend. (Bob Is The Oil Guy)

Q: How often should I change coolant?
A: Every 5 years or 150,000 miles, then every 2 years/30 k miles after that if mixed.

Q: What are signs the cooling core is failing?
A: Rising temp gauge, coolant smell, visible leaks, or steam from the grille. (kemptonchevrolet.com)

Q: Is it safe to drive with a leaking radiator?
A: Only for a very short distance to avoid overheating; keep the level topped off and monitor the gauge.

Q: Do I have to bleed the system after replacement?
A: Yes-trapped air pockets can cause immediate overheating. (CarCareKiosk)

Q: How do I dispose of old coolant?
A: Take it to a recycling facility or a shop that offers coolant recovery. Dumping is illegal and harmful. (US EPA)

Q: Are aluminum radiators better for towing?
A: Yes; dual-core aluminum designs shed heat faster and weigh less than copper/brass versions. (MotorTrend)

Q: Should I install a larger radiator?
A: If you tow heavy, live in hot climates, or have added power, a thicker or multi-row unit improves thermal reserve. (MotorTrend)
