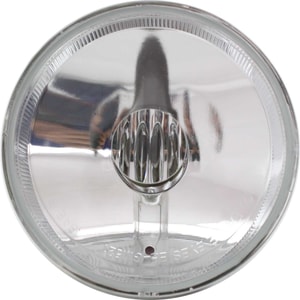

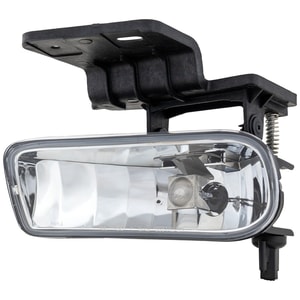

Buy Chevrolet (Chevy) Suburban 2500 Fog Light Assembly

Quick Overview

Chevrolet's Suburban 2500 uses a pair of low-mounted fog lights-also called fog lamps, driving lamps, or auxiliary lights-to shine a short, wide beam under the blanket of fog, rain, or snow that can bounce light back into a driver's eyes. These lamps sit in the lower bumper, below the main head-lamps, so the beam stays on the road surface and out of the thickest moisture layer. The current Suburban line is in its 12th generation, but the heavy-duty 2500 trim was last built for model-year 2013 and earlier (2000-2013) (Wikipedia) .

Why They Matter

• Better sight in bad weather - A flat, low beam cuts reflection and glare.
• Added contrast - Many drivers switch on fog lamps at dusk for side-of-road visibility.
• Back-up if a head-lamp fails - Two extra forward-facing lights can get you home safely.

Fitment Basics

← scroll table horizontally →

*Verify bulb type in your owner's manual before ordering.

Light Technology Options

• Halogen - Factory standard; cheap, warm-white beam.
• LED - Retrofit kits run cooler, draw less power, and last up to 30,000 hours.
• Selective-yellow lenses/bulbs - Yellow (≈3000 K) pierces fog better because the color scatters less in water droplets (Car and Driver).

Regulations & Aiming

Federal rules (FMVSS 108) do not set beam specs for fog lamps; states decide placement and color. The U.S. DOT notes that fog lights may be prohibited if they block required lighting (NHTSA). Aim them so the top of the hot spot is at or just below head-lamp center height when the truck sits on level ground at 25 ft from a wall (Popular Mechanics).

Installation Tips

1. Unbolt the splash shield under the bumper for easy rear access.
2. Disconnect the harness first; never twist a live socket (risk of short).
3. Torque mounting screws to snug, not tight-plastic housings crack easily.
4. Add dielectric grease to the connector seals to block water.
   A full DIY guide to running wires, relays, and switches is outlined by Popular Mechanics (Popular Mechanics).

Beam Aiming Check

• Park 25 ft from a flat wall.
• Measure fog-lamp center height; tape a line on the wall at that height.
• Top of the beam's bright cut-off should hit the tape or up to 2 in. below (Popular Mechanics).

Maintenance & Troubleshooting

• Condensation inside lens - A small haze after rain is normal; it should clear within 20 min of use. Persistent moisture means the housing vent or seal is damaged. Dry the lamp with gentle heat and replace torn gaskets (Popular Mechanics).
• Blown fuse - Fog lights pull 10-15 A. Check the under-hood relay block (usually fuse #4 or #5 on the GMT800).
• Dim LED retrofit - Verify polarity; LEDs will not light if the two-pin connector is reversed.

Upgrades Worth Considering

• LED modules with built-in heatsinks-lower amp draw frees capacity for winch or trailer power.
• Polycarbonate lenses with UV hard-coat-resist rock chips and yellowing.
• Glass projector conversions-sharper cut-off and legal beam pattern when aimed correctly.

Safety Reminders

• Use fog lamps only below 40 mph in thick fog or heavy rain; at highway speed the shorter beam does not reach far enough.
• Turn them off when oncoming traffic is 500 ft away to avoid glare.
• Many states allow two front auxiliary lights max, mounted below head-lamp height. Check local code before adding extra pods (NHTSA).

Frequently Asked Questions

Q: Are fog lights and driving lights the same thing?
A: On the Suburban 2500 they are; both terms describe the factory low-mounted auxiliary lamps. Aftermarket "driving lights" mounted higher obey different beam rules.

Q: What years of Suburban 2500 will this fog-lamp assembly fit?
A: 2000 through 2013 model-years, covering the GMT800 and GMT900 platforms (Wikipedia).

Q: Do I need yellow bulbs to get better performance?
A: Not required, but selective-yellow lenses or 3000 K LED chips can reduce back-glare in fog and snow (Car and Driver).

Q: Is swapping to LED legal?
A: Most states allow LED bulbs if the beam pattern and brightness stay within SAE J583 fog-lamp limits. Aim and test pattern before driving.

Q: How can I stop condensation inside the lens?
A: First, run the lamps for 15-20 minutes to evaporate moisture. If droplets stay, reseal the back cap or replace the housing; lingering water can fry the bulb filament (Popular Mechanics).

Q: Why won't my new bulbs light up?
A: Check (1) the fog-lamp fuse, (2) socket polarity on LED kits, and (3) ground wire corrosion behind the bumper.

Q: Can fog lights replace headlights in an emergency?
A: They help but are not bright or far-reaching enough to be legal stand-alone lights. Use reduced speed until the head-lamps are fixed.

Q: How often should I replace fog-lamp bulbs?
A: Halogen H3 bulbs last 500-1,000 hours; LED modules can last 20,000 hours or more. Change bulbs in pairs to keep beam color even.

Key Takeaways

Fog lamps on a Suburban 2500 are small but mighty safety aids. Keep them clear, dry, and aimed, and they will cut through mist and storm when the big SUV needs it most.
