Dodge Charger fog lights-also called fog lamps, driving lights, or even mist lamps-sit low in the bumper and throw a wide, flat beam that helps you spot lane lines and curbs when thick fog, heavy rain, or blowing snow cuts head-light range. (Nissan Parts) United States rule FMVSS 108 and industry guide SAE J583 set their color, aim, and brightness, so every factory or replacement Charger fog lamp has to meet the same safety marks. (eCFR, SAE International) Newer Chargers trade the old 55-watt halogen bulb for compact LED modules that pump out about 510 lumens per side while sipping less power. (Diode Dynamics) Selective-yellow lenses, proven by lighting tests to boost contrast in poor weather, are a popular upgrade. (Car and Driver) Because the lamps mount close to the ground, swapping one is usually a quick wheel-well or bumper-cover job that most owners finish with hand tools and a plug-and-play harness. (YouTube, Mopar Genuine Parts) Just remember-running fog lamps in clear weather can blind on-coming traffic and, in many states, break the law. (The US Sun, The Sun)

Purpose & Benefits

Fog lights shine a short, wide beam aimed a few degrees down. This pattern slips under the wall of fog, dust, or snow that bounces head-light glare back at you, letting you see pavement edges, reflectors, and stray debris. (Nissan Parts) The low mounting point also lowers glare for other drivers, a key reason these auxiliary lamps are regulated separately from headlights. (SAE International)

Model Fitment

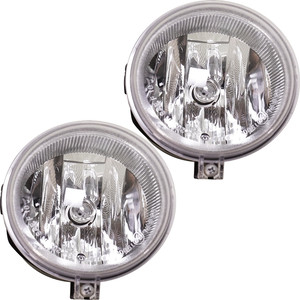

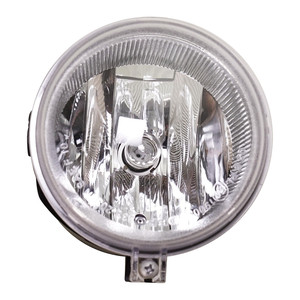

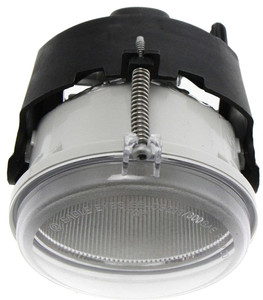

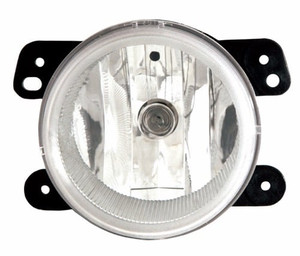

• 2006-2010 (LX body): Round halogen units use PSX24W or H10 bulbs and bolt into pre-threaded tabs inside the lower fascia. (Vehicle Safety Supply)
• 2011-2014 (LD pre-refresh): Oval reflector housings with H11 bulbs; plug directly into the factory harness. (Underground Lighting)

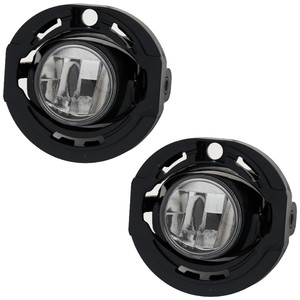

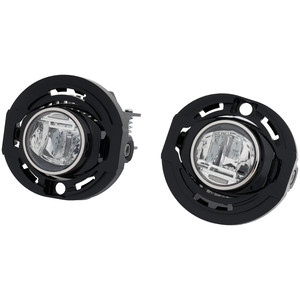

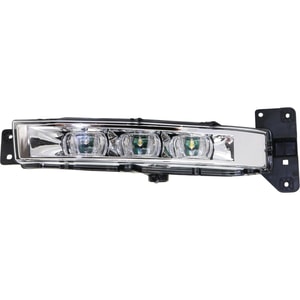

• 2015-2023 (LD refresh): Facelift bumper accepts LED or reflector assemblies. Mopar's kit 82214427AC adds factory-style LEDs and a steering-column switch. (Mopar Genuine Parts)
• 2020-2025 (current): LED bumper-light kits fit SXT, GT, R/T, Scat Pack, and Hellcat trims and include a weather-sealed wiring loom. (Amazon)

Bulb Types

← scroll table horizontally →

Design Features

Projector-style fog lamps use an internal lens to focus the beam more sharply, reducing stray light and glare, while reflector lamps cast a broader pattern that covers more road width. (Car and Driver) Both styles in modern Chargers seal the LED or bulb behind a tough poly-carbonate lens to resist stone chips and meet the IP67 water-ingress rating described in automotive-lighting standards. (Wikipedia)

Regulations & Law

* FMVSS 108 (49 CFR 571.108) limits front fog-lamp color to white or selective yellow and caps luminous intensity to prevent driver dazzle. (eCFR)
* SAE J583 sets a downward-angle aim of roughly 2.5 °, ensuring light stays under the fog layer. (SAE International)
* Many U.S. states fine drivers for using fog lamps when visibility exceeds 100 m; misuse complaints led to calls for stricter glare laws in 2024. (The US Sun, The Sun)

Install & Aim

1. Remove ten 7 mm screws and the bumper splash-guard pins. (Vehicle Safety Supply)
2. Twist out the old bulb or unbolt the assembly.
3. Seat the new lamp; torque mounting screws snugly (≈ 3 N·m).
4. Plug the factory harness or supplied DT connector.
5. Aim the beam on a level wall: cut-off line should sit just below hub height at 25 ft. (YouTube)

Maintenance & Troubleshooting

• Wipe lenses with mild soap; harsh cleaners craze the coating. (Car and Driver)
• Moisture inside? Check the back-cap O-ring for nicks and replace if swollen. (Wikipedia)
• LED flicker on startup often signals a loose ground or a missing CAN-bus decoder; add the supplied resistor harness. (Amazon)

Upgrades & Add-Ons

Selective-yellow film boosts contrast; LED kits for 2015-up models come pre-wired and meet DOT and SAE rules when aimed properly. (Car and Driver, Amazon) Daytime-running-lamp (DRL) logic in newer Chargers turns fog lamps off above set speeds to avoid glare-a feature explained in modern lighting guides. (Carlightvision)

Frequently Asked Questions

Q: Will fog lights fit my base-trim Charger?
A: Yes. Pre-wired connectors are taped behind the bumper on most trims; add a factory-style switch and relay to activate them. (Mopar Genuine Parts)

Q: Are LEDs legal everywhere?
A: LEDs are legal if they meet FMVSS 108 color and brightness limits and are aimed correctly. (eCFR)

Q: Do yellow fog lamps really work better?
A: Tests show selective-yellow cuts back-scatter and improves contrast in dense fog compared to pure white light. (Car and Driver)

Q: Can I run fog lights alone at night?
A: No. They are meant to supplement low-beams, not replace them; running them alone reduces forward reach and violates lighting codes. (Wikipedia)

Q: How bright is a stock halogen bulb?
A: An H11 halogen pushes around 1 350 lumens, or about one-quarter the output of many LED upgrades. (Underground Lighting)

Q: Do projector fog lamps fit non-projector cars?
A: Yes, if the housing shape and mounting tabs match; the lens style does not change the bumper opening. (Car and Driver)

Q: Why do my LEDs flicker?
A: The Charger's computer sees the low draw as a fault; plug-and-play resistor decoders cure the issue. (Amazon)

Q: Is aiming important?
A: Very. A beam set even one inch too high can blind oncoming drivers and get you ticketed. (The Sun)

Q: What color temperatures are common?
A: Halogen emits about 3 200 K (warm white); most LEDs are 6 000-6 500 K (cool white) or 3 000 K (selective yellow). (SEALIGHT)

Q: Can fog lamps double as DRLs?
A: Some Charger trims run fog lamps at reduced power for DRL duty, but they dim or shut off when headlights come on. (Carlightvision)

Q: Are rear fog lights offered?
A: Dodge does not package rear fog lamps on North-American Chargers; they are more common in European markets. (Wikipedia)

Q: How long do LEDs last?
A: Quality LED chips can exceed 20 000 hours-often outliving the vehicle. (Underground Lighting)

Q: Does using fog lights hurt fuel economy?
A: No. Even high-output LEDs draw less than 5 % of the alternator's capacity. (Diode Dynamics)

Q: What fuse protects the circuit?
A: Chargers typically use a 20 A micro-fuse in slot F17 (location varies by year-check the lid diagram). (Vehicle Safety Supply)

Q: Can I add flashing patterns?
A: Aftermarket LED units can strobe for shows, but flashing white lights on public roads is illegal.

Q: Do I need to replace both lights at once?
A: Yes-pairs ensure even color and brightness, especially with aging halogen bulbs. (Underground Lighting)

This guide delivers a full picture of Dodge Charger fog lights-fitment, function, legal rules, upgrades, and care-so shoppers and DIYers alike can make safe, smart lighting choices.
