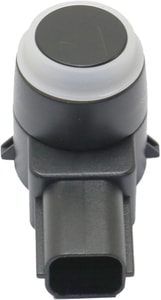

Buy Dodge Ram 2500 Parking Assist Sensor

Modern Dodge Ram 2500 trucks use an ultrasonic parking-assist sensor-also called a backup sensor, park-distance sensor, proximity radar, or ParkSense transducer-to "see" obstacles you can't. Mounted in the bumpers, the tiny discs send out sound waves around 40 kHz, wait milliseconds for an echo, and warn you with lights, chimes, or even an automatic brake pulse if something is too close. Keeping them clean, correctly placed (about 24-28 in. above the pavement), and in good electronic health not only protects your truck's bodywork but can cut your odds of a backing crash by double-digit percentages, according to safety researchers. Below is an easy-reading yet deep dive with every fact, figure, and tip a shopper-or a DIY-er-needs.

Part Basics

• Dodge labels the system ParkSense®, offered rear-only (sales code XAA) or front-and-rear (XAG). Each kit includes four rear sensors, bezels, wiring and a dash switch (ramtrucks).
• The sensors sit in precise mounting holes; if they're lower than 24.4 in. they may "see" the road, and if higher than 28.4 in. they may miss low posts .
• Current Ram 2500s (2017-2025) list ParkSense as standard or optional on most trims, and it pairs with available rear-auto-brake, camera, and trailer reverse steering aids (MotorTrend).

How It Works

• Ultrasonic time-of-flight: the piezo element turns voltage into a sound pulse >20 kHz and back into voltage when the echo returns, letting the module calculate distance (Texas Instruments).
• Typical range on a pickup is 2-2.5 m (6-8 ft.)-farther than a side mirror can show .
• Four to eight sensors create overlapping "cones" so the truck can judge both width and depth of obstacles .
• When reverse is selected, the control module wakes, checks each sensor's "click" test tone, and arms audible/visual warnings (RepairPal.com).

Compatibility

• Works on every fourth-generation heavy-duty Ram 2500 (2010-present) and fifth-generation 1500/2500. Trim lines with the Safety Group automatically wire the rear harness (MotorTrend).
• Sensors are color-coded to match factory bumpers; mixing colors can still function but may leave cosmetic rings.

Common Problems

• "Service Park Assist" message often traces to one failed sensor, a loose harness, or dirt/ice covering the lens (5th Gen Rams, ChipsAway).
• DTC U0159: lost communication with the Park-Assist Control Module over the CAN bus; check fused power, grounds, and network lines .
• False beeps above roughly 5 mph frequently point to wiring chafes or a sensor mounted outside spec height (ramtrucks).

DIY Diagnostics

1. Shift to Reverse with wheels chocked; listen for a faint tick from each disc-no tick means a dead sensor (RepairPal.com).
2. Scan for stored B-codes (B1295-B1298 indicate specific rear sensor faults).
3. Unplug suspect sensor and measure ~630-680 Ω between signal pins; zero or open readings confirm failure (5th Gen Rams).

Replacement Steps

• Pop the bezel tabs, unplug the waterproof connector, swap the disc, and reseat firmly flush with the bumper.
• Clear codes with a scan tool; ParkSense usually self-calibrates after one clean drive cycle at <12 mph (Texas Instruments).

Cost Factors

• Average parts-and-labor to replace a single Ram 2500 backup sensor runs US $937-$971 (national mean) (RepairPal.com).
• Labor is just 8-12 percent of the bill, so DIYers save big if they own trim tools and torx bits.

Maintenance Tips

• Wash sensors gently with a microfiber cloth and mild shampoo; drag-free circles prevent micro-scratches that scatter ultrasound (ChipsAway).
• In winter, knock away ice jackets and road salt-both can mute echoes and trigger "Unavailable" warnings (5th Gen Rams).
• Check that trailer hitches, winches, or custom bumpers don't block the sensor's 80 mm diameter "vision" field (ramtrucks).

Safety Benefits

• Rear parking sensors can cut police-reported backing crashes by up to 34 % in some vehicle groups, and combining them with a camera lowers risk another 13 % (IIHS).
• NHTSA lists rear-automatic-braking-ParkSense's partner feature-as a life-saving driver-assistance technology (NHTSA).

Tech Evolution

• Early Ram HD brochures (2017) already highlighted ParkSense as part of a class-exclusive safety suite for big pickups .
• 2024-2025 models add trailer-reverse steering and drowsy-driver alerts, integrating the same ultrasonic array for object mapping (MotorTrend).
• Suppliers continue to move from 4-sensor to 12-sensor 360° "radar fences," and future designs may swap ultrasound for low-cost lidar rings (Texas Instruments).

Frequently Asked Questions

Q: What frequency do Ram parking sensors use?
A: About 40 kHz, well above human hearing, for a narrow, precise sound cone .

Q: How far can the sensor "see"?
A: Roughly 6-8 feet (2-2.5 m) in clear air before the echo gets too weak .

Q: Will they detect a thin metal pole?
A: They catch most objects bigger than 2 in. wide, but very slim posts may fall between the beams-always check mirrors too.

Q: Why does the dash say "ParkSense Temporarily Unavailable"?
A: The system disables itself if any disc is iced over, caked in mud, or electronically silent. A quick wipe or sensor test usually restores it (5th Gen Rams).

Q: Do I need to re-program new sensors?
A: No. Genuine-spec sensors auto-learn once plugged in; just clear stored trouble codes and drive at low speed for calibration (RepairPal.com).

Q: Can one bad sensor shut off the whole system?
A: Yes-ParkSense fails safe. A single open circuit stops all warnings until the fault clears .

Q: Is ParkSense part of the backup camera?
A: They're separate helpers. Sensors give sound; the camera gives vision. Together they reduce backing crashes best (IIHS).

Q: What's the difference between ParkSense and ParkView?
A: ParkSense = beeps from ultrasonic sensors; ParkView = live rear video feed. Many Ram 2500 trims bundle both.

Q: How can I avoid damage when off-roading?
A: Install skid-plate style guards that leave the sensor faces exposed, maintain correct height, and avoid thick mud buildup.

Q: Are parking sensors mandatory?
A: In the U.S. only backup cameras are federally required (since May 2018); sensors remain optional but widely recommended by NHTSA (NHTSA).

Keep these simple habits-clean lenses, quick tests, and prompt repairs-and your Ram 2500's parking-assist sensors will keep right on guarding your chrome and your peace of mind.
