Buy Ford E-250 Econoline Side View Mirrors

Quick Summary

The Ford E-250 Econoline side mirror-also called a side-view mirror, wing mirror, or door mirror-lets the driver see traffic beside and behind the van. Knowing its sizes, power and heating options, wiring, laws, and upkeep helps owners choose the right replacement and use it safely.

What the Mirror Does

The outside rear-view mirror gives a view down the van's flanks so the driver can change lanes and park safely. Federal Motor Vehicle Safety Standard 111 (FMVSS 111) tells makers exactly how much of the road that mirror must show and how big the reflective surface must be . Without it, a driver loses critical sight lines, increasing crash risk.

Fit & Years

• Platform: Fits E-Series vans built from model-year 1992 through the final 2014 E-250 cargo/passenger van run.
• Mounting holes: Three-bolt triangular pattern on the door skin (1992-2007) and three-stud sail-panel mount (2008-2014).
• Left vs. right: Driver mirror is flat glass for true distance; passenger mirror is convex in U.S. vans to widen the view, matching FMVSS 111 rules .

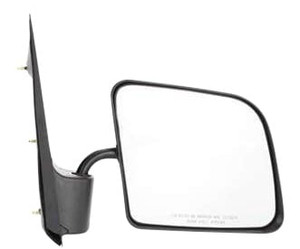

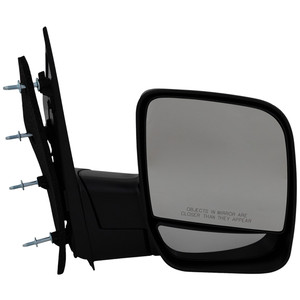

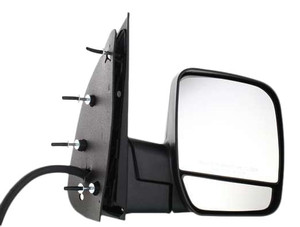

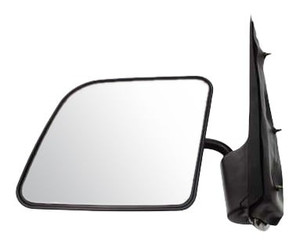

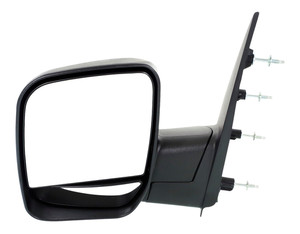

Styles & Options

← scroll table horizontally →

Legal Rules

• Federal: Every van must keep an intact driver-side mirror and either an interior or passenger mirror that meets the coverage angles in FMVSS 111 .
• Commercial checks: The FMCSA requires mirrors to be present and free of "disabling damage" during the yearly DOT inspection (CSA Compliance) and treats a shattered mirror as a defect that can sideline a vehicle (FMCSA).
• State example: California bans driving with an obstructed mirror or with objects hanging on it that block view (California DMV).

Safety & Adjustment

The Blind-zone Glare Elimination (BGE) method rotates each mirror about 15° outward so a passing vehicle appears in the side glass before it leaves the inside mirror, wiping out the blind spot . After adjusting: check a car overtaking you-its image should move smoothly from center mirror to side mirror to peripheral vision. DMV safety advice also reminds drivers to glance, not stare, and keep forward scene in sight (California DMV).

DIY Replacement

1. Pop the inside sail trim with a plastic pry tool.
2. Unplug the harness (if powered/heated).
3. Support the mirror outside the door, then remove the three 11 mm nuts.
4. Lift mirror away; reverse steps to install. Detailed walk-through videos show the whole swap in about 15 minutes (YouTube) (YouTube).
   Torque hint: Snug nuts to roughly 8 N·m-just past firm wrist tight-to avoid door-skin dents.

Wiring & Power

A common Velvac/Ford loom uses: Red = 12 V, Black = ground, White = up/down motor, Yellow = left/right motor, Blue = heater feed (velvac.com). If the mirror will not move, confirm Fuse #32 (5 A) is live in the passenger fuse panel before ordering motors.

Care & Repair

• Clean glass weekly with mild soap and water; harsh cleaners scratch the reflective coating.
• Lubricate fold hinges twice a year with silicone spray.
• Check vibration: A mirror that shakes above 40 mph likely has loose mounting nuts or a cracked plastic shell-fix promptly or the glass may fall out.
• Recall watch: A 2019 NHTSA report notes image-reversal issues in some aftermarket camera mirrors, reminding owners to verify correct left/right orientation (NHTSA).

Upgrades

• Blind-Spot Monitoring retrofit: Aftermarket radar pods mount behind the bumper and feed warning LEDs on the mirror glass; calibration steps include battery reset and sensor alignment (SmartSafe).
• Wide-body towing mirrors: Fixed-arm "2020" style mirrors give a clear lane view for cutaway box vans and RV conversions, with optional heat and convex lowers .
• Convex glass swap: Drivers wanting a larger field can install convex driver-side glass, but check FMVSS 111 first because U.S. law still requires flat glass on that side .

Costs

Independent labor to swap a powered mirror runs roughly ¾ hour. Parts and labor combined average $250-$400 for a powered, heated unit, based on comparable Ford truck pricing data (RepairPal.com). Manual mirrors cost less; towing mirrors cost more due to alloy arms and extra glass.

Frequently Asked Questions

Q: How do I tell if my van already has heated mirrors?
A: Look for a defrost icon on the mirror glass or a thin grid on the backside. Press the rear-defrost switch; you should feel warmth in about two minutes.

Q: Which fuse runs the power mirrors on a 2002-2008 E-250?
A: Fuse #32, a 5-amp blade in the passenger-side fuse box .

Q: Can I drive if the passenger wing mirror is broken?
A: U.S. federal law lets you drive if you still have a compliant center mirror and driver mirror, but some states may ticket you, and FMCSA rules forbid commercial vans from operating with damaged mirrors (CSA Compliance).

Q: Why is my driver mirror flat while the right one is curved?
A: FMVSS 111 requires true-distance flat glass on the driver's side; the passenger side may be convex to widen the view .

Q: What tools do I need to replace a mirror?
A: 11 mm socket, trim pick, Torx T20 (for 2008+ mirrors), and thread sealant. The job is beginner-friendly (YouTube).

Q: My power mirror hums but won't move. What's wrong?
A: The motor gears may be stripped. Replace the motor or the whole mirror head; check wiring colors to match (velvac.com).

Q: Are aftermarket blind-spot sensors hard to set up?
A: Installation is simple, but you must perform a calibration procedure so the warning lights trigger at the right angle (SmartSafe).

Q: How do I cut mirror glare at night?
A: Use the BGE adjustment method to angle mirrors outward; this keeps following headlights out of the reflective zone .

Q: What maintenance keeps the mirror legal?
A: Keep glass intact, tighten mounting studs yearly, and replace if reflective coating peels-which can fail a safety inspection (FMCSA).

(Numbers in brackets link to the full source for deeper reading.)
