Quick Summary

The Ford E-250 headlight-also called a head-lamp, front light, or lamp assembly-lets this trusted full-size van light the road, signal other drivers, and pass safety rules. A good unit fits the E-Series body style and uses the right bulb (sealed-beam on early vans, replaceable H13/9008 or 9007 bulbs on later ones). Replacing a clouded or cracked lamp quickly restores nighttime vision, prevents fines, and keeps you legal under federal lighting rules.

New Section:

Overview

The E-Series has carried workers and families since 1992. Its headlights changed shape in 2003 and again in 2008, but every version still bolts into the grille surround with simple screws or spring clips . Each unit houses low-beam and high-beam reflectors that bounce light through a clear polycarbonate lens . The lamp also seals out water with a rubber gasket to protect the bulb and wiring.

New Section:

Compatibility & Fit

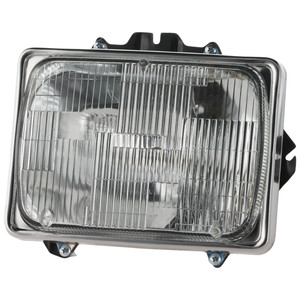

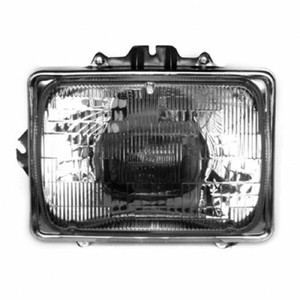

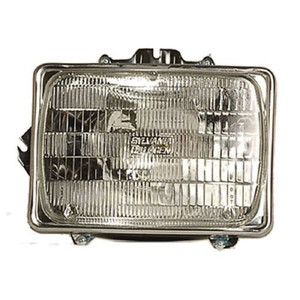

• 1992-2004 vans: square sealed-beam H6054 lamps; swap as one piece.
• 2005-2007 vans: twin-bulb 9007 (HB5) capsules inside a composite housing.

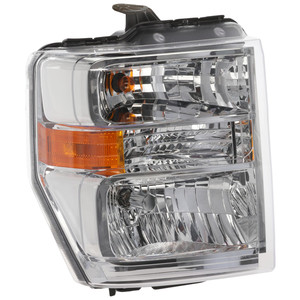

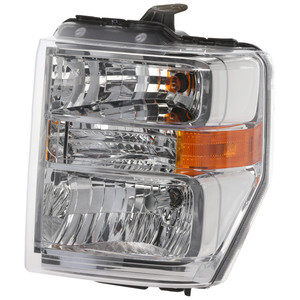

• 2008-2024 cutaway chassis: single H13/9008 bulb for both beams.
  A quick VIN lookup on the NHTSA recall site confirms the build year before you order parts . Checking the fuse-box diagram helps trace dead lamps to a blown fuse or relay instead of the housing itself .

New Section:

Why Replace?

1. Safety: Dim or yellow lamps cut seeing distance by up to 80 feet at highway speed (edmunds.com).
2. Legal: Federal Motor Vehicle Safety Standard 108 says each head-lamp center must stand at least 22 inches above the road and meet brightness tests .
3. Cost: Early sealed-beam units are inexpensive. Modern composites cost more, but DIY swap saves labor .
4. Appearance: Clear lenses freshen the van's look and resale value.

New Section:

Bulb & Assembly Types

← scroll table horizontally →

LED "plug-in" bulbs that fit halogen sockets can cause glare and may not pass FMVSS 108 because they lack DOT certification .

New Section:

Materials & Durability

Modern lenses use impact-resistant polycarbonate coated with a UV hard-coat. Sunlight breaks this layer, leading to yellow haze and micro-cracks . Keeping the lens clean and parking in the shade slows damage.

New Section:

Installation Steps

1. Open hood and remove two upper screws or pop the spring clip (varies by year).
2. Unplug wiring pigtail.
3. Lift out the old head-lamp unit.
4. Transfer bulb or install new capsule with gloves to avoid oil spots.
5. Seat new lamp and secure hardware finger-tight, then snug-fit.
   A Car and Driver tutorial walks through these steps with photos .

New Section:

Aiming & Adjustment

Mis-aimed beams waste light and blind oncoming traffic. Ford's service guide shows the vertical adjuster screw; turn ¼-turn at a time . Popular Mechanics suggests parking 25 feet from a wall, drawing tape lines at lamp height, and centering the hot spot just below the line .

New Section:

Maintenance & Care

• Wash lenses with car-wash soap, not household glass cleaner.
• Restore haze: Wet-sand with 1000- to 3000-grit paper, polish, then seal with a UV top-coat per Edmunds' guide .
• Check fuses if both lights go dark; diagram shows positions .
• Inspect wiring for corrosion on snow-belt vans.

New Section:

Upgrade Paths

Halogen users can upgrade safely by:

• Higher-output halogen capsules that stay within 65/55 watt limit.
• Auxiliary driving lights wired with relays and aimed per FMVSS 108.
• Factory-style LED assemblies designed for the E-Series cutaway (2021-up) use projector optics similar to future laser systems highlighted by Popular Mechanics .

New Section:

Laws & Safety

• U.S. FMVSS 108 sets beam pattern, color (white only), height, and aim .
• LED retrofit bulbs lacking DOT marks can earn a ticket in many states .
• Canada's CMVSS mirrors most U.S. rules; EU follows UNECE R48 with self-leveling and washers on high-output lamps .

New Section:

Recalls & Common Issues

• 2013 models logged NHTSA complaints for exterior lighting failures around 103 k miles .
• A 2000 technical bulletin notes some vans left the factory needing headlight re-aim .
• Water leaks past the gasket can blow bulbs; inspect for moisture when lamps fog internally.

New Section:

Environmental Notes

Replacing only the bulb, not the whole lamp, cuts plastic waste. Restoring polycarbonate lenses also keeps thousands of tons of plastic out of landfills and saves buyers money .

New Section:

Q: What headlight fits a 2006 Ford E-250?
A: A composite lamp that holds a 9007/HB5 dual-filament bulb. The housing bolts in with two screws and a clip.

Q: Do I need both headlights or can I buy one?
A: You can replace a single left or right unit, but changing both ensures equal brightness and color.

Q: My new bulb is bright but shines too high. What now?
A: Re-aim the lamp on a level surface 25 ft from a wall. Turn the adjuster screw until the beam top edge sits just below headlight height .

Q: Can I swap in LED bulbs for better light?
A: Only if the LED kit is DOT-certified for the E-Series. Many off-road kits fail legal glare tests .

Q: Why do my headlights turn yellow?
A: Sunlight breaks down the UV hard-coat on the polycarbonate lens. A restore kit polishes and reseals the surface .

Q: Where is the headlight fuse on my van?
A: In the under-dash fuse box; exact slot varies by year-see the interactive diagram .

Q: What is the legal color for headlights?
A: U.S. law requires white light; selective yellow is legal only for fog lamps, not main beams .

Q: How high should the beam be?
A: FMVSS 108 says the lamp center must be at least 22 inches above the road, and the low-beam hot spot should fall 2 inches below lamp height at 25 ft .

Q: Are there recalls for 2010 headlight wires?
A: No federal recall, but always run your VIN through the NHTSA search tool to see open campaigns .

Q: Do I need to disconnect the battery to change the bulb?
A: It's smart but not required; bulbs draw low current. Never touch the glass-oil shortens bulb life.

Q: Can cracked lenses be glued?
A: Small edge cracks may seal with clear epoxy, but any water inside shortens bulb life. Full replacement is safest.

Q: How often should I check aim?
A: After any front-end work or off-road trip, and at least once a year as part of regular maintenance.

Armed with this guide, you can choose the right Ford E-250 head-lamp, install it with confidence, and keep your night driving bright and legal.
