The Ford Edge headlight-also called a headlamp, front lamp, or driving light-is vital for safe night driving, signaling, and style. Across 2007-2024 model years, the Edge has used halogen, HID (xenon), and LED projector technology, each with different bulb sizes, wiring, fuses, and aiming methods. Recent safety data show that newer LED projector units earn "Acceptable" to "Poor" ratings depending on trim, while a 2023 recall highlights the need for proper alignment. Federal rules (FMVSS 108) and new adaptive-beam regulations set the legal framework for brightness and aim. DIY owners can replace bulbs in minutes with basic tools, but whole-assembly swaps require removing the fascia. Regular cleaning, correct aiming, and replacing dim bulbs together keep visibility strong and glare low.

Fit & Years

Fit & Years

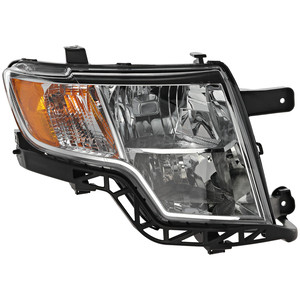

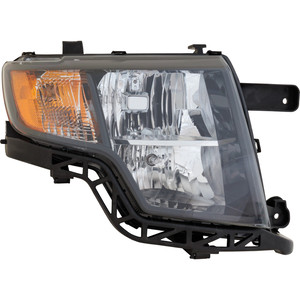

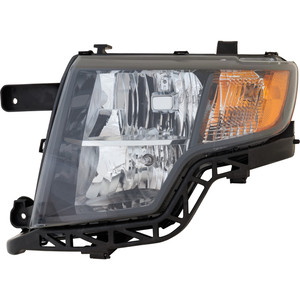

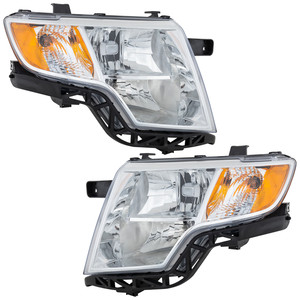

• First gen (2007-2010): Uses 9005 high-beam and H11 low-beam halogen bulbs (AUXITO).

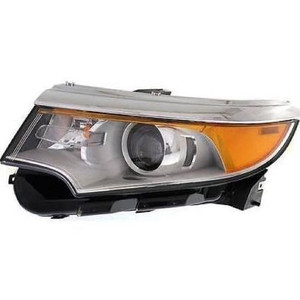

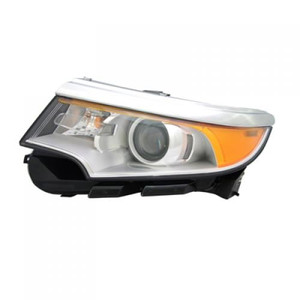

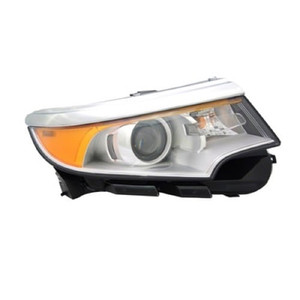

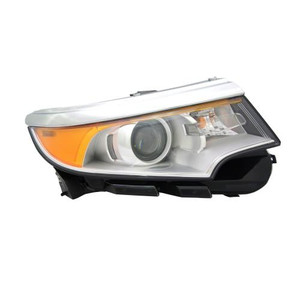

• Mid-cycle (2011-2014): Halogen Twin-9005 or optional D3S HID capsules .
• Second gen refresh (2015): Early-build models take 9012 HIR2; later builds switch to 9005/H11 or D3S HID .

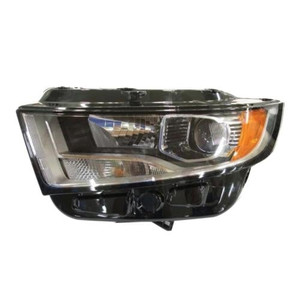

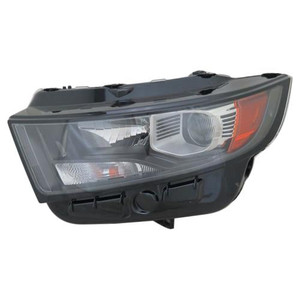

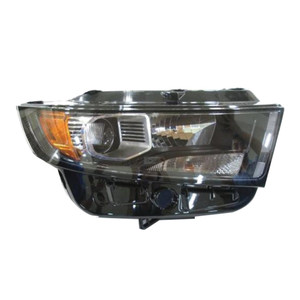

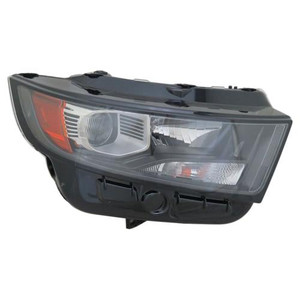

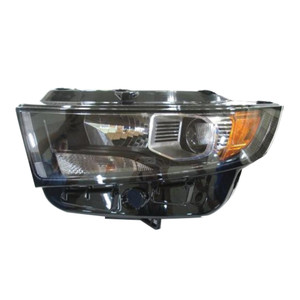

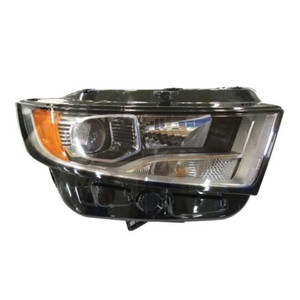

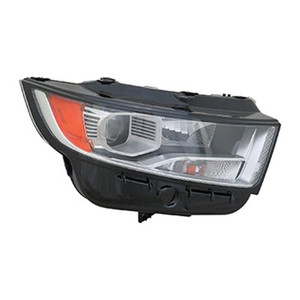

• 2016-2024: Halogen trims keep 9005/H11; LED projector assemblies are standard or optional on most 2019-2024 trims (Alla Lighting Automotive LED Bulbs).
  Always match the headlight assembly to your VIN year before ordering.

Bulb Types

Bulb Types

← scroll table horizontally →

Safety Scores

Safety Scores

The Insurance Institute for Highway Safety rates 2019-2024 Edge LED projectors "Acceptable" with the 301A/401A packages but "Poor" on lower trims (IIHS). Adequate low-beam reach is 99 m on the right lane, but glare exceeded limits by 18.9 % on the straightaway .

Laws & Recalls

Laws & Recalls

• FMVSS 108 sets beam pattern, switching, and brightness rules for every replacement headlamp sold in the U.S. (eCFR).
• Adaptive Driving Beam (ADB) headlamps became legal nationwide in Feb 2022 (NHTSA).
• A Sept 2023 recall covers ~8 500 2023 Edge SUVs for mis-aligned right-side lamps that could blind oncoming traffic; dealers inspect and swap assemblies if needed (The Lemon Law Experts).

Common Problems

Common Problems

• Dim output-aging halogen filaments or clouded plastic lenses (Ford Edge Forum).
• Intermittent outage-loose harness or a blown 10 A fuse (#67, 2015-2022 under-hood box) (Fuse Box).
• One HID pink, one white-arc capsule near end-of-life; replace both D3S bulbs together (Reddit).

DIY Replacement

DIY Replacement

1. Open hood and remove the rubber service cap behind the lamp (Ford Edge Forum).
2. Twist the bulb counter-clockwise and unplug the harness.
3. Seat the new bulb without touching glass; lock clockwise.
4. Test before reinstalling the cap.
   Full assemblies (2011-2014) need a 10 mm socket, Torx T-20, and bumper cover removal; plan 45 minutes per side (YouTube).

Tools Needed

Tools Needed

• 10 mm & 7/32″ sockets with ratchet
• Small flat-head screwdriver
• Phillips screwdriver (for aim screws) (Ford Motor Company)
• Trim-clip pliers for fascia pins
• Nitrile gloves to keep oil off bulbs

Aim Adjustment

Aim Adjustment

Park 7.6 m (25 ft) from a flat wall, mark the lamp centers with tape, then turn the vertical screw with a Phillips driver until the low beam cut-off sits no higher than the tape line . Re-check with a loaded cargo area to avoid glare.

Care & Upgrades

Care & Upgrades

• Clean lenses with mild soap monthly; even thin road film can cut light by 10 % (SELF).
• Polish hazed polycarbonate using a headlight-restoration kit when yellowing appears.
• Upgrade halogen bulbs to premium +30 % output models for a quick brightness boost without rewiring (legal in all 50 states under FMVSS 108) (eCFR).
• Consider full LED projector swap only if the housing carries the DOT mark and matches your trim's wiring.

Costs

Costs

• Single bulb: $15-$35 halogen; $60-$120 HID; $120-$200 LED cartridge (labor extra).
• Complete assembly: $230-$600 per side depending on trim and features (adaptive steering, LED DRL strip).
  Labor averages 0.8-1.2 hr in shop manuals; DIY saves that fee.

Environment

Environment

Old halogen and HID bulbs contain glass and small metal parts. Place spent bulbs in household trash only after sealing in the blister pack; do not toss them loose. HID capsules also hold a trace of mercury-drop them at local electronics recycling centers when possible (NHTSA).

Night-Driving Tips

Night-Driving Tips

Keep windshield inside and out crystal clear, slow down in rural areas, and switch to low beams within 150 m of oncoming traffic to cut glare accidents that triple after dark (SELF).

Frequently Asked Questions

Q: What bulb size fits a 2015 Ford Edge with halogen lights?
A: It uses a single 9005/HB3 bulb that handles both low and high beams (AUXITO).

Q: Can I install LED headlamps in my 2013 Edge?
A: Yes if the LED bulbs are D3S-type HID replacements for the factory projector or if you swap the full DOT-marked LED housing; check state laws for brightness limits (eCFR).

Q: Why are my headlights flickering?
A: Check fuse #67 (2015-2022) or the body-control-module ground; loose grounds often mimic bulb failure (Fuse Box).

Q: How do I know if my Edge is part of the 2023 headlight recall?
A: Enter your VIN at the NHTSA recall portal; the campaign targets certain 2023 builds with right-hand lamp mis-aim (The Lemon Law Experts).

Q: What tools do I need to change the entire headlight assembly?
A: 10 mm and 7/32″ sockets, Phillips driver, flat-head screwdriver, and trim-clip pliers (YouTube).

Q: Do I have to replace both bulbs at once?
A: It's smart because mating bulbs age at the same rate; a new bulb beside an old one can cause uneven brightness (Ford Edge Forum).

Q: Are adaptive-beam headlights legal on the Edge?
A: Yes-since Feb 2022 automakers may equip them, but they are not yet offered on U.S.-spec Edge trims (NHTSA).

Q: How often should I clean the lenses?
A: Give them a gentle wash whenever you fuel up; dirt can block 10 % of light (SELF).

Q: What is the lifespan of a factory LED projector?
A: Around 10 000 working hours-often longer than the vehicle's service life (IIHS).

Q: Where is the headlight fuse on a 2012 Edge?
A: In the passenger-footwell panel, look for fuse #17 (10 A) labeled "Lamps, low beam" (Fuse Box).

All technical data verified against manufacturer charts, U.S. regulations, owner forums, and independent safety agencies as cited above.
