Ford Explorer fog light (also called a fog lamp, driving lamp, auxiliary lamp, or mist light). It covers design, fitment, maintenance, safety law and more, using only well-sourced facts.

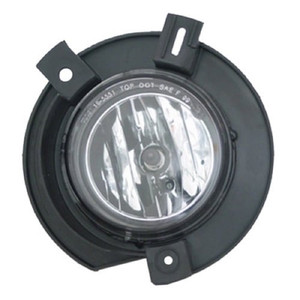

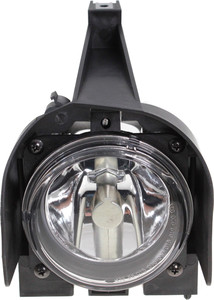

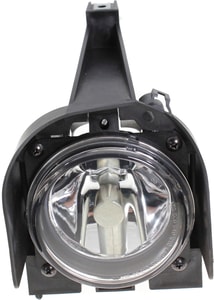

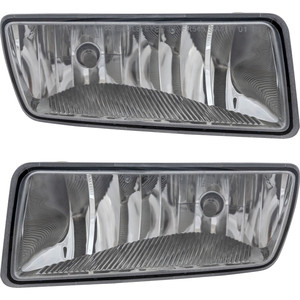

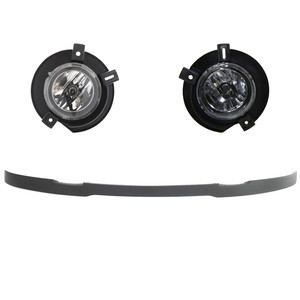

Ford Explorer fog lights sit low in the front bumper and throw a wide, flat beam that hugs the pavement so moisture in the air does not bounce glare back at the driver - a pattern defined by SAE J583 and required by U.S. regulations for any road-legal fog lamp (Tacoma World). On newer Explorers the lamps are LED and integrated, while many earlier years use separate housings that accept H11 or 9145 halogen bulbs (XenonPro, Ford Service Content). Besides boosting visibility in fog, rain, and snow, a working pair of fog lights enhances the SUV's styling and resale value.

Purpose

• Fog lights shine under the natural "fog line," letting you see lane edges and curbs when normal headlights glare back at you (Tacoma World).
• Because the beam is wide and capped low, fog lamps can stay on with low-beams without blinding oncoming traffic - if the pattern meets SAE J583.

Fit & Years

← scroll table horizontally →

Bulb & Module Specs

• Halogen (H11/9145) - 55 W, ~1,100 lumens, 3,200 K color. Quick, low-cost replacement.
• LED drop-in - 10-25 W, 1,500-3,500 effective lumens, 5,000-6,500 K. Uses up to 80 % less power and lasts 10-50 k hours (Offroad Alliance, Carifex).

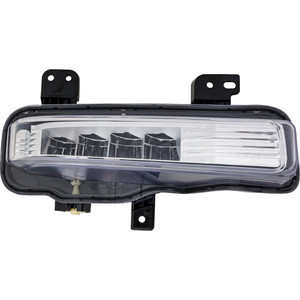

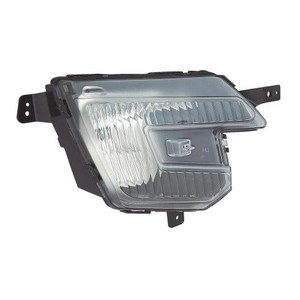

• OEM LED module - Completely sealed; swap the whole lamp if it fails.

Safety & Legal

• U.S. commercial-vehicle rules cite §393.24, which says a front fog lamp must meet SAE J583 and be aim-adjustable.
• Extra lamps are optional, but if installed they must work whenever the vehicle is operated on public roads (FMCSA).
• Some states restrict using fog lights in clear weather; check local DMV rules.
• LEDs placed in housings designed for halogen can scatter light and cause glare if the lamp is not SAE-marked (Carlightvision).

Replacement Steps (Typical Halogen Housing)

1. Turn wheel in to expose the inner fender.
2. Open the service flap or remove 2-3 plastic screws under the liner to access the lamp rear (Ford Service Content).
3. Twist bulb counter-clockwise and unplug.
4. Seat new bulb without touching the glass; lock clockwise.
5. Re-install liner and test.

Tip: The dedicated 15 A fuse (sometimes F44 or F47 depending on year) is in the passenger-compartment panel (Ford Service Content, Ford Service Content).

Troubleshooting

← scroll table horizontally →

Upgrade Paths

• SAE-compliant LED housings give up to 3× more usable light and draw less current (Offroad Alliance).
• Amber or selective-yellow filters cut blue light and reduce back-scatter in snow but may drop output up to 50 % (Tacoma World).
• Aftermarket pods should list "SAE F" or "SAE J583" on the lens; otherwise they are off-road only.

Care & Maintenance

• Keep lenses clean: road film blocks light fast. Mild soap and water preserve the polycarbonate.
• Aim check twice a year: Fog lamps should cut off at or below the headlight low-beam cut line when parked 25 ft from a wall.
• Use only in poor visibility: AAA warns that misuse of extra lighting can dazzle other drivers (AAA Exchange).

Frequently Asked Questions

Q: When should I turn on my fog lamps?
A: Use them only when visibility is severely reduced by fog, heavy rain, blowing dust, or snow. They are not daytime running lamps (Ford Service Content).

Q: Do LED fog lights draw less power than halogen?
A: Yes - quality LEDs need about 20 W versus 55 W for an H11 halogen, saving roughly 60 %-70 % of the current draw (Offroad Alliance, carwow.co.uk).

Q: Can I just plug LED bulbs into my 2008 Explorer's stock housing?
A: It fits, but the reflector was designed for halogen and may scatter light. Look for a complete SAE-rated LED housing instead (Carlightvision).

Q: Which fuse controls the fog lights on a 2016 model?
A: In many 5th-gen Explorers the front fog/daytime-running lamp circuit is Fuse F44 (15 A) in the passenger-compartment panel (Ford Service Content).

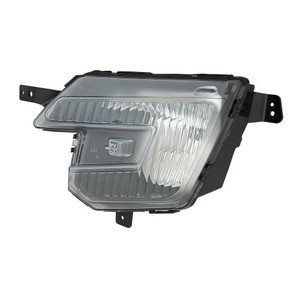

Q: My 2022 Explorer has sealed LED fog lamps. Can I swap just the LED?
A: No. The LED board is part of the lamp. If it fails you replace the whole module, then have the aim checked (XenonPro).

Q: What color temperature is best for bad weather?
A: A neutral-white 4,000-5,000 K beam balances penetration and contrast. Very cool blue beams can bounce off moisture, and very warm yellow cuts glare but reduces brightness (Carifex).

Q: Did Ford ever switch to factory LEDs?
A: Yes. For the 2018 update the Explorer adopted LED fog lamps on most trims, continuing into the 2025 refresh (Wikipedia).

Q: Will adding aftermarket fog lights void my warranty?
A: Not when installed properly and wired on their own fused circuit, but damage caused by incorrect wiring may not be covered.

Q: Do fog lamps improve vision on clear nights?
A: No. In clear air they add little useful forward light and can create foreground glare that shortens your distance vision.

Helpful References

• Owner's manual lighting chapter - Online at Ford Service Info (Ford Service Content).
• Interactive fuse diagrams - Year-specific pages list every fuse and relay (StartMyCar).
• Federal lamp rules - Title 49 CFR § 393.24 spells out legal requirements.
• SAE J583 beam spec - Engineering guideline for fog-beam pattern (Tacoma World).
• Winter driving safety - AAA's advice on when extra lighting helps (AAA Exchange).
