Quick Summary

The Ford Ranger front fender-sometimes called the wheel-arch panel, wing, or mudguard-keeps dirt, rocks, and road spray from hitting the truck's body, supports crash safety, and gives the pickup its tough style. On 2019-present Rangers the panel started out in lightweight aluminum but switched to steel during the 2021 model year. Earlier generations (1983-2011 in North America) used stamped steel, while the high-performance 2024 Ranger Raptor wears wider, vented flares to clear 33-inch tires. Beyond stock parts, owners can choose fiberglass or carbon-fiber options up to 7 inches wider for big-tire builds.

Key Functions

• Debris Shield - The curved shell blocks gravel, water, and slush that the tires kick up, protecting paint and wiring in the engine bay.
• Noise Control - Ranger inner liners use carpet-like plastic to muffle pinging stones and road roar.
• Crash Energy - Modern fenders fold along stamped "crush lines" to soak up low-speed impacts and lessen repair bills.
• Aerodynamics & Style - Smooth arches cut wind drag and give space for design details such as vent badges and flare trim.

Model Years

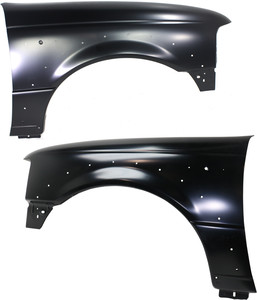

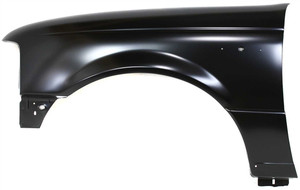

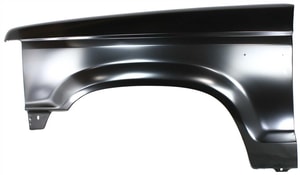

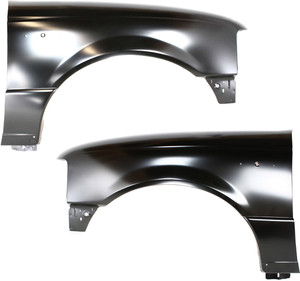

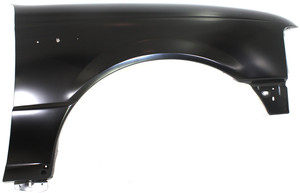

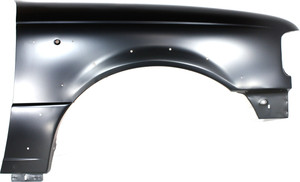

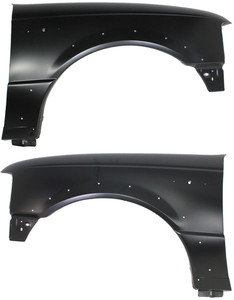

• 1998-2011 ("Edge" body) - Strong steel panel; prone to wheel-arch rust in salty climates.

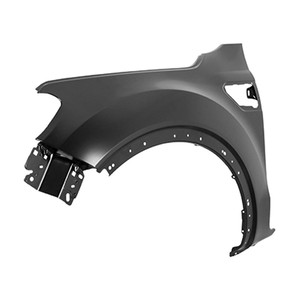

• 2019-Early 2021 (T6 chassis) - Aluminum fender, 17 lb average weight.
• April 2021-Present - Material reverted to corrosion-resistant steel; older trucks that need a replacement now also get the steel service part.
• Tremor & Splash Packages - Add painted flares and black vent inserts for extra attitude. (cars.com)

Materials

• High-Strength Steel - Matches the Ranger's boxed ladder frame for durability.
• Aluminum Alloy - Saves about 6 lb per side and resists dents; found on early 2019-2021 trucks.
• Composites - Fiberglass and carbon fiber fenders are light, don't rust, and often come with tall "bulge" rises for off-road tire clearance.

Common Problems

• Rusty Wheel Arches - Salt and trapped mud rust the lip; cut out bad metal and weld in a patch panel or swap the entire wing.
• Parking-Lot Dings - Thin aluminum dents easily; steel resists but still needs paint repair.
• Loose Liner Clips - Plastic push-pins break; use OE-style rivets or aftermarket panel fasteners.

Upgrades & Mods

• Bolt-on flare kits let 33-35 in tires sit under the body without rubbing.
• Aftermarket fiberglass "pre-runner" wings add 4-7 in of width and re-use factory head-lamp mounts.
• Inner-arch sound deadening mats lower tire noise by adding mass and absorbing vibration.

Installation Tips

1. Disconnect the battery so you don't set off sensors.
2. Remove splash shield screws and rivets; a trim-clip tool speeds the job.
3. Unbolt the fender at the A-pillar, cowl, and core support (8-10 mm bolts).
4. Test-fit gaps to the hood and door before paint.
5. Torque bolts evenly to prevent panel warp; snug to 9 ft-lb, then a quarter-turn (Ford spec).
6. Re-install the liner and spray inner seams with wax or rust-inhibitor.

Care & Maintenance

• Rinse wheel arches weekly in winter to wash away salt.
• Touch-up paint chips early-bare metal flashes rust fast.
• Wipe liners with mild soap; avoid harsh solvents that dry plastic.
• For extra quiet, line the back of the panel with peel-and-stick acoustic tiles.

Safety & Rules

• U.S. laws require tires to be covered at least to the tread edge; oversized rubber needs matching flares.
• Damaged fenders can expose sharp metal and may fail state inspections.
• Proper fit ensures crumple zones work as designed in small-overlap crashes.

Related Parts

• Fender Liner (splash shield) - Blocks water from wiring and head-lamp modules.
• Fender Vent Trim - Plastic trim ring that snaps into the side of 2022-23 trucks for style accents.
• Apron Insulators - Small foam pads placed between fender and engine bay for noise control and gap management.

Frequently Asked Questions

Q: What does a fender do?
A: It acts like a protective shell around the wheel, stopping rocks and water from hitting the truck's body and other cars.

Q: When did Ford change Ranger fenders from aluminum back to steel?
A: Trucks built on or after April 22, 2021 left the factory with steel front fenders.

Q: Will a 2024 fender fit a 2019-2020 Ranger?
A: Yes-the mounting holes and body lines stayed the same, so later-model steel panels swap onto earlier T6 Rangers without drilling.

Q: How heavy is a Ranger fender?
A: The current steel service part is about 17 pounds (7.7 kg) in bare metal.

Q: Can I drive without the inner liner?
A: Many owners have tried, but experts warn it leaves wiring and sensors exposed to water and rocks.

Q: Do wider flares affect fuel economy?
A: Minimal effect, but very wide flares can add drag and slightly reduce mpg at highway speed.

Q: How do I stop rust on the wheel arch?
A: Clean, sand light rust, apply rust-converter primer, then repaint; severe corrosion needs patch metal or a full panel swap.

Q: What tools remove the plastic clips?
A: A panel-clip plier set or flat trim tool pops them out; stubborn rivet-style clips may need drilling.

Q: Are fiberglass fenders street-legal?
A: Yes, as long as they cover the full tire tread and have secure mounts; check local rules for tire coverage.

Q: Does lining the wheel well really quiet the cab?
A: Yes-adding damping mats can reduce tire noise by several decibels, making long drives more comfortable.
