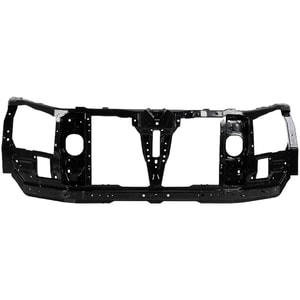

Buy Ford Ranger Radiator Support

Overview

The radiator support in a Ford Ranger serves as the structural frame that holds the radiator, condenser, and other front-end components in place. Over time, especially in older models, this part can become damaged due to collisions, rust, or wear. Replacing the radiator support is essential to maintain the vehicle's structural integrity and ensure proper alignment of the front-end components. (Ranger Forums)

Common Symptoms of a Damaged Radiator Support

• Misaligned Grille or Hood: If the grille or hood doesn't align properly, it might indicate a bent or damaged support.
• Visible Cracks or Rust: Inspecting the support for visible signs of damage can help identify the need for replacement. (YouTube)
• Loose or Shaky Components: A compromised support can cause components like the radiator or condenser to become loose. (Ford Trucks)

Part Numbers and Compatibility

Over the years, Ford has used various part numbers for the Ranger's radiator support, depending on the model year and specifications: (YouTube)

• 1998-2011 Models: The part number AL5Z-16138-A is commonly used for these years. (Lasco Auto Parts)
• 2019-2023 Models: For these newer models, part numbers like KB3Z-16138-A and KB3Z-16138-B are applicable. (Ford Parts Giant)

Materials and Construction

Radiator supports are typically made from steel or aluminum. Steel supports are more common in older models due to their strength and cost-effectiveness. Aluminum supports, found in newer models, offer reduced weight and improved corrosion resistance. (auto-bodyparts.com)

Installation Process

Replacing the radiator support involves several steps:

1. Preparation: Ensure the vehicle is on a stable surface, and disconnect the battery.
2. Remove Front Components: Detach the grille, headlights, bumper, and any other components obstructing access to the support. (Ford Trucks)
3. Unbolt the Support: Locate and remove the bolts securing the support to the vehicle frame.
4. Install New Support: Position the new support in place and secure it with bolts.
5. Reassemble Components: Reattach the previously removed components, ensuring everything is properly aligned.

Maintenance Tips

• Regular Inspections: Periodically check the radiator support for signs of wear or damage.
• Address Rust Promptly: If rust is detected, treat it immediately to prevent further deterioration.
• Proper Alignment: Ensure all components are correctly aligned to prevent undue stress on the support.

Frequently Asked Questions

Q: How can I tell if my radiator support is damaged?

A: Common signs include misaligned front-end components, visible cracks or rust on the support, and loose or shaky parts. (Ranger Forums)

Q: Can I replace the radiator support myself?

A: With the right tools and mechanical knowledge, it's possible. However, if unsure, it's advisable to consult a professional mechanic. (OEM Parts Online)

Q: Are there different radiator supports for various Ranger models?

A: Yes, part numbers vary based on the model year and specifications. Always verify compatibility before purchasing.

Q: How do I prevent rust on the radiator support?

A: Regularly clean the area, apply rust inhibitors, and address any paint chips or scratches promptly.

Q: Is the radiator support covered under warranty?

A: Warranty coverage depends on the manufacturer and retailer. It's essential to check the specific terms before purchasing.

Additional Resources

For a visual guide on replacing the radiator support, you can refer to this detailed video tutorial:

How to Replace Radiator Core Support: Step-by-Step Guide

This video provides a comprehensive walkthrough of the replacement process, offering valuable insights for DIY enthusiasts.

Conclusion

The radiator support is a crucial component in the Ford Ranger, ensuring the proper alignment and support of the front-end parts. Regular maintenance and timely replacement can prolong the vehicle's lifespan and maintain its structural integrity. Always ensure compatibility when sourcing replacement parts and consider professional assistance if needed.
