Overview of Ford Ranger Tail Lights

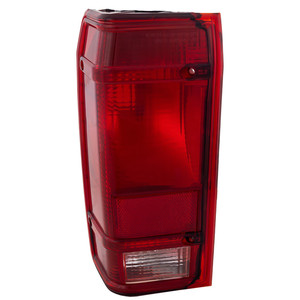

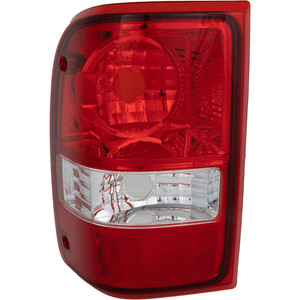

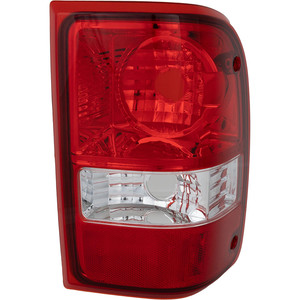

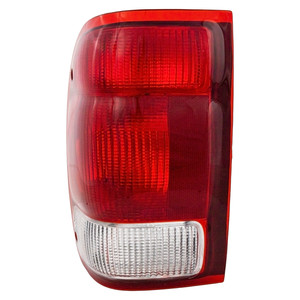

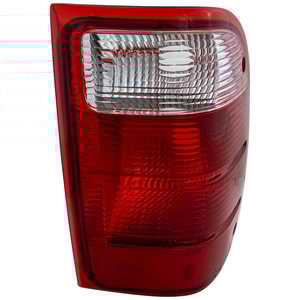

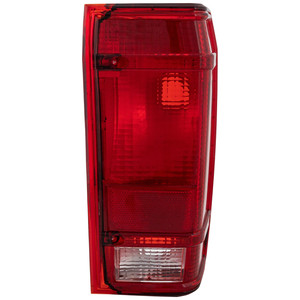

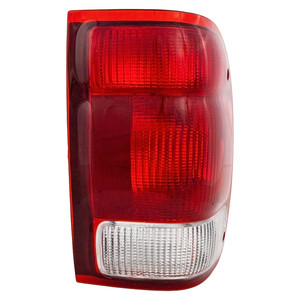

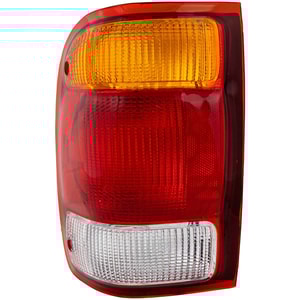

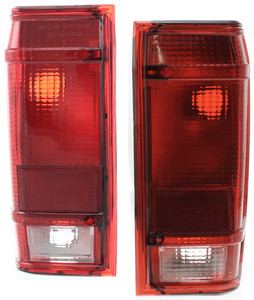

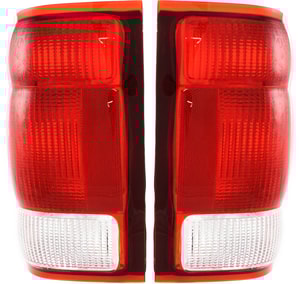

The tail light assembly on a Ford Ranger is a crucial component of the vehicle's lighting system, providing visibility to other drivers and indicating braking, turning, and reverse actions. Tail lights come in various designs, including halogen and LED configurations, and are available in different styles such as clear, smoked, and blacked-out lenses. Depending on the model year and trim, tail light assemblies may include additional features like Blind Spot Information System (BLIS) sensors. (GoRECON, RBD Industries)

Common Tail Light Issues(Ranger5G)

Over time, tail light assemblies can experience several issues: (Lakeland Ford Parts)

• Dim or non-functional bulbs: Often due to burnt-out bulbs or corroded sockets.
• Cracked or foggy lenses: Caused by impacts or prolonged exposure to the elements.
• Water intrusion: Leads to moisture inside the lens, affecting visibility and causing electrical issues.
• Electrical failures: Damaged wiring or connectors can result in malfunctioning lights. (ranger-forums.com)

Regular inspection and maintenance can help prevent these problems.

Tail Light Replacement and Installation

Replacing a tail light assembly on a Ford Ranger typically involves: (Ranger5G)

1. Removing the old assembly: This may require unscrewing bolts or removing clips.
2. Disconnecting the wiring harness: Ensure the vehicle is off before disconnecting.
3. Installing the new assembly: Connect the wiring harness and secure the assembly in place. (Ranger6G Forum, Ranger5G)

For detailed instructions, refer to the 1999-2011 Ford Ranger Tail Light Bulb Replacement Guide. (iFixit)

Aftermarket Tail Light Options(Ranger5G)

Aftermarket tail light assemblies offer customization and can include features like sequential turn signals and smoked lenses. However, compatibility varies by model year and trim. For instance, a user reported that aftermarket tail lights from Thailand and Australia did not fit their 2020 Ranger due to differences in shape, mounting points, and connectors. (eBay, Ranger5G)

Wiring and Electrical Considerations

Understanding the wiring is essential for installation and troubleshooting. For example, in a 2013 Ford Ranger, the tail light wiring loom includes: (Webflow)

• Black: Ground
• Green: Stop (brake)
• Red/Green Stripe: Tail light
• Green/Yellow Stripe: Indicator (turn signal)
• Red/Yellow Stripe: Reverse (Ranger5G, Webflow)

For more detailed wiring information, refer to the .

Frequently Asked Questions (FAQ)

Q: How do I know if my tail light assembly is compatible with my Ford Ranger?
A: Check the part number and ensure it matches your vehicle's model year and trim. For instance, the part number KB3Z-13405-J is compatible with 2019-2023 Ford Ranger models. (Lakeland Ford Parts, OEM Parts Online)

Q: Can I replace just the bulb, or do I need to replace the entire assembly?
A: If only the bulb is faulty, replacing it should suffice. However, if the lens is cracked or the assembly is damaged, replacing the entire unit is recommended. (iFixit)

Q: Are LED tail lights better than halogen?
A: LED tail lights are more energy-efficient, have a longer lifespan, and provide brighter illumination compared to halogen bulbs.

Q: How can I prevent moisture from entering my tail light assembly?
A: Ensure the assembly is properly sealed during installation and inspect for any cracks or damage to the lens.

Q: What tools do I need to replace a tail light assembly?
A: Common tools include a Phillips head screwdriver, safety gloves, and possibly a socket wrench, depending on your vehicle's design.

Q: Can I install aftermarket tail lights myself?
A: Yes, if you have basic automotive knowledge and the proper tools. However, ensure the aftermarket parts are compatible with your vehicle to avoid installation issues.

Additional Resources

• Ford Ranger Tail Light Wiring Identification
• How to Replace Tail Lights 1998-2011 Ford Ranger
• Tail Light Wiring Diagram 1998 Ranger 2.5

For visual guidance, consider watching the following video:

How to Replace Tail Lights 1998-2011 Ford Ranger
